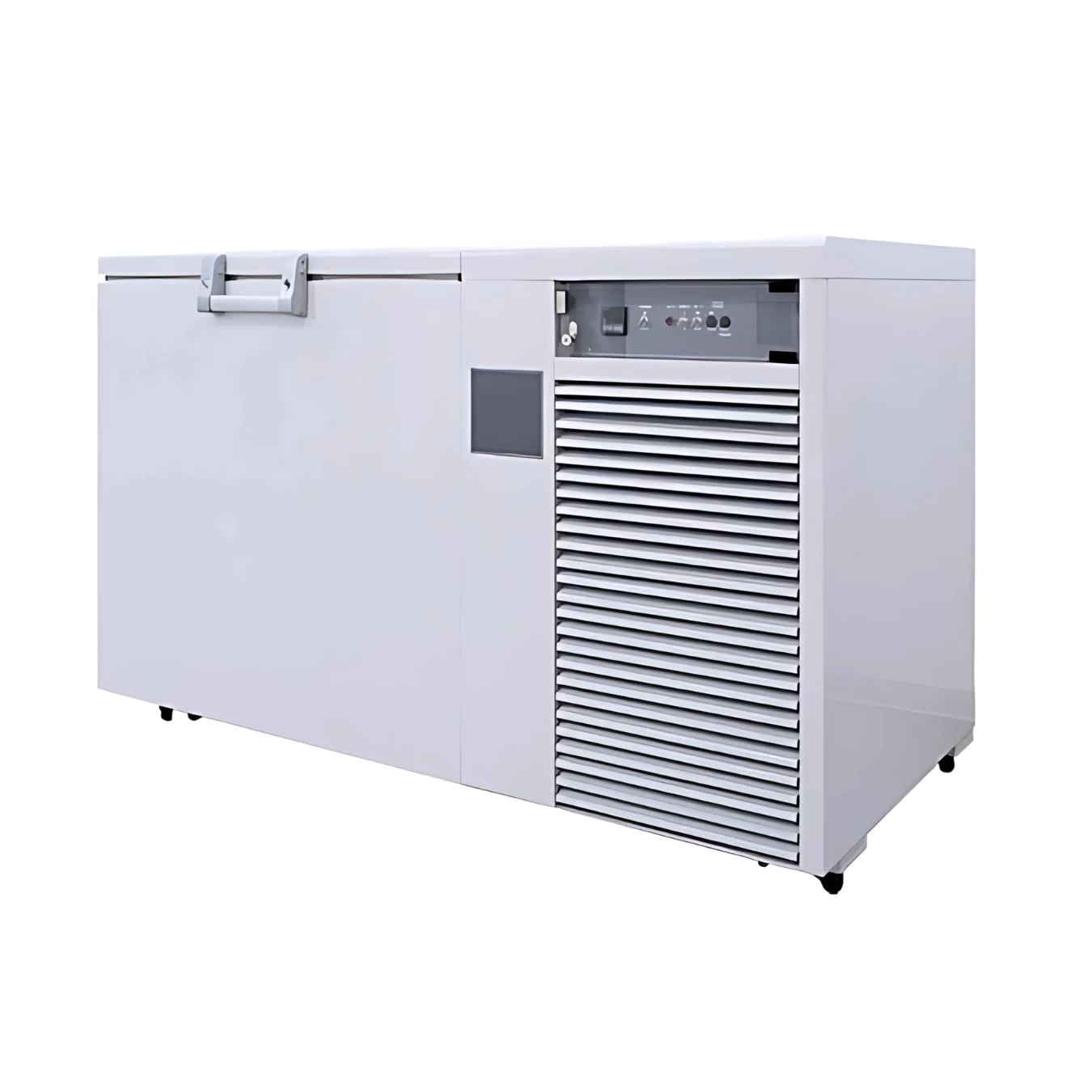

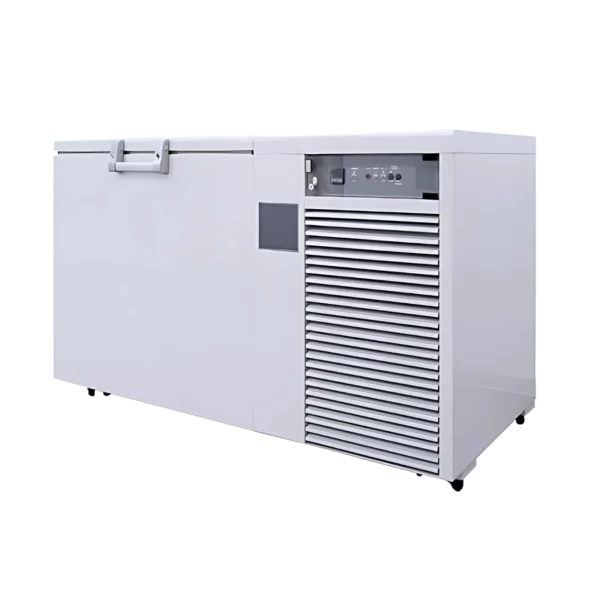

-150°C Cryogenic Freezers

The -150°C Cryogenic Freezers by Arctiko are essential for reliable low-temperature storage in any laboratory. Apex Scientific offers this advanced laboratory equipment in South Africa, designed with TRUE DUAL™ technology featuring two independent cooling systems for enhanced security. In the rare event of a cooling system failure, the backup system maintains temperatures at -130°C.

This freezer is ideal for preserving cells, DNA, and other sensitive materials, making it perfect for hospitals, university labs, and military applications. With low energy consumption and noise reduction features, the CRYO series is both efficient and discreet. Explore our range and learn more from our article, How to Select the Best Ultra-Low Freezer for Your Laboratory Needs.

The 150°C Cryogenic Freezers by Arctiko is an essential solution for reliable cryogenic storage in laboratories. Apex Scientific offers this advanced laboratory equipment in South Africa, tailored to meet the diverse needs of modern scientific research.



Superior Cooling Technology

This cryogenic freezer features TRUE DUAL™ technology, which consists of two independent cooling systems. This innovative design provides enhanced security; if one system fails, the other maintains temperatures at a stable -130°C. This redundancy ensures the integrity of your samples, offering peace of mind in critical research environments.



Versatile Storage Applications

The CRYO series is ideal for a wide range of research and long-term storage applications. It excels in preserving cells, DNA, bone material, and bacteria. With a spacious capacity, it accommodates various sample types and sizes, making it suitable for hospitals, university laboratories, military applications, and sanitation stations. Furthermore, the freezer supports special cryoboxes, such as 9×9 or 10×10, for efficient sample organization and handling.



Energy Efficient and Quiet Operation

Designed for low energy consumption, the CRYO Series is an eco-friendly option that reduces operational costs. Its noise reduction features ensure a quiet environment, making it an excellent choice for labs where sound levels must be kept minimal. The filter less construction not only lowers maintenance needs but also enhances the longevity of the unit.



Comprehensive Safety Features

The CRYO Series is equipped with an LED display that provides real-time monitoring of internal conditions. Visual and acoustic alarms alert users to critical issues, such as power failures or temperature fluctuations. Additionally, adjustable high/low temperature alarms ensure that you are always informed of your samples’ status. The vacuum release port allows for easy access while maintaining optimal conditions, and the locking mechanism enhances security.



User-Centric Design

This cryogenic freezer is designed with user convenience in mind. It features four castors for mobility, allowing for easy relocation within the lab. The unit also includes sub lids and inner doors, which improve accessibility and reduce the risk of temperature loss during sample retrieval. The stainless steel interior ensures durability and easy cleaning, while the painted steel exterior adds an aesthetic touch.

Accessories


Learn more about our products and check out our article on, How to Select the Best Ultra-Low Freezer for Your Laboratory Needs.

ModelCRYO 170CRYO 230
Item CodeDai 0197Dai 0198
Temperature Range (°C)-140 to -150 °C
Max. Ambient Temperature (°C)+30 °C
Capacity (L)171233
Exterior Dimensions WxDxH (mm)1580 X 962 / 1137,5* X 10901760 X 962,5 / 1137,5* X 1090
Interior Dimensions WxDxH (mm)500 X 500 X 685680 X 500 X 685
Weight (KG)374391
Insulation (mm)170
Cooling TechnologyDual System / Static Cooling
Controller Model / Probe TypeTtm-004 / Pt100
Power Supply (V)3 X 400
Frequency (Hz)50
Power Consumption (KWH/24H)31.733.5
AMP (A)4.84.7
Power (Watt)19292021
Horse Power (HP)2 x 1.52 x 11/2



Controller Specifications

Alarm Display As Text – Not CodesNo
Visual / Acoustic AlarmYes / Yes
Power Failure AlarmYes
Adjustable High/Low Temperature AlarmYes / Yes
Open Door AlarmNo
Probe Failure AlarmYes
Low Battery AlarmNo
Compressor Failure AlarmYes
Voltage Free Contact For Remote Alarm (E.G. GSM Alarm Module)Yes
Electronic Data LoggerNo
RS 485 PortNo
USB Port For Software Update & Data DownloadNo
Temperature Chart RecorderOptional
Display TypeLED Display
Number Of Optional Reference ProbesN/A
Password Protection for Turning On/OffNo
Temperature Graph on DisplayNo



Other Features

Automatic DefrostNo
Antifreeze FunctionNo
Vacuum Release PortYes
Access Port For External Probe Etc. (Int. Diameter mm)Yes (20)
LightNo
Lock With KeyYes
Castors (Total Pcs) / Castors With Brake (Pcs)3 / 31
Fixed Feet (Pcs) / Levelling Feet (Pcs)0 / 2
Sub Lids Or Inner Doors (Pcs)12
Reversible Doors (Pcs)No
Fixed Shelves (Pcs) / Adjustable Shelves (Pcs)No
Max. No. Of Shelves (Pcs) / Recommended Max. No. Of Shelves (Pcs)No
Max Load Per Shelf (Kg)No
Adjustable Drawers (Pcs)No
Max. No. Of Adjustable Drawers (Pcs)No
Max. Load Per Adjustable Drawer (Kg)No
Max. No. Of Blood Bags – By Standard No. Of Adj. Drawers (Pcs)No
Max. No. Of Blood Bags – By Max. No. Of Adj. Drawers (Pcs)No
Basket (Pcs)No
Max. No. Of Baskets (Pcs)No
Max. Load Per Basket (Kg)No
Total Capacity Of 50 Mm Boxes 9×9 Dividers (Pcs)108144
Total Capacity Of 75 Mm Boxes 9×9 Dividers (Pcs)7296
Total Capacity Of 96 Mm Boxes 9×9 Dividers (Pcs)4572
SKUDescription
DAI 0197CRYO 170 Cryogenic freezer, 169L
DAI 0198CRYO 230 Cryogenic freezer, 230L
DAI 0922LN2 back-up system. excl. cylinder with LN2



Steel Chest Rack

SKUDescription
CFC-12-2-CStainless Steel Chest Rack – 12 x 2″ Cryoboxes (81 or 100 place)
SKUDescriptionRack SKUMax QtyTotal 2″ boxes
CFR50-12Chest front racks for 50mm Cryo boxes,
12 boxes per rack
CRYO 1709108
CFR50-12Chest front racks for 50mm Cryo boxes,
12 boxes per rack
CRYO 23012144

Product Data Sheet CRY0 170

Product Data Sheet CRYO 230

Operating Manual – Cryo 170/230
