Top-loading Benchtop Medical Autoclave without drying (15L) – AES-12-MD
Features
- Sterilization chamber made of AISI-316L stainless steel. External housing made of AISI-304 stainless steel.
- Equipment controlled by digital PID microprocessor, with 4 predefined and 6 editable programs, adjustable by time and temperature.
- Alphanumeric LCD screen that shows sterilization parameters, alerts and errors.
- RS-232 port to connect PC or printer.
- Manual filling of the sterilization chamber with water.
- Protecting grid for the heater element.

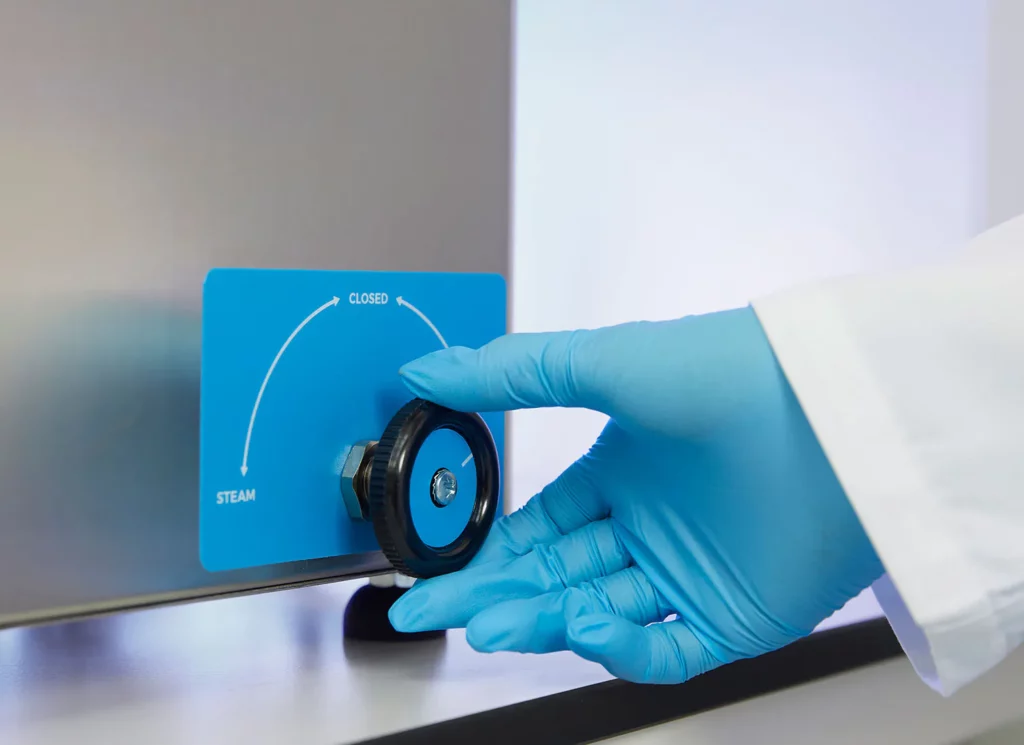

- Manual steam release push-button.
- Manual valve to drain.
- Cycle time range: 1-250 minutes.
Advantages
- Agar mode (40 to 80 ºC) and programs for liquids.
- Optional heart probe.
- Inlet in chamber for an external validation probe.
- Programmable auto-start (24 h).
- Connection to PC.
- Optional control software.
- Optional integrated or external printers.
Safety
- Safety valve and thermostat.
- Hydraulic lid blocking system while positive pressure exists in the chamber.
- Open lid sensor.
Components supplied
- Stainless steel wire basket (CV-12).
Technical Specifications
| model | AES-12-MD | |||
|---|---|---|---|---|
| Chamber Volume total / usable | 15/13 L | |||
| Usable chamber dimensions Ø x H | 250 x 280 mm | |||
| External dimensions L x D x H | 490 x 475 x 630 mm | |||
| Temperature | 100 – 134 ºC | |||
| Maximum pressure | 2‚1 barg | |||
| Power | 1000 W | |||
| Gross weight | 35 Kg | |||
| Voltage * | 230 V | |||
| Frequency | 50/60 Hz |
* Ask for other voltages
