C1200 Variable Frequency Series Diaphragm Pumps

C1200 variable frequency series diaphragm pumps from Wiggens offer efficient vacuum performance for laboratory applications involving aggressive gases and vapors. Designed for precision and durability, this chemical-resistant equipment is ideal for scientific environments in South Africa, providing reliable operation across a range of model configurations. Each unit is built with corrosion-resistant components, low noise levels, and flexible vacuum control options to meet diverse laboratory demands.

Available exclusively from Apex Scientific, these pumps combine advanced features with long-term reliability for modern laboratories. Learn more about available configurations by visiting our Insights page or explore our full range to find the model best suited to your lab.

Brochure
Enquire

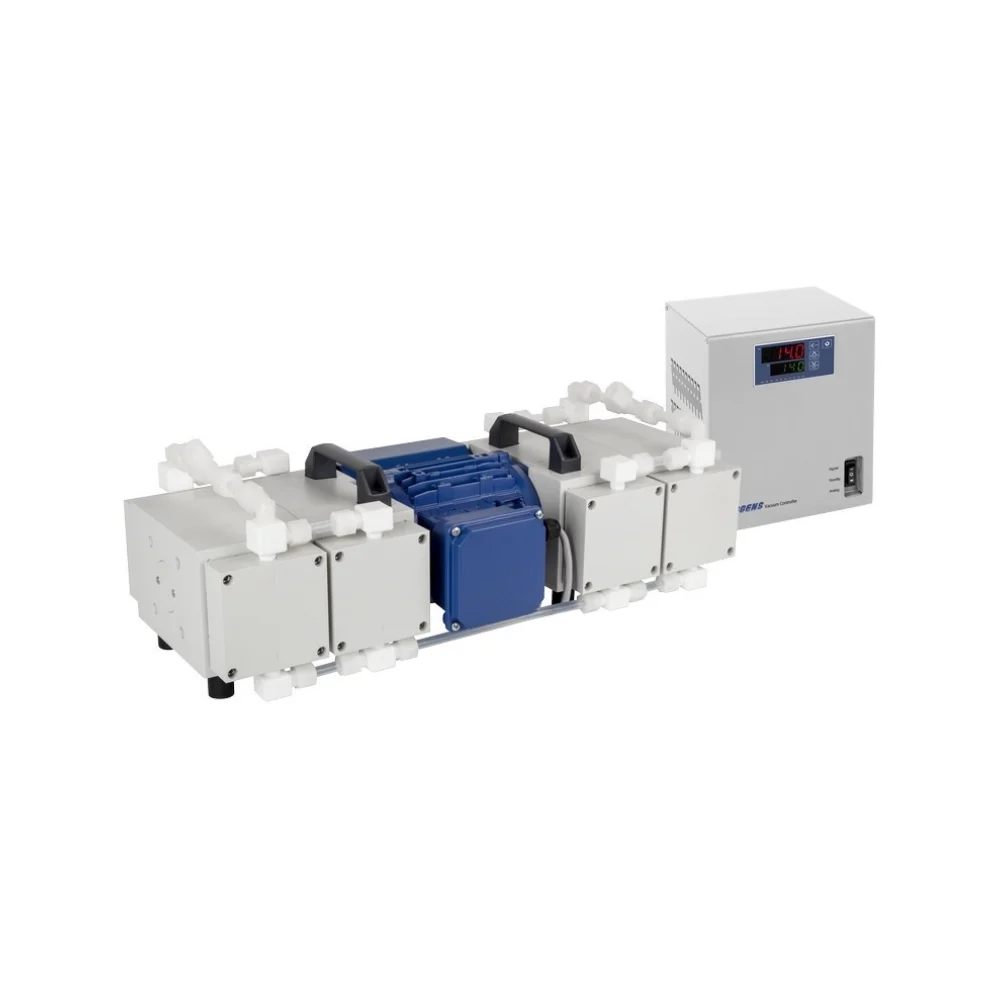

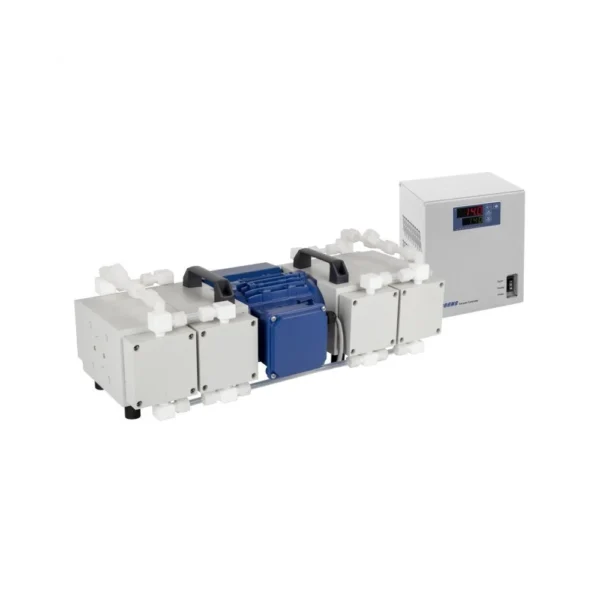

C1200 Variable Frequency Series

C1200 Variable Frequency Series – Advanced Vacuum Pump Solutions for Scientific Laboratories

The C1200 variable frequency series from Wiggens delivers robust and adaptable vacuum solutions for laboratories handling aggressive gases and vapors. Designed with chemical-resistant materials, these advanced diaphragm pumps ensure consistent performance and precise control. They are ideal for research and industrial settings across South Africa.



Precision and Durability for Laboratory Use

It combines chemical resistance with efficiency. Its corrosion-resistant components support compatibility with harsh chemicals, while the variable frequency motor allows energy-saving speed adjustments. Additionally, the pumps operate quietly, include overheat protection, and are easy to maintain—making them dependable laboratory equipment for daily use.



Enhanced Control and Application Flexibility

Thanks to variable frequency functionality, users can control the vacuum via a manual valve, vacuum controller, or variable frequency controller. This flexibility supports diverse lab tasks such as filtration, drying, and solvent removal. As a result, scientists can tailor performance based on their specific process needs.



Model Options to Suit Your Lab

The C1200 variable frequency offers several models with different flow rates and features, ensuring seamless integration into a variety of laboratory workflows. Supplied in South Africa by Apex Scientific, these pumps represent a trusted solution for high-performance laboratory equipment.

To explore our full range and see which model best fits your needs, visit our Insights page.

ModelC2000EEFC2000TEFC2000VEFC1450TEF
Order No.W1032011W1032012W10320131691450C
Flow rate [m3 /h] at atm. pressure16.212.69.6–
Flow rate [l/min] at atm. pressure270210160145
Ultimate vacuum [mbar abs.]＜ 70＜ 2＜ 1＜8
Max. Power P [W]750750750600
Motor speed [rpm]0~13800~13800~13800~1400
Pump headSingle stageTriple stageQuadruple stageTriple stage
Hose connections of inletKF25KF25KF2510mm
Hose connections of outletG1/2G1/2G1/2G1/2
Noise [dB]60606065
Dimensions W x D x H [mm]615×285×386615×285×386615×285×386635×280×200
Weight [kg]41414136.5
Power supply200 – 240V, 50/60Hz200 – 240V, 50/60Hz200 – 240V, 50/60Hz200 – 240V, 50/60Hz
SKUDescription
W1032011Wiggens C2000EEF, Frequency Conversion Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <70 mbar; Max. Flow Rate: 270 L/min
W1032012Wiggens C2000TEF, Frequency Conversion Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <2 mbar; Max. Flow Rate: 210 L/min
W1032013Wiggens C2000VEF, Frequency Conversion Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <1 mbar; Max. Flow Rate: 160 L/min
1691450CWiggens C1450TEF, Frequency Conversion Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <8 mbar; Max. Flow Rate: 145 L/min



Accessories

SKUDescription
C410015PTFE Connector – Diameter: 10mm, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410055PTFE Adapter – KF25 to Screw thread, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410056PTFE Adapter – Barbed fitting for tubing 12mm ID, KF25, suitable for C1200 / 2000 series
C410057PTFE Adapter – Barbed fitting for tubing 19mm ID, KF25, suitable for C1200 / 2000 series
C410058PTFE Adapter – Barbed fitting for tubing 25mm ID, KF25, suitable for C1200 / 2000 series
C900E030Silencer – Suitable for chemical resistant diaphragm pumps
410001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C300/400/410
510001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C510/600/610/900E/920Z/960T/980V
1200001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 420
1200002Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 520/602
1200003Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C1200 series
1200004Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C2000 series
C410005Diaphragm – applicable for C300/400/410, 1/pk
C510011Diaphragm – applicable for C510/600/610/900E/920Z/960T/980V, 1/pk
C510013Valve Plate – applicable for C300/400/410/510/600/610/900E/920Z/960T/980V, 1/pk
C2000005Diaphragm – applicable for C420, 1/pk
C2000006Diaphragm – applicable for C520/602, 1/pk
C2000013Valve Plate – applicable for C320/420/402/520/602, 1/pk
169311-06Chemical Resistant Vacuum Regulator / Filter – Incl. Vacuum gauge, filter, filter cartridge and vacuum regulator, chemical resistant
SXC202Adaptor for 169311-06 – Used for 169311-06, for C300
SXC203Adaptor for 169311-06 – Used for 169311-06, for C400/C600/A510
169312-06Chemical Resistant Vacuum Regulator / Filter – Includes Vacuum digital meter, trap and regulator
169313-06Chemical Resistant Vacuum Regulator – Basic model without vacuum gauge, includes vacuum trap and regulator
169314-06Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller DVR480
15060-01DVM150C – Digital Vacuum Meter for chemical resistant diaphragm pumps
BJFL005Connector for DVM150C – Connector with regulator and filter set, suitable for chemical resistant diaphragm pumps using digital vacuum meter, includes pressure regulating valve and Filter
016.1706.01PTFE Tube – Outer diameter: 6mm, Inner diameter: 4mm, Thickness: 1mm, Length: 1m
016.1708.01PTFE Tube – Outer diameter: 8mm, Inner diameter: 6mm, Thickness: 1mm, Length: 1m
016.1712.01PTFE Tube – Outer diameter: 12mm, Inner diameter: 10mm, Thickness: 1mm, Length: 1m
016.1714.01PTFE Tube – Outer diameter: 14mm, Inner diameter: 12mm, Thickness: 1mm, Length: 1m
016.1716.01PTFE Tube – Outer diameter: 20mm, Inner diameter: 18mm, Thickness: 1mm, Length: 1m
016.1718.01PTFE Tube – Outer diameter: 28mm, Inner diameter: 25mm, Thickness: 1.5mm, Length: 1m
168000-01Viton Tube – Outer diameter: 12mm, Inner diameter: 6mm, Thickness: 3mm, Length: 1m
168001-01Viton Tube – Outer diameter: 14mm, Inner diameter: 8mm, Thickness: 3mm, Length: 1m
168002-01Viton Tube – Outer diameter: 16mm, Inner diameter: 10mm, Thickness: 3mm, Length: 1m
168003-01Viton Tube – Outer diameter: 18mm, Inner diameter: 12mm, Thickness: 3mm, Length: 1m
168006-01Viton Tube – Outer diameter: 22mm, Inner diameter: 16mm, Thickness: 3mm, Length: 1m
168004-01Viton Tube – Outer diameter: 25mm, Inner diameter: 19mm, Thickness: 3mm, Length: 1m
168005-01Viton Tube – Outer diameter: 31mm, Inner diameter: 25mm, Thickness: 3mm, Length: 1m
016.902.5.2Straight Through Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.902.2Straight Through Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.903.7.2Straight Through Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.903.2Straight Through Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.904.9.2Straight Through Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.904.2Straight Through Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.905.2Straight Through Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.907.2Straight Through Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1002.5.2L-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1002.2L-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1003.7.2L-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1003.2L-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1004.9.2L-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1004.2L-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1005.2L-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1006.2L-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1102.5.2T-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1102.2T-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1103.7.2T-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1103.2T-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1104.9.2T-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1104.2T-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1105.2T-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1106.2T-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1112.5.24-Way Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1112.24-Way Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1113.7.24-Way Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1113.24-Way Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1114.9.24-Way Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1114.24-Way Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1115.24-Way Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1116.24-Way Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.702.5.2Straight Through Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.702.2Straight Through Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.703.7.2Straight Through Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.703.2Straight Through Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.704.9.2Straight Through Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.704.2Straight Through Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.705.2Straight Through Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.706.2Straight Through Bayonet – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1202.6.2Straight Through Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1203.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1204.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 4mm
016.802.5.2T-Shape Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.802.2T-Shape Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.803.7.2T-Shape Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.803.2T-Shape Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.804.9.2T-Shape Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.804.2T-Shape Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.805.2T-Shape Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1302.6.2T-Shape Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1303.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1304.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 4mm
900414-1DVR480 – Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller
900414-2DVR480 Pro – Chemical Resistant Vacuum Controller, accuracy:0.1%
900580DVR580 – Chemical Resistant Vacuum Controller, accuracy:0.25%FS

Product Enquiry Handbook: Vacuum Pumps

Operating Manual – DVR480 / DVR480Pro

Datasheet for DVR480 / DVR480Pro
