C900 Variable Frequency Series – Diaphragm Pump

C900 variable frequency series pumps from Wiggens are advanced chemical resistant diaphragm pumps designed for precise vacuum control in demanding laboratory environments. Available from Apex Scientific in South Africa, this laboratory equipment range combines chemically resistant PTFE construction with frequency conversion technology for stable vacuum performance and faster pumping speeds.

Multiple model configurations ensure compatibility with specific lab requirements while maintaining consistent efficiency and durability. Explore our full range and see which model best suits your lab needs through Apex Scientific’s expert support and guidance.

Brochure
Enquire

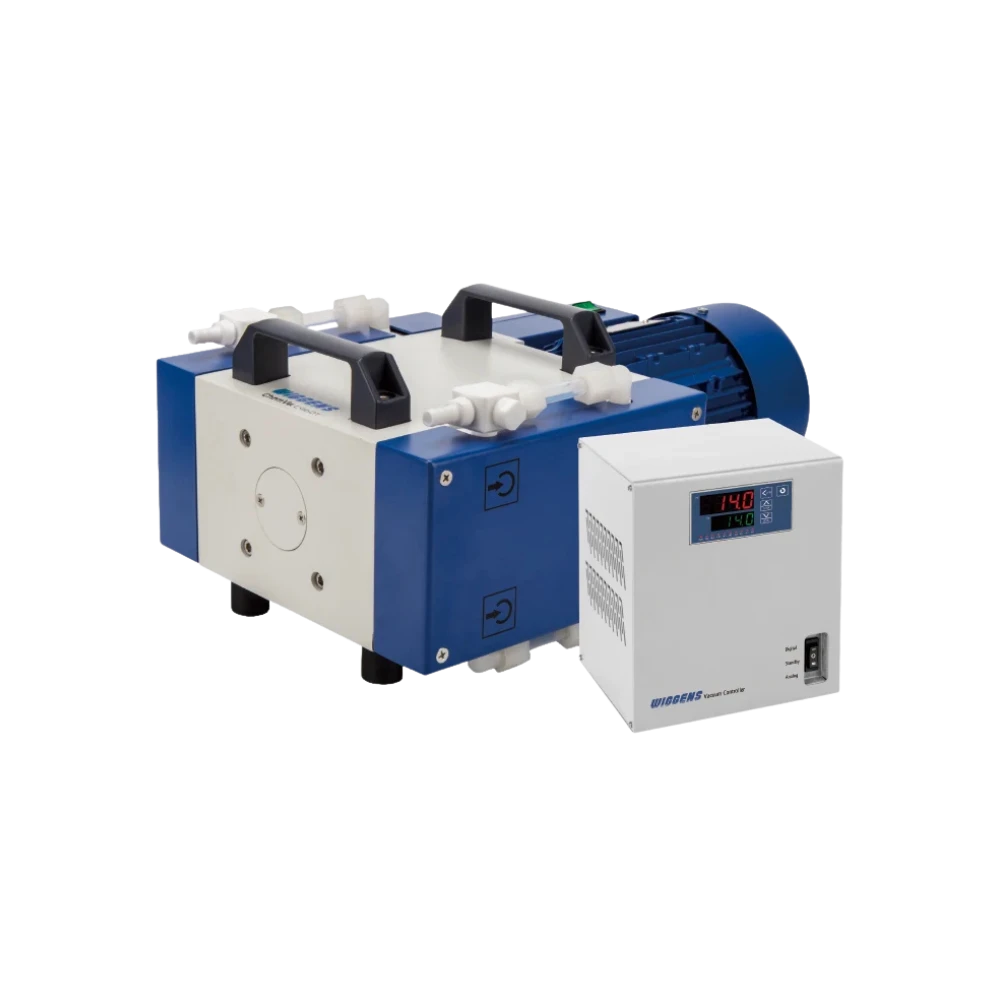

C900 Variable Frequency Series

The C900 Variable Frequency Series by Wiggens delivers advanced chemical-resistant diaphragm pumps for aggressive gas and vapor handling in demanding laboratory settings. Distributed in South Africa by Apex Scientific, this high-performance equipment line includes four models—C900EF, C920ZF, C960TF, and C980VF—built for large-capacity vacuum applications like distillation, filtration, drying, and semiconductor processing.



Precision Vacuum Control

Each pump pairs with a variable frequency controller to adjust motor speed, enabling faster pumping and a stable vacuum. The series supports flow rates up to 95 L/min and achieves vacuum levels as low as 1 mbar—ideal for large-volume distillation, enrichment, and reactor systems.



Durable Chemical Resistance

Wetted parts use high-grade PTFE or PTFE-coated materials for long-term resistance to corrosive media. These pumps ensure high-purity operation with low contamination risk in harsh chemical processes.



Low-Noise, Safe, and Easy to Maintain

With a quiet, low-vibration design, these pumps suit sensitive **laboratory** environments. Overheat protection automatically halts and restarts operation if needed. Maintenance is simple, keeping downtime to a minimum.



Flexible Model Options

Each model offers unique performance while preserving the Wiggens oil-free and durable design. Whether you’re in pharmaceuticals, semiconductors, or chemical processing, you can achieve reliable vacuum control with minimal upkeep.

Explore our full range of C900 Variable Frequency Series pumps or visit the Apex Scientific Insights page to discover the best fit for your South African laboratory needs.

ModelC900EFC920ZFC960TFC980VF
Order No. (W/O frequency controller)169900B169920B169960B169980B
Order No. (W/ frequency controller)169901B169921B169961B169981B
Flow rate [m3 /h] at atm. pressure5.74.53.62.4
Flow rate [L/min] at atm. pressure95756040
Ultimate vacuum [mbar abs.]＜ 30＜8＜2＜1
Max. Power P [W]370370370370
Motor speed [rpm]0~1380/0~16800~1380/0~16800~1380/0~16800~1380/0~1680
Pump headSingle stageDouble stageTriple stageQuadruple stage
Hose connections [mm]10101010
Noise [dB]50505050
Dimensions W x D x H [mm]440×270×240440×270×240440×270×240440×270×240
Weight [kg]21.521.521.521.5
Variable frequency vacuum controllerOrder separatelyOrder separatelyOrder separatelyOrder separately
Power supply200 – 240V, 50/60Hz200 – 240V, 50/60Hz200 – 240V, 50/60Hz200 – 240V, 50/60Hz
SKUDescription
169900BWiggens C900EF, Frequency Conversion Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <30 mbar; Max. Flow Rate: 95 L/min
169920BWiggens C920ZF, Frequency Conversion Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <8 mbar; Max. Flow Rate: 75 L/min
169960BWiggens C960TF, Frequency Conversion Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <2 mbar; Max. Flow Rate: 60 L/min
169980BWiggens C980VF, Frequency Conversion Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <1 mbar; Max. Flow Rate: 40 L/min
169901BWiggens C900EF, Frequency Conversion Chemical Resistant Diaphragm Pumps – C900EF with separate controller
169921BWiggens C920ZF, Frequency Conversion Chemical Resistant Diaphragm Pumps – C900EF with separate controller
169961BWiggens C960TF, Frequency Conversion Chemical Resistant Diaphragm Pumps – C900EF with separate controller
169981BWiggens C980VF, Frequency Conversion Chemical Resistant Diaphragm Pumps – C900EF with separate controller



Accessories

SKUDescription
C410015PTFE Connector – Diameter: 10mm, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410055PTFE Adapter – KF25 to Screw thread, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410056PTFE Adapter – Barbed fitting for tubing 12mm ID, KF25, suitable for C1200 / 2000 series
C410057PTFE Adapter – Barbed fitting for tubing 19mm ID, KF25, suitable for C1200 / 2000 series
C410058PTFE Adapter – Barbed fitting for tubing 25mm ID, KF25, suitable for C1200 / 2000 series
C900E030Silencer – Suitable for chemical resistant diaphragm pumps
410001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C300/400/410
510001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C510/600/610/900E/920Z/960T/980V
1200001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 420
1200002Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 520/602
1200003Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C1200 series
1200004Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C2000 series
C410005Diaphragm – applicable for C300/400/410, 1/pk
C510011Diaphragm – applicable for C510/600/610/900E/920Z/960T/980V, 1/pk
C510013Valve Plate – applicable for C300/400/410/510/600/610/900E/920Z/960T/980V, 1/pk
C2000005Diaphragm – applicable for C420, 1/pk
C2000006Diaphragm – applicable for C520/602, 1/pk
C2000013Valve Plate – applicable for C320/420/402/520/602, 1/pk
169311-06Chemical Resistant Vacuum Regulator / Filter – Incl. Vacuum gauge, filter, filter cartridge and vacuum regulator, chemical resistant
SXC202Adaptor for 169311-06 – Used for 169311-06, for C300
SXC203Adaptor for 169311-06 – Used for 169311-06, for C400/C600/A510
169312-06Chemical Resistant Vacuum Regulator / Filter – Includes Vacuum digital meter, trap and regulator
169313-06Chemical Resistant Vacuum Regulator – Basic model without vacuum gauge, includes vacuum trap and regulator
169314-06Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller DVR480
15060-01DVM150C – Digital Vacuum Meter for chemical resistant diaphragm pumps
BJFL005Connector for DVM150C – Connector with regulator and filter set, suitable for chemical resistant diaphragm pumps using digital vacuum meter, includes pressure regulating valve and Filter
016.1706.01PTFE Tube – Outer diameter: 6mm, Inner diameter: 4mm, Thickness: 1mm, Length: 1m
016.1708.01PTFE Tube – Outer diameter: 8mm, Inner diameter: 6mm, Thickness: 1mm, Length: 1m
016.1712.01PTFE Tube – Outer diameter: 12mm, Inner diameter: 10mm, Thickness: 1mm, Length: 1m
016.1714.01PTFE Tube – Outer diameter: 14mm, Inner diameter: 12mm, Thickness: 1mm, Length: 1m
016.1716.01PTFE Tube – Outer diameter: 20mm, Inner diameter: 18mm, Thickness: 1mm, Length: 1m
016.1718.01PTFE Tube – Outer diameter: 28mm, Inner diameter: 25mm, Thickness: 1.5mm, Length: 1m
168000-01Viton Tube – Outer diameter: 12mm, Inner diameter: 6mm, Thickness: 3mm, Length: 1m
168001-01Viton Tube – Outer diameter: 14mm, Inner diameter: 8mm, Thickness: 3mm, Length: 1m
168002-01Viton Tube – Outer diameter: 16mm, Inner diameter: 10mm, Thickness: 3mm, Length: 1m
168003-01Viton Tube – Outer diameter: 18mm, Inner diameter: 12mm, Thickness: 3mm, Length: 1m
168006-01Viton Tube – Outer diameter: 22mm, Inner diameter: 16mm, Thickness: 3mm, Length: 1m
168004-01Viton Tube – Outer diameter: 25mm, Inner diameter: 19mm, Thickness: 3mm, Length: 1m
168005-01Viton Tube – Outer diameter: 31mm, Inner diameter: 25mm, Thickness: 3mm, Length: 1m
016.902.5.2Straight Through Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.902.2Straight Through Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.903.7.2Straight Through Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.903.2Straight Through Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.904.9.2Straight Through Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.904.2Straight Through Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.905.2Straight Through Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.907.2Straight Through Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1002.5.2L-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1002.2L-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1003.7.2L-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1003.2L-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1004.9.2L-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1004.2L-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1005.2L-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1006.2L-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1102.5.2T-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1102.2T-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1103.7.2T-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1103.2T-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1104.9.2T-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1104.2T-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1105.2T-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1106.2T-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1112.5.24-Way Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1112.24-Way Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1113.7.24-Way Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1113.24-Way Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1114.9.24-Way Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1114.24-Way Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1115.24-Way Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1116.24-Way Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.702.5.2Straight Through Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.702.2Straight Through Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.703.7.2Straight Through Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.703.2Straight Through Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.704.9.2Straight Through Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.704.2Straight Through Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.705.2Straight Through Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.706.2Straight Through Bayonet – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1202.6.2Straight Through Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1203.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1204.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 4mm
016.802.5.2T-Shape Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.802.2T-Shape Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.803.7.2T-Shape Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.803.2T-Shape Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.804.9.2T-Shape Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.804.2T-Shape Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.805.2T-Shape Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1302.6.2T-Shape Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1303.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1304.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 4mm
900414-1DVR480 – Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller
900414-2DVR480 Pro – Chemical Resistant Vacuum Controller, accuracy:0.1%
900580DVR580 – Chemical Resistant Vacuum Controller, accuracy:0.25%FS

Product Enquiry Handbook: Vacuum Pumps

Operating Manual – DVR480 / DVR480Pro

Datasheet for DVR480 / DVR480Pro
