Combined Flammable and Chemicals Storage Cabinet – KEMFIRE Series

Combined Flammable and Chemicals Storage Cabinet – KEMFIRE Series by Labor Security Systems provides certified dual-compartment storage for flammables and corrosive acid and base substances. Designed for maximum fire safety, these units comply with EN14470-1 and SANS 54470-1 standards, making them ideal for any laboratory in South Africa.

Backed by Apex Scientific, this advanced equipment offers secure, compliant chemical storage and comes with a lifetime guarantee for added peace of mind. Explore our range to enhance safety in your lab environment.

Brochure
Enquire

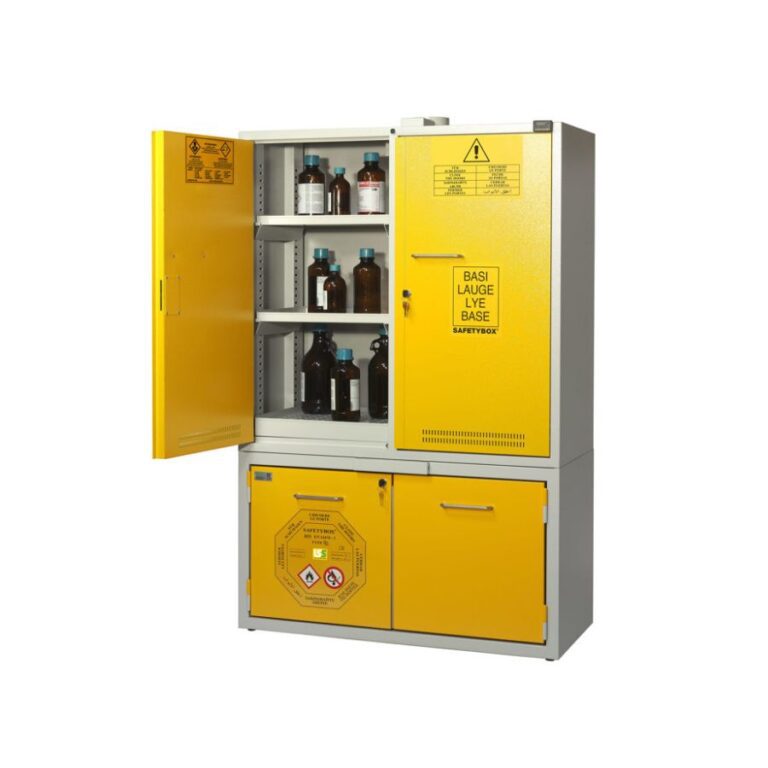

Cabinet for Flammables + Chemicals, Acids and Bases - KEMFIRE 1100 A TYPE A

Combined Flammable and Chemicals Storage Cabinet – KEMFIRE Series

The Combined Flammable and Chemicals Storage Cabinet – KEMFIRE Series by Labor Security Systems delivers a robust, certified solution for storing flammables, corrosive substances, acids, and bases in laboratory environments across South Africa. These cabinets meet EN 14470-1, SANS 54470-1, and other European safety standards—making them suitable for both research and industrial use. Each cabinet is backed by a lifetime guarantee, ensuring reliable safety and long-term peace of mind.



Certified Dual-Purpose Safety Design

The KEMFIRE Series features a dual-compartment layout that separates flammable materials from corrosive chemicals. Available models include undercounter units like the 1000/50, 1200/50, 1500/50, and 1700/50 (Types A–E), as well as tall cabinets like the 600 A and 1100 A.

Each cabinet is built with electrogalvanized steel and coated in acid-resistant epoxy. The monolithic, double-walled structure includes fireproof insulation, self-closing doors, and intumescent gaskets that expand in high temperatures—sealing the internal compartments during a fire.



Safe Storage for Acids, Bases, and Flammables

Each cabinet includes:

  • Chemical compartment: Fitted with tray-style, height-adjustable shelves, a watertight base tray, and an optional Carbox® activated charcoal filter. The Cunctator® alert system indicates when replacement is needed. These components protect users from vapours while safely storing acids and bases.
  • Flammable compartment: Contains fire-tested insulation, Ignis-lock® fire-activated locks, inflatable heat-sealing gaskets, and internal ventilation with two certified safety valves. These features meet EN 14470-1 requirements for vapour management and fire containment.



Moreover, the self-closing doors activate at temperatures above 50 °C, providing passive fire safety—no electrical power required.



Engineered for Daily Lab Use

Designed with scientific professionals in mind, the KEMFIRE cabinets include:

  • Grounding to prevent static discharge
  • Anti-spark hinges and secure, lockable doors
  • Levelling feet for stability on uneven floors
  • Certified safety labels for fire and chemical hazards

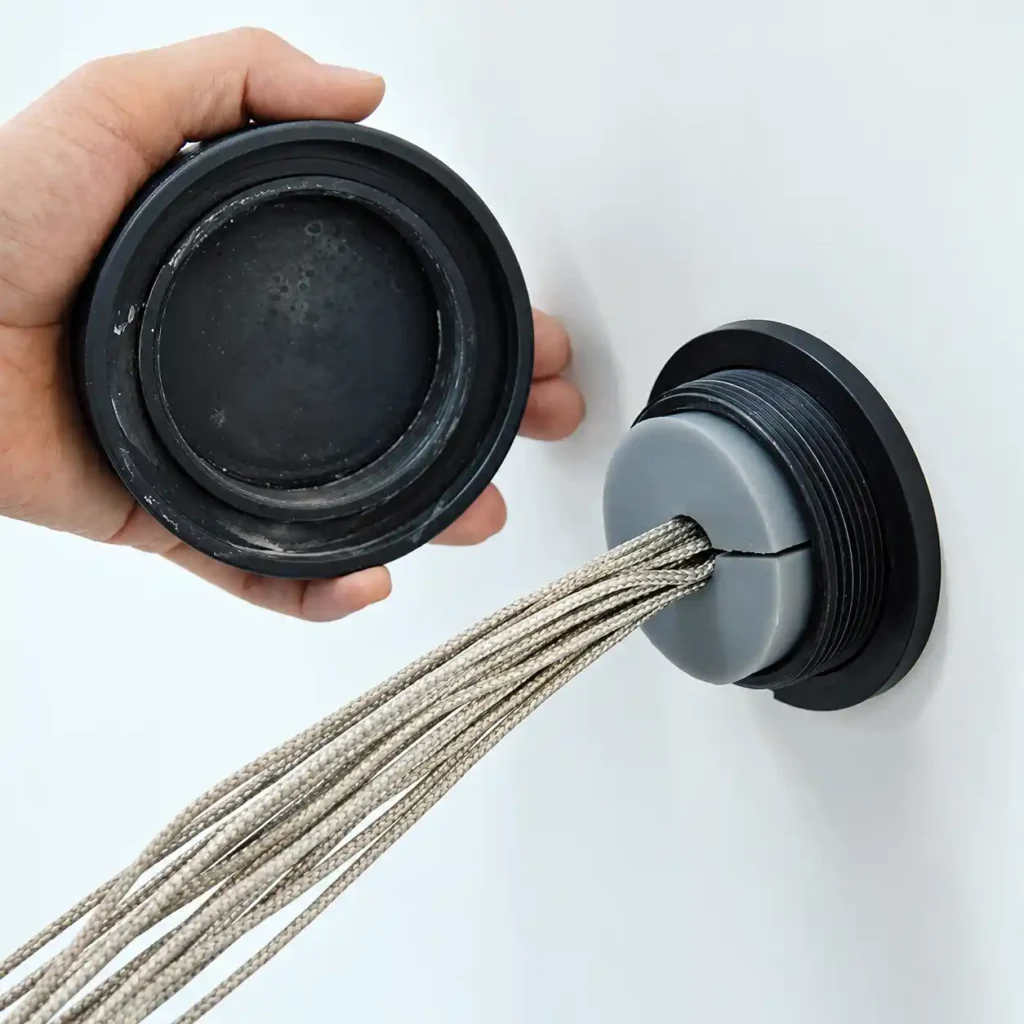

Cable Port
Cable Port · Both cap and silicone plug are included as standard in Ø50 mm cable port. · It is available to add Ø50 mm, Ø80 mm.

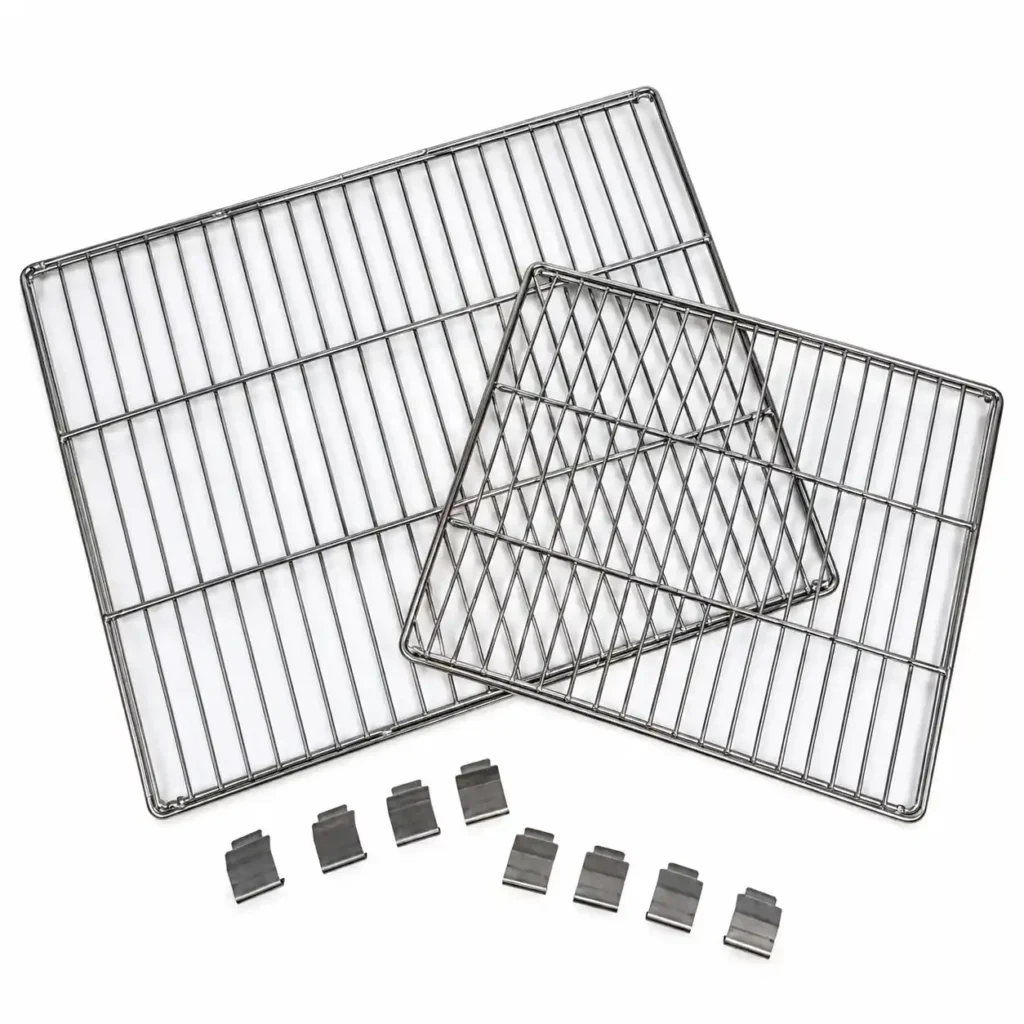

Wire Shelf
Wire Shelf · Excellent ventilation structure. · Stainless steel. · Includes 2ea as standard.

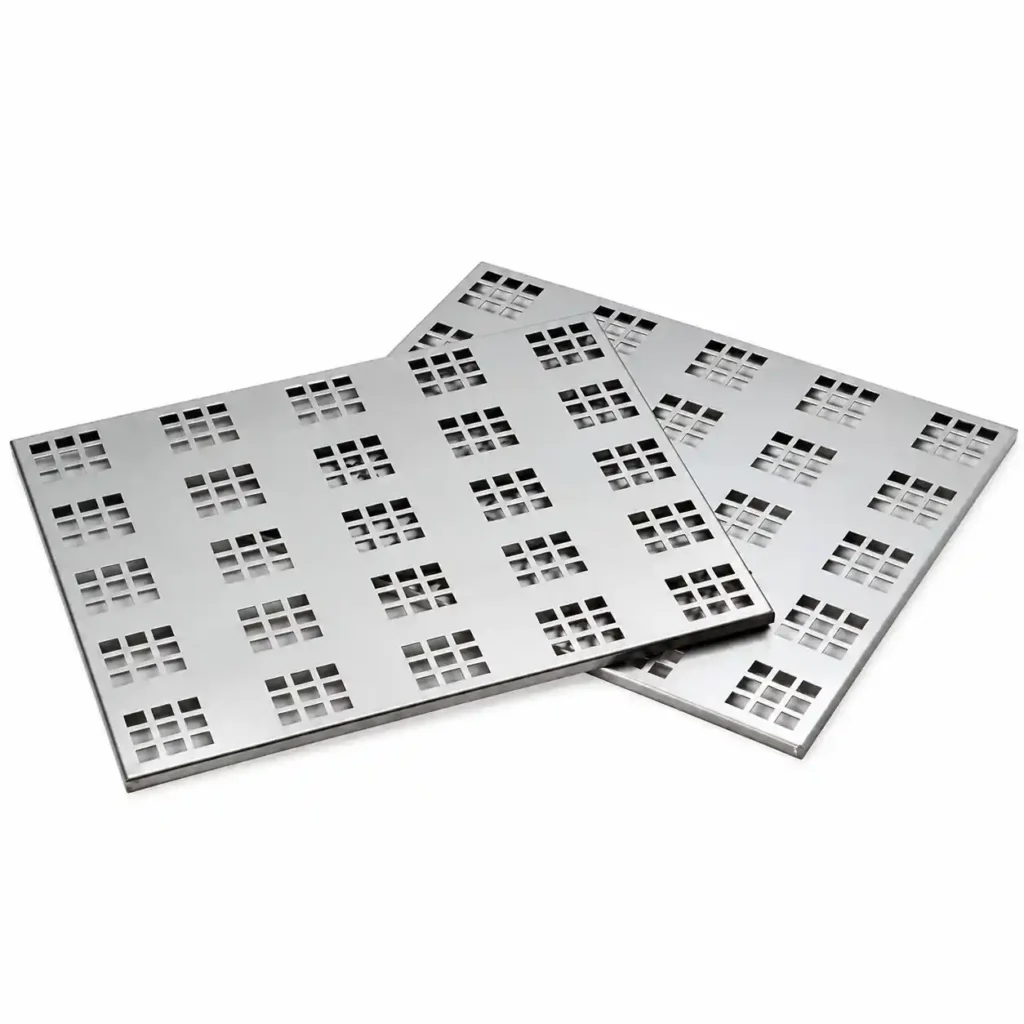

Perforated Shelf
Perforated Shelf · Suitable for high-load samples. · Excellent maintenance as made of stainless steel.

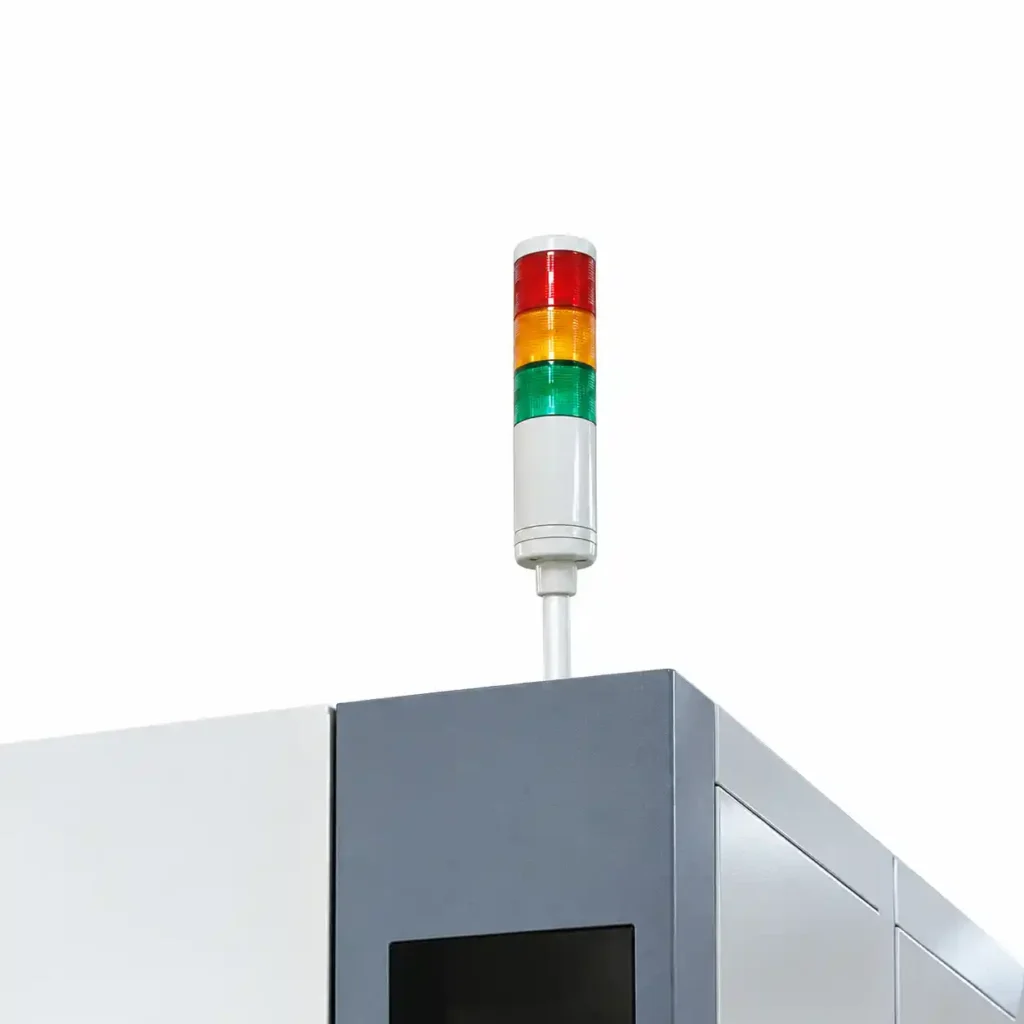

Signal Lamp
Signal Lamp · Figuring out equipment status remotely. · Run/Stand-by/Error displayed by color.

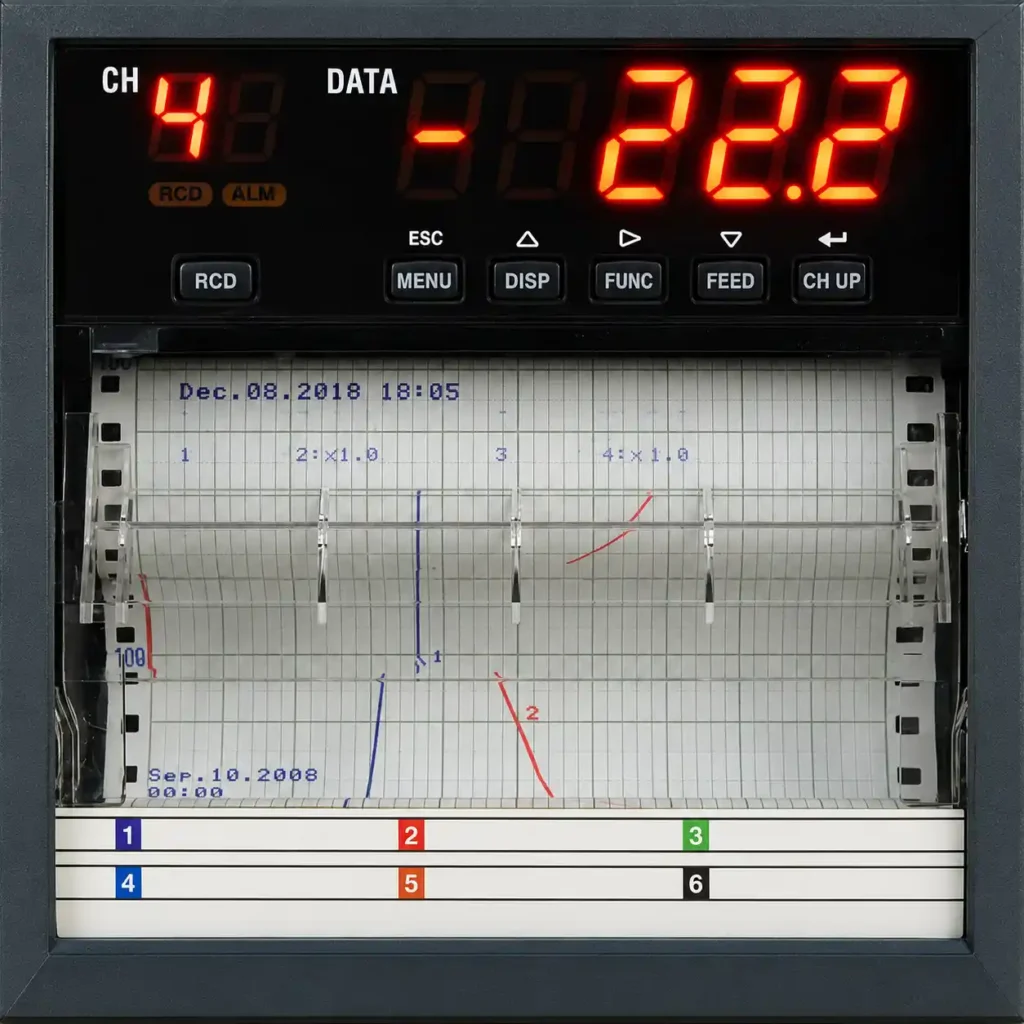

Recorder (Paper)
Recorder (Paper) · Up to 6 channels supported. · Set recording range and speed. · Paper width: 100 mm.
Recorder (Digital)
Recorder (Digital) · Paperless. (5.7" LCD display) · Up to 6 channels supported. · Data stored in internal/external memory.

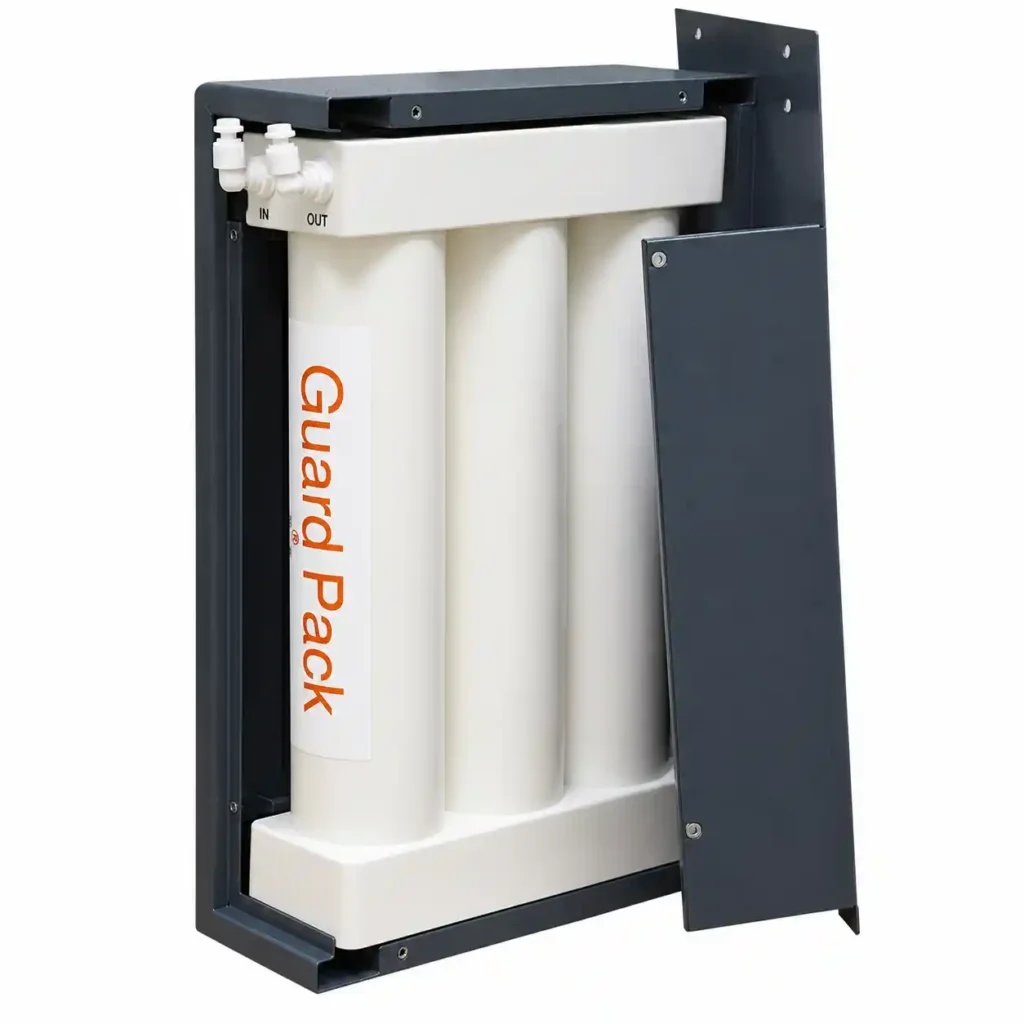

Water Purifier
Water Purifier · Water purifier composed of particle filter and carbon filter. · Solid steel box construction.
Direct Water System
Direct Water System · Direct connection of distilled water to direct water line of the equipment from a water supply pipe. · Useful for long-term testing.

With internal volumes ranging from ~140 to 465 litres for chemical storage and ~67 to 164 litres for flammables, the KEMFIRE Series offers versatile storage to fit a variety of lab sizes and needs.

Accessories

SPARK-PROOF OR ATEX ASPIRATOR - Anti-spark or three-phase ATEX (380V) or single phase ATEX (220V) fans.
SPARK-PROOF OR ATEX ASPIRATOR - Anti-spark or three-phase ATEX (380V) or single phase ATEX (220V) fans.
Flammbles Fumes Conveyor
FUMES CONVEYOR - to reduce the space between the Safetybox cabinet and the wall.
Flammable Safety Cabinet
KIT F - Internal filtration system, with active charcoal filter and CUNCTATOR®.
flammables Container for polluting substances
ECOBOX® PVC - Container for polluting substances with full/empty signalling device. Customisable dimensions on request.
flammables ADDITIONAL SHELVES
ADDITIONAL SHELVES - Additional painted INOX AISI 304 steel shelves.
EASY GOING® - Roller system for short transfers.
firesafety
CUBETTO® - Controlled cooling unit for safety cabinets SAFETYBOX ®, with recorded memory device.
flammables ANTIMICROBIAL PAINT
ANTIMICROBIAL PAINT - To prevent the proliferation of bacteria on the treated surfaces, through the release of silver ions.
flammables ACTIVE CHARCOAL FILTER
ACTIVE CHARCOAL FILTER - Granular activated charcoal filter, with Cunctator® device (Code F007).
flammbles ECOBOX® STAINLESS STEEL
ECOBOX® STAINLESS STEEL - Container for polluting substances with full/empty signalling device. Customisable dimensions on request.
Flammable Safety Cabinet
EASY ROLLER® - Rolling/sliding system to be positioned underneath the cabinet during logistic handling.
FireSafety
KIT 05 - Certified passing system to pour waste liquids.
Flamable Safety
PASSE-PARTOUT - Innovative safety locking system with key and a special passe-partout cylinder, to open the cabinet in case of lost keys.

Apex Scientific proudly supplies certified chemical and flammable safety cabinets to laboratories throughout South Africa. Explore our full range and visit our Insights page to read our article on Essential Considerations for Chemicals, Acids, and Bases Safety Storage Cabinets.

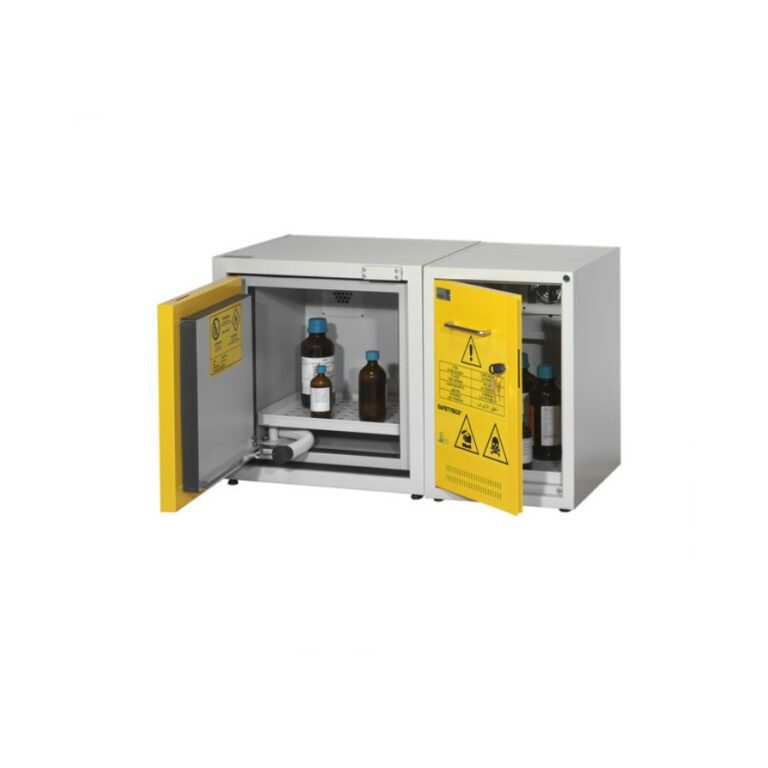

Undercounter Units

ModelKEMFIRE 1000/50 TYPE AKEMFIRE 1000/50 TYPE BKEMFIRE 1200/50 TYPE AKEMFIRE 1200/50 TYPE BKEMFIRE 1500/50 TYPE CKEMFIRE 1500/50 TYPE EKEMFIRE 1700/50 TYPE A
External Dimensions (WxDxH)995x510x600 mm995x510x600 mm1195x510x600 mm1195x510x600 mm1195x510x600 mm1495x510x600 mm1680 x 510 x 600 mm
Internal Dimensions (Chemicals Compartment WxDxH)320x460x560 mm320x460x560 mm510x470x551 mm530x460x560 mm530x460x560 mm320x460x560 mm530 x 460 x 560 mm
Internal Dimensions (Flammables Compartment WxDxH)430x355x445 mm430x355x445 mm430x355x445 mm430x355x445 mm430x355x445 mm935x355x440 mm935 x 355 x 445 mm
Weight140 Kg140 Kg145 Kg145 Kg145 Kg210 Kg265 Kg
Total Volume~85+75 lt~85+75 lt~132+75 lt~147+75 lt~147+75 lt~85+146 lt~147 + 164 L
Shelf Capacity80/100 kg80/100 kg80/100 kg80/100 kg80/100 kg80/100 kg80/100 kg
Opening1 door1 drawer1 door1 drawer1 door2 doors2 doors
Capacity liters15 lt15 lt15 lt15 lt15 lt30 lt30 lt
AspiratorYesYesYesYesYesYesYes
Activated charcoal filter and Cunctatorpredisposedpredisposedpredisposedpredisposedpredisposedpredisposedpredisposed



Single and Double Door – Tall Units

ModelKEMFIRE 600 A TYPE AKEMFIRE 1100 A TYPE A
External Dimensions (WxDxH)595x510x1760 mm1100 x 510 x 1670 mm
Internal Dimensions compartment for chemicals, acids and bases (WxDxH)510x470x924 mm490+490x465x1020 mm
Internal Dimensions compartment for flammables (WxDxH)430x395x537 mm935x355x440 mm
Weight185 Kg300 Kg
Total Volume~220+75 lt~465+164 lt
Shelf capacity80/100 kg80/100 kg
Opening1 door2 doors
Capacity15 lt30 lt
AspiratorYesYes
Activated charcoal filter and CunctatorYesYes



SKUDescription
KF010/5KEMFIRE 1000/50 (type A) Underbench combined storage cabinet – Type 90
KF010/5BKEMFIRE 1000/50 (type B) Underbench combined storage cabinet – Type 90
KF012/5KEMFIRE 1200/50 (type A) Underbench combined storage cabinet – Type 90
KF012/5BKEMFIRE 1200/50 (type B) Underbench combined storage cabinet – Type 90
KF015/5CKEMFIRE 1500/50 (type C) Underbench combined storage cabinet – Type 90
KF015/5EKEMFIRE 1500/50 (type E) Underbench combined storage cabinet – Type 90
KF017/5KEMFIRE 1700/50 (type A) Underbench combined storage cabinet – Type 90
KF011ASAFETYBOX® – KEMFIRE – TYPE 90 (EN 14470-1 / EN 61010-1 / EN 16121, EN 16122) – KEMFIRE 1100 A (type A)
KF011ABSAFETYBOX® – KEMFIRE – TYPE 90 (EN 14470-1 / EN 61010-1 / EN 16121, EN 16122) – KEMFIRE 1100 A (type B)
KF011ACSAFETYBOX® – KEMFIRE – TYPE 90 (EN 14470-1 / EN 61010-1 / EN 16121, EN 16122) – KEMFIRE 1100 A (type C)
KF006SAFETYBOX® – KEMFIRE – TYPE 90 (EN 14470-1 / EN 61010-1 / EN 16121, EN 16122) – KEMFIRE 600 (type A)
KF006BSAFETYBOX® – KEMFIRE – TYPE 90 (EN 14470-1 / EN 61010-1 / EN 16121, EN 16122) – KEMFIRE 600 (type B)
KF006ASAFETYBOX® – KEMFIRE – TYPE 90 (EN 14470-1 / EN 61010-1 / EN 16121, EN 16122) – KEMFIRE 600 A (type A)
KF006ABSAFETYBOX® – KEMFIRE – TYPE 90 (EN 14470-1 / EN 61010-1 / EN 16121, EN 16122) – KEMFIRE 600 A (type B)
KF017/5KEMFIRE 1700/50 (type A) Underbench combined storage cabinet – Type 90
KF017/5BSAFETYBOX® – KEMFIRE UNDERBENCH – TYPE 90 (EN 14470-1 / EN 61010-1 /EN 16121, EN 16122) – KEMFIRE 1700/50 (type B)
KF017/5CSAFETYBOX® – KEMFIRE UNDERBENCH – TYPE 90 (EN 14470-1 / EN 61010-1 /EN 16121, EN 16122) – KEMFIRE 1700/50 (type C)
KF015/5CKEMFIRE 1500/50 (type C) Underbench combined storage cabinet – Type 90
KF015/5DSAFETYBOX® – KEMFIRE UNDERBENCH – TYPE 90 (EN 14470-1 / EN 61010-1 /EN 16121, EN 16122) – KEMFIRE 1500/50 (type D)
KF015/5EKEMFIRE 1500/50 (type E) Underbench combined storage cabinet – Type 90
KF012/5KEMFIRE 1200/50 (type A) Underbench combined storage cabinet – Type 90
KF012/5BKEMFIRE 1200/50 (type B) Underbench combined storage cabinet – Type 90
KF010/5KEMFIRE 1000/50 (type A) Underbench combined storage cabinet – Type 90
KF010/5BKEMFIRE 1000/50 (type B) Underbench combined storage cabinet – Type 90



Accessories

SKUDescription
CUB01CUBETTO ®, Controlled refrigeration system for SAFETYBOX ® safety cabinets , with historical memory device.
KIT01Fan and activated charcoal filter (F007) with CUNCTATOR® for non-aspirated cabinets
KIT05Certified passing system to pour waste liquids for underbench cabinets
KIT05.45Certified passing system to pour waste liquids for underbench cabinets with 45 ° inclination
KIT FNew internal filtration system with activated charcoal filter cell and CUNCTATOR®
VDR008.1Single phase fan,1400 RPM ( dB 67) m3/h 80 to 230 ( 220V)
WAM151254Single phase ATEX fan RPM 1400, Kw 0,12, m3/h 150-230 (220V)
WAT151254Three phase ATEX fan RPM 1400, Kw 0,12, m3/h 250-450 (380V)
F007Spare activated charcoal filter with CUNCTATOR®
E001ECOBOX® PVC, Container for polluting liquids with full/empty signalling device.
E002ECOBOX ® INOX, Container for polluting liquids with full/empty signalling device.
KIT03Exhaust fumes converter from the top Ø100mm
KIT03BExhaust kit converter from the top just for KEMFIRE 1100 A
KIT03BBExhaust kit converter from the top just for KEMFIRE 600 A
