Chemical Resistant Diaphragm Pumps – A Series

Chemical resistant diaphragm pumps from Wiggens deliver reliable vacuum performance for demanding laboratory applications. Designed for durability and chemical compatibility, these pumps are ideal for use in suction filtration, rotary evaporation, vacuum distillation, and more. Trusted by scientists across South Africa, they support workflows in chemical, pharmaceutical, and petrochemical laboratories. Apex Scientific supplies this robust laboratory equipment to ensure safety, efficiency, and precision in every operation.

Explore our range and discover how these high-performance pumps can enhance your setup by visiting our Insights page.

Brochure
Enquire

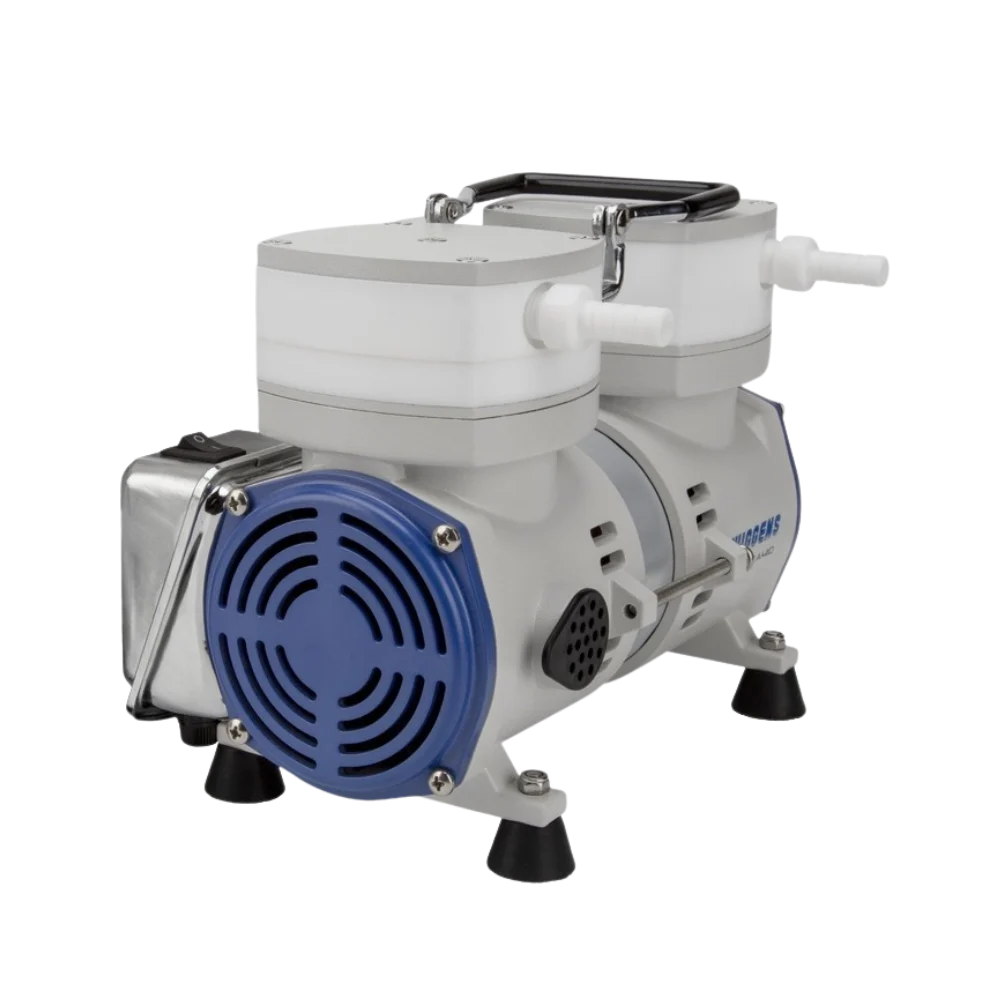

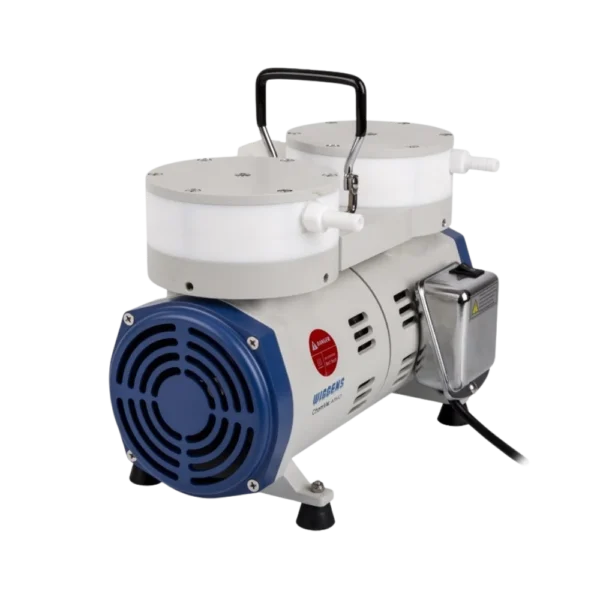

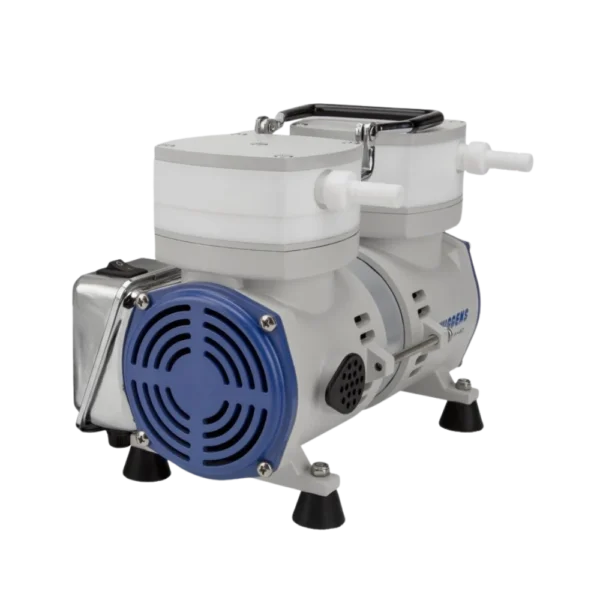

Chemvak A Series
Vaccum Pump - A Series

Chemvak A series vacuum pumps by Wiggens deliver exceptional chemical resistance and consistent performance in demanding laboratory environments. With PTFE-coated wetted surfaces, these pumps efficiently handle corrosive vapors in chemical, pharmaceutical, and petrochemical applications. Designed for scientists in South Africa, the Chemvak A Series is part of the trusted laboratory equipment range offered by Apex Scientific.



Oil-Free, Low-Maintenance Operation

The Chemvak A series features a direct-drive diaphragm system, which eliminates oil, lubricants, and belt-driven parts. This actively reduces maintenance needs while delivering clean, oil-free operation. Moreover, with noise levels below 50 dB, these pumps are ideal for quiet, precision-based lab settings. Each model includes thermal protection that automatically shuts off the pump during overheating and restarts it once temperatures normalize—ensuring consistent performance and safety.



Corrosion Resistance and Versatile Applications

Built with corrosion-resistant materials, these pumps perform reliably in environments with aggressive gases and solvent vapors. They are perfect for rotary evaporation, vacuum filtration, vacuum distillation, solid phase extraction, and vacuum concentration. With vacuum capabilities reaching 8 mbar, the Chemvak A series efficiently supports a wide range of applications in modern South African laboratories.



Multiple Models for Different Lab Needs

This series includes several models, each offering specific flow rates and vacuum depths. Whether you need a compact pump for everyday tasks or a powerful system for demanding processes, Chemvak delivers a tailored solution to match your workflow.

Choose Chemvak pumps by Wiggens from Apex Scientific for efficiency, durability, and advanced chemical compatibility. Explore our full range or visit our Insights page to learn more.

ModelA410A510
Order No.170410170510
Flow rate [m3 /h] at atm. pressure1.52.4
Flow rate [L/min] at atm. pressure2540
Ultimate vacuum [mbar abs.]138
Max. Power P [W]95245
Max. current [A]0.61
Motor speed [rpm]14501450
Pump headDouble stageDouble stage
Hose connections [mm]1010
Noise [dB]5060
Dimensions W x D x H [mm]230×155×173290×190×210
Weight [kg]4.510
Power supply220V/50Hz220V/50Hz
SKUDescription
170410Wiggens A410 Chemical Resistant Pump – Ultimate Vacuum: 13 mbar; Max. Flow Rate: 25 L/min
170510Wiggens A510 Chemical Resistant Pump – Ultimate Vacuum: 8 mbar; Max. Flow Rate: 40 L/min



Accessories

SKUDescription
C410015PTFE Connector – Diameter: 10mm, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410055PTFE Adapter – KF25 to Screw thread, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410056PTFE Adapter – Barbed fitting for tubing 12mm ID, KF25, suitable for C1200 / 2000 series
C410057PTFE Adapter – Barbed fitting for tubing 19mm ID, KF25, suitable for C1200 / 2000 series
C410058PTFE Adapter – Barbed fitting for tubing 25mm ID, KF25, suitable for C1200 / 2000 series
C900E030Silencer – Suitable for chemical resistant diaphragm pumps
410001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C300/400/410
510001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C510/600/610/900E/920Z/960T/980V
1200001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 420
1200002Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 520/602
1200003Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C1200 series
1200004Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C2000 series
C410005Diaphragm – applicable for C300/400/410, 1/pk
C510011Diaphragm – applicable for C510/600/610/900E/920Z/960T/980V, 1/pk
C510013Valve Plate – applicable for C300/400/410/510/600/610/900E/920Z/960T/980V, 1/pk
C2000005Diaphragm – applicable for C420, 1/pk
C2000006Diaphragm – applicable for C520/602, 1/pk
C2000013Valve Plate – applicable for C320/420/402/520/602, 1/pk
169311-06Chemical Resistant Vacuum Regulator / Filter – Incl. Vacuum gauge, filter, filter cartridge and vacuum regulator, chemical resistant
SXC202Adaptor for 169311-06 – Used for 169311-06, for C300
SXC203Adaptor for 169311-06 – Used for 169311-06, for C400/C600/A510
169312-06Chemical Resistant Vacuum Regulator / Filter – Includes Vacuum digital meter, trap and regulator
169313-06Chemical Resistant Vacuum Regulator – Basic model without vacuum gauge, includes vacuum trap and regulator
169314-06Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller DVR480
15060-01DVM150C – Vacuum digital meter for chemical resistant diaphragm pumps
BJFL005Connector for DVM150C – Connector with regulator and filter set, suitable for chemical resistant diaphragm pumps using digital vacuum meter, includes pressure regulating valve and Filter
016.1706.01PTFE Tube – Outer diameter: 6mm, Inner diameter: 4mm, Thickness: 1mm, Length: 1m
016.1708.01PTFE Tube – Outer diameter: 8mm, Inner diameter: 6mm, Thickness: 1mm, Length: 1m
016.1712.01PTFE Tube – Outer diameter: 12mm, Inner diameter: 10mm, Thickness: 1mm, Length: 1m
016.1714.01PTFE Tube – Outer diameter: 14mm, Inner diameter: 12mm, Thickness: 1mm, Length: 1m
016.1716.01PTFE Tube – Outer diameter: 20mm, Inner diameter: 18mm, Thickness: 1mm, Length: 1m
016.1718.01PTFE Tube – Outer diameter: 28mm, Inner diameter: 25mm, Thickness: 1.5mm, Length: 1m
168000-01Viton Tube – Outer diameter: 12mm, Inner diameter: 6mm, Thickness: 3mm, Length: 1m
168001-01Viton Tube – Outer diameter: 14mm, Inner diameter: 8mm, Thickness: 3mm, Length: 1m
168002-01Viton Tube – Outer diameter: 16mm, Inner diameter: 10mm, Thickness: 3mm, Length: 1m
168003-01Viton Tube – Outer diameter: 18mm, Inner diameter: 12mm, Thickness: 3mm, Length: 1m
168006-01Viton Tube – Outer diameter: 22mm, Inner diameter: 16mm, Thickness: 3mm, Length: 1m
168004-01Viton Tube – Outer diameter: 25mm, Inner diameter: 19mm, Thickness: 3mm, Length: 1m
168005-01Viton Tube – Outer diameter: 31mm, Inner diameter: 25mm, Thickness: 3mm, Length: 1m
016.902.5.2Straight Through Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.902.2Straight Through Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.903.7.2Straight Through Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.903.2Straight Through Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.904.9.2Straight Through Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.904.2Straight Through Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.905.2Straight Through Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.907.2Straight Through Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1002.5.2L-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1002.2L-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1003.7.2L-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1003.2L-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1004.9.2L-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1004.2L-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1005.2L-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1006.2L-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1102.5.2T-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1102.2T-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1103.7.2T-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1103.2T-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1104.9.2T-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1104.2T-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1105.2T-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1106.2T-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1112.5.24-Way Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1112.24-Way Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1113.7.24-Way Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1113.24-Way Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1114.9.24-Way Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1114.24-Way Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1115.24-Way Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1116.24-Way Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.702.5.2Straight Through Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.702.2Straight Through Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.703.7.2Straight Through Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.703.2Straight Through Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.704.9.2Straight Through Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.704.2Straight Through Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.705.2Straight Through Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.706.2Straight Through Bayonet – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1202.6.2Straight Through Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1203.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1204.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 4mm
016.802.5.2T-Shape Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.802.2T-Shape Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.803.7.2T-Shape Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.803.2T-Shape Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.804.9.2T-Shape Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.804.2T-Shape Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.805.2T-Shape Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1302.6.2T-Shape Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1303.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1304.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 4mm
