Chemical Resistant Diaphragm Pump – C Series

Chemvak C series vacuum pumps by Wiggens offer high chemical resistance and long-lasting performance for demanding laboratory applications. Designed with corrosion-proof PTFE components, these oil-free diaphragm pumps handle acidic, basic, and solvent vapors with ease—ensuring low maintenance, quiet operation, and environmental safety. Trusted by researchers across South Africa, the Chemvak C series is part of Apex Scientific’s advanced laboratory equipment range.

Multiple models are available with varied capacities and vacuum levels to meet different workflow needs. Explore our full range and see which model best suits your lab needs on the Apex Scientific Insights page.

Brochure
Enquire

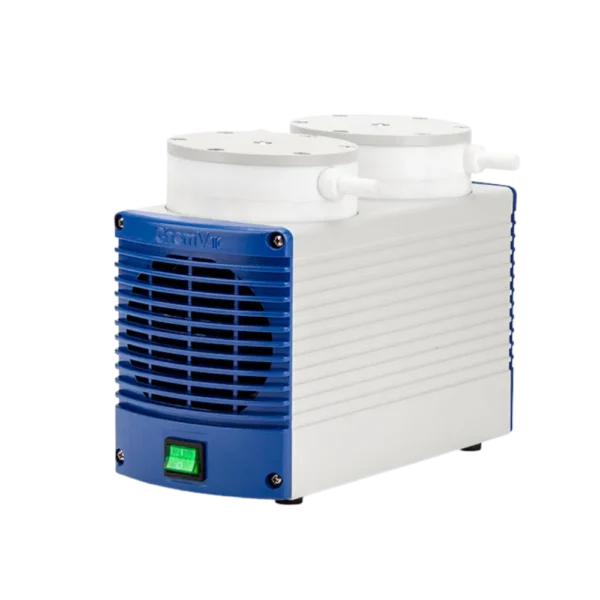

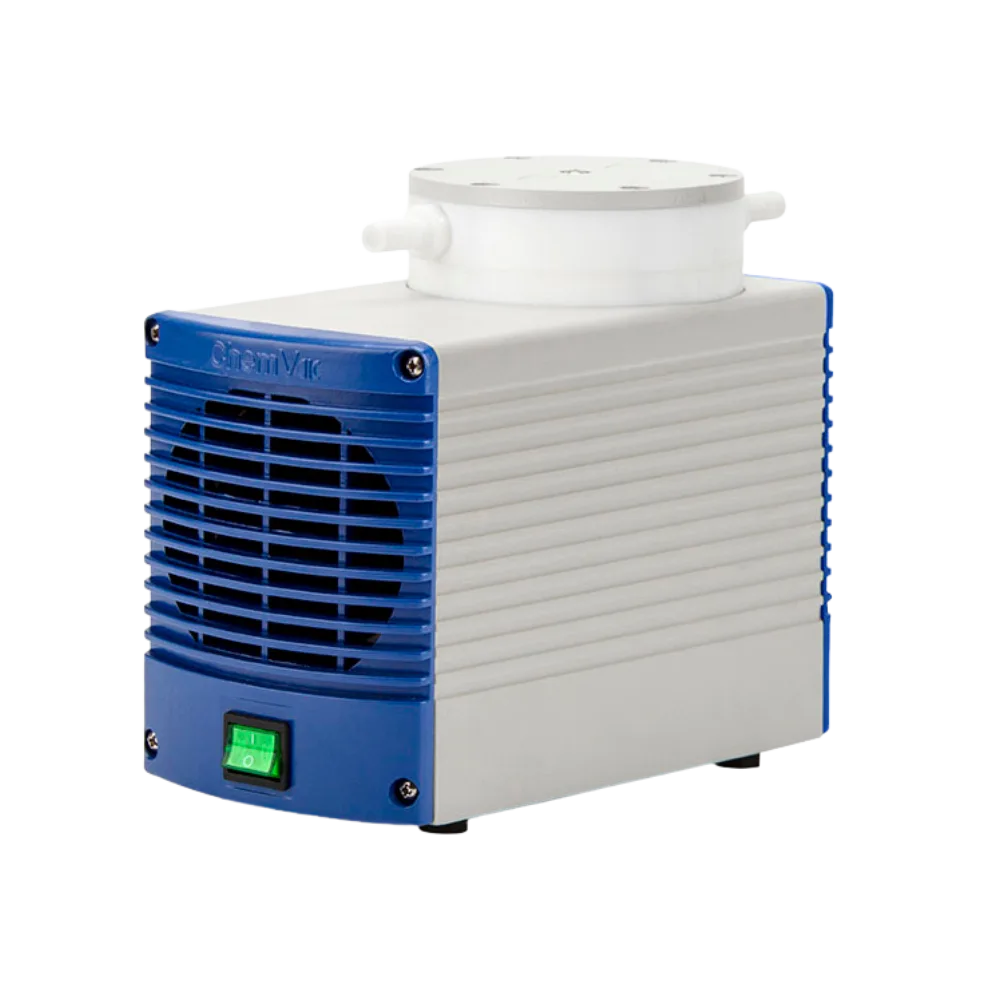

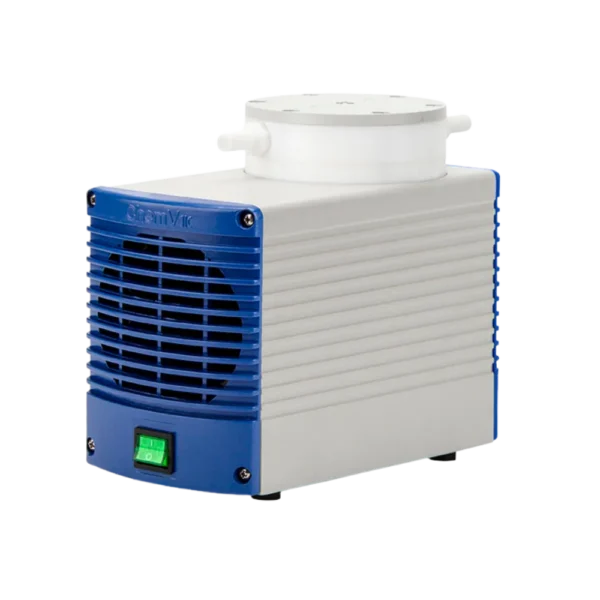

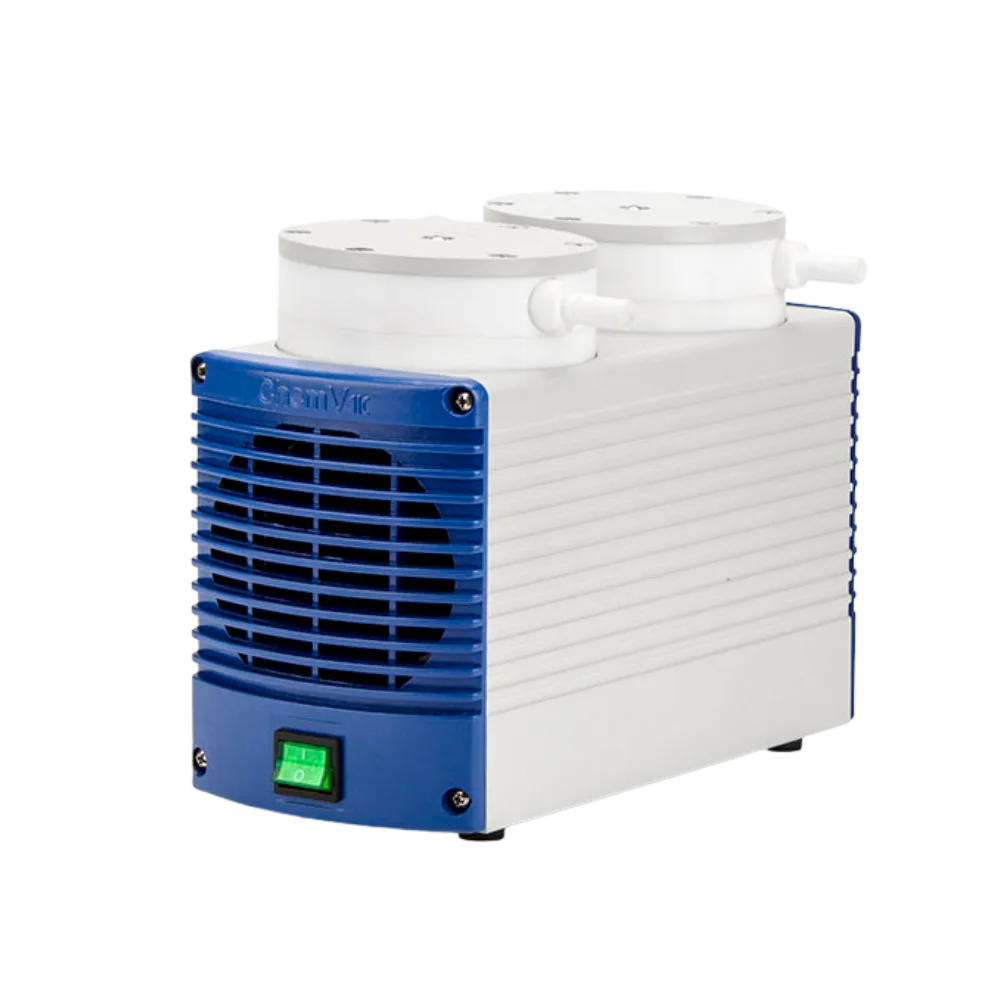

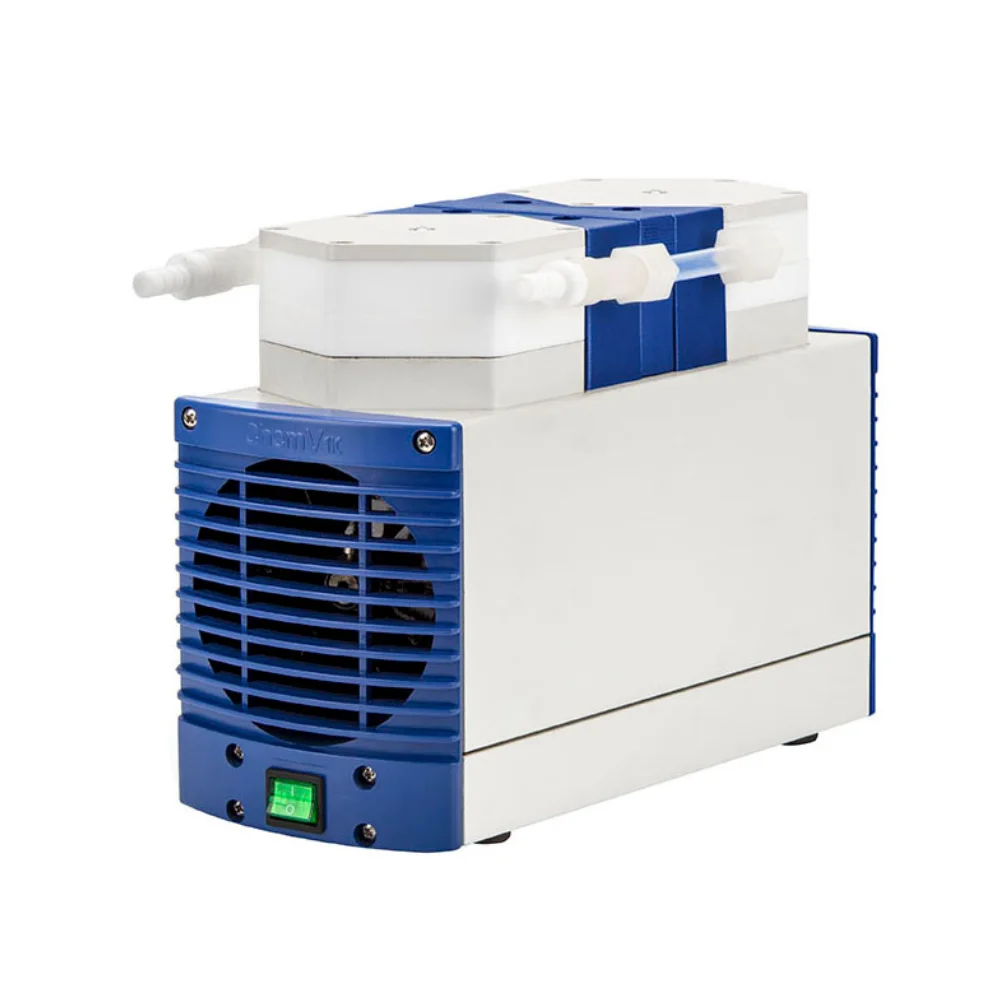

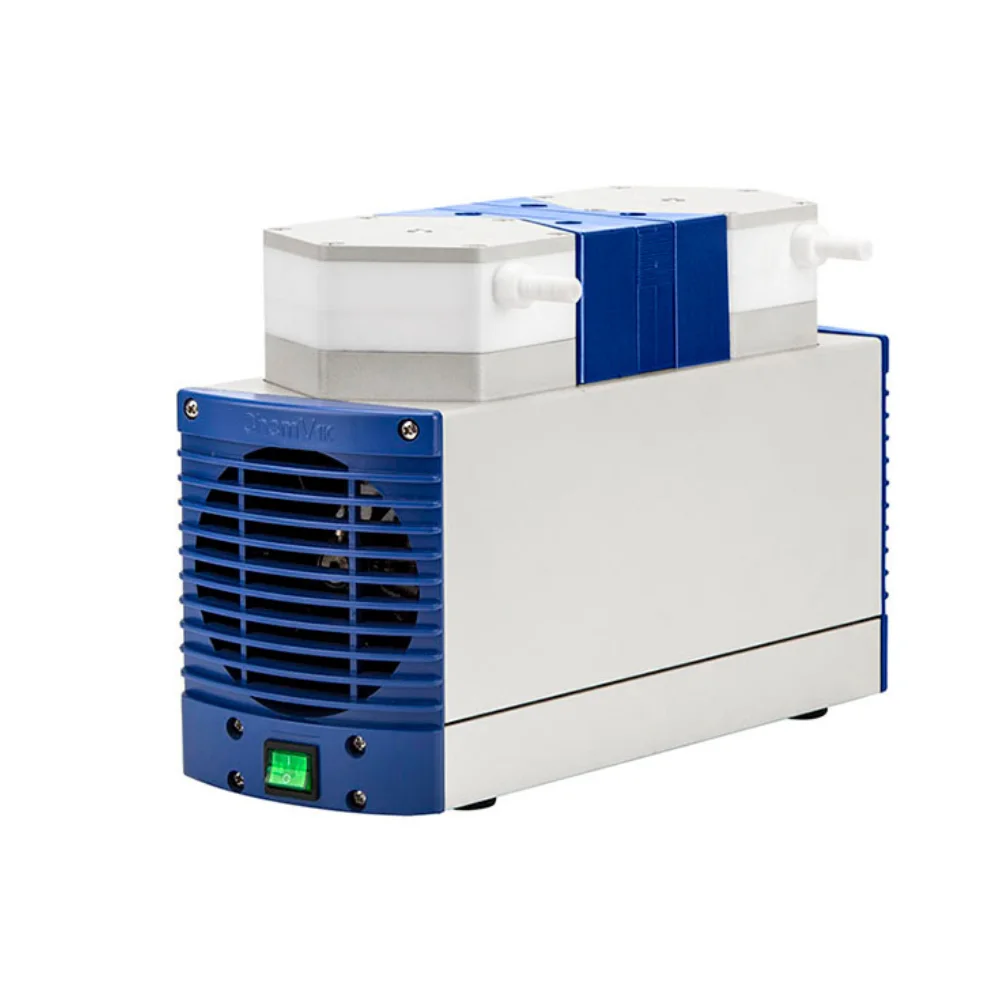

Chemvak C series
Chemvak C series
Chemvak C series
Chemvak C series

Chemvak C Series vacuum pumps by Wiggens deliver outstanding chemical resistance, low noise, and long-term durability. Built for corrosive gas and vapor handling, these oil-free diaphragm pumps suit a wide range of applications in the chemical, pharmaceutical, and petrochemical industries. As part of Apex Scientific’s advanced laboratory equipment range, they provide reliable and eco-friendly vacuum solutions to labs across South Africa.



High Chemical Resistance and Oil-Free Performance

All wetted components in the Chemvak C Series use corrosion-resistant PTFE. This ensures consistent performance from inlet to exhaust, even under harsh conditions. Because they operate oil-free, these pumps avoid contamination, reduce maintenance, and eliminate the need for waste disposal associated with rotary vane or water-jet systems. As a result, they offer a cleaner and more cost-effective solution for modern laboratories.



Quiet, Safe, and Durable by Design

Each model features a direct motor drive with a vibration-resistant build. This design keeps noise levels low—ideal for quiet working environments. Additionally, the reinforced PTFE-coated diaphragm and head cover extend product lifespan. For added safety, the built-in thermal protection shuts the pump down during overheating and restarts it automatically once cooled.



Versatile Models for Every Lab

The Chemvak C Series includes a wide range of models (C300–C610). Each supports different vacuum levels and flow rates. Whether you’re running rotary evaporation, distillation, or gel drying, there’s a model tailored to your process.



Engineered for Demanding Applications

These pumps handle vacuum filtration, concentration, and solvent processing with precision. Their smooth surfaces simplify cleaning, while advanced seals reduce leakage. They are CE-certified and built to deliver reproducible results in South African labs.

Explore our full range of Chemvak C Series vacuum pumps by Wiggens and discover which model best suits your lab on the Apex Scientific Insights page.



Model C300C400C410C420C510C520C600C602C610
Order No.169300169400169410169420169510169520169600169602169610
Flow rate [m3/h] at atm. pressure1.322.041.51.52.0433.64.22.22
Flow rate [l/min] at atm. pressure223425353450607037
Ultimate vacuum [mbar abs.]10012013138890802~4
Max. Power P [W]60959595245245270270270
Motor speed [rpm]145014501450145014501450145014501450
Pump headSingle stageSingle stageDouble stageDouble stageDouble stageDouble stageSingle stageSingle stageDouble stage
Hose connections [mm]101010101010101010
Noise [dB]505050506055605560
Dimensions W x H x D [mm]233×110×210294×156×195294×156×195294×156×195380×156×226380×156×226380×162×226380×156×226380×171×226
Weight [kg]68.58.58.513.214.513.214.513.8
Power supply220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50Hz
SKUDescription
169300Wiggens C300 Chemical Resistant Diaphragm Pump – Ultimate Vacuum: 100 mbar; Max. Flow Rate: 22 L/min
169400Wiggens C400 Chemical Resistant Diaphragm Pump – Ultimate Vacuum: 120 mbar; Max. Flow Rate: 34 L/min
169410Wiggens C410 Chemical Resistant Diaphragm Pump – Ultimate Vacuum: 13 mbar; Max. Flow Rate: 25 L/min
169420Wiggens C420 Chemical Resistant Diaphragm Pump – Ultimate Vacuum: 13 mbar; Max. Flow Rate: 35 L/min
169510Wiggens C510 Chemical Resistant Diaphragm Pump – Ultimate Vacuum: 8 mbar; Max. Flow Rate: 34 L/min;
169520Wiggens C520 Chemical Resistant Diaphragm Pump – Ultimate Vacuum: 8 mbar; Max. Flow Rate: 50 L/min;
169600Wiggens C600 Chemical Resistant Diaphragm Pump – Ultimate Vacuum: 90 mbar; Max. Flow Rate: 60 L/min
169602Wiggens C602 Chemical Resistant Diaphragm Pump – Ultimate Vacuum: 80 mbar; Max. Flow Rate: 70 L/min
169610Wiggens C610 Chemical Resistant Diaphragm Pump – Ultimate Vacuum: 2-4 mbar; Max. Flow Rate: 37 L/min



Accessories

SKUDescription
C410015PTFE Connector – Diameter: 10mm, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410055PTFE Adapter – KF25 to Screw thread, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410056PTFE Adapter – Barbed fitting for tubing 12mm ID, KF25, suitable for C1200 / 2000 series
C410057PTFE Adapter – Barbed fitting for tubing 19mm ID, KF25, suitable for C1200 / 2000 series
C410058PTFE Adapter – Barbed fitting for tubing 25mm ID, KF25, suitable for C1200 / 2000 series
C900E030Silencer – Suitable for chemical resistant diaphragm pumps
410001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C300/400/410
510001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C510/600/610/900E/920Z/960T/980V
1200001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 420
1200002Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 520/602
1200003Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C1200 series
1200004Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C2000 series
C410005Diaphragm – applicable for C300/400/410, 1/pk
C510011Diaphragm – applicable for C510/600/610/900E/920Z/960T/980V, 1/pk
C510013Valve Plate – applicable for C300/400/410/510/600/610/900E/920Z/960T/980V, 1/pk
C2000005Diaphragm – applicable for C420, 1/pk
C2000006Diaphragm – applicable for C520/602, 1/pk
C2000013Valve Plate – applicable for C320/420/402/520/602, 1/pk
169311-06Chemical Resistant Vacuum Regulator / Filter – Incl. Vacuum gauge, filter, filter cartridge and vacuum regulator, chemical resistant
SXC202Adaptor for 169311-06 – Used for 169311-06, for C300
SXC203Adaptor for 169311-06 – Used for 169311-06, for C400/C600/A510
169312-06Chemical Resistant Vacuum Regulator / Filter – Includes Vacuum digital meter, trap and regulator
169313-06Chemical Resistant Vacuum Regulator – Basic model without vacuum gauge, includes vacuum trap and regulator
169314-06Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller DVR480
15060-01DVM150C – Vacuum digital meter for chemical resistant diaphragm pumps
BJFL005Connector for DVM150C – Connector with regulator and filter set, suitable for chemical resistant diaphragm pumps using digital vacuum meter, includes pressure regulating valve and Filter
016.1706.01PTFE Tube – Outer diameter: 6mm, Inner diameter: 4mm, Thickness: 1mm, Length: 1m
016.1708.01PTFE Tube – Outer diameter: 8mm, Inner diameter: 6mm, Thickness: 1mm, Length: 1m
016.1712.01PTFE Tube – Outer diameter: 12mm, Inner diameter: 10mm, Thickness: 1mm, Length: 1m
016.1714.01PTFE Tube – Outer diameter: 14mm, Inner diameter: 12mm, Thickness: 1mm, Length: 1m
016.1716.01PTFE Tube – Outer diameter: 20mm, Inner diameter: 18mm, Thickness: 1mm, Length: 1m
016.1718.01PTFE Tube – Outer diameter: 28mm, Inner diameter: 25mm, Thickness: 1.5mm, Length: 1m
168000-01Viton Tube – Outer diameter: 12mm, Inner diameter: 6mm, Thickness: 3mm, Length: 1m
168001-01Viton Tube – Outer diameter: 14mm, Inner diameter: 8mm, Thickness: 3mm, Length: 1m
168002-01Viton Tube – Outer diameter: 16mm, Inner diameter: 10mm, Thickness: 3mm, Length: 1m
168003-01Viton Tube – Outer diameter: 18mm, Inner diameter: 12mm, Thickness: 3mm, Length: 1m
168006-01Viton Tube – Outer diameter: 22mm, Inner diameter: 16mm, Thickness: 3mm, Length: 1m
168004-01Viton Tube – Outer diameter: 25mm, Inner diameter: 19mm, Thickness: 3mm, Length: 1m
168005-01Viton Tube – Outer diameter: 31mm, Inner diameter: 25mm, Thickness: 3mm, Length: 1m
016.902.5.2Straight Through Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.902.2Straight Through Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.903.7.2Straight Through Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.903.2Straight Through Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.904.9.2Straight Through Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.904.2Straight Through Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.905.2Straight Through Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.907.2Straight Through Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1002.5.2L-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1002.2L-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1003.7.2L-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1003.2L-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1004.9.2L-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1004.2L-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1005.2L-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1006.2L-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1102.5.2T-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1102.2T-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1103.7.2T-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1103.2T-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1104.9.2T-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1104.2T-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1105.2T-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1106.2T-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1112.5.24-Way Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1112.24-Way Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1113.7.24-Way Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1113.24-Way Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1114.9.24-Way Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1114.24-Way Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1115.24-Way Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1116.24-Way Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.702.5.2Straight Through Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.702.2Straight Through Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.703.7.2Straight Through Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.703.2Straight Through Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.704.9.2Straight Through Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.704.2Straight Through Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.705.2Straight Through Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.706.2Straight Through Bayonet – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1202.6.2Straight Through Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1203.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1204.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 4mm
016.802.5.2T-Shape Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.802.2T-Shape Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.803.7.2T-Shape Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.803.2T-Shape Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.804.9.2T-Shape Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.804.2T-Shape Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.805.2T-Shape Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1302.6.2T-Shape Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1303.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1304.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 4mm
