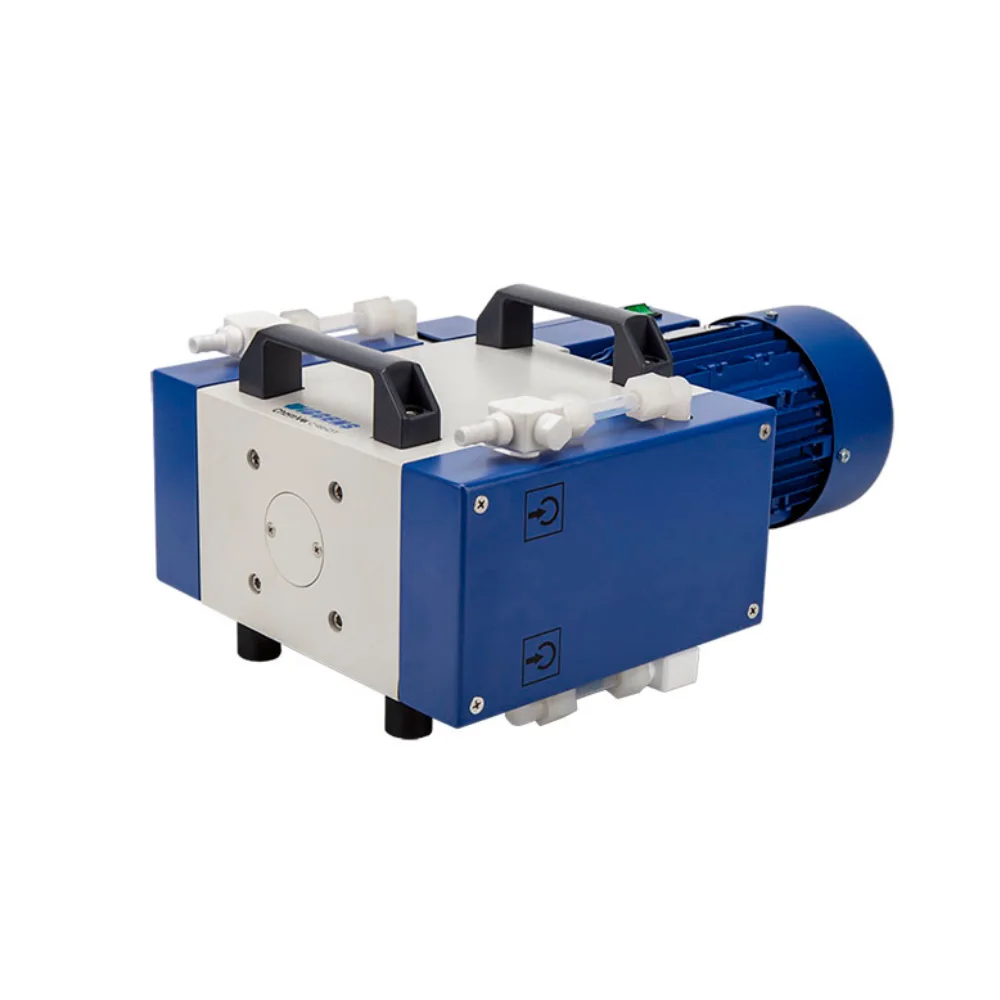

Chemical Resistant Diaphragm Pump – C900 Series

Chemvak C900 series from Wiggens deliver exceptional performance for handling aggressive vapors and gases in demanding laboratory applications. Designed with chemically resistant PTFE components, these compact, oil-free pumps offer deep vacuum capabilities and high pumping speeds—ideal for use in extraction, vacuum distillation, evaporation, and other critical workflows.

As part of our advanced laboratory equipment selection at Apex Scientific, these pumps ensure long service life, quiet operation, and minimal maintenance. Explore our full range to see which model best suits your lab needs.

Brochure
Enquire
Chemvak C900 Series

The Chemvak C900 series by Wiggens offers a high-performance solution for labs handling aggressive vapors and corrosive gases. These oil-free pumps are available in South Africa through Apex Scientific, combining PTFE chemical resistance with advanced vacuum control. Designed for longevity and minimal maintenance, the series supports efficient, safe operation across a wide range of laboratory processes.



Built for Corrosive Lab Conditions

Each Chemvak C900 series pump uses PTFE or PTFE-coated materials in all wetted parts. This design ensures excellent resistance to acidic, basic, and solvent vapors. The gas and drive chambers are separated, which helps prevent contamination and increases the system’s life span.



Compact, Quiet, and Efficient

Despite their compact footprint, these pumps deliver strong vacuum performance. They achieve fast pumping speeds and deep ultimate vacuum, making them ideal for rotary evaporation, distillation, filtration, drying, and other laboratory applications. Quiet operation and low vibration levels also support use in sensitive environments.



Smart Safety and Vacuum Control

Every model features built-in overheat protection. If temperatures rise too high, the pump shuts down automatically and restarts once safe. Select models include frequency conversion for precise vacuum control, helping stabilize pressure and reduce fluctuation—critical for long-duration tasks.



Reliable Performance Across Models

Models in the Chemvak C900 Series—including options like the C900E, C920Z, C960T, and C980V—offer flexible configurations to suit different needs. Whether you’re managing large-volume distillations or sensitive extractions, there’s a model that fits your workflow.



Trusted Equipment for South African Laboratories

The Chemvak C900 Series supports sustainable, oil-free vacuum systems that lower operating costs. As part of Apex Scientific’s reliable laboratory equipment range, these pumps meet the needs of professionals across chemical, pharmaceutical, petrochemical, and semiconductor industries in South Africa.

Explore our full range of Chemvak C900 Series pumps on the Apex Scientific Insights page and find the right solution for your lab.

Model C900EC920ZC960TC980V
Order No.169900169920169960169980
Flow rate [m3/h] at atm. pressure5.74.53.62.4
Flow rate [l/min] at atm. pressure95756040
Ultimate vacuum [mbar abs.]＜ 30＜8＜ 2＜1
Max. Power P [W]370370370370
Motor speed [rpm]1425142514251425
Pump headSingle stageDouble stageTriple stageQuadruple stage
Hose connections [mm]10101010
Noise [dB]50505050
Dimensions W x D x H [mm]440×270×240440×270×240440×270×240440×270×240
Weight [kg]21.521.521.521.5
Power supply220V/50Hz220V/50Hz220V/50Hz
SKUDescription
169900Wiggens C900E Chemical Resistant Diaphragm Pump – Ultimate Vacuum: <30 mbar; Max. Flow Rate: 95 L/min
169920Wiggens C920Z Chemical Resistant Diaphragm Pump – Ultimate Vacuum: <8 mbar; Max. Flow Rate: 75 L/min
169960Wiggens C960T Chemical Resistant Diaphragm Pump – Ultimate Vacuum: <2 mbar; Max. Flow Rate: 60 L/min
169980Wiggens C980V Chemical Resistant Diaphragm Pump – Ultimate Vacuum: <1 mbar; Max. Flow Rate: 40 L/min



Accessories

SKUDescription
C410015PTFE Connector – Diameter: 10mm, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410055PTFE Adapter – KF25 to Screw thread, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410056PTFE Adapter – Barbed fitting for tubing 12mm ID, KF25, suitable for C1200 / 2000 series
C410057PTFE Adapter – Barbed fitting for tubing 19mm ID, KF25, suitable for C1200 / 2000 series
C410058PTFE Adapter – Barbed fitting for tubing 25mm ID, KF25, suitable for C1200 / 2000 series
C900E030Silencer – Suitable for chemical resistant diaphragm pumps
410001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C300/400/410
510001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C510/600/610/900E/920Z/960T/980V
1200001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 420
1200002Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 520/602
1200003Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C1200 series
1200004Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C2000 series
C410005Diaphragm – applicable for C300/400/410, 1/pk
C510011Diaphragm – applicable for C510/600/610/900E/920Z/960T/980V, 1/pk
C510013Valve Plate – applicable for C300/400/410/510/600/610/900E/920Z/960T/980V, 1/pk
C2000005Diaphragm – applicable for C420, 1/pk
C2000006Diaphragm – applicable for C520/602, 1/pk
C2000013Valve Plate – applicable for C320/420/402/520/602, 1/pk
169311-06Chemical Resistant Vacuum Regulator / Filter – Incl. Vacuum gauge, filter, filter cartridge and vacuum regulator, chemical resistant
SXC202Adaptor for 169311-06 – Used for 169311-06, for C300
SXC203Adaptor for 169311-06 – Used for 169311-06, for C400/C600/A510
169312-06Chemical Resistant Vacuum Regulator / Filter – Includes Vacuum digital meter, trap and regulator
169313-06Chemical Resistant Vacuum Regulator – Basic model without vacuum gauge, includes vacuum trap and regulator
169314-06Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller DVR480
15060-01DVM150C – Digital Vacuum Meter for chemical resistant diaphragm pumps
BJFL005Connector for DVM150C – Connector with regulator and filter set, suitable for chemical resistant diaphragm pumps using digital vacuum meter, includes pressure regulating valve and Filter
016.1706.01PTFE Tube – Outer diameter: 6mm, Inner diameter: 4mm, Thickness: 1mm, Length: 1m
016.1708.01PTFE Tube – Outer diameter: 8mm, Inner diameter: 6mm, Thickness: 1mm, Length: 1m
016.1712.01PTFE Tube – Outer diameter: 12mm, Inner diameter: 10mm, Thickness: 1mm, Length: 1m
016.1714.01PTFE Tube – Outer diameter: 14mm, Inner diameter: 12mm, Thickness: 1mm, Length: 1m
016.1716.01PTFE Tube – Outer diameter: 20mm, Inner diameter: 18mm, Thickness: 1mm, Length: 1m
016.1718.01PTFE Tube – Outer diameter: 28mm, Inner diameter: 25mm, Thickness: 1.5mm, Length: 1m
168000-01Viton Tube – Outer diameter: 12mm, Inner diameter: 6mm, Thickness: 3mm, Length: 1m
168001-01Viton Tube – Outer diameter: 14mm, Inner diameter: 8mm, Thickness: 3mm, Length: 1m
168002-01Viton Tube – Outer diameter: 16mm, Inner diameter: 10mm, Thickness: 3mm, Length: 1m
168003-01Viton Tube – Outer diameter: 18mm, Inner diameter: 12mm, Thickness: 3mm, Length: 1m
168006-01Viton Tube – Outer diameter: 22mm, Inner diameter: 16mm, Thickness: 3mm, Length: 1m
168004-01Viton Tube – Outer diameter: 25mm, Inner diameter: 19mm, Thickness: 3mm, Length: 1m
168005-01Viton Tube – Outer diameter: 31mm, Inner diameter: 25mm, Thickness: 3mm, Length: 1m
016.902.5.2Straight Through Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.902.2Straight Through Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.903.7.2Straight Through Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.903.2Straight Through Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.904.9.2Straight Through Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.904.2Straight Through Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.905.2Straight Through Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.907.2Straight Through Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1002.5.2L-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1002.2L-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1003.7.2L-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1003.2L-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1004.9.2L-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1004.2L-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1005.2L-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1006.2L-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1102.5.2T-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1102.2T-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1103.7.2T-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1103.2T-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1104.9.2T-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1104.2T-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1105.2T-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1106.2T-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1112.5.24-Way Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1112.24-Way Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1113.7.24-Way Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1113.24-Way Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1114.9.24-Way Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1114.24-Way Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1115.24-Way Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1116.24-Way Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.702.5.2Straight Through Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.702.2Straight Through Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.703.7.2Straight Through Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.703.2Straight Through Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.704.9.2Straight Through Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.704.2Straight Through Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.705.2Straight Through Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.706.2Straight Through Bayonet – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1202.6.2Straight Through Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1203.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1204.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 4mm
016.802.5.2T-Shape Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.802.2T-Shape Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.803.7.2T-Shape Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.803.2T-Shape Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.804.9.2T-Shape Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.804.2T-Shape Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.805.2T-Shape Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1302.6.2T-Shape Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1303.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1304.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 4mm
900414-1DVR480 – Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller
900414-2DVR480 Pro – Chemical Resistant Vacuum Controller, accuracy:0.1%
900580DVR580 – Chemical Resistant Vacuum Controller, accuracy:0.25%FS
