Chemical Resistant Diaphragm Pumps – C1200 Series

C1200 series diaphragm pumps from Wiggens offer reliable, chemical-resistant performance for demanding laboratory applications in South Africa. Available through Apex Scientific, this versatile range—featuring both C1200 and C2000 models—efficiently handles aggressive gases and vapors, delivering vacuum levels down to 1 mbar with flow rates up to 245 L/min. Designed for durability and ease of use, these compact pumps are ideal for laboratories requiring robust, low-maintenance equipment across research, chemical processing, and industrial settings.

The advanced construction and performance make the C1200 Series a trusted solution for South African labs. Explore our full range to learn more about available configurations and select the right model for your needs.

Brochure
Enquire
C1200

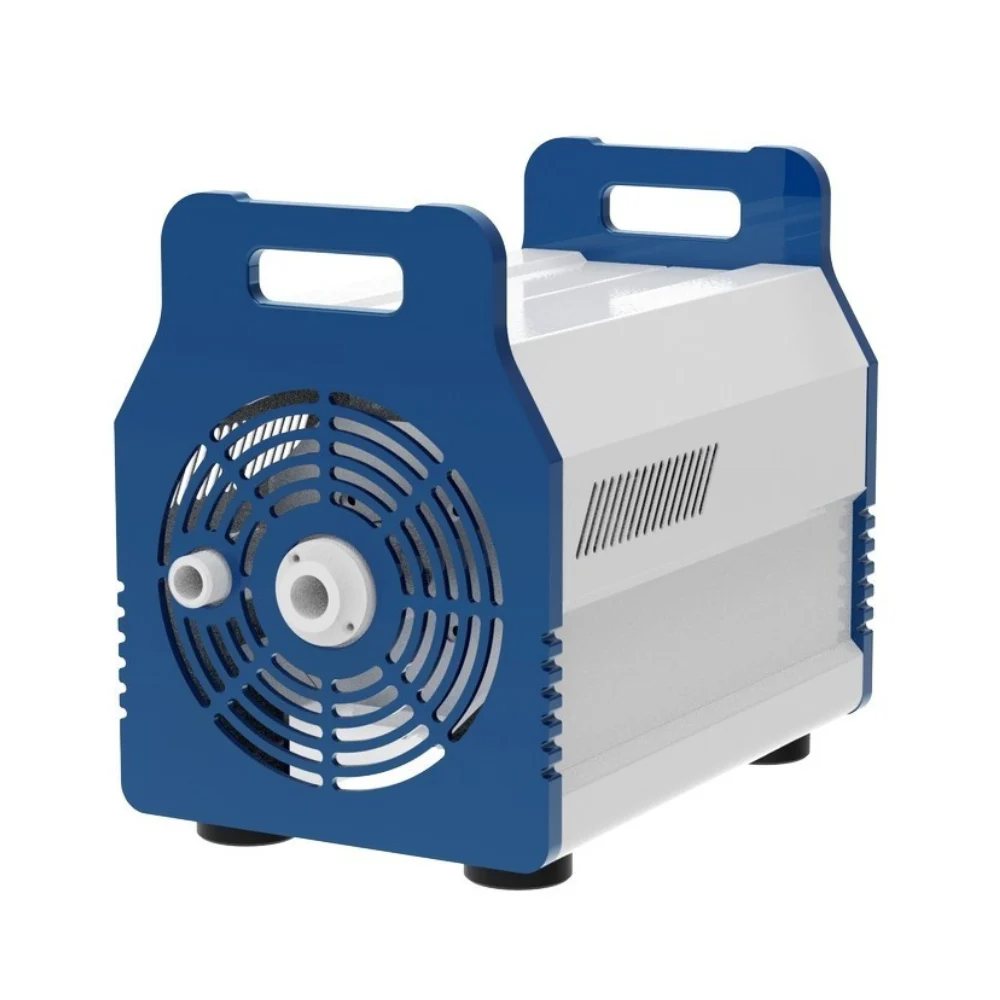

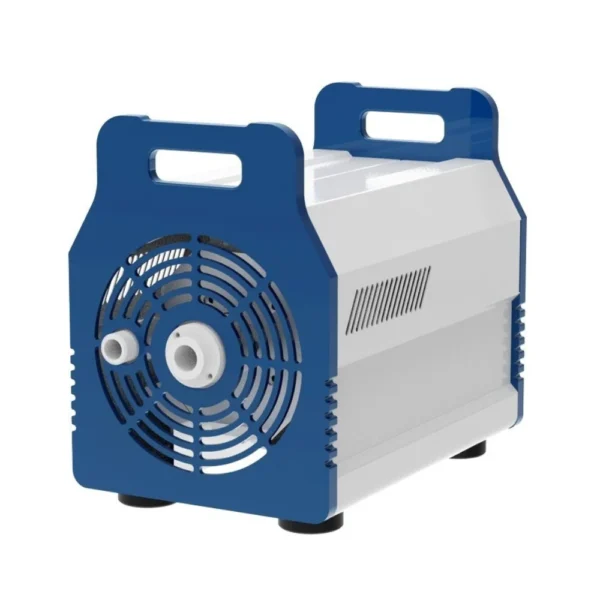

C1200 Series Chemical Resistant Diaphragm Pumps

The C1200 series from Wiggens delivers dependable vacuum performance for laboratories working with aggressive gases and vapors. This series includes multiple models, such as the C1200 and C2000, and offers robust, chemically resistant laboratory equipment for precise vacuum control across South Africa.



C1200 Model

The C1200 model suits compact setups that require moderate throughput. It achieves a vacuum down to 1 mbar and a pumping speed of up to 120 L/min. With corrosion-resistant wetted parts, it withstands harsh chemical exposure. Its quiet operation, overheat protection, and easy maintenance make it ideal for daily laboratory applications like filtration, drying, and solvent removal.



C2000 Model

When higher performance is needed, the C2000 model delivers. It offers the same 1 mbar vacuum level but increases pumping speed to 245 L/min. This model is perfect for large-scale or high-throughput laboratory tasks. Like the C1200, it combines chemical resistance, low noise, and operator-friendly design.

Both models support vacuum control via manual valve or external vacuum controller. As a result, they offer flexibility and consistent performance in a range of laboratory setups.

Wiggens manufactures these systems for long-term reliability. At Apex Scientific, we supply them throughout South Africa to meet the demands of scientific professionals using premium laboratory equipment. Explore our full range and learn more on our Insights page to find the model that best suits your needs.

ModelC1200EC1200ZC1200TC1200VC2000EC2000TC2000V
Order No.W1031201W1031202W1031203W1031204W1032001W1032002W1032003
Flow rate [m3/h] at atm. pressure7.25.74.2314.710.89
Flow rate [l/min] at atm. pressure120957050245180150
Ultimate vacuum [mbar abs.]＜ 80＜ 8＜2＜1＜ 70＜2＜ 1
Max. Power P [W]370370370370750750750
Max. current [A]2222–––
Motor speed [rpm]1380138013801380138013801380
Pump headSingle stageDouble stageTriple stageQuadruple stageSingle stageTriple stageQuadruple stage
Hose connections of inletKF25KF25KF25KF25KF25KF25KF25
Hose connections of outletG1/2G1/2G1/2G1/2G1/2G1/2G1/2
Noise [dB]50505050606060
Dimensions W x D x H [mm]440×270×240440×270×240440×270×240440×270×240615×285×386615×285×386615×285×386
Weight [kg]21.521.521.521.5414141
Power supply220~240V/50Hz220~240V/50Hz220~240V/50Hz220~240V/50Hz220~240V/50Hz220~240V/50Hz220~240V/50Hz
SKUDescription
W1031201Wiggens C1200E, Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <80 mbar; Max. Flow Rate: 120 L/min
W1031202Wiggens C1200Z, Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <8 mbar; Max. Flow Rate: 95 L/min
W1031203Wiggens C1200T, Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <2 mbar; Max. Flow Rate: 70 L/min
W1031204Wiggens C1200V, Chemical Resistant Diaphragm Pumps -Ultimate Vacuum: <1 mbar; Max. Flow Rate: 50 L/min
W1032001Wiggens C2000E, Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <70 mbar; Max. Flow Rate: 245 L/min
W1032002Wiggens C2000T, Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <2 mbar; Max. Flow Rate: 180 L/min
W1032003Wiggens C2000V, Chemical Resistant Diaphragm Pumps – Ultimate Vacuum: <1 mbar; Max. Flow Rate: 150 L/min



Accessories

SKUDescription
C410015PTFE Connector – Diameter: 10mm, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410055PTFE Adapter – KF25 to Screw thread, applicable for C300, 400, 410, 510, 600, 610, 900E, 920Z and 960T
C410056PTFE Adapter – Barbed fitting for tubing 12mm ID, KF25, suitable for C1200 / 2000 series
C410057PTFE Adapter – Barbed fitting for tubing 19mm ID, KF25, suitable for C1200 / 2000 series
C410058PTFE Adapter – Barbed fitting for tubing 25mm ID, KF25, suitable for C1200 / 2000 series
C900E030Silencer – Suitable for chemical resistant diaphragm pumps
410001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C300/400/410
510001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, suitable for C510/600/610/900E/920Z/960T/980V
1200001Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 420
1200002Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for 520/602
1200003Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C1200 series
1200004Diaphragm and Valve Plate Set – 1 diaphragm and 2 valve plate, Suitable for C2000 series
C410005Diaphragm – applicable for C300/400/410, 1/pk
C510011Diaphragm – applicable for C510/600/610/900E/920Z/960T/980V, 1/pk
C510013Valve Plate – applicable for C300/400/410/510/600/610/900E/920Z/960T/980V, 1/pk
C2000005Diaphragm – applicable for C420, 1/pk
C2000006Diaphragm – applicable for C520/602, 1/pk
C2000013Valve Plate – applicable for C320/420/402/520/602, 1/pk
169311-06Chemical Resistant Vacuum Regulator / Filter – Incl. Vacuum gauge, filter, filter cartridge and vacuum regulator, chemical resistant
SXC202Adaptor for 169311-06 – Used for 169311-06, for C300
SXC203Adaptor for 169311-06 – Used for 169311-06, for C400/C600/A510
169312-06Chemical Resistant Vacuum Regulator / Filter – Includes Vacuum digital meter, trap and regulator
169313-06Chemical Resistant Vacuum Regulator – Basic model without vacuum gauge, includes vacuum trap and regulator
169314-06Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller DVR480
15060-01DVM150C – Digital Vacuum Meter for chemical resistant diaphragm pumps
BJFL005Connector for DVM150C – Connector with regulator and filter set, suitable for chemical resistant diaphragm pumps using digital vacuum meter, includes pressure regulating valve and Filter
016.1706.01PTFE Tube – Outer diameter: 6mm, Inner diameter: 4mm, Thickness: 1mm, Length: 1m
016.1708.01PTFE Tube – Outer diameter: 8mm, Inner diameter: 6mm, Thickness: 1mm, Length: 1m
016.1712.01PTFE Tube – Outer diameter: 12mm, Inner diameter: 10mm, Thickness: 1mm, Length: 1m
016.1714.01PTFE Tube – Outer diameter: 14mm, Inner diameter: 12mm, Thickness: 1mm, Length: 1m
016.1716.01PTFE Tube – Outer diameter: 20mm, Inner diameter: 18mm, Thickness: 1mm, Length: 1m
016.1718.01PTFE Tube – Outer diameter: 28mm, Inner diameter: 25mm, Thickness: 1.5mm, Length: 1m
168000-01Viton Tube – Outer diameter: 12mm, Inner diameter: 6mm, Thickness: 3mm, Length: 1m
168001-01Viton Tube – Outer diameter: 14mm, Inner diameter: 8mm, Thickness: 3mm, Length: 1m
168002-01Viton Tube – Outer diameter: 16mm, Inner diameter: 10mm, Thickness: 3mm, Length: 1m
168003-01Viton Tube – Outer diameter: 18mm, Inner diameter: 12mm, Thickness: 3mm, Length: 1m
168006-01Viton Tube – Outer diameter: 22mm, Inner diameter: 16mm, Thickness: 3mm, Length: 1m
168004-01Viton Tube – Outer diameter: 25mm, Inner diameter: 19mm, Thickness: 3mm, Length: 1m
168005-01Viton Tube – Outer diameter: 31mm, Inner diameter: 25mm, Thickness: 3mm, Length: 1m
016.902.5.2Straight Through Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.902.2Straight Through Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.903.7.2Straight Through Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.903.2Straight Through Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.904.9.2Straight Through Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.904.2Straight Through Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.905.2Straight Through Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.907.2Straight Through Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1002.5.2L-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1002.2L-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1003.7.2L-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1003.2L-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1004.9.2L-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1004.2L-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1005.2L-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1006.2L-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1102.5.2T-Shape Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1102.2T-Shape Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1103.7.2T-Shape Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1103.2T-Shape Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1104.9.2T-Shape Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1104.2T-Shape Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1105.2T-Shape Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1106.2T-Shape Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1112.5.24-Way Connector – Outer diameter: 4.5mm, Inner diameter: 2mm
016.1112.24-Way Connector – Outer diameter: 6.0mm, Inner diameter: 2mm
016.1113.7.24-Way Connector – Outer diameter: 6.8mm, Inner diameter: 3mm
016.1113.24-Way Connector – Outer diameter: 8.0mm, Inner diameter: 3mm
016.1114.9.24-Way Connector – Outer diameter: 9.0mm, Inner diameter: 4mm
016.1114.24-Way Connector – Outer diameter: 10.0mm, Inner diameter: 4mm
016.1115.24-Way Connector – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1116.24-Way Connector – Outer diameter: 16.0mm, Inner diameter: 10mm
016.702.5.2Straight Through Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.702.2Straight Through Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.703.7.2Straight Through Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.703.2Straight Through Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.704.9.2Straight Through Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.704.2Straight Through Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.705.2Straight Through Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.706.2Straight Through Bayonet – Outer diameter: 16.0mm, Inner diameter: 10mm
016.1202.6.2Straight Through Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1203.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1204.2Straight Through Screw – Outer diameter: 8mm, Inner diameter: 4mm
016.802.5.2T-Shape Bayonet – Outer diameter: 4.5mm, Inner diameter: 2mm
016.802.2T-Shape Bayonet – Outer diameter: 6.0mm, Inner diameter: 2mm
016.803.7.2T-Shape Bayonet – Outer diameter: 6.8mm, Inner diameter: 3mm
016.803.2T-Shape Bayonet – Outer diameter: 8.0mm, Inner diameter: 3mm
016.804.9.2T-Shape Bayonet – Outer diameter: 9.0mm, Inner diameter: 4mm
016.804.2T-Shape Bayonet – Outer diameter: 10.0mm, Inner diameter: 4mm
016.805.2T-Shape Bayonet – Outer diameter: 11.0mm, Inner diameter: 5mm
016.1302.6.2T-Shape Screw – Outer diameter: 6mm, Inner diameter: 2mm
016.1303.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 3mm
016.1304.2T-Shape Screw – Outer diameter: 8mm, Inner diameter: 4mm
900414-1DVR480 – Chemical Resistant Vacuum Controller / Filter – Includes vacuum trap and Vacuum controller
900414-2DVR480 Pro – Chemical Resistant Vacuum Controller, accuracy:0.1%
900580DVR580 – Chemical Resistant Vacuum Controller, accuracy:0.25%FS

Product Enquiry Handbook: Vacuum Pumps

Operating Manual – DVR480 / DVR480Pro

Datasheet for DVR480 / DVR480Pro
