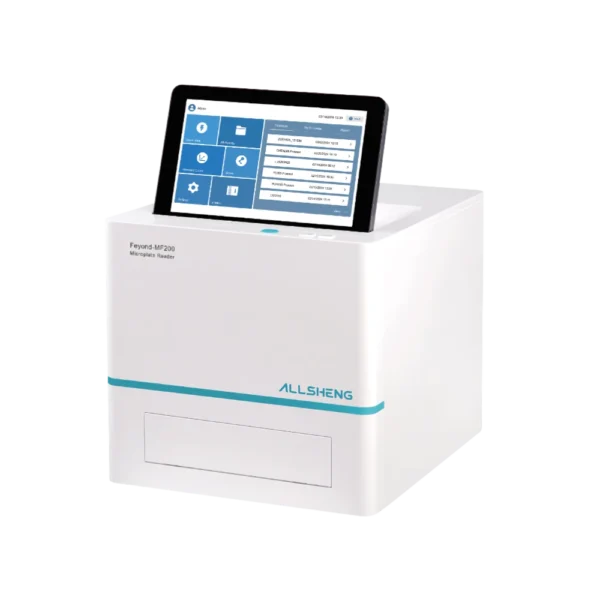

Microplate Reader — Feyond-MF200/MF200A

The Feyond-MF200 from Allsheng, available in South Africa through Apex Scientific, is an advanced dual-function microplate detection platform designed for precision in demanding laboratory workflows. Featuring a unique dual optical element system, it offers both full-wavelength absorbance (UV/Vis/NIR) and fluorescence intensity detection, ensuring accurate and reproducible results across a wide range of applications. This versatile piece of laboratory equipment supports high-throughput analysis with reliability, making it suitable for research, diagnostics, and quality control environments.

Scientists benefit from its user-friendly design, robust performance, and flexibility to meet evolving experimental needs. To explore applications, specifications, and best practices, visit the Apex Scientific Insights page or contact us today to learn more.

The Feyond MF200 from Allsheng, distributed in South Africa by Apex Scientific, is a dual-function microplate detection platform built for precision and sensitivity. It combines full-wavelength absorbance (UV/Vis/NIR) with fluorescence intensity (FI), making it suitable for a wide range of laboratory applications.

In absorbance mode, the system covers 190–1000 nm. This range allows continuous spectral detection and accurate analysis from ultraviolet to near-infrared. In fluorescence mode, a xenon lamp, high-sensitivity PMT, and up to eight excitation/emission filter pairs ensure excellent detection of trace biomolecules. Moreover, this mode supports monitoring intracellular signal transduction and measuring enzyme activity with high accuracy.



Flexible Operation and Control

The smart touch screen edition includes a 10-inch rotatable display for parameter setup and data analysis. Alternatively, the PC Control Edition uses ReaderIt-III software, which streamlines high-throughput workflows and integrates easily into modern laboratories.



Enhanced Sensitivity and Efficiency

Optimized optical paths and a switchable filter wheel support simultaneous detection across multiple fluorescence channels, including FRET. Furthermore, users can choose between three vibration modes—linear, circular, and double circular—to suit different sample types. In addition, the well area scanning function offers up to 900 detection points per well. This reduces positional variability and improves reproducibility.



Applications in Modern Laboratories

This versatile laboratory equipment supports drug target research, cell viability assays, nucleic acid quantification, protein concentration analysis, cytotoxicity studies, and ELISA. Consequently, laboratories across South Africa trust the Feyond MF200 to deliver reliable and reproducible results for demanding workflows.

For detailed specifications and application guidance, visit the Apex Scientific Insights page or contact us today to explore how this platform can advance your laboratory.

ModelFeyond-MF200 / Feyond-MF200A
Absorbance
Support Plate Rack6–384 well plates, microplates
Light SourceXenon lamp
DetectorPD × 2
Wavelength Accuracy2 nm
Wavelength Repeatability0.2 nm
(SD) Half Width (FWHM)≤ 2.5 nm
Wavelength Range190–1000 nm, 1 nm step
Measure Range0–4 OD
Resolution0.0001 OD
Accuracy96-precision mode: ±(1.0%+0.003) @ (0.0–2.0] / ±2.0% @ (2.0–3.0]
RepeatabilityCV < 1.0% fast (0.0–3.0] / CV < 0.5% accurate (0.0–3.0]
Stray Light0.1% @ 220 nm
LinearityR² ≥ 0.999 @ [0.0–3.0]
Reading Time96-well plate: fast < 15 s
Fluorescence
Reading ModeTop reading
Excitation Light SourceXenon lamp
DetectorPMT
Filter EX/EM3 groups, up to 8 groups installable
Detection Limit2 pM (optimized condition)
Dynamic Range≥ 6 logs
Basic Parameters
Vibration ModesLinear, circular, double circular
Incubation TemperatureRT + 4 °C ~ 45 °C
Temperature Accuracy±0.5 °C @ 37 °C
Temperature Uniformity1 °C @ 37 °C
Feyond-MF200 (Touch Edition)
Display10-inch LCD screen
Operation ModeTouch screen
Operating SystemAndroid
Data Capacity10 GB
Network TransmissionUpload to PC server via FTP
Analysis SoftwareReaderIt-III PC (optional)
Interfaces2 × USB Type-A, 1 × USB Type-B, 1 × Ethernet, 1 × RS232
Size (W×D×H)320 × 435 × 305 mm
Power SupplyAC 100–240V, 2A, 50–60Hz
Weight≤ 25 kg
Feyond-MF200A (PC Edition)
DisplayNo screen, connect to PC
Operation ModeComputer operation
Operating SystemWindows
Data Capacity
Network Transmission
Analysis SoftwareReaderIt-III PC (optional)
Interfaces1 × USB Type-B, 1 × RS232
Size (W×D×H)320 × 435 × 305 mm
Power SupplyAC 100–240V, 2A, 50–60Hz
Weight≤ 25 kg
SKUDescription
AS-19110-00Feyond-MF200 Microplate Reader, 10-inch LCD touch screen
AS-19120-00Feyond-MF200A Microplate Reader, No touch screen, Computer operation



Accessories

SKUDescription
AS-19111-01Readerlt-III PC Software
AS-19011-02u-Nano Ultra-Micro Detection Plate
AS-19011-03ABS Optical Performance Validation Board
AS-19011-04MSS-2 Automatic Injector
