Incubator – Forced Convection

Forced Convection Incubators from Jeiotech, available at Apex Scientific, deliver reliable performance for laboratory applications in South Africa. Designed to suit varying research needs, the IB4-S and IB4-V models ensure precise temperature control with features like Opti-flow™ fan speed control, IEC Class II protection, and DIN 12880 Class 3.1 compliance. These incubators log key events for easy monitoring and offer space-saving stackable configurations.

Learn more from our article on our Insights page: Choosing the Right Incubator for Your Laboratory: A Guide from Apex Scientific. Explore our range to find the ideal solution for your lab.

Forced Convection Incubator models by Jeiotech, available through Apex Scientific in South Africa, deliver reliable solutions for laboratories needing stable temperature control and effective monitoring. The IB4-S and IB4-V models offer both standard and advanced features, supporting accuracy and flexibility in precision-driven environments.

Forced-Convection-Oven
Forced Convection Airflow
Forced-Convection-Oven
Natural Convection Airflow

Forced Convection vs Natural Convection

Forced convection ovens or incubators use a fan to actively circulate hot air, ensuring uniform temperature distribution and faster heating. In contrast, natural convection rely on gravity-driven airflow, where hot air rises and cooler air sinks. This results in slower, less uniform heating but gentler airflow, ideal for sensitive samples.

Precise and Consistent Temperature Control

Both incubators feature a 3-point calibration system that ensures temperature consistency and repeatability. With airflow uniformity maintained to ±0.41 °C at 37 °C, they are well-suited for sensitive applications.

The IB4-V includes Ramp Control™, allowing users to set the rate of temperature increase. This helps protect temperature-sensitive samples. Additionally, high and low-temperature limits can be set, triggering alerts for optimal environmental stability.

Temperature and Humidity Chamber
Temperature and Humidity Chamber

Get Connected

Monitor and control your chamber remotely using the LC Connected mobile app when paired with the LC GreenBox. This convenient setup allows you to access real-time data, adjust settings, and ensure reliable performance from anywhere. All collected data can be easily exported as Excel or text files for seamless reporting and further analysis.

Smart Interfaces for Streamlined Operation

The IB4-S includes a 3.5-inch touchscreen, while the IB4-V upgrades to a 5-inch display with graphical monitoring and preset temperature suggestions. Both models feature a “Wait on / Wait off” timer for efficient scheduling.

Moreover, each incubator connects via RS-232/USB, enabling seamless software integration for better experiment tracking and data handling.

Incubator
3.5-Inch Touch Controller
Incubator
Wait on & Wait off Timer
Oven Calibration
Three-point Temperature Calibration
Multiple Alarm Settings
Incubator
Control via Connecting the PC

Remote Monitoring and Laboratory Integration

Both models integrate with your Building Management System (BMS), providing real-time updates. For labs that need remote access, the optional LC GreenBox system offers full remote monitoring and control.

The IB4-V also logs the 36 most recent events—such as door openings and system alerts—and automatically stores data in CSV format. Furthermore, the LC DataKeeper software is 21 CFR Part 11 compliant, helping your lab stay audit ready.



Features Designed for Laboratory Uptime

The Jeiotech Forced Convection Incubator series includes practical features to keep your experiments running smoothly:

  • Water tray reduces media drying and supports extended incubation
  • Alarm alerts you when the door remains open too long
  • Auto-restart function kicks in within 30 seconds after power recovery
  • Touchscreen lock avoids accidental setting changes
  • IB4-V stackable design helps maximize lab space
  • Opti-flow™ system (IB4-V) automatically adjusts fan speed based on conditions



Each detail is crafted to protect your samples and improve equipment usage.

Accessories

Learn How to Choose the Right Incubator

Choosing the right Forced Convection Incubator is essential to your laboratory’s performance. At Apex Scientific, we offer expert guidance to help you find the right fit for your research.

Read our article: Choosing the Right Incubator for Your Laboratory: A Guide from Apex Scientific in South Africa. Visit our Insights page for additional expert resources on laboratory equipment, usage tips, and product solutions for labs across South Africa.

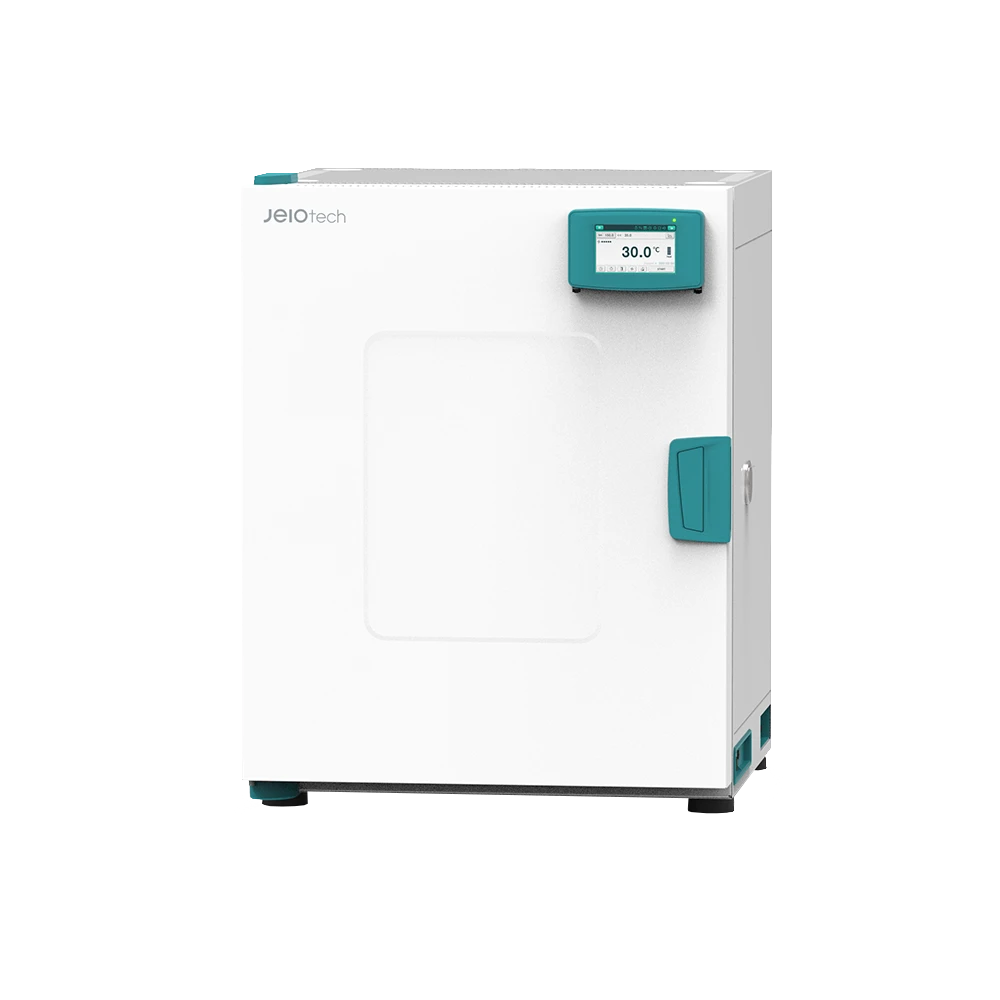

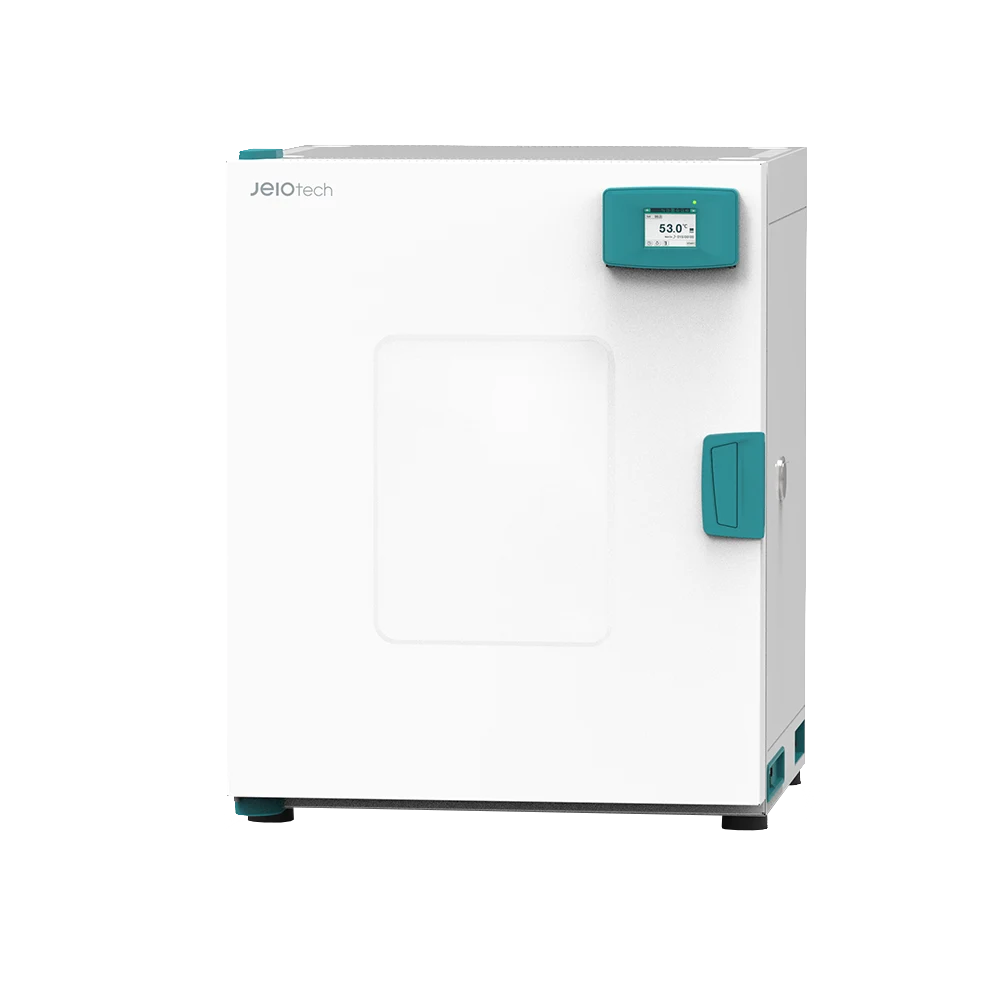

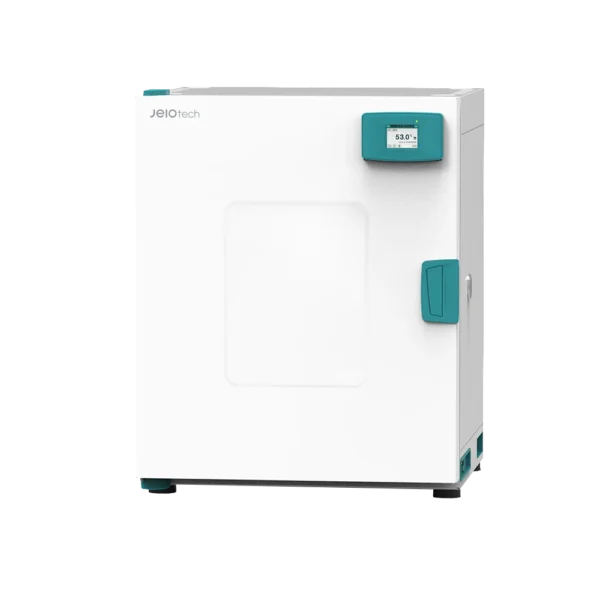

Incubator – Forced Convection, Standard, IB4-S

ModelIB4-03SIB4-05SIB4-10SIB4-15S
Chamber volume (L / cu ft)25 / 0.8860 / 2.19111 / 3.92146 / 5.16
TemperatureRange (℃ / ℉)Amb. +5 1) to 80
/ Amb. +9 to 176
Fluctuation at 37℃ (±℃ / ℉)0.10 / 0.180.15 / 0.270.10 / 0.180.10 / 0.18
Variation at 37℃ (±℃ / ℉)0.23 / 0.410.41 / 0.740.39 / 0.700.35 / 0.63
Heating time to 37℃ (min.) 1)5487
Recovery time at 37℃ (min.)5443
Control panel3.5 inch TFT Color LCD
Communication interfaceUSB-B, RS-232 (option)
FunctionRecently event record12 ea
Dimension (W×D×H)Interior (W x D x H, mm / inch)300 x 210 x 400
/11.81 x 8.27 x 15.75
380 x 330 x 480
/14.96 x 12.99 x 18.9
485 x 350 x 655
/ 19.1 x 13.78 x 25.79
550 x 376 x 710
/ 21.62 x 14.8 x 27.95
Exterior (W x D x H, mm / inch)478 x 527 x 604
/ 18.8 x 20.75 x 23.78
558 x 648 x 684
/ 21.97 x 25.5 x 26.93
663 x 677 x 859
/ 26.1 x 26.65 x 33.82
728 x 704 x 914
/ 28.66 x 27.7 x 36.0
Net weight (Kg / lbs)32 / 70.5541 / 90.3956 / 123.4662 / 136.69
ShelvesQuantity of shelves (standard/max.)2 / 42 / 52 / 82 / 9
Max. Load per shelf (Kg / lbs)20 / 44.0920 / 44.0920 / 44.0920 / 44.09
Electrical requirements (230V, 50 / 60Hz, A)3
Cat. No.AAH21455KAAH21465KAAH21475KAAH21485K
Electrical requirements (120V, 60Hz, A)5.8
Cat. No.AAH21453UAAH21463UAAH21473UAAH21483U

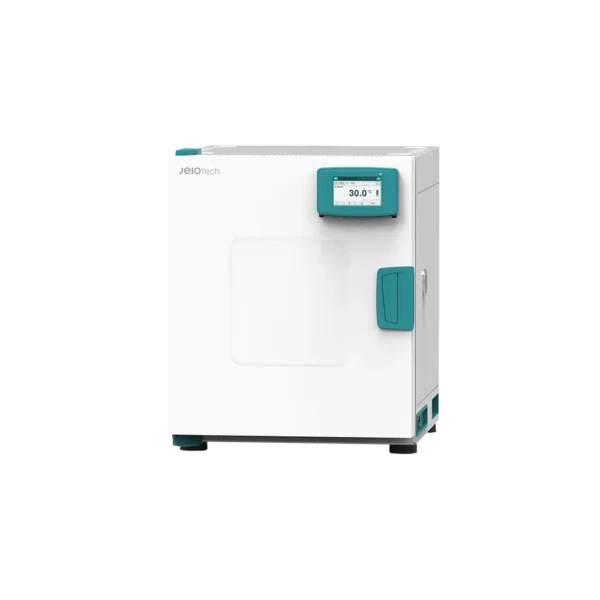

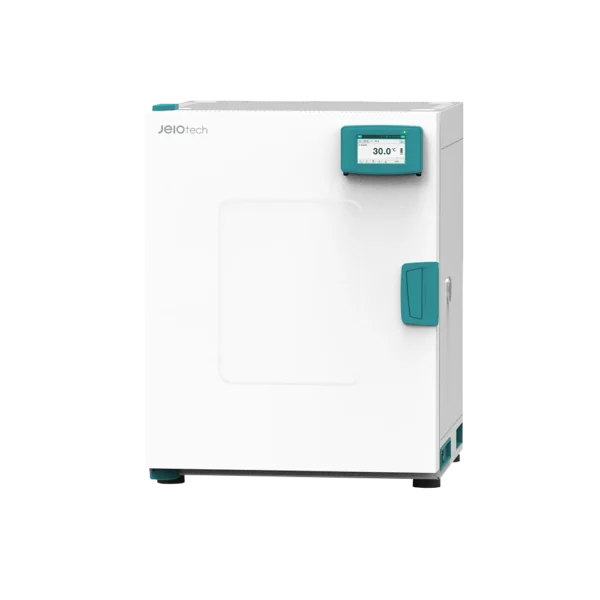

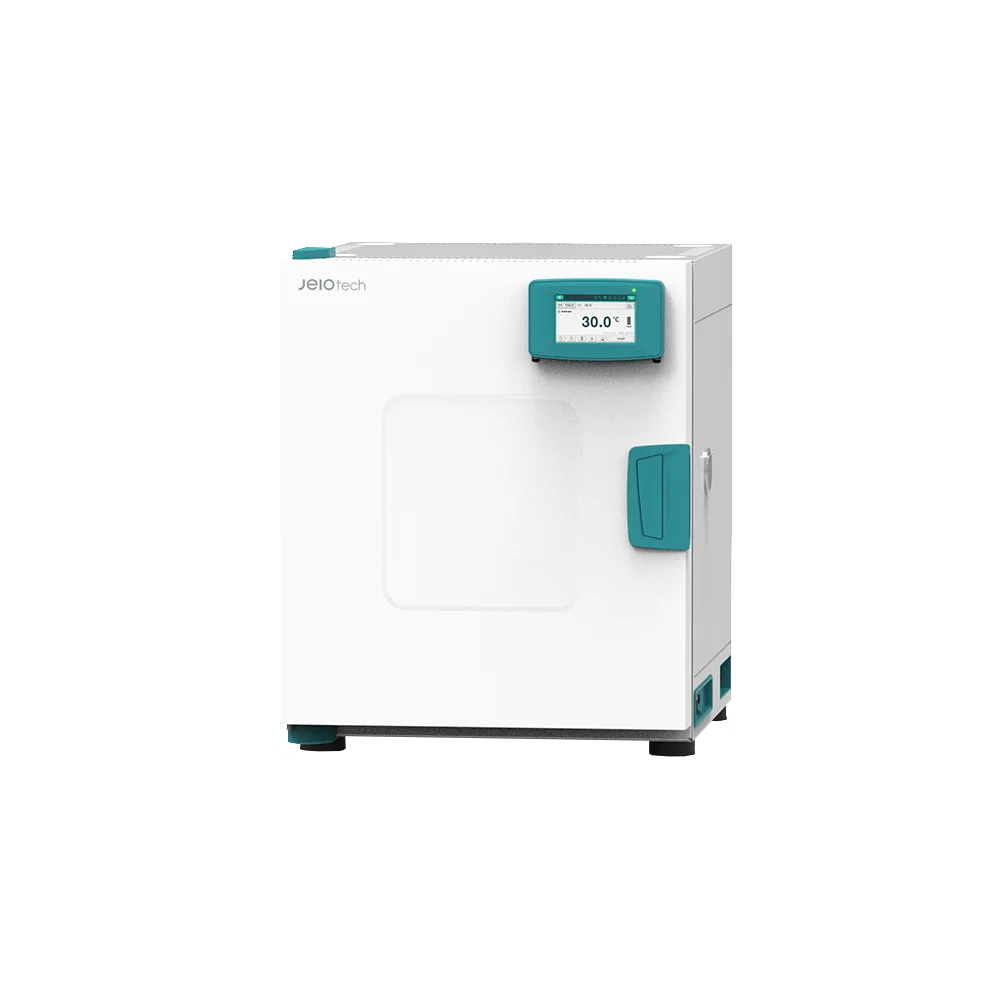

Incubator – Forced Convection, Advanced, IB4-V

ModelIB4-03VIB4-05VIB4-10VIB4-15V
Chamber volume (L / cu ft)25 / 0.8860 / 2.12111 / 3.92146 / 5.16
TemperatureRange (℃ / ℉)Amb. +51) to 80
/ Amb. +9 to 176
Fluctuation at 37℃ (±℃ / ℉)0.10 / 0.180.15 / 0.270.10 / 0.180.10 / 0.18
Variation at 37℃ (±℃ / ℉)0.23 / 0.410.41 / 0.740.39 / 0.700.35 / 0.63
Heating time to 37℃ (min.) 1)5487
Recovery time at 37℃ (min.)5443
Control panel5 inch TFT Color LCD
Communication interfaceUSB-B, RS-232
FunctionRecently event record36 ea
Recommended temperatureSuggest three frequently used temperature
GraphAvailable viewing stored and real-time graphs
Data storageSave your experiment data (in CSV format)
Temp. ramping rate (℃/min. | ℉/min)0 to 8.0 | 0 to 14.40 to 6.0 | 0 to 10.80 to 5.0 | 0 to 9.00 to 4.0 | 0 to 7.2
Dimension
(W×D×H)
Interior (W x D x H, mm / inch)300 x 210 x 400
/11.81 x 8.27 x 15.75
380 x 330 x 480
/14.96 x 12.99 x 18.9
485 x 350 x 655
/ 19.1 x 13.78 x 25.79
550 x 376 x 710
/ 21.62 x 14.8 x 27.95
Exterior (W x D x H, mm / inch)478 x 527 x 604
/ 18.8 x 20.75 x 23.78
558 x 648 x 684
/ 21.97 x 25.5 x 26.93
663 x 677 x 859
/ 26.1 x 26.65 x 33.82
728 x 704 x 914
/ 28.66 x 27.7 x 36.0
Net weight (Kg / lbs)32 / 70.5541 / 90.3956 / 123.4662 / 136.69
ShelvesQuantity of shelves (standard/max.)2 / 42 / 52 / 82 / 9
Max. Load per shelf (Kg / lbs)20 / 44.0920 / 44.0920 / 44.0920 / 44.09
Electrical requirements (230V, 50 / 60Hz, A)3
Cat. No.AAH21655KAAH21665KAAH21675KAAH21685K
Electrical requirements (120V, 60Hz, A)5.8
Cat. No.AAH21653UAAH21663UAAH21673UAAH21683U
