Laboratory Compressed Air Systems

Compressed Air Systems from Wiggens offer dependable and efficient air supply solutions for various laboratory applications. Available through Apex Scientific, these compact and medium-sized laboratory equipment models are designed for consistent performance, low noise, and enhanced air purity. Built for scientific environments in South Africa, they feature integrated filters and condensers to meet the demands of both low-pressure tasks and continuous operation.

These systems come in multiple configurations to suit a range of lab requirements. See which model best suits your lab needs by exploring our full range on the Apex Scientific Insights page.

Compressed Air Systems from Wiggens deliver reliable, clean air tailored to a variety of laboratory applications. Supplied by Apex Scientific, these systems serve research and testing environments across South Africa, where consistent performance and air quality are critical.

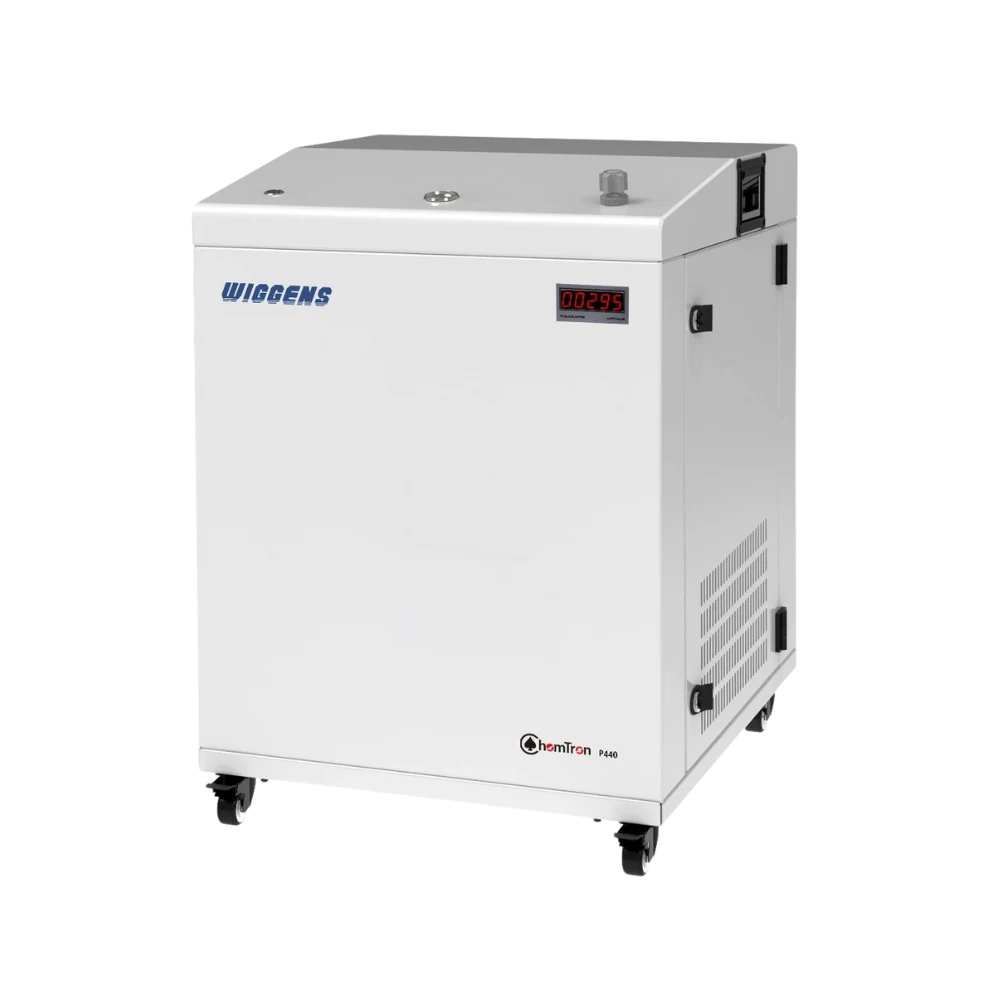

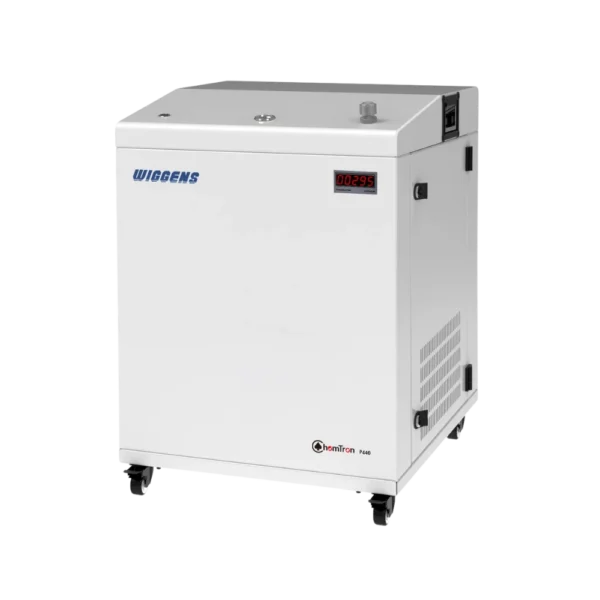

Compact and Efficient – P440

The Wiggens P440 model offers a compact solution for laboratories requiring low-pressure, low-flow air. It fits neatly into tight spaces, operates quietly, and performs reliably for routine, light-duty tasks.

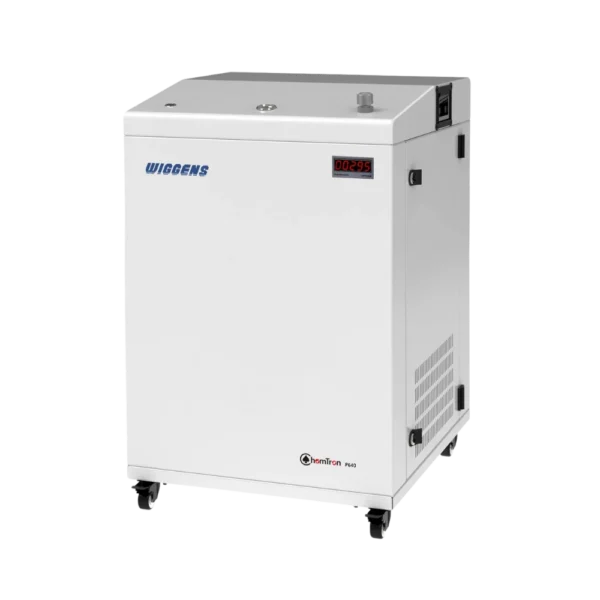

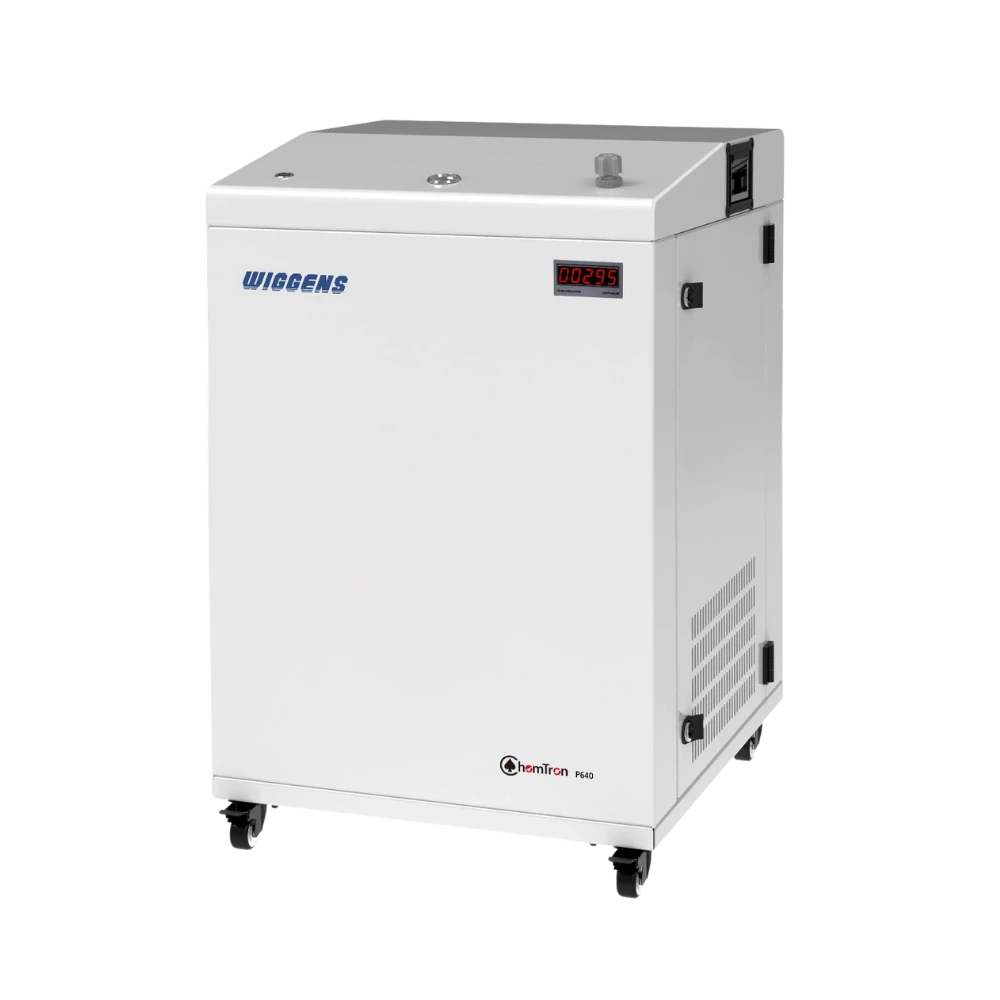

Enhanced Air Purity – P640

In contrast, the Wiggens P640 meets the needs of labs requiring continuous, high-purity air. Its built-in condenser and filtration system significantly boost air quality, making it ideal for more sensitive laboratory processes.



Built for Demanding Laboratory Workflows

Each unit supports modern laboratory equipment standards and integrates easily into research, sample preparation, and analytical workflows. Thanks to their robust construction and low-maintenance design, these compressed air systems continue to perform in demanding settings throughout South Africa.



Choose the Right Model for Your Needs

Whether you need a compact setup or a high-capacity unit, Wiggens offers scalable solutions to meet your specific lab requirements. Explore our full range and learn more on the Apex Scientific Insights page.

ModelP440
Order No.167440-22
Max. Airflow (L/min)30
Max. Pressure (bar)5
Pressure adjustment range (bar)0~5
Power(W)750
Connection (mm)8mm quick connector or G1/4Male
Air tank (L)30
Weight(kg)56
Noise (dB)69
Dimension L×W×H (mm)680×340×720
Filter typeWND30005
Running typeSwitch: auto stop, start at 3bar and stop at 5bar.
safety valve:Release the air pressure automatically when the pressure over 8bar in the air tank



ModelP 640
Order No.167640-22
Power ( W )550
Max. Flow Rate ( L/min )60
Max.pressure ( bar )8
Adjustable pressure range(bar)0 ~ 8
Volume of tank(L)30
Outlet (mm)8mm
SKUDescription
167440Wiggens P440 Pressure Pump
167640Wiggens P640 Pressure Pump
