| Model | LHH-500SD LHH-500SDP | LHH-800SD LHH-800SDP | LHH-1000SD LHH-1000SDP | LHH-1500SD LHH-1500SDP | LHH-500GSD LHH-500GSP | LHH-800GSD LHH-800GSP | LHH-1000GSD
LHH-1000GSP LHH-1500GSP |
| Temperature control range | 0~65℃ | 0~65℃ without illumination 10-50℃ with illumination | |||||
| Temperature Stability | ±0.5℃ | ||||||
| Temperature uniformity | ±2℃ | ||||||
| Humidity Rang | 35~95%RH | ||||||
| Humidity Stability | ±3%RH | ||||||
| Illumination | / | 0~6000LX adjustable | |||||
| Illumination difference | / | ≤±500LX | |||||
| Cooling system cooling mode | Two sets of imported compressor work rotationally | ||||||
| Controller | Programmable ( touch screen) | ||||||
| Sensor | Temp: Pt100, Humidity: capacitance sensor | ||||||
| Ambient Temperature | RT+5~30℃ | ||||||
| Electrical Requirement | AC220V 50Hz | AC380V 50Hz | AC220V 50Hz | AC380V 50Hz | |||
| Power Consumption | 3750W | 7150W | 7150W | 10600W | 3910W | 7350W | 7350W
10800W |
| Chamber Volume | 500L | 800L | 1000L | 1500L | 500L | 800L | 1000L/1500L |
| Interior Dimension
(W×D×H)mm |
670×725×1020 | 800×590×1650 | 1050×590×1650 | 1550×590×1650 | 670×725×1020 | 800×590×1650 | 1050×590×1650
1550×590×1650 |
| External Dimension
(W×D×H)mm |
850×1100×1930 | 1360×890×2000 | 1610×890×2000 | 2110×890×2000 | 850×1100×1930 | 1360×890×2000 | 1610×890×2000 2110×890×2000 |
| Shelves | 4(pcs) | ||||||
| Safety Device | Compressor overheating and overpressure protection, Fan overheating protection Over temperature protection, Overload protection, Water protections | ||||||
| Remark | 1. Bulid in mini printer
2. Paperless recorder (Option). 3. GP/GSD/GSP series products have installed intensity of illumination detector. 4. GSD/GSP series products have 2 layers of light control (Option). 5. 1000L and 1500L are double doors |
||||||

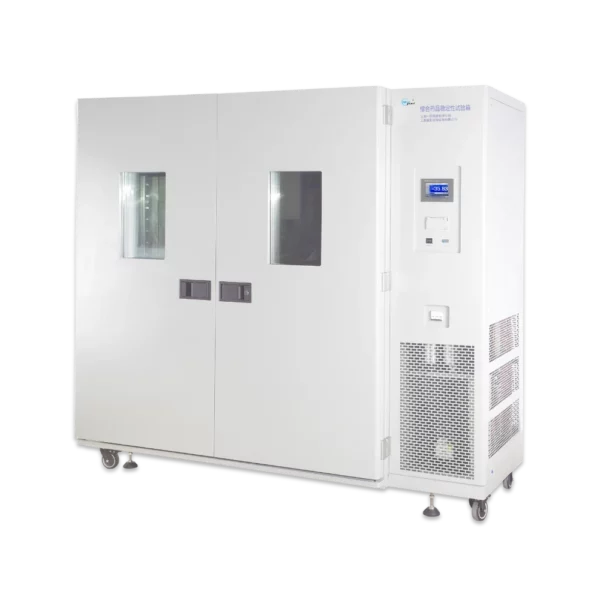

Large Medicine Stability Testing Chamber
The Large Medicine Stability Testing Chamber features a microprocessor controller with a timing function. Apex Scientific are suppliers of the Large Medicine Stability Testing Chamber and other laboratory equipment such as Environmental Chambers in KwaZulu-Natal, Gauteng, Western cape as well as other areas in Sub-Saharan Africa. Check out our YouTube Channel for more product videos.
| Brand | Bluepard |
|---|
