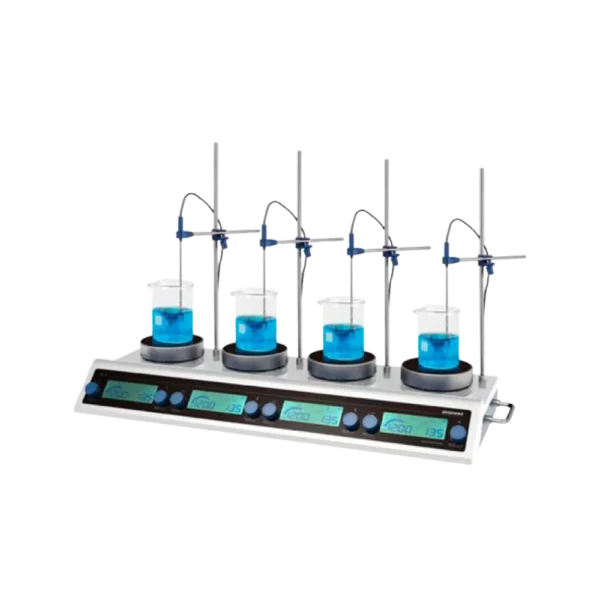

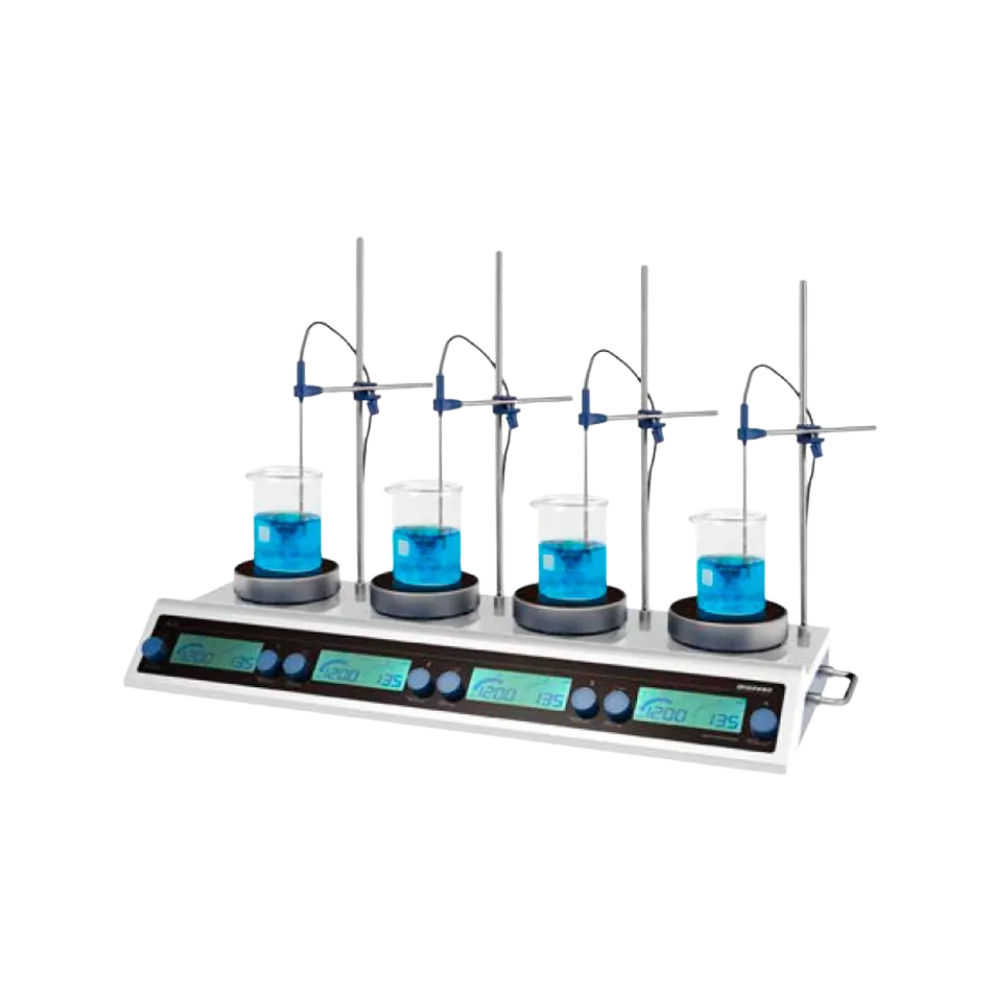

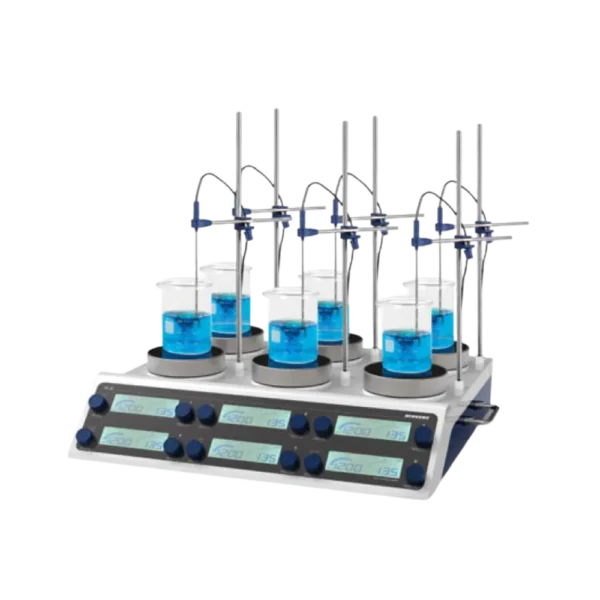

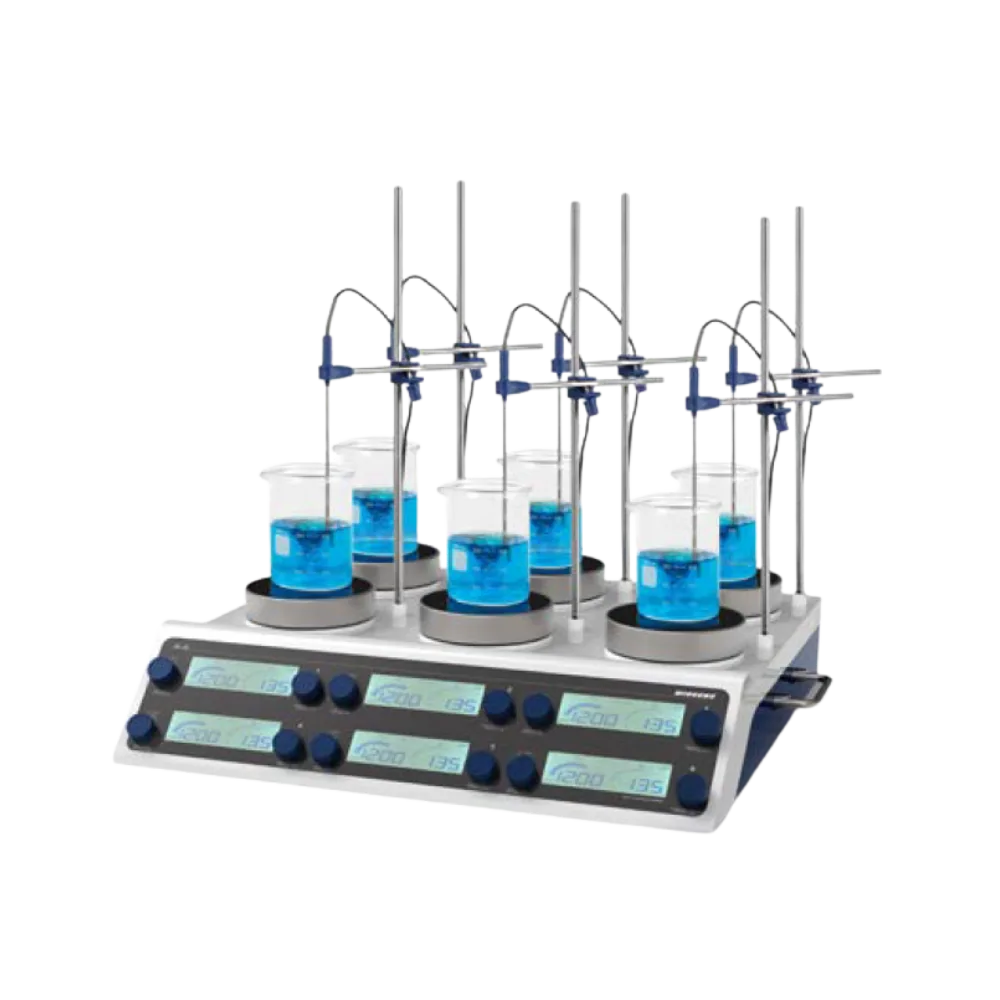

Multiposition Hotplate Stirrer – Independent Control

The multi-position heat magnetic stirrers from Wiggens deliver precise and independent stirring at every position, making them ideal for demanding laboratory workflows. Each stirrer features a durable ceramic glass plate with excellent chemical resistance, ensuring easy cleaning and long-term reliability. Advanced infrared heating technology provides high-efficiency performance with accurate temperature control, supporting reproducible results across multiple experiments.

Available in South Africa through Apex Scientific, this laboratory equipment combines durability with user-friendly operation to meet the needs of modern research and analytical applications. To learn more about applications, accessories, and best practices, visit the Apex Scientific Insights page or contact us today.

These multi-position heat magnetic stirrers from Wiggens gives precise, independent control at each stirring point. This makes it a versatile choice for laboratories in South Africa. In addition, advanced infrared heating technology delivers efficient and reproducible temperature control across multiple samples. Each position has its own safety temperature control and monitoring system, which ensures reliability and protects your work during demanding applications.



Durable and Chemically Resistant Design

The stirrer features a robust ceramic glass plate with excellent chemical resistance. It can handle thermal shock up to 700 °C, and the smooth surface allows quick cleaning. Furthermore, the waterproof, anti-corrosion control panel protects the system against damage from splashes or spills. As a result, scientists gain dependable laboratory equipment that combines durability with consistent performance.



Advanced Heating and PID Control

The Wiggens WH420R and WH620R models include three selectable PID parameter sets. For example, PID1 suits small samples with low specific heat capacity, while PID3 handles large volumes with rapid heating. This flexibility lets researchers adapt the system to a wide range of laboratory and analytical applications.



A Trusted Choice for South African Laboratories

Apex Scientific supplies the Wiggens multi-position heat magnetic stirrers in South Africa, ensuring scientists access reliable laboratory equipment with expert support. The combination of durable design, advanced controls, and user-focused features makes it an excellent solution for modern laboratories.

To learn more about applications, accessories, and best practices, visit our Apex Scientific Insights page or contact us today.

ModelWH420R-LWH620R-LWH420R-DWH620R-D
Order no.W3010415W3010416W3010425W3010426
Maximum temperature setting [℃ ]450450450450
Maximum temperature setting with E-sensor [℃ ]300300300300
Safety temperature [℃ ]50-500 adjustable50-500 adjustable50-500 adjustable50-500 adjustable
High temperature protection [℃ ]10-50 adjustable10-50 adjustable10-50 adjustable10-50 adjustable
Temperature stability with E-sensor [℃ ]*±1±1±1±1
Heat output,each position/set [W]500W/2000W500W/3000W500W/2000W500W/3000W
External temperature sensorPt100Pt100Pt100Pt100
Temperature control3333
Speed setting range [rpm]100-1500100-1500100-1500100-1500
Stirring quantity max [L / H2O]20L20L20L20L
Display/ControlIndependent control LCD digital display/knob operationIndependent control LCD digital display/knob operationIndependent control LCD digital display/knob operationIndependent control LCD digital display/knob operation
Time setting1~999min/continuous1~999min/continuous1~999min/continuous1~999min/continuous
Top plate materialCeramic glassCeramic glassCeramic glassCeramic glass
Top plate dimension [mm]Ø135Ø135Ø135Ø135
Communicate interface.USB-AUSB-AUSB-AUSB-A
Dimensions W*D*H(Sensor set’s not included)786*309*113mm1180*309*113mm388*473*138mm582*473*138mm
Weight(Kg)15.523.515.823.8
Power supply220V/50HZ220V/50HZ220V/50HZ220V/50HZ
SKUDescription
W3010415WH420R-L, Magnetic stirrer with heating function (ceramic top plate, timer) , including stir bar 001.230.8(4 pcs)
W3010416WH620R-L, Magnetic stirrer with heating function (ceramic top plate, timer) , includes stir bar 001.230.8(6 pcs)
W3010425WH420R-D, Magnetic stirrer with heating function (ceramic top plate, timer) , including stir bar 001.230.8(4 pcs)
W3010426WH620R-D, Magnetic stirrer with heating function (ceramic top plate, timer) , includes stir bar 001.230.8(6 pcs)



Accessories

SKUDescription
PR5500/PR5600Thermometer
400-0011Protective Cover, Silicone material, top square opening
PT100-01PT100 Temperature sensor, Type I – Length: 170 mm; Diameter: 4 mm; Material: Stainless steel; Admissible temperature: -30 ~ +300°C
PT100-02PT100 Temperature sensor, Type II – Length: 300 mm; Material: Stainless steel
PT100-03PT100 Temperature sensor, Type III – Length: 170 mm; Material: Stainless steel, PTFE coated
PT100-04PT100 Temperature sensor, Type IV – Length: 300 mm; Material: Stainless steel, PTFE coated
PT100-05Holder and clamp for PT100 temperature sensor
PT100-06PT100 Temperature Sensor, Type VI – Length: 250 mm; Diameter: 4 mm; Material: Glass; Admissible temperature: -30 ~ +300°C
PT100-07PT100 Temperature sensor, -30~300℃ ;Length: 240 mm; Diameter: 3.15 mm; Material: Stainless steel
600.170.1K type thermocouple Length: 170 mm; Diameter: 4 mm; Material: Stainless steel; Admissible temperature: 0-500°C
WH220017Installation stand
WH220026Boss head clamp
WH220027Sensor holder
WA00-56Clamps for oil bath
H220000Stainless-Steel Oil Bath
13696-01WStainless T-shape handle, material: stainless steel, length: 20cm
13696-02WStainless T-shape handle, material: stainless steel, length: 30cm
13697-01WCylindrical heating block 28×30 (ID x H in mm) 11 Holes
13697-02WCylindrical heating block Heating Block 28×50 (ID x H in mm)11 Holes
13697-03WCylindrical heating block 26×30 (ID x H in mm)11 Holes
13697-04WCylindrical heating block Heating Block 28×30 (ID x H in mm)11 Holes
13697-11WCylindrical heating block Heating Block 28×30 (ID x H in mm)15 Holes
13697-12WCylindrical heating block 28×50 (ID x H in mm)15 Holes
13697-13WCylindrical heating block 26×30 (ID x H in mm)15 Holes
13697-14WCylindrical heating block 26×50 (ID x H in mm)15 Holes
13699-03FCylindrical heating block 69 mm Diameter,3 Holes
13699-05WCylindrical heating block 48.5 mm Diameter,5 Holes
13699-04WCylindrical heating block 60.3mm Diameter, 4 Holes
13699-150Cylindrical heating block 62.2mm Diameter,4 Holes
13699-01W / 02WCylindrical heating block 62.2 mm Diameter,3 Holes
13707-250Cylindrical heating block 250mL Beakers Form
13707-500Cylindrical heating block 500mL Beakers Form
13707-2000Cylindrical heating block 2000mL Beakers Form
13707-1000Cylindrical heating block 1000mL Beakers Form
W3033001Tube Block 0.2mL x 96 hole (microtube)
W3033002Tube Block 0.5mL x 48 holes(microtube)
W3033003Tube Block 1.5mL x 48 holes(microtube)
W3033004Tube Block 15mL x 15 holes(centrifuge tube)
W3033005Tube Block 50mL x 6 holes(centrifuge tube)
W3033006Tube Block 50mL x 6 holes(centrifuge tube)
W3033007Tube Block Ø10 x 35 holes
W3033008Tube Block Ø12 x 24 holes
W3033009Tube Block Ø13 x 24 holes
W3033010Tube Block Ø15 x 20 holes
W3033011Tube Block Ø16 x 16 holes
W3033012Tube Block Ø18 x 12 holes
W3033013Tube Block Ø20 x 12 holes
189100-11Soxhlet Lipid
189103-01Extraction
189101-01Extractor Body
189102-01Extraction
189104-01Flask
6811Extraction
189105-01Flask
1.215.6Plain Stirrer Bar
1.110.6Cylindrical Stirrer
1.215.6Plain Stirrer Bar
1.1609Colored Octahedral Stirrer bars
1.515Octahedral Stirrer bars
1.1609Colored Octahedral Stirrer bars
1.51-R,B/YMicro Stirrer Bar
1.620.Oval Stirrer Bar
1.1212Glass Covered
1.2402Cross Stirrer Bar
1.1335Double Ended Stirrer
1.802Turbo Cylindrical
1.420.Tube Stirrer Bar
