Multiposition Hotplate Stirrer

Multiposition Hotplate Magnetic Stirrer units from Wiggens offer advanced performance and safety for precise lab work. Designed for scientists in South Africa, these 4- and 6-position models feature microprocessor control for consistent temperature and stirring, bright LED displays, and hot-top indicators. A memory function enables quick setup, while the sealed design and liquid drainage system ensure durability in demanding conditions.

Available from Apex Scientific, these reliable laboratory equipment solutions are ideal for routine and high-throughput applications. To learn more, check out our article, What to Look for in a Hotplate Magnetic Stirrer: A Laboratory Equipment Selection Guide.

Multiposition Hotplate Magnetic Stirrer for Efficient Laboratory Workflow

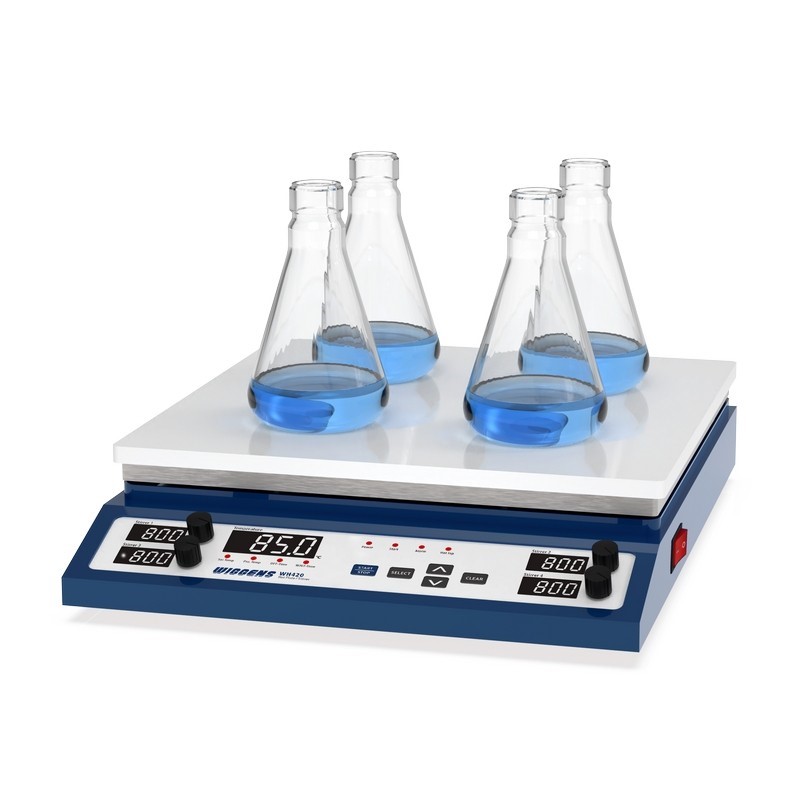

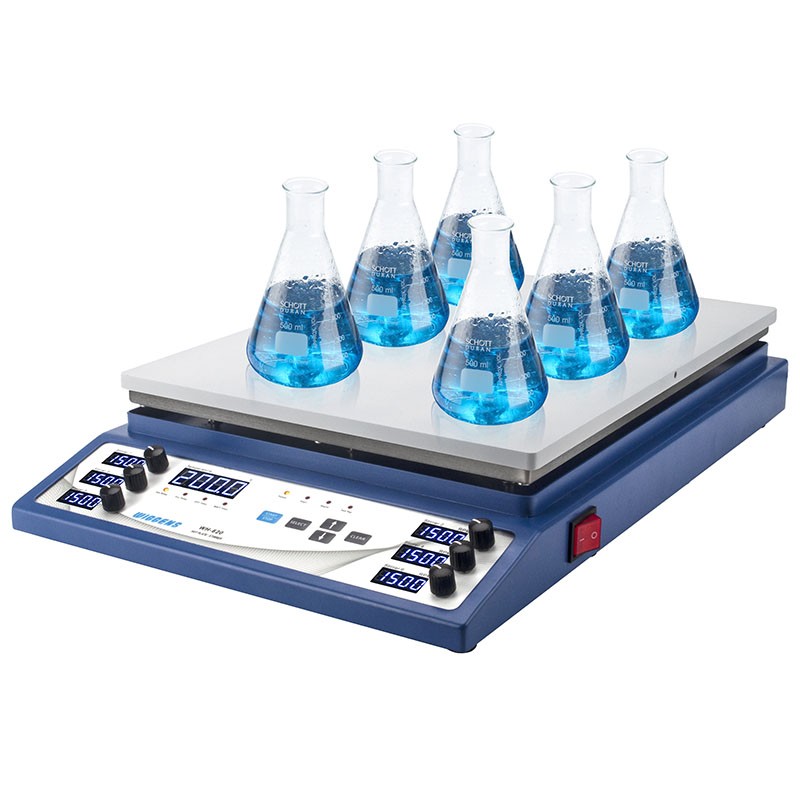

The Multiposition Hotplate Magnetic Stirrer from Wiggens is engineered for precision, safety, and reliability in demanding laboratory environments. Ideal for research and analytical laboratories in South Africa, this high-performance laboratory equipment is available in 4- and 6-position configurations, enabling simultaneous stirring of multiple samples while maintaining consistent temperature control.



Advanced Microprocessor Control

Equipped with a cutting-edge microprocessor control system, the Multiposition Hotplate Magnetic Stirrer ensures excellent temperature stability and accurate stirring speeds. The intuitive LED digital display makes it easy to set and monitor key parameters—temperature, speed, and safety conditions—all in real time. Whether you’re mixing reagents or conducting thermal experiments, precision is always within reach.



Built-In Convenience Features

Designed with scientists in mind, this stirrer features a memory function that recalls previous settings for temperature and stirring speed. This allows for efficient repetition of routine tasks, reducing setup time between experiments. The built-in liquid drainage system protects sensitive internal components by safely diverting accidental spills away from the control board.



Reliable Safety Enhancements

Laboratory safety is critical, and the Multiposition Hotplate Magnetic Stirrer delivers on that promise. A built-in hot-top indicator warns users when the plate temperature exceeds 60 °C, reducing burn risks. Additionally, the sealed outer housing and isolated internal components extend the equipment’s lifespan, even in chemically aggressive environments.

Streamline Your Lab: Multiposition Hotplate Magnetic Stirrer for Simultaneous Sample Processing

Wiggens’ Multiposition Hotplate Magnetic Stirrer—available through Apex Scientific—is designed to boost lab efficiency by allowing simultaneous stirring of multiple samples. Available in 4- and 6-position models, this unit offers consistent temperature control across all positions. An advanced microprocessor ensures stable operation, while an easy-to-read LED digital display allows for quick adjustment of speed and temperature. Perfect for research labs managing high-throughput workflows, this stirrer delivers reliable, uniform performance in even the most demanding laboratory settings.

Flexible and Versatile Performance

With the ability to heat up to 380 °C and stir at speeds ranging from 100 to 1500 rpm, this Wiggens stirrer meets the needs of a wide range of applications. Both the 4-place and 6-place models offer a direct thermocouple sensor connection, ensuring high-precision temperature control with ±2 °C accuracy. These features make it ideal for chemical synthesis, sample prep, and more.

Accessories

Trusted by Scientists Across South Africa

Exclusively available through Apex Scientific, this Multiposition Hotplate Magnetic Stirrer offers premium performance tailored for laboratories in South Africa. Whether you’re scaling up workflows or ensuring consistent results, it’s an essential addition to your laboratory equipment suite. Read our full guide on hotplate magnetic stirrers on our Insights page to explore key considerations and selection tips for your application.

ModelWH420WH620
Order No.400315400316
Number of stirring positions46
Maximum temperature setting [℃ ]300300
Maximum temperature setting with E-sensor [℃ ]300300
Safety temperature [℃ ]370370
Temperature stability with E-sensor [℃ ]*±1
Total heating output [W]10001500
External temperature sensorPt100
PID parameter1 set
Speed setting range [rpm]150~1500
Stirring quantity max [L / H2O]2
Temperature and Speed displayLED display
Temperature and Speed settingTurning knob
Time setting1~9959min / continuous
Top plate materialAluminium coated with ceramic
Top plate dimensions [mm](160×155) x4(150×133) x6
RS 232 interfaceYes
Dimensions W x D x H [mm]405x320x80525x320x87
Weight [kg]8.59
Power supply220V/50Hz

*Measured with 500ml water at 80 ℃
Standard package includes: Hot plate / stirrer, thermocouple sensor PT100-01 with holder and clamp,stirrer bar 4pcs or 6pcs (Order No. 1.230.8)

SKUDescription
400315.01WH420 Magnetic stirrer with heating function (Aluminium coated with ceramic Top Plate, Timer), including PT100-01 temperature sensor, PT100-05 holder and Stir Bar 001.230.8( 4 pcs)
400315WH420 Magnetic stirrer with heating function (Aluminium coated with ceramic Top Plate, Timer), including Stir Bar 001.230.8
400316.01WH620 Magnetic stirrer with heating function (Aluminium coated with ceramic Top Plate, Timer), including PT100-01 temperature sensor, PT100-05 holder and Stir Bar 001.230.8 (6 pcs)
400316WH620 Magnetic stirrer with heating function (Aluminium coated with ceramic Top Plate, Timer), includes Stir Bar 001.230.8



Accessories

SKUDescription
PR5500/PR5600Thermometer
400-0011Protective Cover, Silicone material, top square opening
PT100-01PT100 Temperature sensor, Type I – Length: 170 mm; Diameter: 4 mm; Material: Stainless steel; Admissible temperature: -30 ~ +300°C
PT100-02PT100 Temperature sensor, Type II – Length: 300 mm; Material: Stainless steel
PT100-03PT100 Temperature sensor, Type III – Length: 170 mm; Material: Stainless steel, PTFE coated
PT100-04PT100 Temperature sensor, Type IV – Length: 300 mm; Material: Stainless steel, PTFE coated
PT100-05Holder and clamp for PT100 temperature sensor
PT100-06PT100 Temperature Sensor, Type VI – Length: 250 mm; Diameter: 4 mm; Material: Glass; Admissible temperature: -30 ~ +300°C
PT100-07PT100 Temperature sensor, -30~300℃ ;Length: 240 mm; Diameter: 3.15 mm; Material: Stainless steel
600.170.1K type thermocouple Length: 170 mm; Diameter: 4 mm; Material: Stainless steel; Admissible temperature: 0-500°C
WH220017Installation stand
WH220026Boss head clamp
WH220027Sensor holder
WA00-56Clamps for oil bath
H220000Stainless-Steel Oil Bath
13696-01WStainless T-shape handle, material: stainless steel, length: 20cm
13696-02WStainless T-shape handle, material: stainless steel, length: 30cm
13697-01WCylindrical heating block 28×30 (ID x H in mm) 11 Holes
13697-02WCylindrical heating block Heating Block 28×50 (ID x H in mm)11 Holes
13697-03WCylindrical heating block 26×30 (ID x H in mm)11 Holes
13697-04WCylindrical heating block Heating Block 28×30 (ID x H in mm)11 Holes
13697-11WCylindrical heating block Heating Block 28×30 (ID x H in mm)15 Holes
13697-12WCylindrical heating block 28×50 (ID x H in mm)15 Holes
13697-13WCylindrical heating block 26×30 (ID x H in mm)15 Holes
13697-14WCylindrical heating block 26×50 (ID x H in mm)15 Holes
13699-03FCylindrical heating block 69 mm Diameter,3 Holes
13699-05WCylindrical heating block 48.5 mm Diameter,5 Holes
13699-04WCylindrical heating block 60.3mm Diameter, 4 Holes
13699-150Cylindrical heating block 62.2mm Diameter,4 Holes
13699-01W / 02WCylindrical heating block 62.2 mm Diameter,3 Holes
13707-250Cylindrical heating block 250mL Beakers Form
13707-500Cylindrical heating block 500mL Beakers Form
13707-2000Cylindrical heating block 2000mL Beakers Form
13707-1000Cylindrical heating block 1000mL Beakers Form
W3033001Tube Block 0.2mL x 96 hole (microtube)
W3033002Tube Block 0.5mL x 48 holes(microtube)
W3033003Tube Block 1.5mL x 48 holes(microtube)
W3033004Tube Block 15mL x 15 holes(centrifuge tube)
W3033005Tube Block 50mL x 6 holes(centrifuge tube)
W3033006Tube Block 50mL x 6 holes(centrifuge tube)
W3033007Tube Block Ø10 x 35 holes
W3033008Tube Block Ø12 x 24 holes
W3033009Tube Block Ø13 x 24 holes
W3033010Tube Block Ø15 x 20 holes
W3033011Tube Block Ø16 x 16 holes
W3033012Tube Block Ø18 x 12 holes
W3033013Tube Block Ø20 x 12 holes
189100-11Soxhlet Lipid
189103-01Extraction
189101-01Extractor Body
189102-01Extraction
189104-01Flask
6811Extraction
189105-01Flask
1.215.6Plain Stirrer Bar
1.110.6Cylindrical Stirrer
1.215.6Plain Stirrer Bar
1.1609Colored Octahedral Stirrer bars
1.515Octahedral Stirrer bars
1.1609Colored Octahedral Stirrer bars
1.51-R,B/YMicro Stirrer Bar
1.620.Oval Stirrer Bar
1.1212Glass Covered
1.2402Cross Stirrer Bar
1.1335Double Ended Stirrer
1.802Turbo Cylindrical
1.420.Tube Stirrer Bar

Insights Article: What to Look for in a Hotplate Magnetic Stirrer: A Laboratory Equipment Selection Guide

Product Enquiry Handbook: Hotplates and Magnetic Stirrers

Technical Specifications Sheet – WH420

Technical Specifications Sheet – WH620

Operating Manual – WH420

Operating Manual – WH620
