Performance

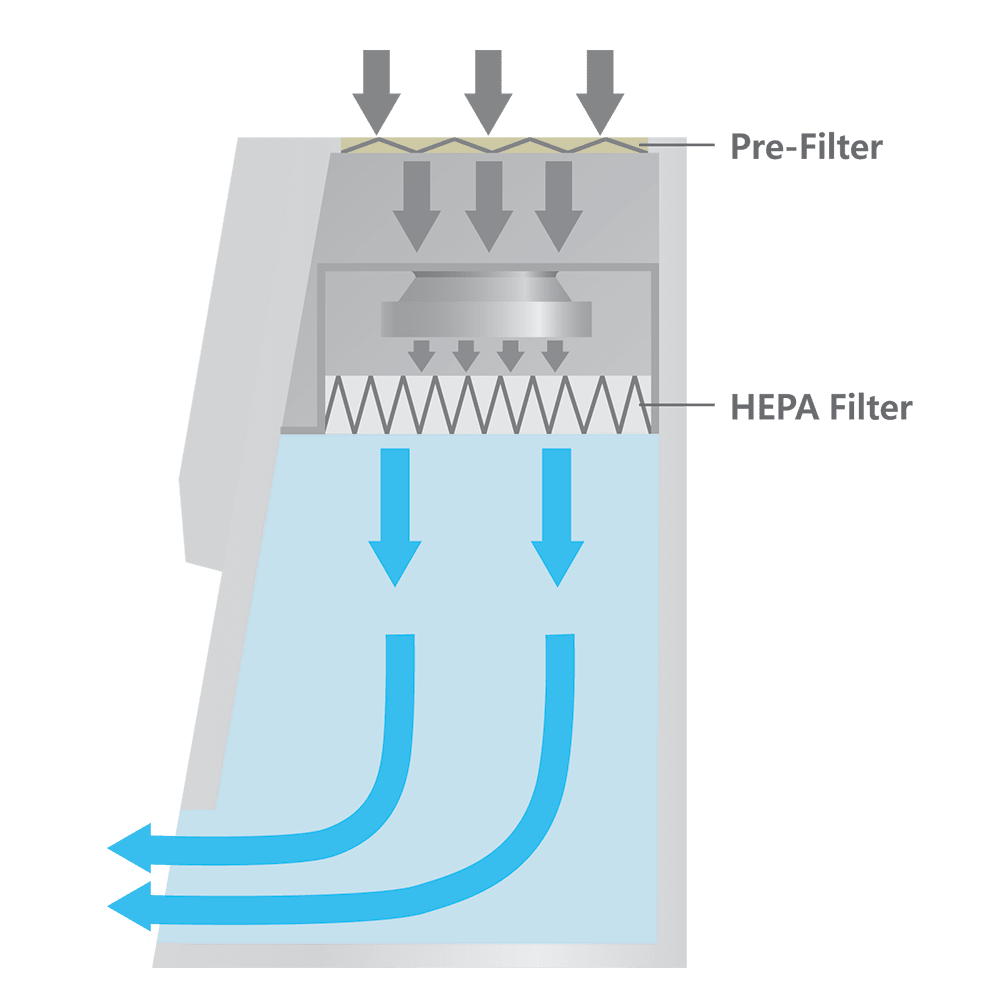

- ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
(average life span of HEPA filter: 3 years – it depends on the test room conditions) - High-quality polyester fiber pre-filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
- Effective sterilization using a long-life 254 nm UV lamp. (average life span of UV lamp: 8,000 hours)
- Built in anti-glare fluorescent lamp minimizes shadows and relieves eye strain.
Convenience
- User-friendly microprocessor-based control panel.
- Large capacity blower and easy blower speed adjustment by the control panel.
- Easy-settable digital timer for UV light exposure to deactivate DNA and RNA contaminants. (wait off, max. 30min.)
- Comfortable front access to cartridge type of filters for easy replacement.
Safety
- Interlocking safety door system shuts off UV light automatically when opening the door.
- UV-blocking door and side panels made of transparent polycarbonate material provides clear inside view.
- UV over-exposure alarm and over-current protection.
Technical specifications of The Lab Companion PCR Workstation:

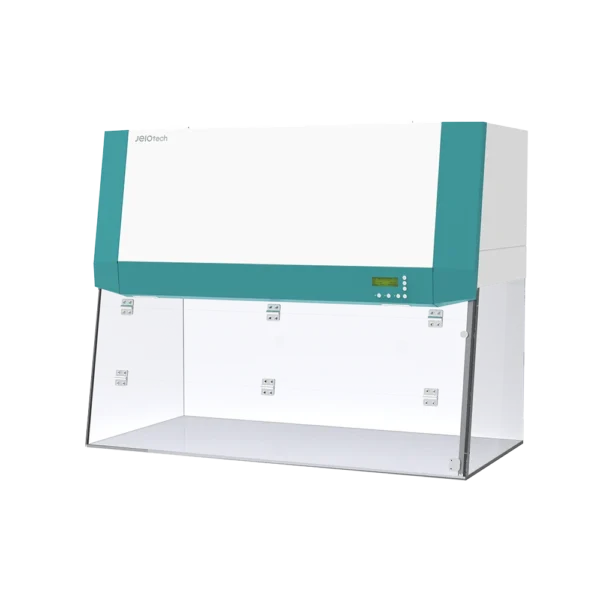

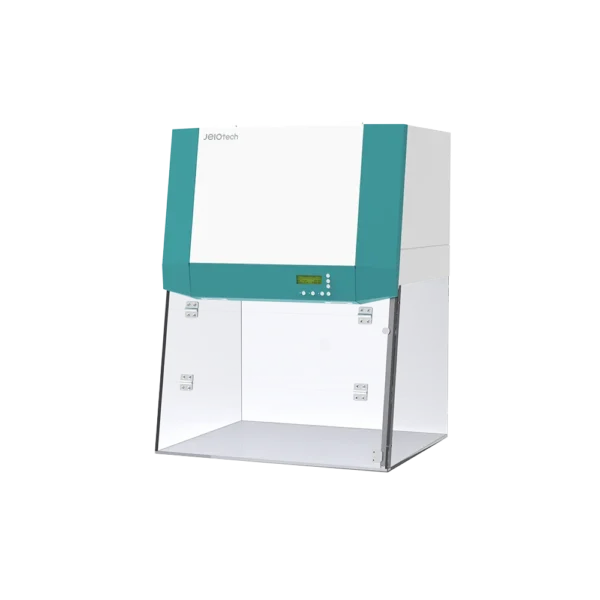

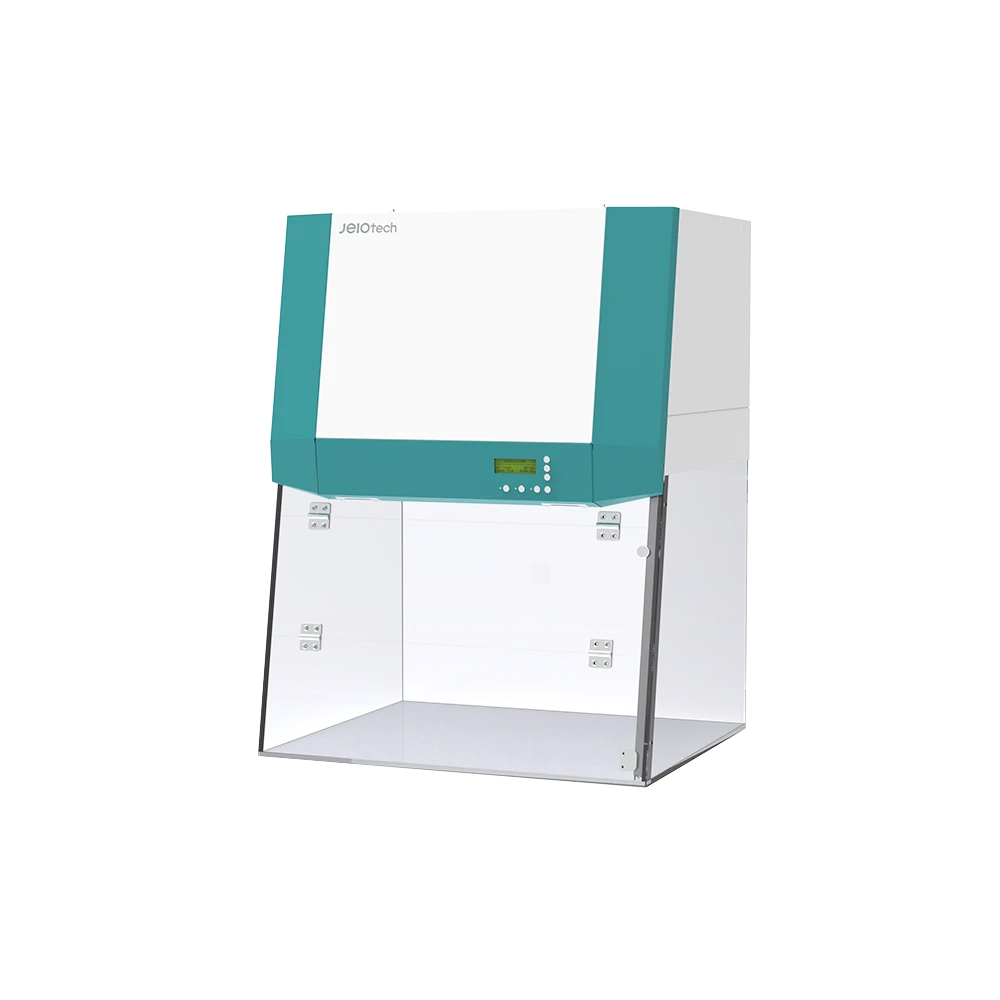

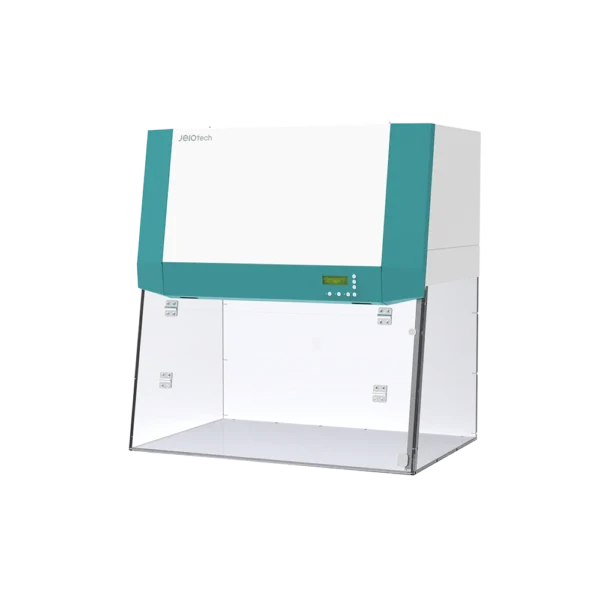

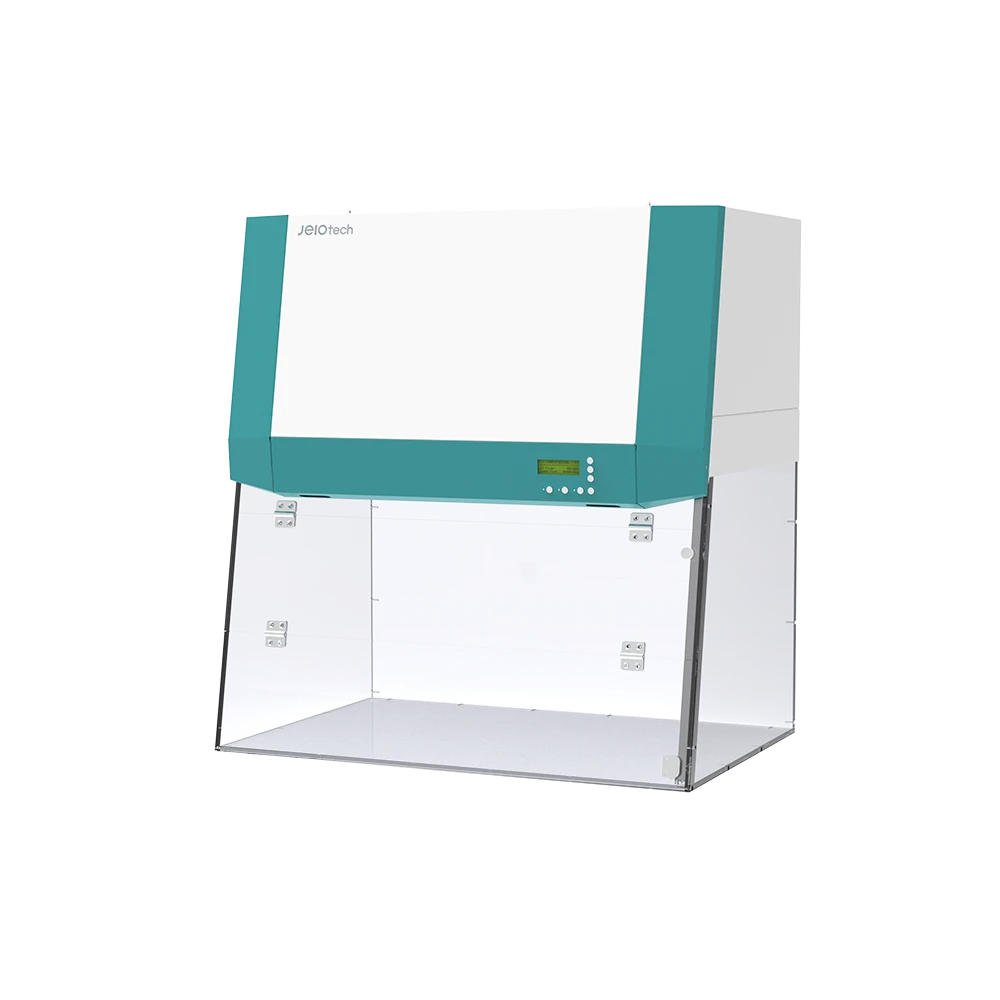

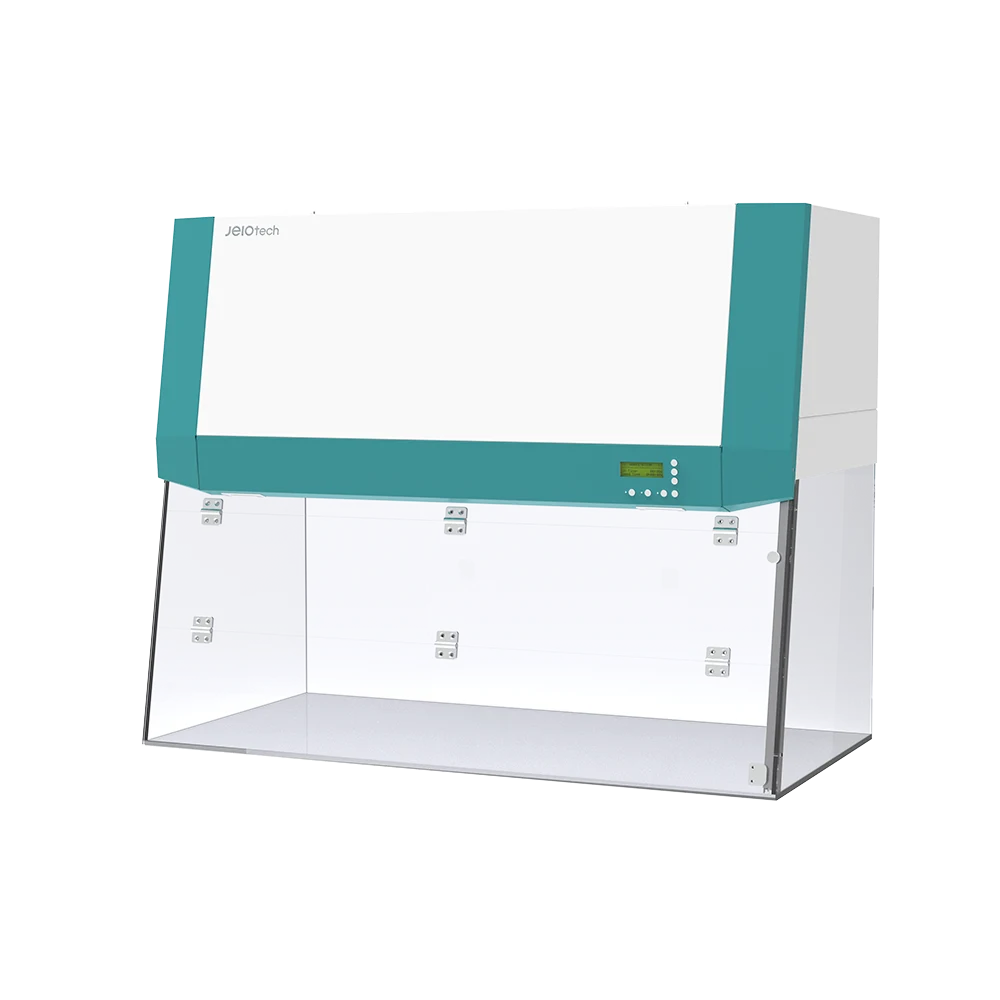

| Model | PW-01 | PW-11 | PW-21 | |||||
|---|---|---|---|---|---|---|---|---|
|
Air flow type |
Vertical |
|||||||
|
Max. air volume (cmh / cfm) |
557 / 327 |
697 / 408 |
929 / 546 |
|||||
|
Min. air volume (cmh / cfm) |
167 / 97 |
209 / 121 |
279 / 162 |
|||||
|
Laminar airflow velocity (m / s / fpm) |
0.4 / 78.7 |
|||||||
|
Filter |
Air cleanliness |
ISO 14644-1 class 4 |
||||||
|
HEPA filter |
Typical efficiency of 99.99% at 0.3 ㎛ US MIL-STD -282 |
|||||||
|
Pre filter |
Polyester fibers with an efficiency of 85% (A·F·I TEST); AL frame, Polyester fiber media |
|||||||
|
Noise level (dBA) |
Typically < 60 dBA at blower speed |
|||||||
|
Material |
Work surface |
10mm thick acrylic resin (clear type) |
||||||
|
|
Window (front, side / back) |
8mm / 10mm thick acrylic resin (clear type) |
||||||
|
Illumination |
Intensity |
Fluorescent lamp (lux) |
>1000 |
|||||
|
UV density (㎼ / ㎠) |
165 |
185 |
330 |
|||||
|
Capacity |
Fluorescent lamp (w) |
15 × 1ea |
20 × 1ea |
30 × 1ea |
||||
|
UV lamp (w) |
15 × 1ea |
20 × 1ea |
30 × 1ea |
|||||
|
Dimension(W×D×H) |
Interior (mm / inch) |
700×585×602 / 27.5×23×23.7 |
880×585×602 / 34.6×23×23.7 |
1180×585×602 / 46.5×23×23.7 |
||||
|
Exterior (mm / inch) |
720×605×964 / 28×24×38 |
900×605×964 / 35.4×24×38 |
1200×605×964 / 47.2×24×38 |
|||||
|
Net weight (Body) (kg / lbs) |
56.2 / 123.9 |
64.2 / 141.5 |
77.8 / 171.5 |
|||||
|
Electrical requirements (230V) |
60Hz, 1.3A | 50Hz, 1.3A | 60Hz, 1.4A | 50Hz, 1.4A | 60Hz, 1.5A | 50Hz, 1.5A | ||
| Cat. No. | AAHB3001K | AAHB3002K | AAHB3011K | AAHB3012K | AAHB3021K | AAHB3022K | ||
|
Electrical requirements (120V) |
60Hz, 2.2A | 60Hz, 2.7A | 60Hz, 2.9A | |||||
| Cat. No. | AAHB3003U | AAHB3013U | AAHB3023U | |||||
