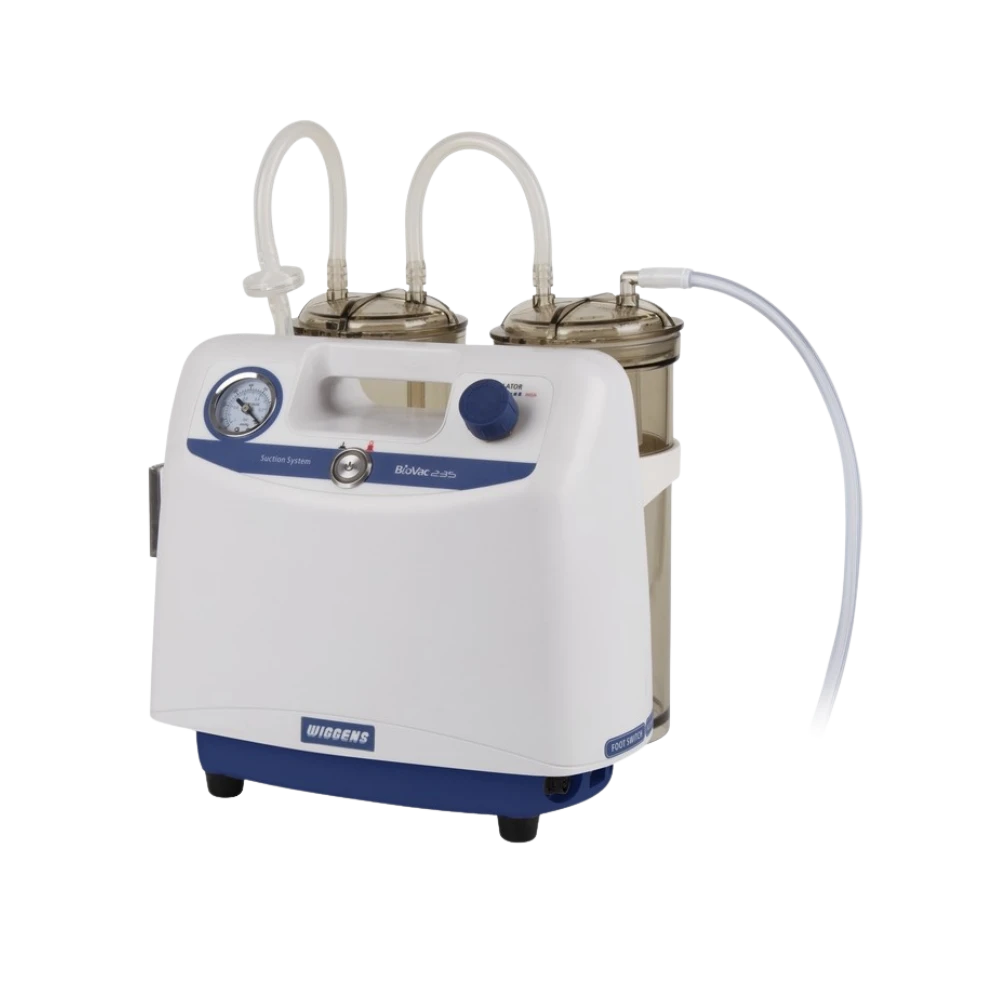

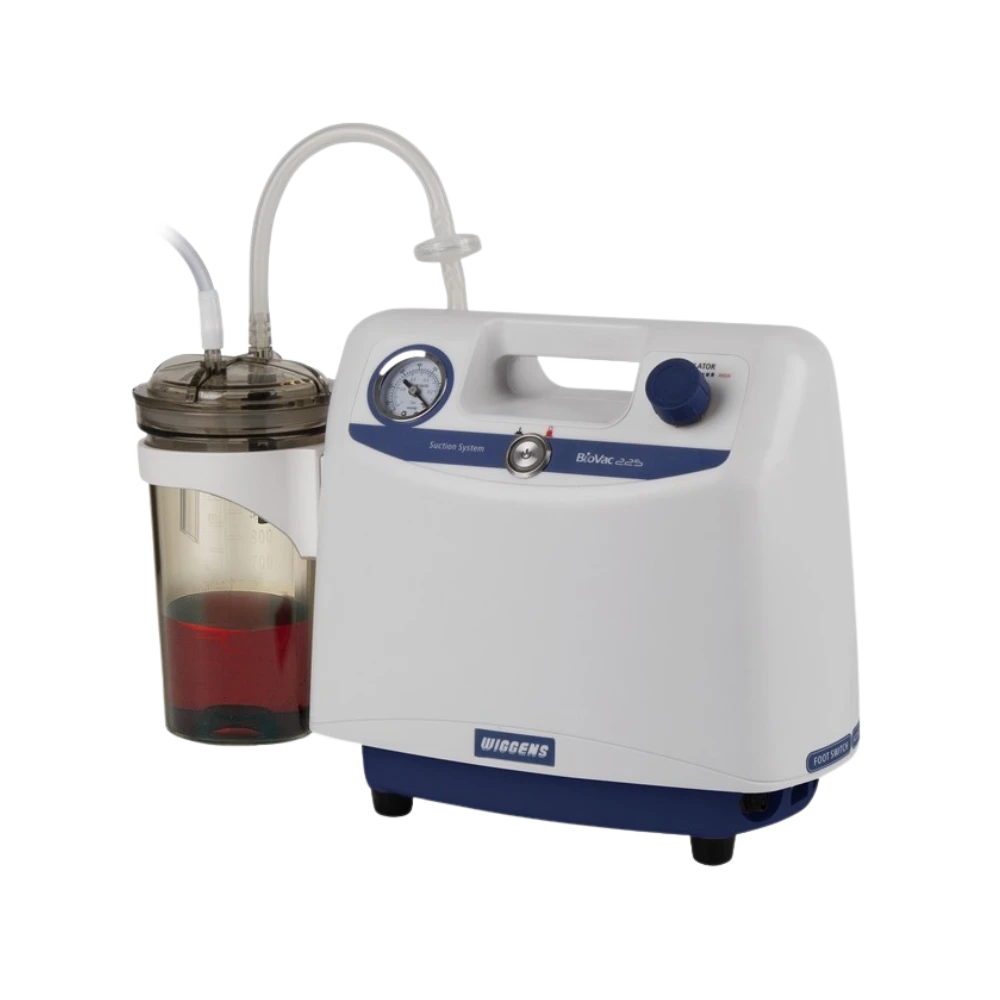

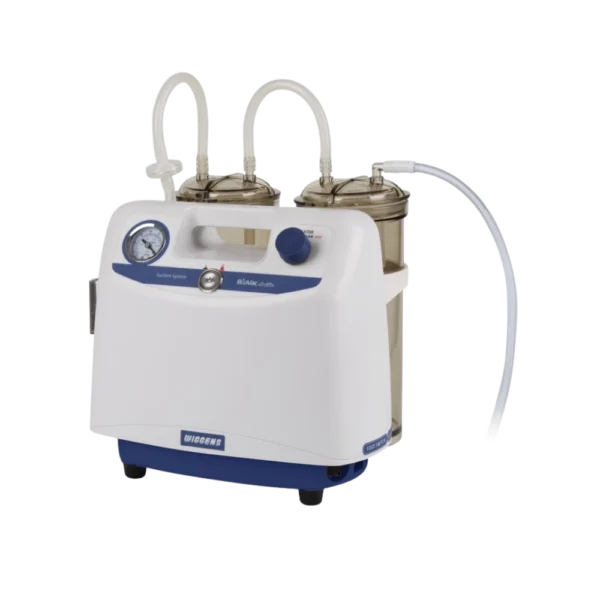

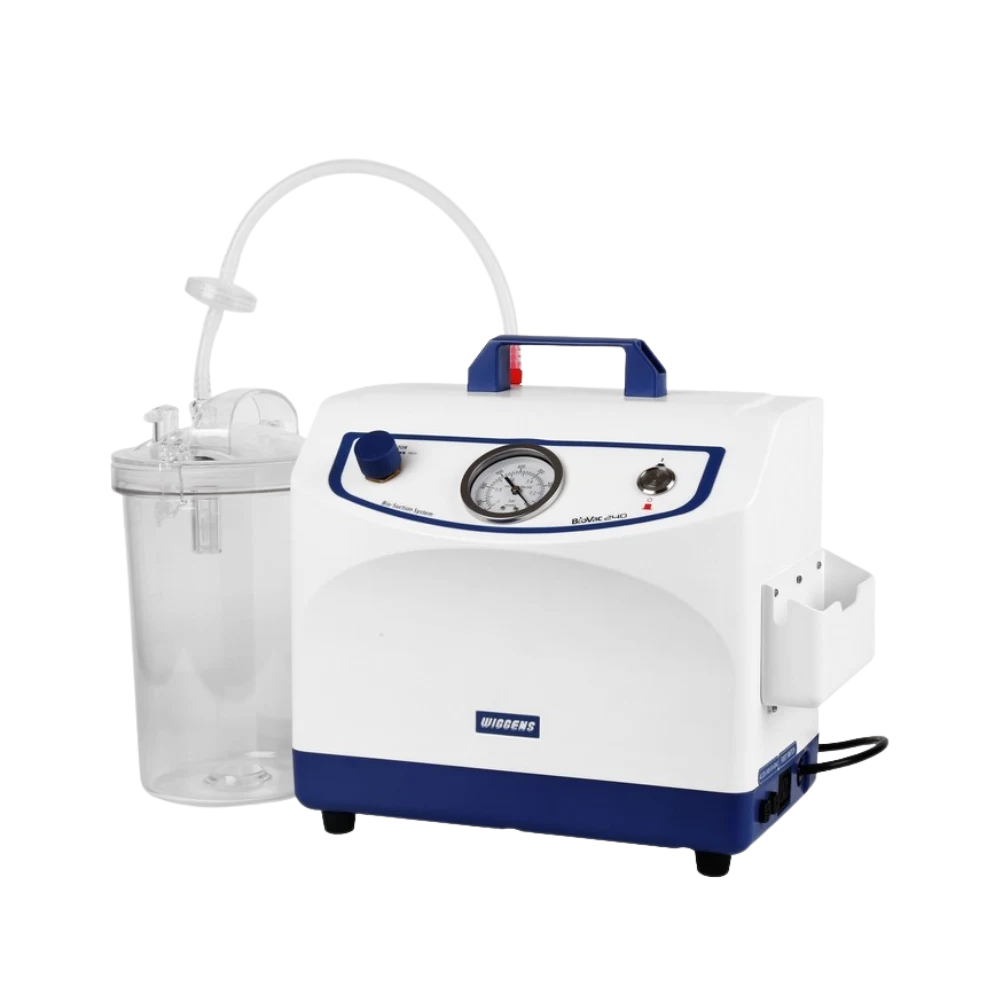

Portable Suction Units

The portable suction unit systems from Wiggens, available through Apex Scientific, provide efficient and reliable suction for various laboratory and medical applications in South Africa. These oil-free vacuum pumps are maintenance-free and operate quietly, ensuring stable performance even during continuous use. Each unit features advanced safety measures, including a built-in float switch and a 0.2 µm PTFE hydrophobic disc filter, to prevent contamination and protect the pump from fluid or bacterial backflow.

Multiple models offer flexibility in suction power and volume capacity to meet different workflow needs. Explore our full range and learn more about available configurations through Apex Scientific, your trusted supplier of laboratory equipment in South Africa.

These portable suction unit systems from Wiggens, available through Apex Scientific, provide reliable, contamination-free fluid removal in demanding laboratory environments across South Africa. Engineered for scientists and technical professionals, these units combine performance, safety, and convenience. They are ideal for applications such as biochemical cultivation, cell culture waste management, and routine liquid handling in research or clinical settings.



Optimized for Laboratory Use

Wiggens suction units feature an oil-free piston vacuum pump, delivering stable suction with low noise and no emissions. Unlike traditional systems, this design is maintenance-free and highly durable, ensuring long-term performance. In addition, a built-in vacuum regulator allows you to adjust suction levels precisely, making it easy to match the system to your workflow.



Enhanced Protection with Dual Safeguards

To protect both users and instruments, each unit includes double overflow protection. A float switch and a 0.2 µm PTFE hydrophobic disc filter work together to prevent fluids or microbes from entering the pump. This two-stage defense is especially important when working with hazardous or sensitive biological materials.



Built for Sterilization and Daily Use

The waste bottle and filter are autoclavable, supporting high-temperature sterilization. Additionally, the rugged ABS and aluminum alloy casing resists corrosion and wipes clean with ease. For added convenience, the unit includes an integrated wire storage box that helps manage footswitch cables efficiently.



Adaptable Across Applications

Whether you’re handling culture media, separating waste fluids, or maintaining clean bench conditions, these portable suction units adapt to various laboratory tasks. Their compact and lightweight design ensures they can be moved easily between workspaces without compromising stability.

Explore our full range and learn more about the right model for your needs with Apex Scientific, your partner in high-quality laboratory equipment across South Africa.

Order No.W1080225W1080226W1080235W1080236W1080240W1080241
Model seriesBioVac 225BioVac 225 PLUSBioVac 235BioVac 235 PLUSBioVac 240BioVac 240 PLUS
Power [W]252525252525
Ultimate Vacuum [mbar]1001001001008080
Max. Flow Rate [L/min]252535354040
Foot Switchyesyes
Dimensions [cm]37 × 15 × 2537 × 15 × 2527 × 30 × 2827 × 30 × 2854 × 26 × 3554 × 26 × 35
Suction bottle1000mL X 11000mL X 11500mL X 21500mL X 23000mL X 13000mL X 1
Weight [kg]4.34.36.96.91212
Accessories included– Single-branch stainless steel suction head– Single-branch suction head

– Handheld controller

– 8-branch “tip” plastic suction head

– Single-branch stainless steel suction head

– Single-branch stainless steel suction head– Single-branch suction head

– Handheld controller

– 8-branch “tip” plastic suction head

– Single-branch stainless steel suction head

– Single-branch stainless steel suction head– Single-branch suction head

– Handheld controller

– 8-branch “tip” plastic suction head

– Single-branch stainless steel suction head

SKUDescription
W1080225BioVac 225 – Ultimate Vacuum: 100 mbar; Max. Flow Rate: 25 l/min
W1080226BioVac 225 PLUS – Ultimate Vacuum: 100 mbar; Max. Flow Rate: 25 l/min
W1080235BioVac 235 – Ultimate Vacuum: 100 mbar; Max. Flow Rate: 35 l/min
W1080236BioVac 235 PLUS – Ultimate Vacuum: 100 mbar; Max. Flow Rate: 35 l/min
W1080240BioVac 240 – Ultimate Vacuum: 80 mbar; Max. Flow Rate: 40 l/min
W1080241BioVac 240 PLUS – Ultimate Vacuum: 80 mbar; Max. Flow Rate: 40 l/min



Accessories

SKUDescription
167200-50Manual suction tube – outer diameter of connector is 8mm, Outer diameter of the PP tube is 5mm
167200-51High pressure silicone tube – outer diameter is 10mm, inner diameter is 6mm, with hose joints at both ends
167200-52Plastic stopper – Suitable for the tube that outer diameter is 10mm
or 12mm
167200-53Detachable tray – 300x175mm
167200-311L Waste bottle – Hose+M7 Barb/Luer Adapter (fits 2 and 3mm), suitable for BioVac225
167201-351.5L Waste bottle – Volume: 1500ml; Material: PC, suitable for Biovac235, the right one, with one vertical adaptor and one curved adaptor.
167201-361.5L Waste bottle – Volume: 1500ml; Material: PC, suitable for Biovac235, the left one, with two vertical adaptors.
167200-333L Waste bottle – Volume: 3000ml; Material: PC
167200-343L Waste bottle – Volume: 3000ml; Material: PC, suitable for Biovac240
167200-35Small Disc Filter – Diameter: 37mm , pore size 0.2μm
167200-36Big Disc Filter – Diameter: 50mm , pore size 0.2μm
168021-01Silicon Tubing – Outer Diameter: 14mm, Inner Diameter:8mm, Length: 1m
168022-01Silicon Tubing – Outer Diameter: 16mm, Inner Diameter:10mm, Length: 1m
167200-39Waste Bottle Clamp
167200-39-011000 ml, Stand for Suction Bottles Designed for Stabilizing
the Bottle in Filtration Work
167200-39-021500 ml, Stand for Suction Bottles Designed for Stabilizing
the Bottle in Filtration Work
167200-39-033000 ml, Stand for Suction Bottles Designed for Stabilizing
the Bottle in Filtration Work
167200-40Foot switch – Suitable for BioVac 240
167200-54Foot switch, Suitable for BioVac225 / BioVac235
167200-42Single-Branch Suction Head
167200-44Single-branch stainless steel suction head, needle length 5cm
167200-44LSingle-branch stainless steel suction head, needle length 11cm
167200-45Single-branch “tip” plastic suction head
167200-46Suction head – Handheld controller
167200-478-branch stainless steel suction head
167200-488-branch “tip” plastic suction head
167200-49ABS Depositing rack
167200-37Bio-Suction Kit – Vacuum Suction, Outlet Diameter:5mm

Product Enquiry Handbook: Portable Suction Units

Operating Manual – BioVac

Operating Manual – BioVac Plus
