The Real-time PCR technology enables precise gene detection and quantification across a wide range of applications. The Azure Biosystems Cielo qPCR system delivers high sensitivity and a broad dynamic range, making it ideal for gene detection, genotyping, library quantification, multiplexing, pathogen detection, and densitometry. Moreover, scientists in molecular diagnostics and biotechnology can depend on this system for high-throughput screening. With Apex Scientific providing local service and support across South Africa, the Cielo becomes a reliable choice for modern laboratories.
Email Notification
Need results quickly, even when starting a run late in the day? With Cielo Manager’s Wi-Fi connection, you can receive automatic email alerts when the experiment finishes and have the complete data sent directly to your inbox. Get end-of-experiment notifications and data files delivered instantly from the Cielo.
Advanced Real-Time PCR Solution for Labs
Achieve precise and reliable qPCR results with the Azure Cielo Real-Time PCR System. Engineered for exceptional performance, Cielo combines advanced optical technology with intuitive software to deliver reproducible, high-quality data for research and diagnostic applications. Its robust design ensures consistent results while streamlining workflows for busy laboratories. For in-vitro diagnostic needs, the Azure Cielo Dx provides the same cutting-edge performance with IVD certification. Ideal for gene expression analysis, pathogen detection, or high-throughput studies, Cielo empowers scientists to maximize data accuracy and confidence in every experiment.
Connectivity and Workflow
Azure Biosystems designed the Cielo for simple, efficient operation. Its touchscreen interface allows quick assay setup, while each well can be labeled with sample IDs, targets, and dyes. In addition, built-in Wi-Fi and Ethernet send results straight to a scientist’s inbox, eliminating manual transfers. Furthermore, saved protocols and consistent layouts improve reproducibility, helping laboratories achieve reliable qPCR results. For researchers in South Africa, this combination of efficiency and reliability translates into smoother daily workflows.

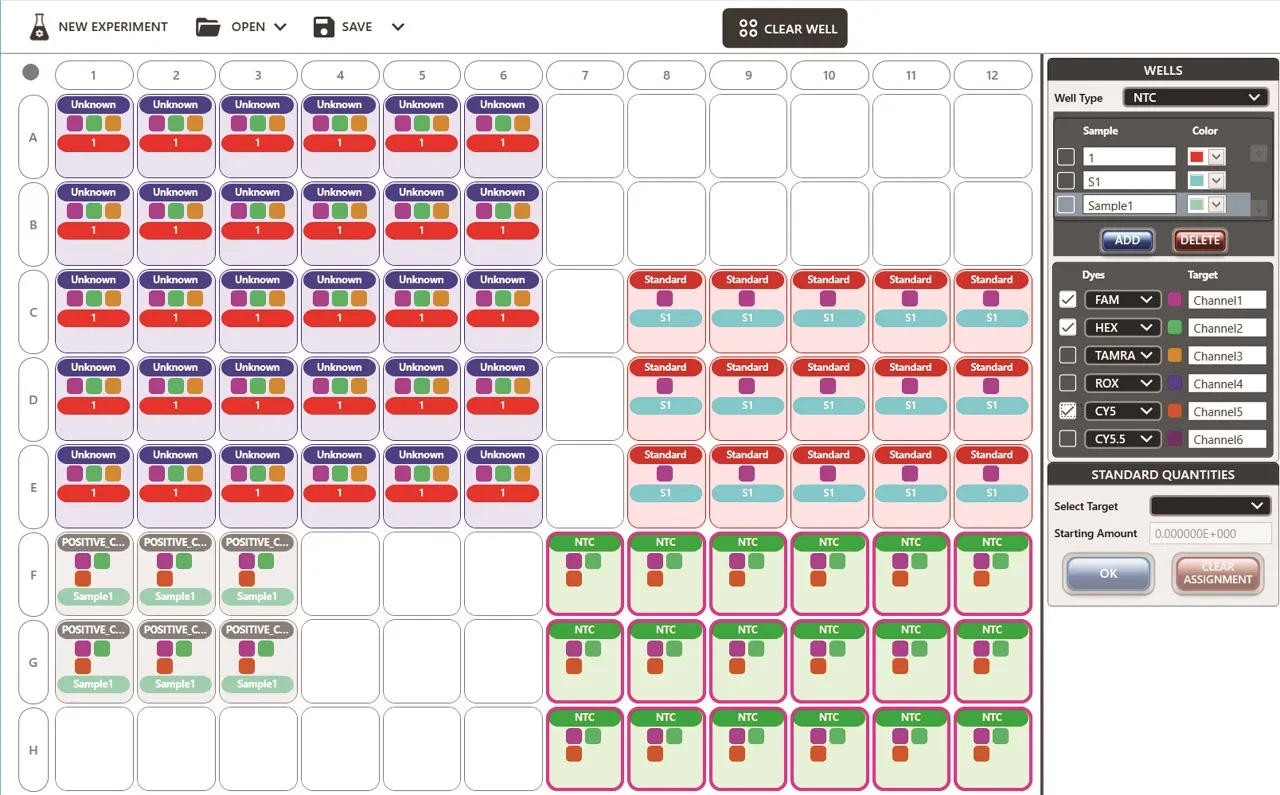

Quick Set up and Plate Layout Confirmations
Each well can be clearly identified with three key details—well type, sample ID, and dye or target—supporting accurate data analysis and clear visualization of amplification and standard curves. In addition, wells are color-coded by sample type, biological replicate, and technical replicate, with well type and standard curve values displayed for quick reference.
Optical Design and Analysis
The Cielo’s advanced optical system delivers uniform excitation across all 96 wells. Each well collects about 100,000 data points, ensuring exceptional fluorescence resolution and sensitivity. Consequently, scientists no longer need passive reference dyes like ROX, as the system provides accurate quantification even at very low copy numbers. In addition, the software displays real-time amplification curves, customizable thresholds, and heat maps. As a result, researchers can quickly evaluate data quality and separate multiple targets with confidence.

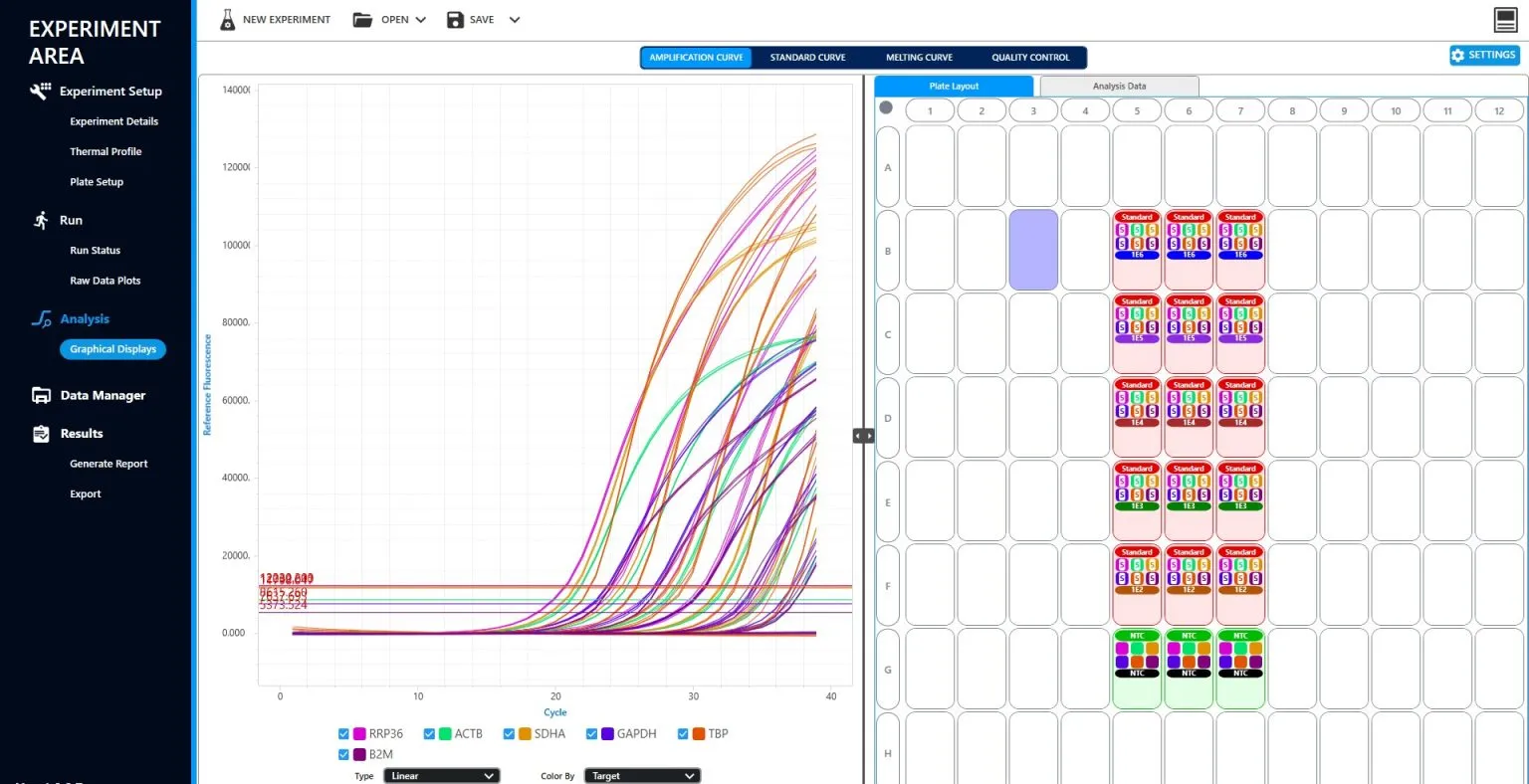

View Amplification Trace Individually by Target or Sample
Easily view all of your data at once or select specific wells/targets to view a subset of your data. Cielo’s software allows you to easily adjust threshold values by dragging the threshold line, or typing in the threshold value. You can visualize amplification curves in linear or log view, and change the color of the amplification curves to easily distinguish the data by Sample ID or target.

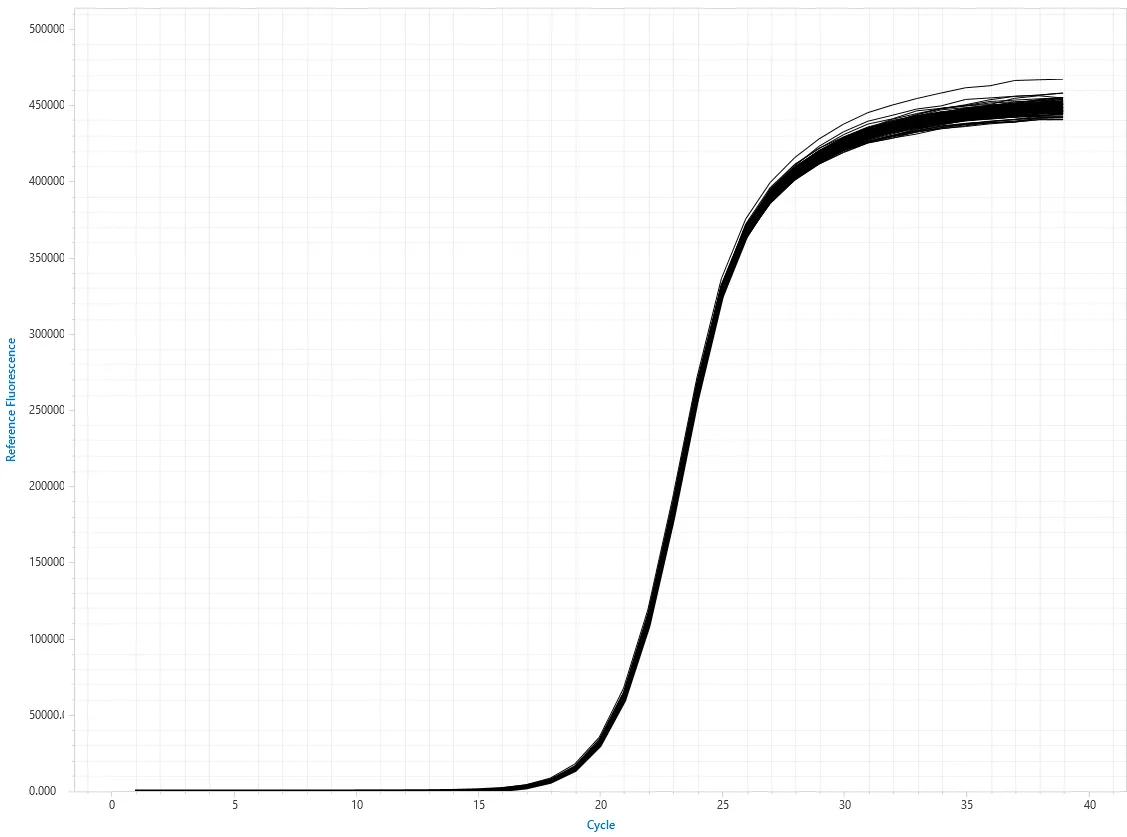

Optical Design Eliminates the Need for ROX
Well-based excitation and color-specific LED light sources ensure the excitation efficiency in every well for every channel is the same. Coupled with scanning technology that collects multiple data points from each well, the Cielo’s well-based optical design eliminates the need for normalization dyes, such as ROX. Rather than a single, stationery light source and detector system, the Cielo utilizes 16-well simultaneous excitation and signal detection that ensures uniform data acquisition.
Advanced Multiplexing Capability
This six-channel qPCR platform enables up to six-target multiplexing in one reaction. For example, laboratories can run assays for pathogen detection, genotyping, or library quantification more efficiently. Multiple fluorescent probes operate without cross-talk, and the absence of ROX frees a channel for added flexibility. Therefore, Apex Scientific’s customers in South Africa gain robust equipment that strengthens multiplexing, high-throughput screening, and real-time PCR analysis.

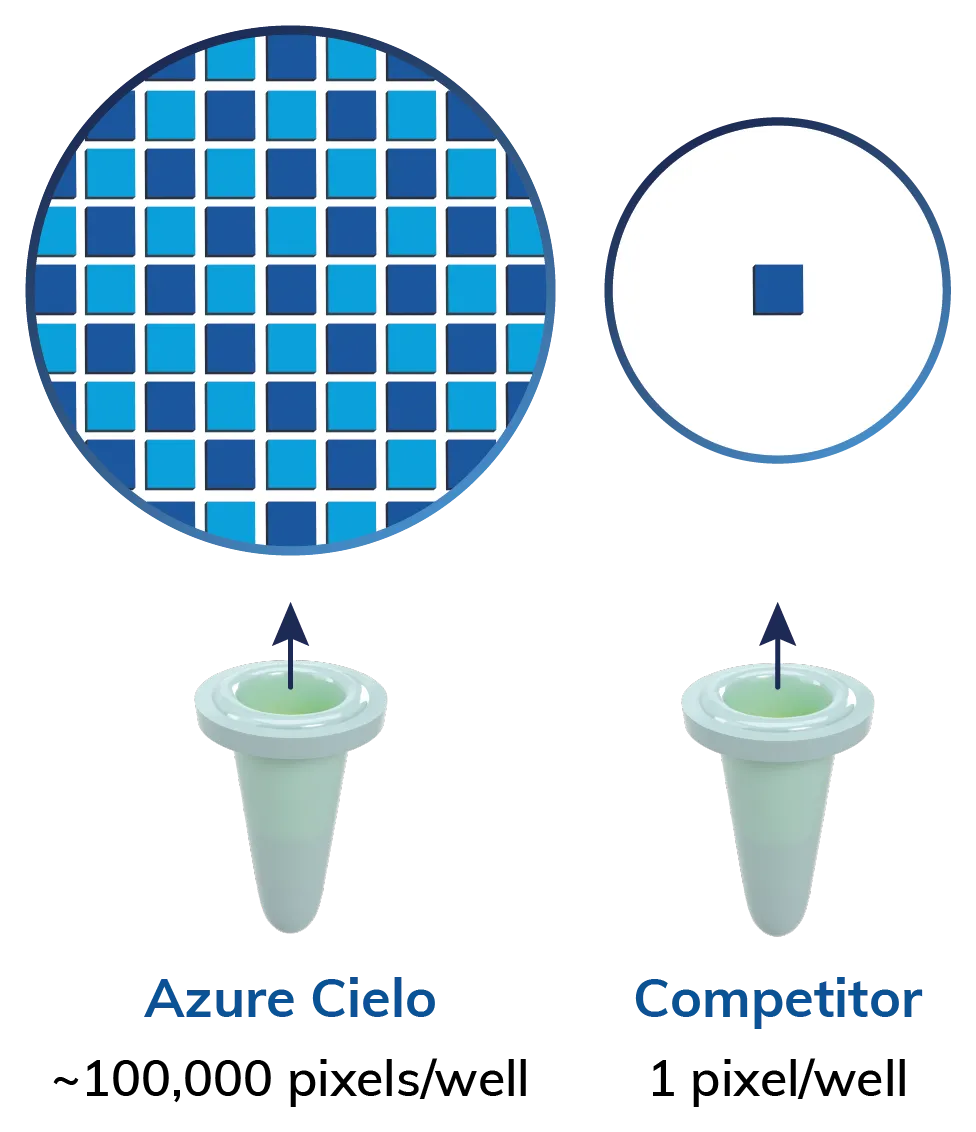

100,000 Data Points per Well
The Cielo is able to capture approximately 100,000 pixels/wells, enabling accurate, reproducible and sensitive representation of fluorescent intensities from each qPCR well. Competitive systems are only able to acquire 1 pixel/well. Single copy amplification was detected in 88 wells (92%) of the plate run on the Cielo, and in 77 wells (80%) on the plate run on the competitor system.
