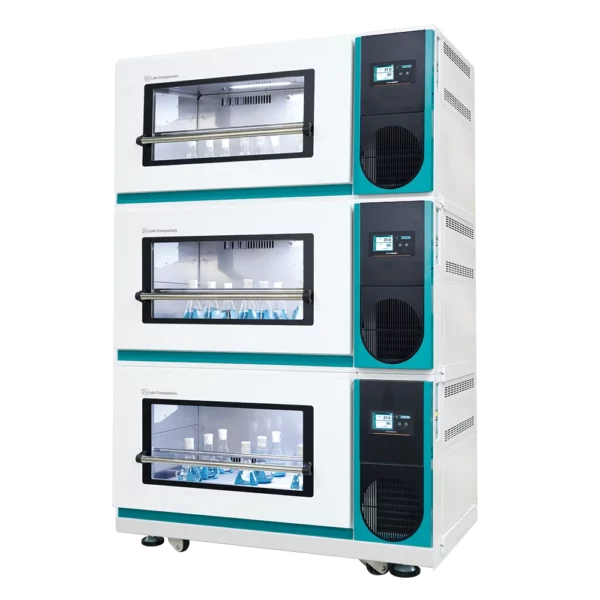

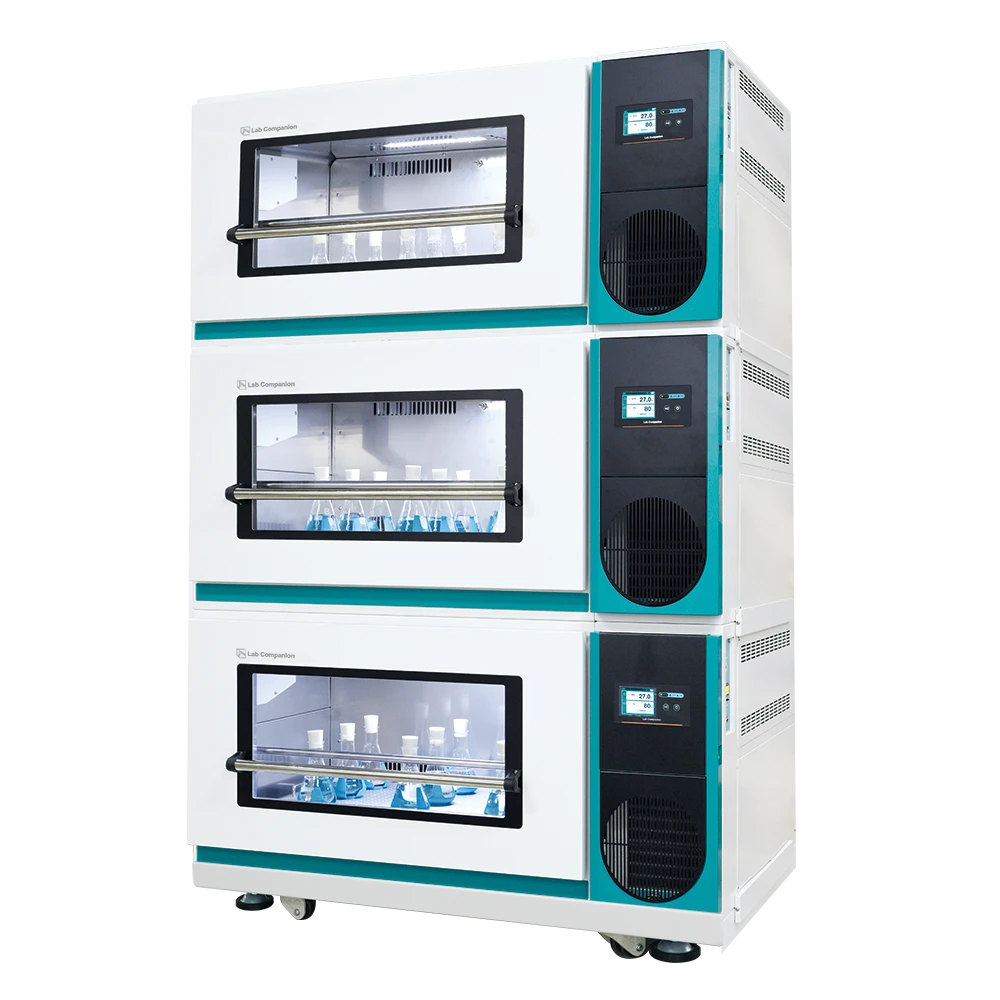

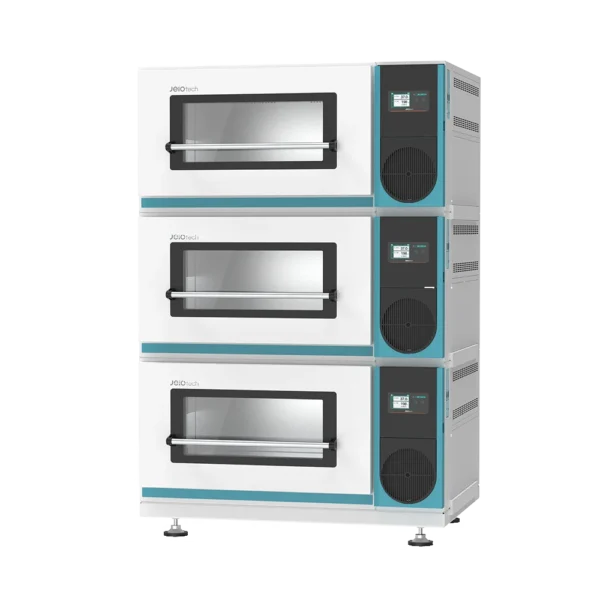

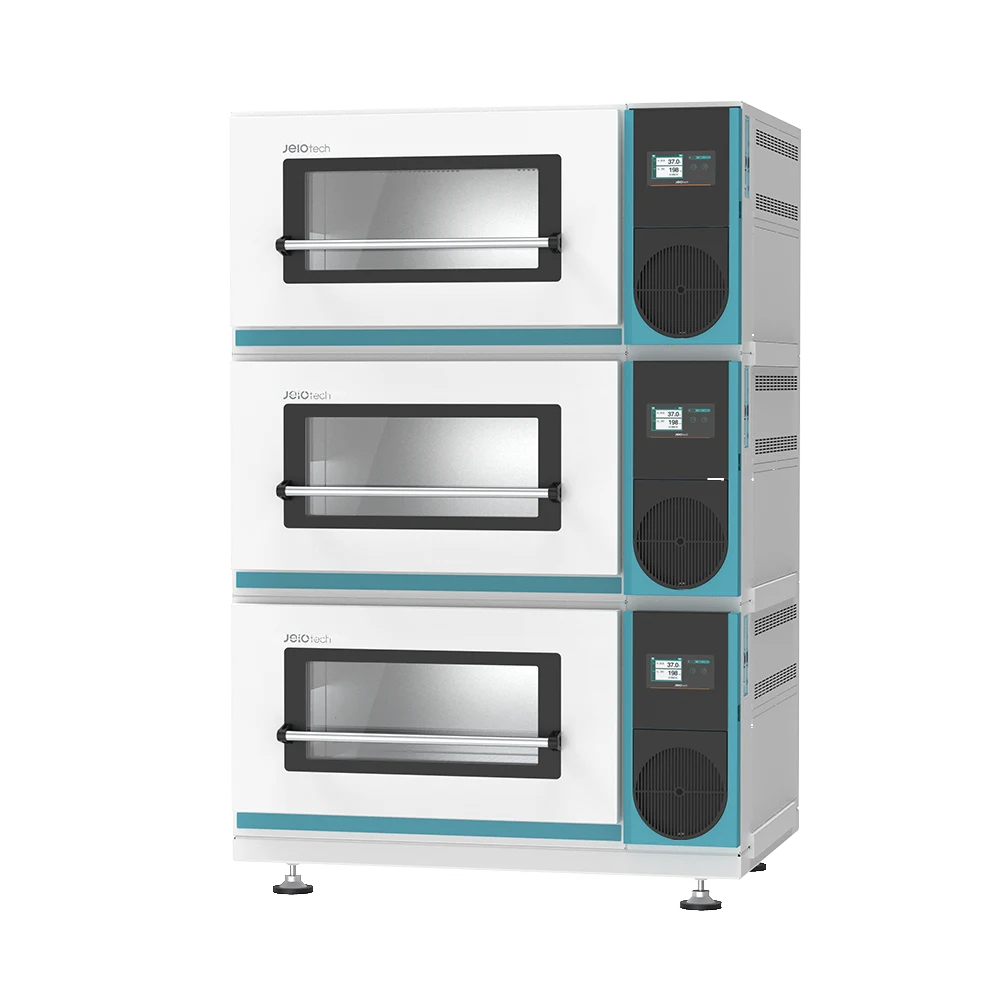

The Multi Stackable Shaking Incubator by Jeiotech offers advanced, high-capacity performance tailored to the evolving needs of laboratories in South Africa. Ideal for large-scale workflows, this stackable system combines high-speed shaking and accurate temperature control in a space-saving design. The responsive color touchscreen enables seamless operation, displaying real-time temperature, shaking speed, and time remaining. Internally, bright, low-power LED lighting ensures easy sample visibility without disturbing the incubation process.
Functionality
- Large-capacity triple stackable incubated shaker.
- Up to 80°C, 400rpm enables experimental conditions for various applications.
- Three operating modes: Temperature & Shaking, Temperature, or Shaking.
- Shaking structure with minimized vibration.Convenient to change samples with glide-up door.
- Stable shaking of high-load samples. (registration KR 10-1678160)
- Applied a direct drive motor that has outstanding durability, a 5-year warranty for the motor
Streamlined Sample Loading for Improved Workflow

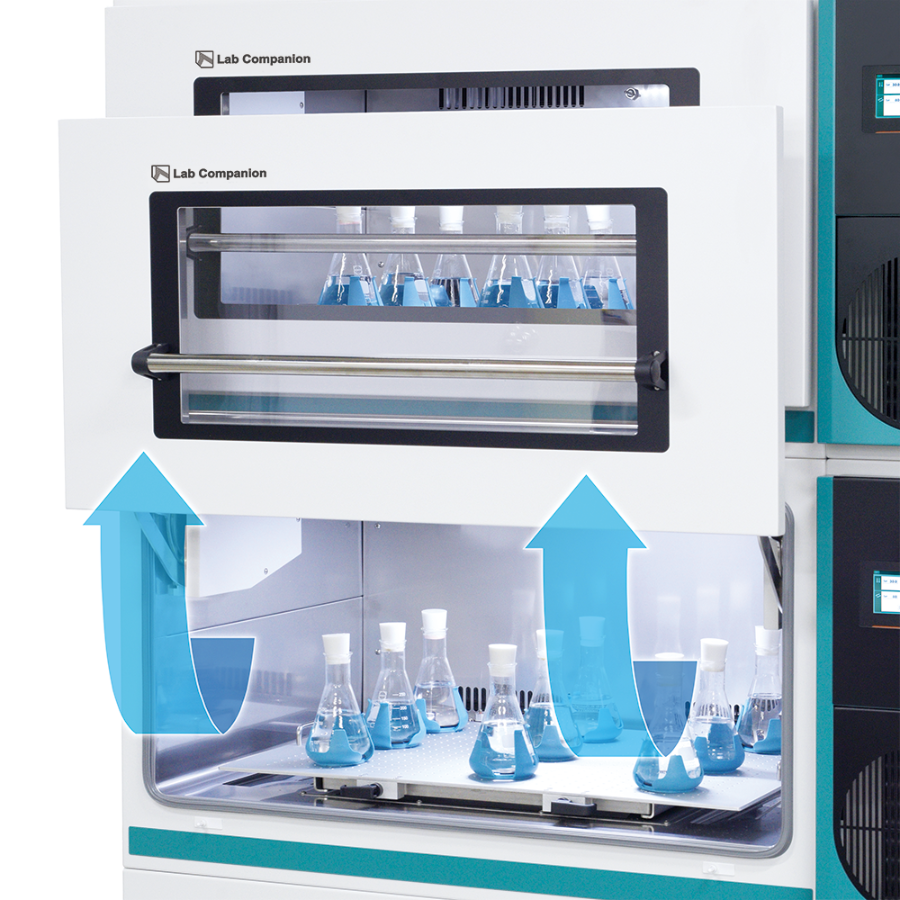

The Door Lift-Up Structure ensures safe and convenient access for loading and unloading samples. Its ergonomic design minimizes strain during operation. The Rail-Type Platform slides forward smoothly, allowing easy mounting and removal of samples without reaching deep into the chamber—enhancing workflow efficiency and reducing the risk of spillage.
Outstanding Safety Features
This multi stackable shaking incubator prioritizes user safety. It includes an advanced A-OT electronic over-temperature protection system with its own dedicated sensor and controller. In case of electronic failure, a backup B-OT mechanical limiter activates to prevent overheating. Soft acceleration and deceleration reduce the risk of sample spills, while the lockable controller prevents unintentional changes. To avoid damage during operation, the overcurrent protection feature automatically stops the system if an obstruction is detected.
Smart Self-Diagnosis and Recovery
The built-in self-diagnostic system continuously monitors key functions. If any variation occurs between the set and actual rpm or temperature, the incubator issues an alert. In the event of a power outage, it resumes the last programmed operation once power is restored, minimizing disruptions. A spill drain port located at the base simplifies chamber maintenance and prevents internal contamination.
Accessories
For further assistance, explore our article, Shaking Incubators: The Ultimate Guide to Choosing the Right Laboratory Equipment for Your Needs. Visit our Insights page for expert resources, and browse the full product range from Apex Scientific to support your laboratory’s growth and productivity.
Universal platforms / Flask clamps / Funnel clamps

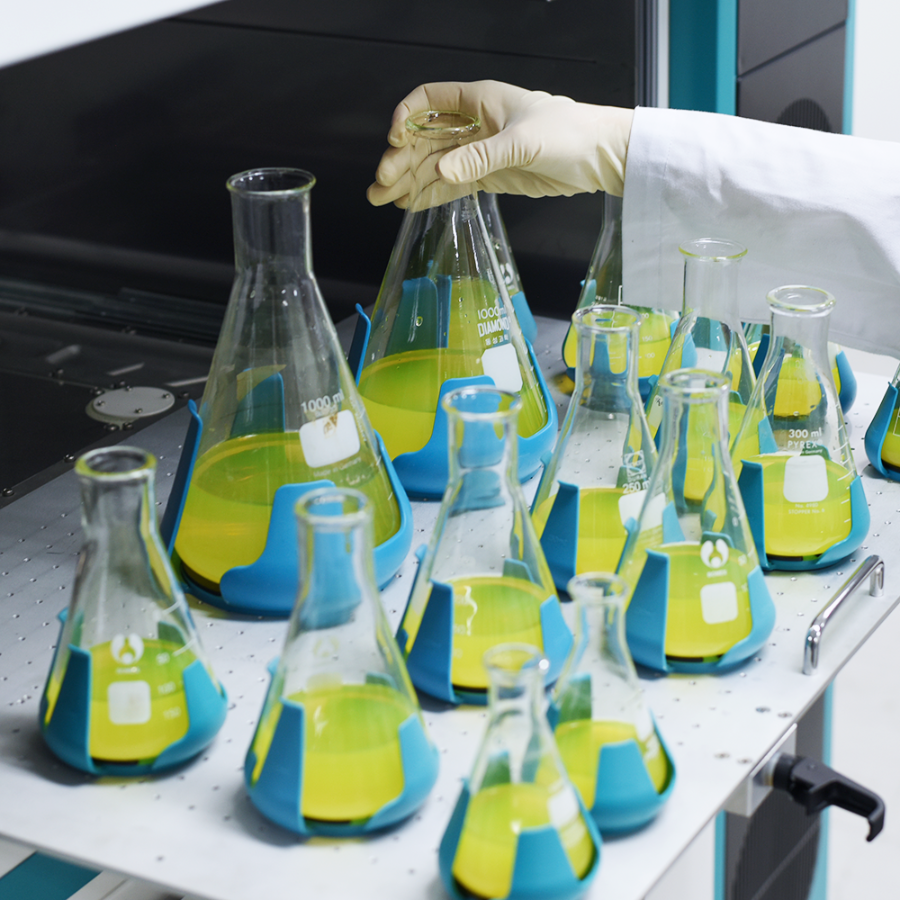

Universal platforms provide flexibility for mixing assortments of test tubes and glassware of varying sizes on a single platform. Various clamps for Erlenmeyer flasks and separatory funnels are available.
| Description | ISS-7000 Series |
| Cat. No. | Universal platform | AAA23507 |
| – | Flask clamps (Stainless steel) | Erlenmeyer flask size | Max. mountable flask clamps |
| AAA23550 | for 50 mL | 88 |
| AAA23551 | for 100 mL | 68 |
| AAA23552 | for 250 mL | 39 |
| AAA23556 | for 300 mL | 39 |
| AAA23553 | for 500 mL | 28 |
| AAA23554 | for 1L | 18 |
| AAA23555 | for 2L | 11 |
| AAA23557 | for 2.8L | 8 |
| AAA23558 | for 4L | 6 |
| AAA23559 | for 6L | – |
| – | Flask clamps (plastic) 1) | Erlenmeyer flask size | Max. mountable flask clamps |
| AAA30570 | for 50 mL | 88 |
| AAA30571 | for 100 ~ 125 mL | 48 |
| AAA30572 | for 200 mL | 35 |
| AAA30573 | for 250 mL | 34 |
| AAA30574 | for 300 mL | 34 |
| AAA30575 | for 500 mL 2) | 21 |
| AAA30576 | for 1L 2) | 11 |
| AAA30577 | for 2L 2) | 6 |
| – | Funnel clamps | separatory funnel size | Max. mountable funnel clamps |
| AAA23562 | for 250 mL | 15 |
| AAA23563 | for 500 mL | 10 |
| AAA23564 | for 1L | 7 |
| AAA23565 | for 2L | 5 |
※ Above accessories need to be mounted on a universal platform which is sold separately.
1) In the case of plastic flask clamps mounting, deformation may occur at temperatures over 40°C. Stainless steel flask clamps are recommended when using over 40°C and high temperature environment.
2) Possible to use under 300 rpm
Dedicated platforms
When using a single flask size only, the dedicated platforms with pre-installed clamps provide maximum capacity. 250mL and 500mL clamps arestandard but other sizes can be available.
| Description | ISS-7100(R) ISS-7200(R) |
| Universal platform &250mL flask clamps | AAA23637 |
| No. of flask clamps | 39 |
| Universal platform &500mL flask clamps | AAA23636 |
| No. of flask clamps | 28 |
* A dedicated platform is sold with setting each max. mountable amount of flask clamps on.
Test tube racks
Easy to release and mount racks made of durable stainless steel with adjustable angle and tube height support. Test tube racks are used with an optional universal platform.
| Description | ISS-7100(R) ISS-7200(R) |
|---|
| Cat.No. | Universal platform | AAA23507 |
| – | Test tube size | Mountable capacity of rack* |
| AAA23581 | for 86 test tubes, Ø8mm / Ø0.3˝ | 7 |
| AAA23582 | for 86 test tubes, Ø10mm / Ø0.4˝ |
| AAA23583 | for 58 test tubes, Ø12mm / Ø0.5˝ |
| AAA23584 | for 58 test tubes, Ø14mm / Ø0.6˝ |
| AAA23585 | for 32 test tubes, Ø17mm / Ø0.7 |
| AAA23586 | for 19 test tubes, Ø25mm / Ø1.0˝ |
| AAA23587 | for 10 test tubes, Ø30mm / Ø1.2˝ |
| AAA23594 | for 10 test tubes, Ø35mm / Ø1.4˝ |
| AAA23593 | for 4 test tubes, Ø50mm / Ø1.9˝ |
* No declination
※ We can manufacture other size of test tube racks to meet your specific requirements. Contact us for details.
Microplate holders
Available in three styles: tower type, flat type (small and large), and single type. Tower type holder is for 10 standard or deep well plates. Large flat holder is for 4 standard or deep well plates. Small flat holder is for 3 standard or deep well plates. Single type holder is for 1 standard or deep well plate. (standard well plates’ height: 14.7mm)
| Description |
|---|
| Cat.No. | Universal platform |
| – | Microplate holder type |
| AAA23654 | Single |
| AAA23651 | Tower |
| AAA23652 | Flat A(large) |
| AAA23653 | Flat B(small) |
* Microplate holders need to be mounted on an universal platform which is sold separately.
Rubber mats
Designed for low-speed applications, non-skid rubber mats allow quick addition or removal of flasks, plates or tubes.
| Description | ISS-7100(R) ISS-7200(R) |
|---|
| Cat. No | AAA23537 |
Spring wire racks
Ideal for holding a wide variety of tubes, flasks, and other glassware. All components are made of stainless steel.
| Description | ISS-7100(R) ISS-7200(R) |
| Cat. No. | AAA23527 |
| – | Max. inserting flasks |
| for 50 mL | 45 |
| for 100 mL | 28 |
| for 250 mL | 18 |
| for 300 mL | 18 |
| for 500 mL | 15 |
| for 1L | 10 |
| for 2L | 6 |
| for 2.8L | 4 |
Universal attachments (utility carriers)
Several adjustable clamping bars for quickly securing a variety of glassware or tubes on non-skid rubber mats. Suitable for flat-bottomed flasks of various sizes.
| Description | ISS-7100(R) ISS-7200(R) |
|---|
| Cat. No. | AAA23517 |
Lab sticker
An alternative method for securing vessels to a shaker platform. Ideal for containers such as bottles and dishes that cannot be held on the universal platform with conventional flask clamps. For safe operation, gradual RPM increase is recommended.
| Cat. No. | Description (W×D×H) (mm / inch) |
|---|
| AAA30551 | 200×200×5 / 7.9×7.9×0.2 |
Stand
Perfectly designed to let users feel totally relaxed by leveling the height.
| Cat. No | Description (W×D×H) (mm / inch) | Suitable for |
|---|
| AAA23571 | Stand 1 with Stacking kits (600mm/23.6″ height for stacking 1 unit) | ISS-7100(R), ISS-7200(R) |
| AAA23572 | Stand 2 with Stacking kits (600mm/23.6″ height for stacking 2 unit) |
Stacking kits
Units are stackable using exclusive stacking kits for space saving.
| Cat. No. | Description | Suitable for |
|---|
| AAA23573 | Stacking kits for stackable chambers | ISS-7100(R), ISS-7200(R) |
LC GreenBox
Real-time monitoring and control of device operation via mobile app.
Up to 4 devices can be connected at once.
| Cat. No. | Description |
|---|
| AAHQ1011K | LC GreenBox (2.4GHz, 100~240V, 50/60Hz) |
