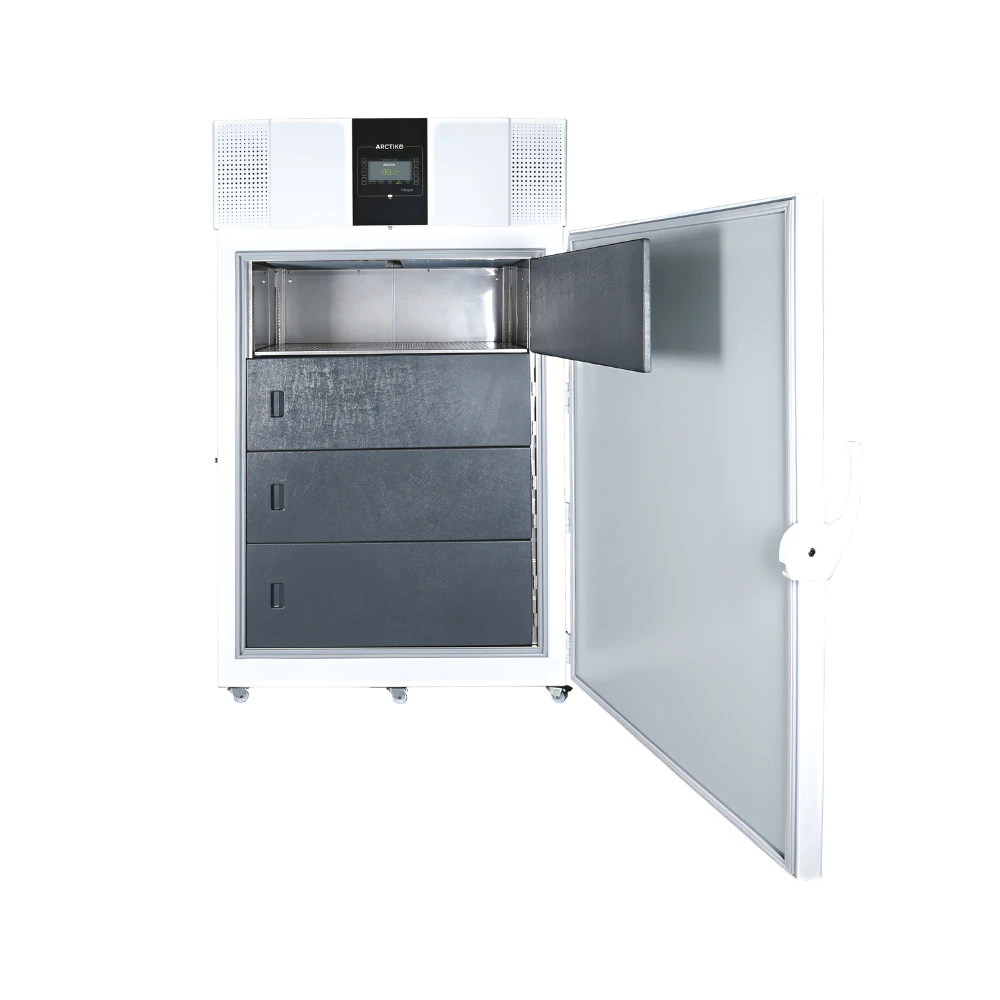

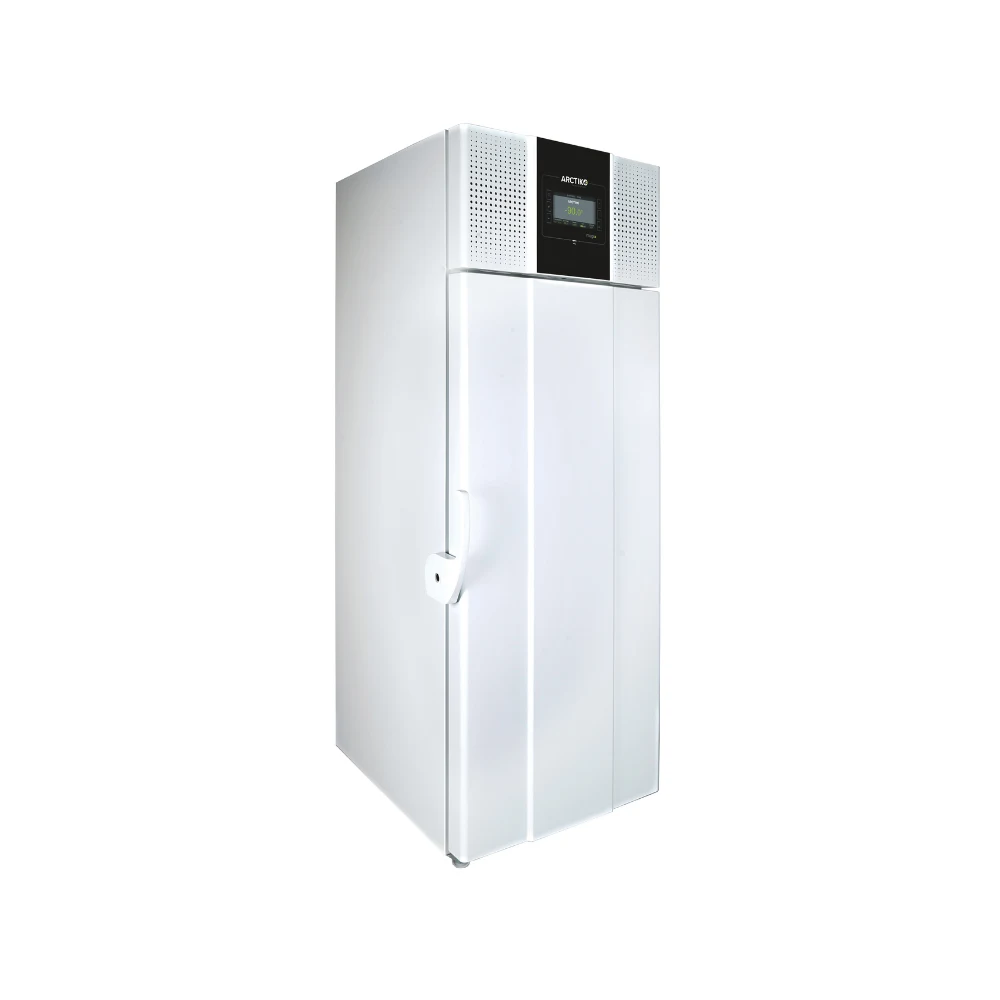

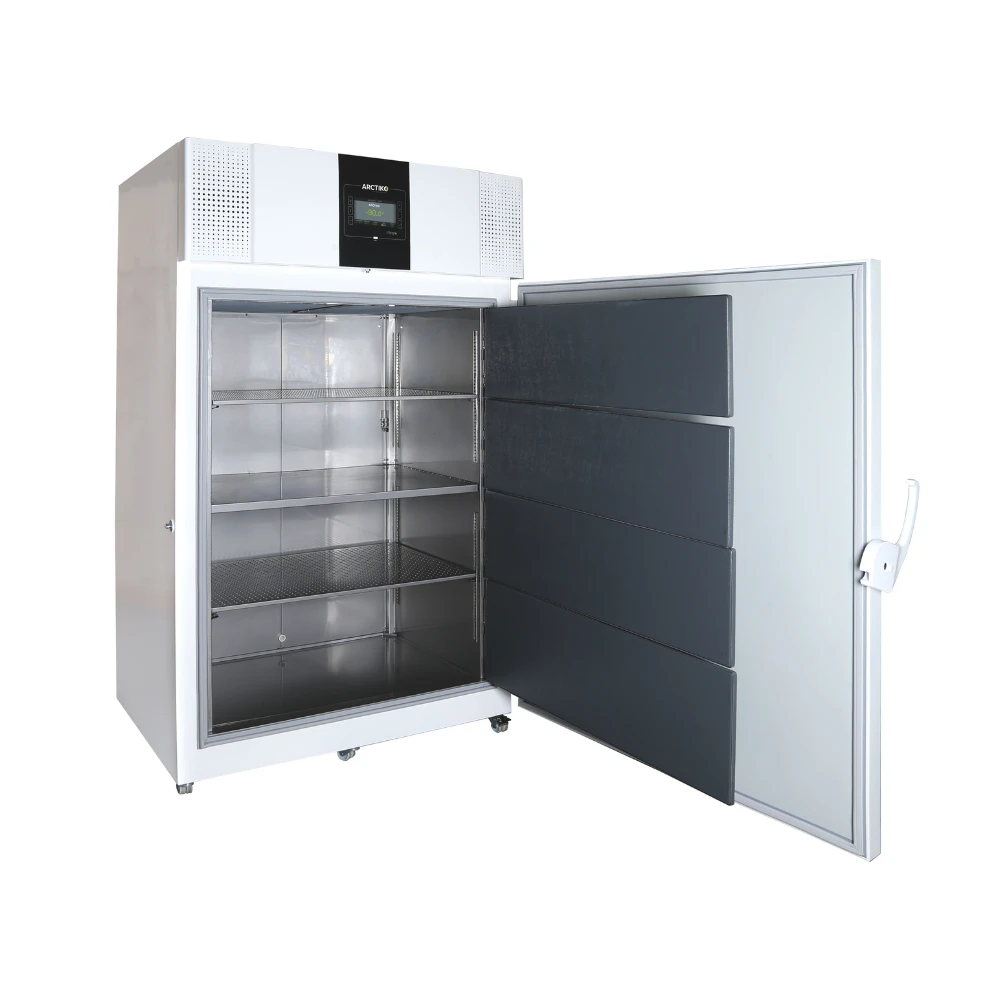

The The ULUF P820 is an Ultra Low Temp. upright freezer with a 819L capacity and range of -40 to -86°C. It features Arctiko’s TRUE DUAL™ technology for double security that consists of two independent systems that offer you the best security. Should one of the cooling systems fail, the other system will still maintain the temperature at -70 °C. This way your samples will not be affected by any challenges caused by an unexpected system failure, until service is provided. This is possible due to our highly reliable single compressor technology.
COVID-19 (Coronavirus) / SARS-COV-2 vaccines like Pfizer and Moderna use mRNA technology. mRNA vaccines require ultra-cold storage as low as -70°C (-94°F) to remain effective. Arctiko Ultra low Freezers are capable of providing stable temperature control at ultra-cold temperatures for efficient COVID-19 vaccine storage.
Features:
- Independent TRUE DUAL™ technology for double security
- Low energy consumption made possible with ECO mode and ultra-efficient Vacuum Insulated Panels
- Reduced noise level down to 49 dB – low noise level provides a better work environment
- Direct cooling for optimized temperature stability and uniformity, even with multiple door openings
- Self-diagnostic function to secure that your alarm system is always working correct
- Adjustable shelves to accommodate any storage need you might have
- Insulated inner doors to minimize cold lose during door openings. Easy removable inner doors makes the defrost and maintenance procedure easy
- Maximum cooling of compressors with airflow control
- Insulated door with gasket for sample protection and uniformity
- 100% HCFC/CFC free
Technical Specifications:
| Item code | DAI 1850 |
| Temperature range (˚C) | -40 / -86 |
| Max. ambient temperature (˚C) | 32 |
| Capacity (L) | 819 |
| Exterior dimensions WxDxH (mm) | 1285×859,5/1002*x1999 |
| Interior dimensions WxDxH (mm) | 996x620x1320 |
| Weight (KG) | 307 |
| Insulation (mm) | 120 |
| Cooling technology | dual system/ static |
| Controller model / probe type | V700 / PT100 |
| Power supply (V) | 230 |
| Frequency (Hz) | 50/60 |
| Power consumption (kWh/24h) | 17,3 |
| AMP (A) | 10,3 |
| Power (Watt) | 150 |
| Horse power (HP) | 2 x 3/4 |
| Alarm display as text – not codes | yes |
| Visual / acoustic alarm | yes/yes |
| Power failure alarm | yes |
| Adjustable high / low temperature alarm | yes/yes |
| Open door alarm | yes |
| Probe failure alarm | yes |
| Low battery alarm | yes |
| Compressor failure alarm | yes |
| Battery backup for alarms (approx. hrs.) | 72 |
| Voltage free contact for remote alarm (e.g. GSM alarm module) | yes |
| Electronic data logger | yes |
| RS 485 port | optional |
| USB port for software update & data download | yes |
| Temperature chart recorder | optional |
| Display type | 7” touch screen |
| Number of optional reference probes | 0 (1 reference probe included as standard) |
| Password protection for turning unit on / off | yes |
| Temperature graph on display | yes |
| Automatic defrost | no |
| Vacuum release port | yes |
| Access port for external probe etc. (int. diameter mm) | 12 |
| Light | yes |
| Lock with key | yes |
| Castors (total pcs) / castors with brake (pcs) | 5/2 |
| Fixed feet (pcs) / levelling feet (pcs) | no |
| Sub lids / inner doors (pcs) | 4 |
| Reversible door(s) | no |
| Fixed shelves (pcs) / adjustable shelves (pcs) | 1/2 |
| Max. no. of shelves (pcs) / recommended max. no. of shelves (pcs) | 5/5 |
| Max. load per shelf (kg) | 50 |
| Total capacity of 50 mm boxes 9×9 didviders (pcs) | 616 |
| Total capacity of 75 mm boxes 9×9 didviders (pcs) | 392 |
| Total capacity of 96 mm boxes 9×9 didviders (pcs) | 280 |
| Max. capacity of samples in Arctiko 10×10 boxes (pcs) | 61.600 |
| Number of compressors | 2 |
| Refrigerant | GG20 |
| Interior cabinet material | stainless steel |
| Exterior cabinet material | painted steel |
| Colour (exterior cabinet) | white |
| Foam type | polyurethane |
| VIP vacuum insulated panels | yes |
| Shipping weight (KG) | 459 |
| Shipping dimensions WxDxH (cm) | 141x127x225 |
| Shipping volume (m³) | 4,03 |
Racks:
| Rack model | Box size (height mm) | Rack model and total quantity | No. of boxes per rack | Total no. of boxes | Exterior dimensions of rack (WxDxH mm) |
| Upright drawer rack | 50 | 14 x UDR50-45 + 14 x UDR50-46 (=28 racks) | 4 x 5 + 4 x 6 | 280 + 336(= 616) | 140 x 570 x 280 + 140 x 570 x 336 |
| Upright drawer rack | 75 | 14 x UDR75-43 + 14 x UDR75-44 (= 28 racks) | 4 x 3 + 4 x 4 | 168 + 224 (= 392) | 140 x 558 x 240 + 140 x 558 x 335 |
| Upright drawer rack | 100 | 14 x UDR100-42 + 14 x UDR100-43 (=28 racks) | 4 x 2 + 4 x 3 | 112 + 168 (= 280) | 140 x 558 x 212 + 140 x 558 x 318 |
| Upright side rack | 50 | 14 x USR50-45 + 7 x USR50-46 (= 28 racks) | 4 x 6 | 280 + 336 (= 616) | 140 x 558 x 274 + 140 x 558 x 328 |
| Upright side rack | 75 | 14 x USR75-43 + 7 x USR75-44 (= 28 racks) | 4 x 3 + 4 x 4 | 168 + 224 (= 392) | 140 x 558 x 240 + 140 x 558 x 319 |
| Upright side rack | 100 | 14 x USR100-42 + 14 x USR100-43 (= 28 racks) | 4 x 2 + 4 x 3 | 112 + 168 (= 280) | 140 x 566 x 212 / 140 x 566 x 318 |
