Features

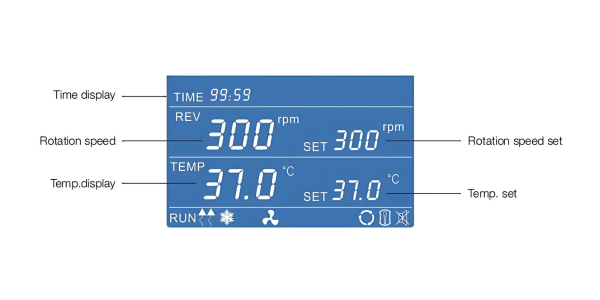

- Large LCD screen to display more data at same time.
- R134a refrigerant, imported compressor and fan motor.
- Big observation windows.
- 304 Stainless steel chamber and platform, easy to clean.
- There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
- The parameters can be automatically stored in case of power failure, and it will continue run as presetting program after turn on.
- Microprocessor PID controller for temperature and shaking speed with timing function.
Safety
- Safety door switch, auto pause operation when door is opened.
- Smooth start and stop system prevents liquid spillage.
- Auto-controller of fan speed to prevent damage to the samples.
- Self-diagnosis function, it will display error when failure.
Option
- Temperature-limiting alarm system, auto switch off when over-temperature.
- RS485 connector or USB interface can connect computer record and inspect the parameters and the variations of temperature.
- Intelligent programmable temperature controller.
Specifications
| Model | THZ-98A(Monolayer)
THZ-98AB (Double-deck) |
HZQ-X300
(Double-deck) |
HZQ-F160A (Monolayer) | THZ-98C
(Double- deck) |
HZQ-X300C
(Double-deck) |
| Electrical Requirement | 220V 50Hz | ||||
| Shaking Speed Range | 40~300r/min | ||||
| Amplitude | 20mm | ||||
| Temperature Range | RT+5~65℃ | 4~65℃ | |||
| Display Resolution | 0.1℃ | ||||
| Power Consumption | 750W | 1100W | 950W | 950W | 1300W |
| Platform Size(mm) | 400×340 | 500×350 | 400×300 | 400×340 | 500×350 |
| Exterior Dimension
(W×D×H)mm |
635×714×1055 | 725×720×1150 | 635×714×1055 | 635×714×1055 | 725×720×1150 |
| Timing Range | 0~5999min | ||||
Platform used for flask clamp and tube holder.Maximum of flask clamp (Monolayer)
| M | odel | THZ-98A | THZ-98AB THZ-98C | HZQ-X300 HZX-X300C | HZQ-F160A |
| Flask(pc) | 50ml | 29 | 29 | 37 | 29 |
| 100ml | 18 | 18 | 22 | 18 | |
| 250ml | 11 | 11 | 14 | 11 | |
| 500ml | 7 | 7 | 10 | 7 | |
| 1000ml | 4 | 4 | 6 | 4 | |
| 2000ml | – | – | – | 3 |
