Economic Benchtop Freeze Dryer – LyoOrganic

The LyoOrganic Economic Benchtop Freeze Dryer by Antech Scientific is designed for efficient drying of both organic and inorganic solvents. Perfect for applications such as removing solvents from organic dyes, pigments, and preparative HPLC fractions, it delivers reliable performance in everyday lab use. With a condenser temperature down to −105 °C and an oil-free vacuum pump included, the LyoOrganic series supports safe and effective drying of volatile substances. Compact and cost-effective, it’s an ideal solution for laboratories in South Africa.

Explore our range and learn more about how LyoOrganic can enhance your research at Apex Scientific.

The LyoOrganic Economic Benchtop Freeze Dryer by Antech Scientific is designed to handle both organic and inorganic solvents with efficiency and reliability. This unit is an ideal solution for laboratories in South Africa, especially for tasks involving HPLC fractions with solvents like acetonitrile, TFA, and alcohols.



Innovative Features

This freeze dryer includes a 7” touch screen installed with the advanced LyoSmart operating system. It allows users to set freeze-drying steps, control vacuum levels, and monitor real-time progress. Built-in condenser coils improve drying speed, while fast defrost via hot gas reduces downtime. With a quiet 54 dB(A) noise level, it’s ideal for routine lab use.

freeze dryer
Compact, high-performance system with a space-saving design
Freeze Dryer

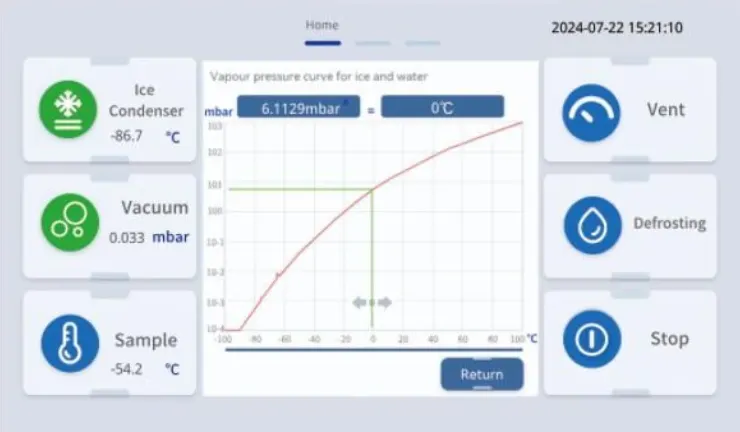

7” touch screen equipped with the intuitive LyoSmart operating system
Freeze Dryer
Set and control the vacuum degree and duration for each stage in automatic mode.
Freeze Dryer

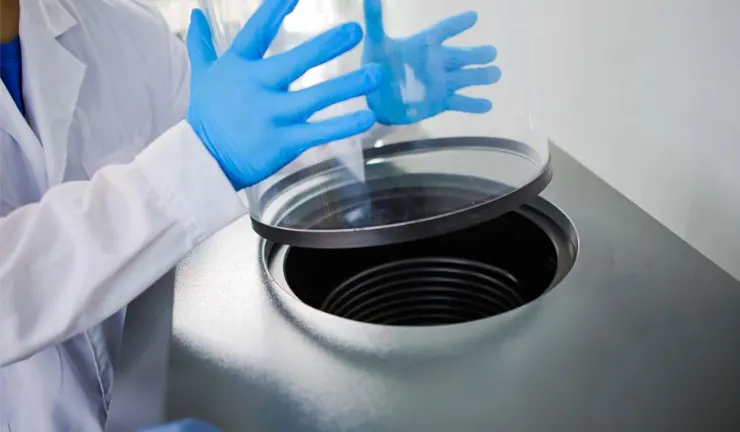

Flat surface and L-shaped sealing ring ensure a secure seal without the need for manual pressure.

Durable and Efficient Design

Compact yet powerful, the LyoOrganic series features high-quality materials that ensure strong chemical resistance. The coated stainless steel condenser, solvent-resistant seals, and mineral glass chamber offer long-lasting durability. Operating at temperatures as low as −105 °C, the internal condenser freezes or condenses most solvents with ease. An oil-free vacuum pump is included to boost efficiency and minimize maintenance.



Advanced Vacuum Control

You can manage vacuum degree and timing for each stage using auto mode, improving process efficiency by up to 40%. Real-time vacuum readings are shown on screen, ensuring full control at all times.

One-Button Operation

The LyoOrganic offers simple one-button functions for starting, stopping, venting, or defrosting. This feature helps prevent contamination and simplifies the workflow.

To explore more options, read our article, Discover the Best Freeze Dryers for Your Laboratory in South Africa on our Insights page. You’ll also find helpful resources to understand our products and their applications.

ModelLyOrganic 8LTLyOrganic 8LULyOrganic 12LTLyOrganic 12LU
BasicTypeDesktopDesktopFloor-standingFloor-standing
Ice CondenserTemperature-105°C-105°C-105°C-105°C
Max. ice capacity8 kg8 kg12 kg12 kg
Chamber volume15 L15 L21 L21 L
Performance6 kg/24h6 kg/24h8 kg/24h8 kg/24h
ControlDisplay7″ touch screen7″ touch screen7″ touch screen7″ touch screen
Operating systemLyoSmartLyoSmartLyoSmartLyoSmart
Ice condenser temperature display****
Product temperature sublimation****
Vacuum degree display****
Vacuum gauge typeCapacitiveCapacitiveCapacitiveCapacitive
Ultimate vacuum (mbar)0.010.010.010.01
Vacuum control range (mbar)0.01~1000.01~1000.01~1000.01~100
Vacuum ventingAutomaticAutomaticAutomaticAutomatic
Controlled gas (N2, clean air, etc.) backfill****
Hot gas defrosting****
DataData record****
USB port****
Cooling SystemNumber of compressor2222
Compressor BrandSECOPSECOPSECOPSECOP
PowerVoltage (V/Hz)220/50;220/60;120/60220/50;220/60;120/60220/50;220/60;120/60220/50;220/60;120/60
Rated power1700 W1700 W1900 W1900 W
Noise LevelFreeze Dryer52 (dB)52 (dB)52 (dB)52 (dB)
DimensionsMain Unit (W x D x H)780 × 550 × 430 mm780 × 550 × 430 mm700 × 650 × 1015 mm700 × 650 × 1015 mm
WeightMain Unit83 kg83 kg145 kg145 kg
Manifold package for flasksManifold typeT-TypeTree-Type
Number of rubber connection valves1224
Round bottom flask250 ml × 6 & 500 ml × 6250 ml × 12 & 500 ml × 12
Universal+ package for flasks & shelvesDrying chamberAcrylicAcrylic
Rack4-shelf4-shelf
Rack supporting board**
Number of rubber connection valves88
Round bottom flask250 ml × 6 & 500 ml × 6250 ml × 12 & 500 ml × 12
Vacuum pumpVacuum pump SVF-100DR (oil-free)****
Vacuum pump NDD12 (with oil)
Vacuum pump hose****

* Basic Equipment
○ Optional

SKUDescriptionNote
LyOrganic 8LT-ASLyoPro 8L Benchtop Freeze Dryer for Organic Solvents, Capacity: 8kg, Condenser Temp: -105°CPlease order vacuum pump and drying package separately. Recommended vacuum pump FD0203
LyOrganic 8LU-ASLyoPro 8LU Benchtop Freeze Dryer for Organic Solvents, Capacity: 8kg, Condenser Temp: -105°CPlease order vacuum pump and drying package separately. Recommended vacuum pump FD0203
LyOrganic 12LT-ASLyoPro 12LT Floor Standing Freeze Dryer for Organic Solvents, Capacity: 12kg, Condenser Temp: -105°CPlease order vacuum pump and drying package separately. Recommended vacuum pump FD0203
LyOrganic 12LU-ASLyoPro 12LU Floor Standing Freeze Dryer for Organic Solvents, Capacity: 12kg, Condenser Temp: -105°CPlease order vacuum pump and drying package separately. Recommended vacuum pump FD0203



Accessories

SKUDescription
FD0101Acrylic integrated freeze-drying chamber with 8 rubber connection valves
FD01144-shelf rack (used with FD0115)
FD0115Rack supporting board (used with FD0114)
FD0103Acrylic integrated freeze-drying chamber
FD0109Acrylic separate freeze-drying chamber with 12 rubber connection valves
FD0112Acrylic integrated freeze-drying chamber, 530mm extended height (compatible with 5-shelf rack, FD0114)
FD0113Acrylic integrated freeze-drying chamber, 530mm extended height, with 8 rubber connection valves (compatible with 5-shelf rack, FD0114)
FD01145-shelf rack (compatible with FD0112/FD0113)
FD0104Acrylic integrated freeze-drying chamber with 2-shelf rack (stopper type)
FD0102Acrylic integrated freeze-drying chamber with 2-shelf rack (stopper type) & 8 rubber connection valves
FD0105Tree type, 8 rubber connection valves
FD0106T type, 12 rubber connection valves
FD0107Tree type, 24 rubber connection valves
FD0110T type, double layer, 24 rubber connection valves
FD0111Ampoule bottle adapter, connecting 15 ampoule bottles with one rubber valve
FD0201Vacuum pump (with oil), VAULE brand, model VRI-8D
FD0202Vacuum pump (with oil), NAVAC brand, model NDD12
FD0203Vacuum pump (oil-free), model SVF-100DR (recommended for LyOrganic series)
FD0204Oil mist filter, for vacuum pump VRI-8D (FD0201)
FD0214Oil mist filter, for vacuum pump NDD12 (FD0202)
FD0205Oil for vacuum pump, 4 liter/bottle, for vacuum pump VRI-8D & NDD12
FD0301Round bottom flask, 250ml
FD0302Round bottom flask, 500ml
FD0305Wide-mouth flask (with adapter), 300ml
FD0303Wide-mouth flask (with adapter), 600ml
FD0304Wide-mouth flask (with adapter), 1200ml

Insights Article: Discover the Best Freeze Dryers for Your Laboratory in South Africa

Product Enquiry Handbook: Freeze Dryers

Operating Manual – LyoOrganic

Oil-free Vacuum Pump, SVF-100DR – LyOrganic Series Freeze Dryer Brochure

Vacuum Pump, NDD12 – LyOrganic Series Freeze Dryer Brochure
