Multi-Position Filtration Manifolds – BioVac 360/660 Series

The BioVac 360 and 660 series filtration manifolds from Wiggens, available in South Africa through Apex Scientific, deliver precise and efficient parallel vacuum filtration for demanding laboratory workflows. Designed for microbiological testing, environmental monitoring, and analytical sample preparation, these systems combine robust construction with operational flexibility. Built from SS316 stainless steel or anodized aluminum, they offer chemical resistance, rapid sterilization, and compatibility with 100 mL, 300 mL, and 500 mL funnels.

Independent branch valves and magnetic filter holders allow one-handed operation and reproducible results, streamlining workflow efficiency. With multiple models available, the BioVac 360 and 660 provide versatile solutions for modern laboratory equipment needs. Explore available configurations on the Apex Scientific Insights page.

The BioVac 360 and 660 series filtration manifolds from Wiggens, available in South Africa through Apex Scientific, provide precise and efficient parallel vacuum filtration for demanding laboratory workflows. Designed for microbiological testing, environmental monitoring, and analytical sample preparation for HPLC, GC, and AA, these systems combine durability, versatility, and ease of use, making them essential pieces of modern laboratory equipment.

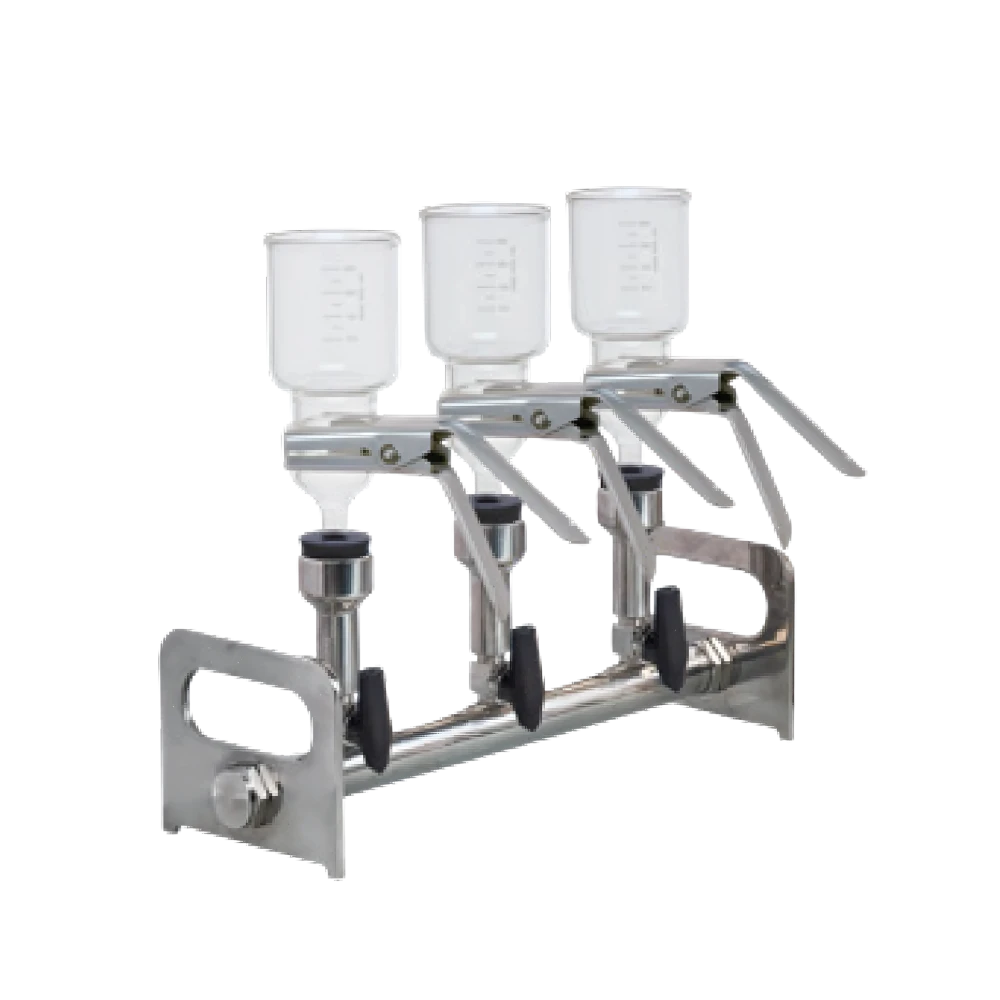

BioVac 360 Series

The BioVac 360 series features SS316 stainless steel for chemical resistance and rapid sterilization by flame or steam. An anodized aluminium version provides a lightweight, cost-effective, autoclavable alternative. Its patented spin-lock connection allows fast, stable assembly without clamps, while independent branch valves enable precise flow control. Compatible with 100 mL, 300 mL, and 500 mL funnels, and equipped with a magnetic filter holder, it ensures one-handed operation and reproducible results.

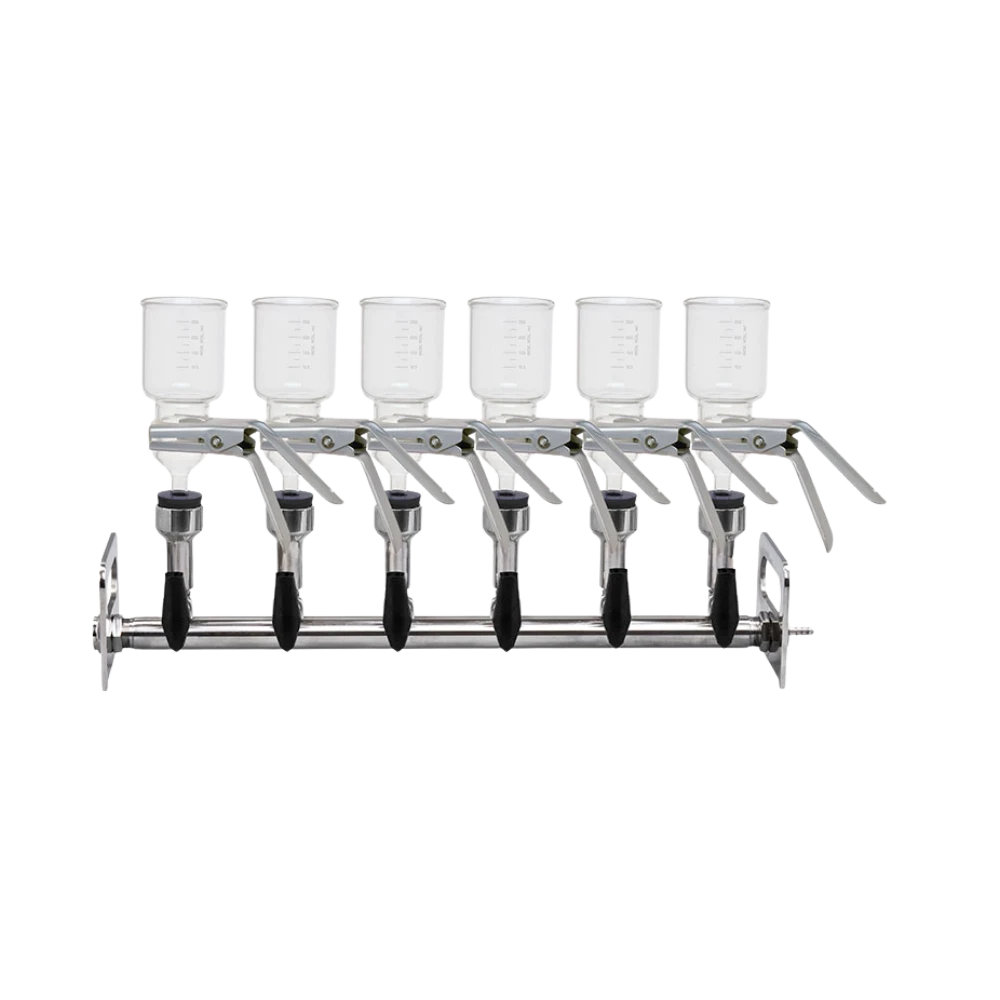

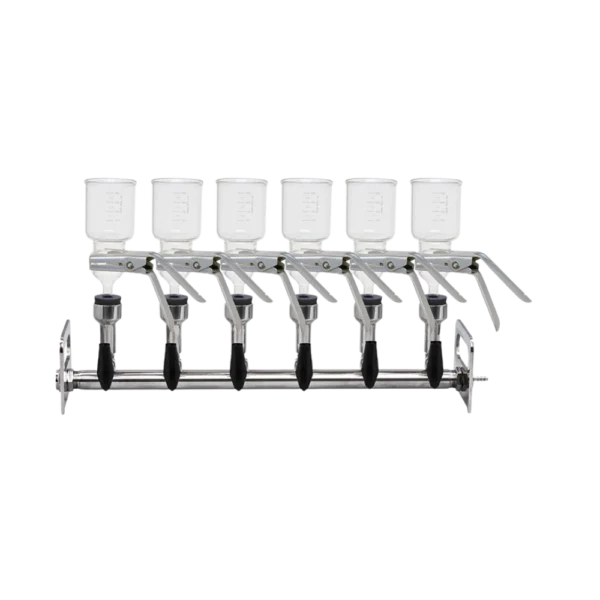

BioVac 660 Series

Built entirely from SS316 stainless steel, the BioVac 660 series is ideal for high-demand laboratory workflows. A lighter anodized aluminium version is also available. The spin-lock design ensures quick setup, and independent branch valves provide accurate flow regulation. Funnel compatibility and magnetic holders facilitate ergonomic, one-handed operation, maintaining efficiency and reproducibility in high-throughput laboratories.



Trusted Laboratory Equipment in South Africa

Both series are suitable for routine quality control and specialized research. Their robust construction, adaptability, and user-friendly design deliver reliable performance across diverse laboratory applications. To explore specifications, applications, and best practices, visit the Apex Scientific Insights page or contact us today to see which model best suits your laboratory needs.

ModelBioVac363BioVac364BioVac663BioVac664
Order No.167113-33167113-34167113-63167113-64
Number of Branches36
Filter Diameter(mm)47/50
Effective Filtration Area (cm2 )9.6
Tube I.D. (mm)8
Dimensions(L×W×H)cm50×15×3080×15×30
Filter Cup MaterialBorosilicate GlassGlass funnel with Micro-StrainerBorosilicate GlassGlass funnel with Micro-Strainer
Filter Cup Capacity (mL)250
SKUDescription
167113-33BioVac363- 3-Branch Stainless Steel Manifold incl. 3 x 250ml Borosilicate Glass Filter Cups
167113-34BioVac364- 3-Branch Stainless Steel Manifold incl. 3 x 250ml Glass funnel with Micro-Strainer Filter Cups
167113-63BioVac663- 6-Branch Stainless Steel Manifold incl. 6 x 250ml Borosilicate Glass Filter Cups
167113-64BioVac664- 6-Branch Stainless Steel Manifold incl. 6 x 250ml Glass funnel with Micro-Strainer Filter Cups



Accessories

SKUDescription
167120-3147mm Glass Funnel, 250ml
167210-03Glass funnel, 250ml
167240-01Anodized aluminum clamp
167230-03Glass support base
167110-16Silicone stopper
167120-3347mm Glass Funnel with Micro Strainer
167210-03250ml Glass Filter Cup
167240-01Aluminum Clamp
167230-31Stainless Steel Support Screen
167230-0747mm Glass Filter Base
167110-16Silicon Rubber
167100-18Magnetic filter funnel 300ml
167130-15Magnetic filter funnel 150ml
167130-50Magnetic filter funnel 500ml
167103-61100ml stainless steel
167100-31Stainless Steel Support Screen
167103-6047mm stainless steel filter base
167110-17Silicon Rubber
167103-63300ml Stainless Steel filter cup
167100-31Stainless Steel Support Screen
167103-6047mm stainless steel filter base
167110-17Silicon Rubber
167103-65500ml stainless steel filter cup
167100-31stainless steel Support Screen
167103-6047mm stainless steel filter base
167110-17Silicon Rubber
167102-50Stainless Steel Filter Cup – Cone Type; Volume: 500ml
167102-75Stainless Steel Filter Cup – Cone Type; Volume: 700ml
167102-99Stainless Steel Filter Cup – Cone Type; Volume: 1000ml
167103-61Stainless Steel Filter Cup – Cylinder Type; Volume: 100ml
167103-63Stainless Steel Filter Cup – Cylinder Type; Volume: 300ml
167103-65Stainless Steel Filter Cup – Cylinder Type; Volume: 500ml
167103-11Stainless Steel Funnel Lid – Suitable for 100ml Stainless Steel Filter Cup (Cylinder Type)
167103-13Stainless Steel Funnel Lid – Suitable for 300ml Stainless Steel Filter Cup (Cylinder Type)
167103-15Stainless Steel Funnel Lid – Suitable for 500ml Stainless Steel Filter Cup (Cylinder Type)
167110-20Stainless Steel Funnel Lid – Suitable for 500ml / 750ml / 1000ml (cone type)
167130-32PP Funnel Lid
194225-01Disc Filter – Diameter: 25mm , Pore Size: 0.2μm
167200-36Disc Filter – Diameter: 50mm , Pore Size: 0.2μm
167100-52MCE Filter Paper – Filter Diameter: 47mm; Pore Size: 0.45μm
167100-20Fiberglass Filter Membrane – Diameter: 47mm; Pore Size: 1μm
168020-01Silicon Tubing – Outer Diameter: 12mm, Inner Diameter: 6mm, Thickness: 3mm, Length: 1m
168021-01Silicon Tubing – Outer Diameter: 14mm, Inner Diameter: 8mm, Thickness: 3mm, Length: 1m
168022-01Silicon Tubing – Outer Diameter: 16mm, Inner Diameter: 10mm, Thickness: 3mm, Length: 1m
168030-01Drainage tubing – Outer Diameter: 12mm, Inner Diameter: 8mm, Thickness: 2mm, Length: 1m
167100-13Filtration Flask for Liquids – Capacity: 1000ml, with 8mm outlet drain, φ15mm hole
167100-14Filtration Flask for Liquids – Capacity: 1000ml, with 8mm outlet drain, φ9.5mm hole
167200-04Weighted base – For 1000ml Filtration Flasks, suitable for 167100-13
167200-311L Waste bottle
167201-351.5L Waste bottle
167201-361.5L Waste bottle
167200-322L Waste bottle
167200-333L Waste bottle
167120-344L Waste bottle
167200-39Stand for suction bottles (Please indicate the capacity of the bottle when ordering)
167200-41Foot switch – Suitable for C series and V series vacuum pumps
