Multi-Position Filtration Manifolds – BioVac 350/650 Series

The BioVac 350 and 650 series filtration manifolds from Wiggens, available in South Africa through Apex Scientific, provide precise, high-throughput vacuum filtration for diverse laboratory applications. Designed for microbiological testing, environmental monitoring, and analytical sample preparation such as HPLC, GC, and AA, these systems combine durability with ease of use. Built from SS316 stainless steel or anodized aluminium, they offer chemical resistance, rapid sterilization, and compatibility with multiple funnel sizes. Independent control valves and rapid assembly streamline workflows, ensuring consistent, reproducible results.

With multiple models available, the BioVac 350 and 650 series provide flexible solutions for modern laboratory equipment needs. Learn more about available configurations on the Apex Scientific Insights page.

The BioVac 350 and 650 series filtration manifolds from Wiggens, available in South Africa through Apex Scientific, provide precise and efficient parallel vacuum filtration for demanding laboratory workflows. They are designed for microbiological testing, environmental monitoring, and analytical sample preparation for HPLC, GC, and AA. As a result, these systems combine durability, versatility, and ease of use, making them essential pieces of modern laboratory equipment.

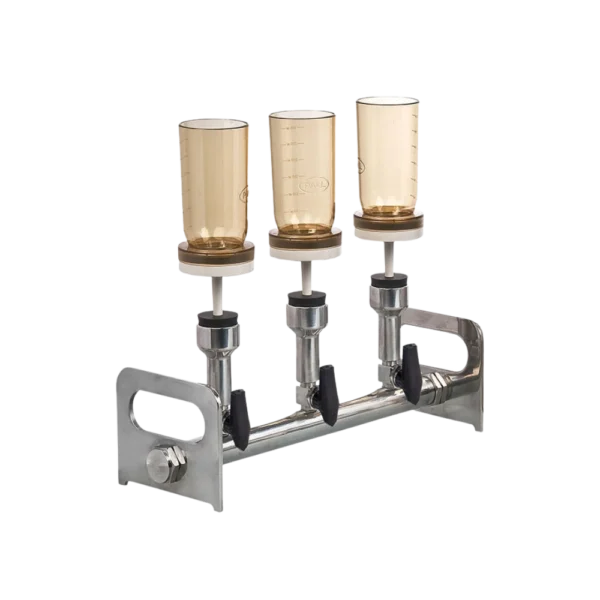

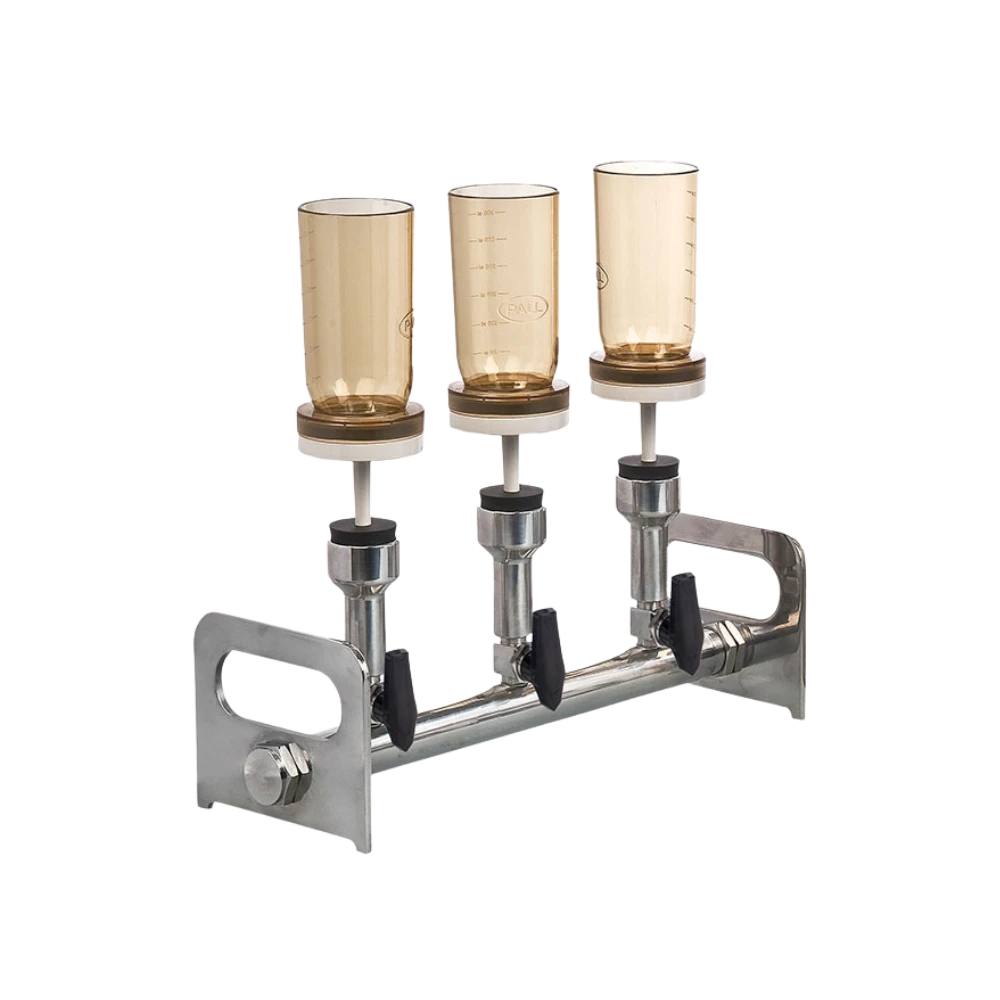

BioVac 350 Series

The BioVac 350 series uses SS316 stainless steel for chemical resistance and allows rapid sterilization by flame or steam. Alternatively, an anodized aluminium option provides a lightweight, cost-effective, and autoclavable solution. In addition, the patented spin-lock connection enables fast assembly without clamps, and independent control valves allow precise flow regulation. It supports 100 mL, 300 mL, and 500 mL funnels. Moreover, the magnetic filter holder ensures one-handed operation and reproducible results.

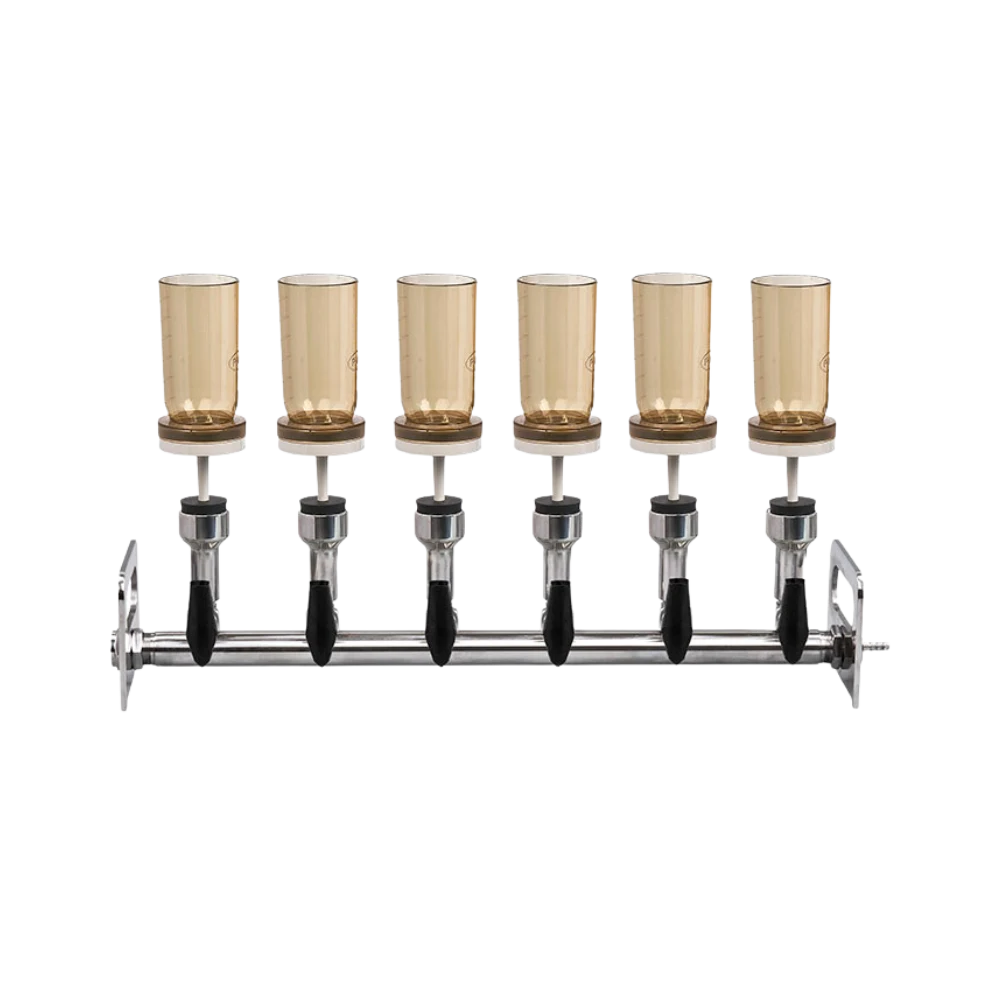

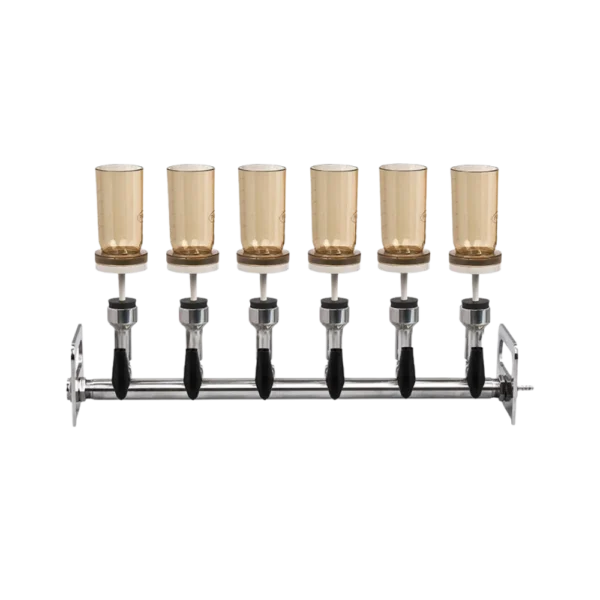

BioVac 650 Series

The BioVac 650 series is built entirely from SS316 stainless steel for demanding workflows, while an anodized aluminium version suits lighter-duty applications. Its spin-lock design ensures quick, stable setup. Each branch features independent valves for accurate flow control. Funnel compatibility and magnetic holders also allow ergonomic, one-handed operation. Consequently, the system maintains efficiency and reproducibility even in high-throughput laboratories.



Trusted Laboratory Equipment in South Africa

Both series are ideal for routine quality control and specialized research. Their robust construction, adaptability, and user-friendly design deliver reliable performance across diverse laboratory applications. To explore specifications, applications, and best practices, visit the Apex Scientific Insights page or contact us today to see which model best suits your laboratory needs.

ModelBioVac351BioVac353BioVac355
Order No.167112-31167112-33167112-35
Number of Branches333
Filter Diameter(mm)47/5047/5047/50
Effective Filtration Area (cm2 )9.69.69.6
Tube I.D. (mm)888
Dimensions(L×W×H)cm50×15×3050×15×3050×15×33
Filter Cup MaterialMagneticMagneticMagnetic
Filter Cup Capacity (mL)150300500



ModelBioVac651BioVac653BioVac655
Order No.167112-61167112-63167112-65
Number of Branches666
Filter Diameter(mm)47/5047/5047/50
Effective Filtration Area (cm2 )9.69.69.6
Tube I.D. (mm)888
Dimensions(L×W×H)cm80×15×3080×15×3080×15×33
Filter Cup MaterialMagneticMagneticMagnetic
Filter Cup Capacity (mL)150300500
SKUDescription
167112-31BioVac351- 3-Branch Stainless Steel Manifold incl. 3 x 150ml Magnetic Filter Cups
167112-33BioVac353- 3-Branch Stainless Steel Manifold incl. 3 x 300ml Magnetic Filter Cups
167112-35BioVac355- 3-Branch Stainless Steel Manifold incl. 3 x 500ml Magnetic Steel Filter Cups
167112-61BioVac651- 6-Branch Stainless Steel Manifold incl. 6 x 150ml Magnetic Filter Cups
167112-63BioVac653- 6-Branch Stainless Steel Manifold incl. 6 x 300ml Magnetic Filter Cups
167112-65BioVac655- 6-Branch Stainless Steel Manifold incl. 6 x 500ml Magnetic Filter Cups



Accessories

SKUDescription
167120-3147mm Glass Funnel, 250ml
167210-03Glass funnel, 250ml
167240-01Anodized aluminum clamp
167230-03Glass support base
167110-16Silicone stopper
167120-3347mm Glass Funnel with Micro Strainer
167210-03250ml Glass Filter Cup
167240-01Aluminum Clamp
167230-31Stainless Steel Support Screen
167230-0747mm Glass Filter Base
167110-16Silicon Rubber
167100-18Magnetic filter funnel 300ml
167130-15Magnetic filter funnel 150ml
167130-50Magnetic filter funnel 500ml
167103-61100ml stainless steel
167100-31Stainless Steel Support Screen
167103-6047mm stainless steel filter base
167110-17Silicon Rubber
167103-63300ml Stainless Steel filter cup
167100-31Stainless Steel Support Screen
167103-6047mm stainless steel filter base
167110-17Silicon Rubber
167103-65500ml stainless steel filter cup
167100-31stainless steel Support Screen
167103-6047mm stainless steel filter base
167110-17Silicon Rubber
167102-50Stainless Steel Filter Cup – Cone Type; Volume: 500ml
167102-75Stainless Steel Filter Cup – Cone Type; Volume: 700ml
167102-99Stainless Steel Filter Cup – Cone Type; Volume: 1000ml
167103-61Stainless Steel Filter Cup – Cylinder Type; Volume: 100ml
167103-63Stainless Steel Filter Cup – Cylinder Type; Volume: 300ml
167103-65Stainless Steel Filter Cup – Cylinder Type; Volume: 500ml
167103-11Stainless Steel Funnel Lid – Suitable for 100ml Stainless Steel Filter Cup (Cylinder Type)
167103-13Stainless Steel Funnel Lid – Suitable for 300ml Stainless Steel Filter Cup (Cylinder Type)
167103-15Stainless Steel Funnel Lid – Suitable for 500ml Stainless Steel Filter Cup (Cylinder Type)
167110-20Stainless Steel Funnel Lid – Suitable for 500ml / 750ml / 1000ml (cone type)
167130-32PP Funnel Lid
194225-01Disc Filter – Diameter: 25mm , Pore Size: 0.2μm
167200-36Disc Filter – Diameter: 50mm , Pore Size: 0.2μm
167100-52MCE Filter Paper – Filter Diameter: 47mm; Pore Size: 0.45μm
167100-20Fiberglass Filter Membrane – Diameter: 47mm; Pore Size: 1μm
168020-01Silicon Tubing – Outer Diameter: 12mm, Inner Diameter: 6mm, Thickness: 3mm, Length: 1m
168021-01Silicon Tubing – Outer Diameter: 14mm, Inner Diameter: 8mm, Thickness: 3mm, Length: 1m
168022-01Silicon Tubing – Outer Diameter: 16mm, Inner Diameter: 10mm, Thickness: 3mm, Length: 1m
168030-01Drainage tubing – Outer Diameter: 12mm, Inner Diameter: 8mm, Thickness: 2mm, Length: 1m
167100-13Filtration Flask for Liquids – Capacity: 1000ml, with 8mm outlet drain, φ15mm hole
167100-14Filtration Flask for Liquids – Capacity: 1000ml, with 8mm outlet drain, φ9.5mm hole
167200-04Weighted base – For 1000ml Filtration Flasks, suitable for 167100-13
167200-311L Waste bottle
167201-351.5L Waste bottle
167201-361.5L Waste bottle
167200-322L Waste bottle
167200-333L Waste bottle
167120-344L Waste bottle
167200-39Stand for suction bottles (Please indicate the capacity of the bottle when ordering)
167200-41Foot switch – Suitable for C series and V series vacuum pumps
