Peltier Cooled CO2 Incubators

The peltier cooled CO₂ incubators by Wiggens offers efficient and stable temperature regulation, combining both heating and Peltier cooling technologies. Designed for laboratories across South Africa, thes compact CO₂ incubators are ideal for cultivating sensitive cell cultures that require precise environmental conditions. With minimal temperature fluctuation and quiet operation, it’s a reliable choice for tissue culture, embryo research, and microbiology.

Available from Apex Scientific, it provides dependable performance for labs seeking compact and energy-efficient incubation. For more details on selecting the right CO₂ Incubator, explore our product range or visit our Insights page for expert advice and application tips.

The peltier cooled CO2 incubators from Wiggens are designed to meet the demanding needs of laboratories in South Africa. These advanced incubators combine integrated heating with innovative peltier cooling technology, delivering precise environmental control at all times. Whether your application involves sensitive cultures, long-term cell growth, or microbiological studies, this compact and reliable solution ensures stable, energy-efficient performance. The Wiggens range includes models from 40LT to 850LT, and researchers can also choose optional dry heat sterilization to support diverse pharmaceutical, clinical, and academic requirements.



Fast Heat-Up and Rapid Recovery

Each incubator uses a six-sided direct heating system. Electric heating wires wrap around the chamber, which guarantees uniform temperature distribution across every shelf. In addition, three independent temperature sensors actively monitor and adjust the system. As a result, the incubator delivers rapid heat-up times and quick recovery after door openings. Therefore, researchers benefit from uninterrupted experiments and consistently high-precision outcomes.



Maintenance-Free Insulation Design

Wiggens designed these peltier cooled CO2 incubators with a dual-insulation system that combines dry wall and air jacket technology. This clever approach minimizes heat loss and improves temperature stability. Moreover, it reduces maintenance demands and lowers long-term running costs. Laboratories therefore gain both durability and energy efficiency, making these incubators a smart investment.



Dual Beam IR CO2 Sensor

Accurate CO2 monitoring plays a vital role in successful cell culture. For this reason, Wiggens integrates a dual-beam infrared sensor into every unit. This sensor measures gas levels rapidly and precisely, even when temperature and humidity fluctuate. Consequently, cultures remain in an optimal growth environment, ensuring reproducibility and reliable results.



Natural Humidification with Even Distribution

A stainless-steel water tray, combined with a bottom heater, generates natural humidification. Furthermore, an internal circulation fan distributes the moisture evenly across the chamber. This process maintains consistent sample development and prevents desiccation, even during long culture periods.

Accessories

To help you select the most suitable model, read our article Choosing the Right Incubator for Your Laboratory: A Guide from Apex Scientific. In addition, you can explore more expert insights on our Insights page, or browse our complete product range to discover high-quality laboratory equipment tailored to your research needs.

ModelWCI-40PWCI-120PWCI-180PWCI-260PWCI-650PWCI-850P
Order No.StandardW6013040W6013120W6013180W6013260W6013650W6013850
SterilizationW6014040W6014120W6014180
Chamber volume [L]40120180260650850
Temperature Stability [℃ ]±0.1℃ (37℃)±0.1℃ (37℃)±0.1℃ (37℃)±0.1(37℃)±0.1(37℃)±0.1(37℃)
Temp. Uniformity [℃ ]±0.3℃ (37℃ / RT.20℃)±0.3℃ (37℃ / RT.20℃)±0.3℃ (37℃ / RT.20℃)±0.4 (37℃ / RT.20℃)±0.5 (37℃ / RT.20℃)±0.5 (37℃ / RT.20℃)
Heating Capacity [W]32032032061011001400
CO2 Inlet pressure range [bar]0.3~0.50.3~0.50.3~0.50.6~0.70.7~1.00.7~1.0
Number of shelves2/43/83/83/83/153/15
Chamber dimension [WxDxH]mm320x350x375480x470x520473x528x710530x590x900700x650x1430700x800x1530
Overall dimension [WxDxH]mm420x520x570580x560x765560x680x945630x760x1125820x860x1740820x930x1840
Weight(kg)468288125260296
SKUDescription

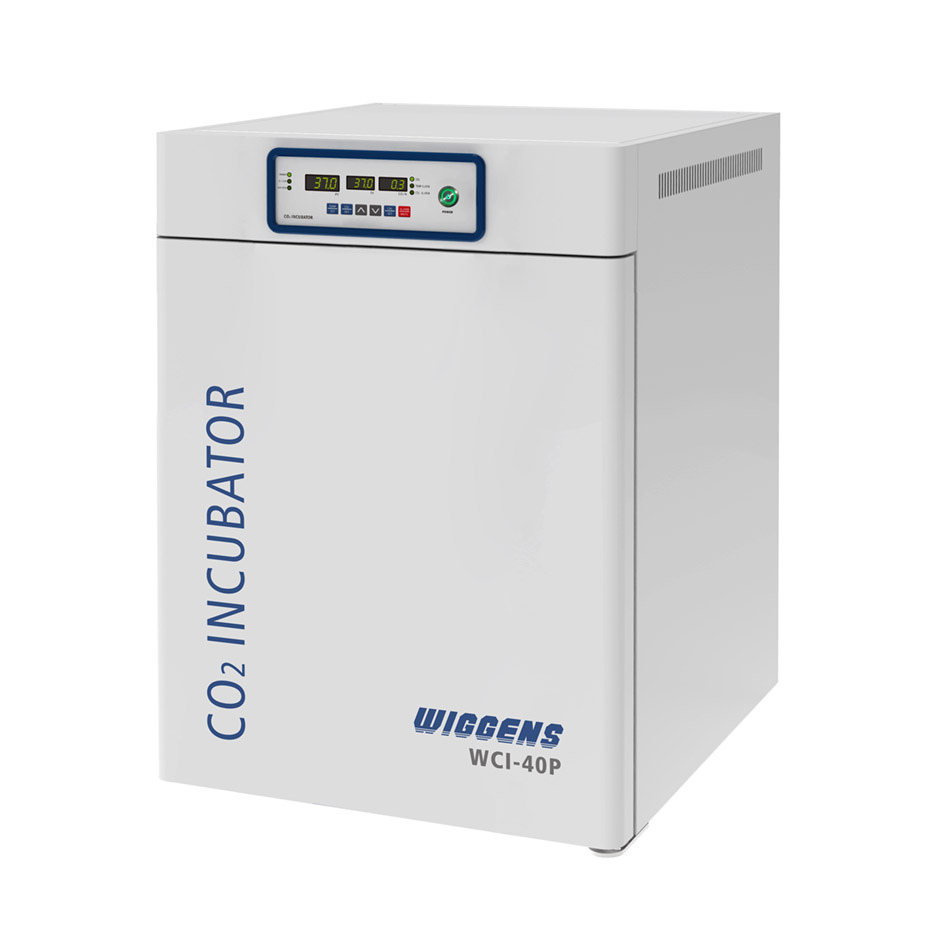

W6013040Wiggens WCI-40P – Peltier-cooled CO2 Incubator 40LT, Standard Version, without Dry Heat Sterilization
W6014040Wiggens WCI-40P – Peltier-cooled CO2 Incubator 40LT, with Dry Heat Sterilization Sterilization

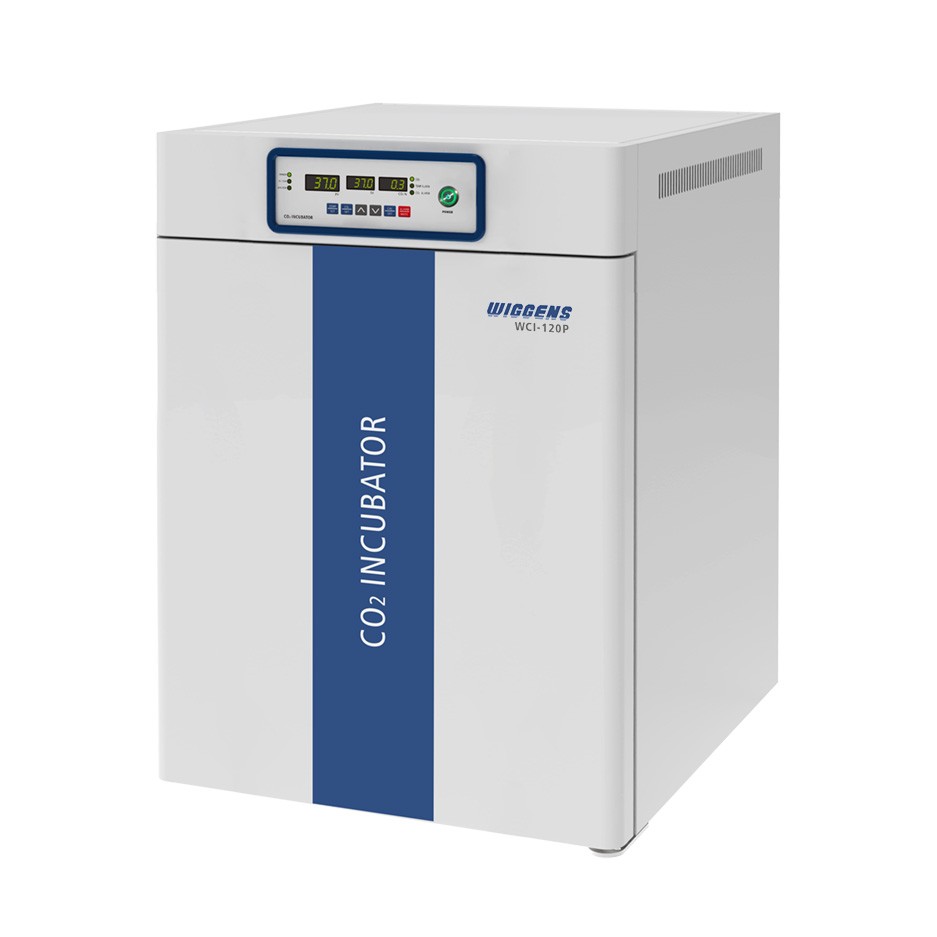

W6013120Wiggens WCI-120P -Peltier-cooled CO2 Incubator 120LT, Standard Version, without Dry Heat Sterilization
W6014120Wiggens WCI-120P – Peltier-cooled CO2 Incubator 120LT, with Dry Heat Sterilization Sterilization

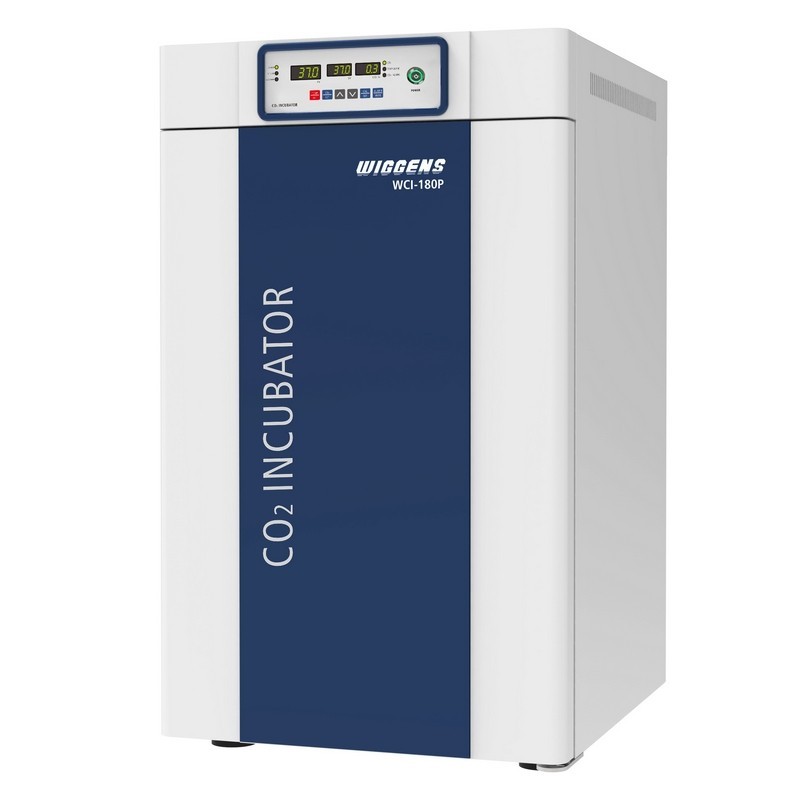

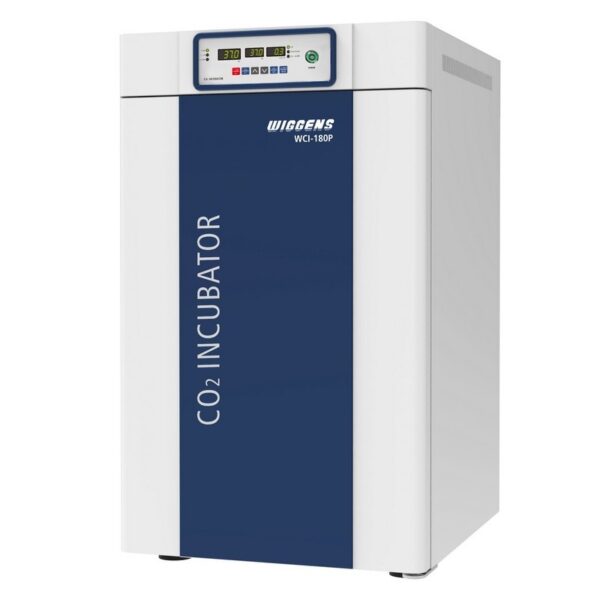

W6013180Wiggens WCI-180P – Peltier-cooled CO2 Incubator 180LT, Standard Version, without Dry Heat Sterilization
W6014180Wiggens WCI-180P – Peltier-cooled CO2 Incubator 180LT, with Dry Heat Sterilization Sterilization
W6013260Wiggens WCI-260P – Peltier-cooled CO2 Incubator 260LT, Standard Version, without Dry Heat Sterilization
W6013650Wiggens WCI-650P – Peltier-cooled CO2 Incubator 650LT, Standard Version, without Dry Heat Sterilization
W6013850Wiggens WCI-850P – Peltier-cooled CO2 Incubator 850LT, Standard Version, without Dry Heat Sterilization



Accessories

SKUDescription
W6030501Perforated Shelf kit
W6010402Roller Base
W6031003Stacking Kit
W6011804HEPA Filter
12701Water Pan
W6011806UV Lamp
W6011810Gas Regulator
W6011816Holes for Auxiliary Monitoring
W6011812Divided Door
W6051503LED Lamp
W6051502Power Socket in Chamber
CO2 REGModel 101-10M-CO2 (0-10bar) Carbon Dioxide Regulator with Adaptor

Insights Article: Optimize Your Cell Culture with the Right CO₂ Incubator from Apex Scientific

Product Enquiry Handbook: CO₂ Incubators

Technical Specification Sheet – WCI-40P

Technical Specification Sheet – WCI-120P

Technical Specification Sheet – WCI-180P

Operating Manual – WCI-P Series
