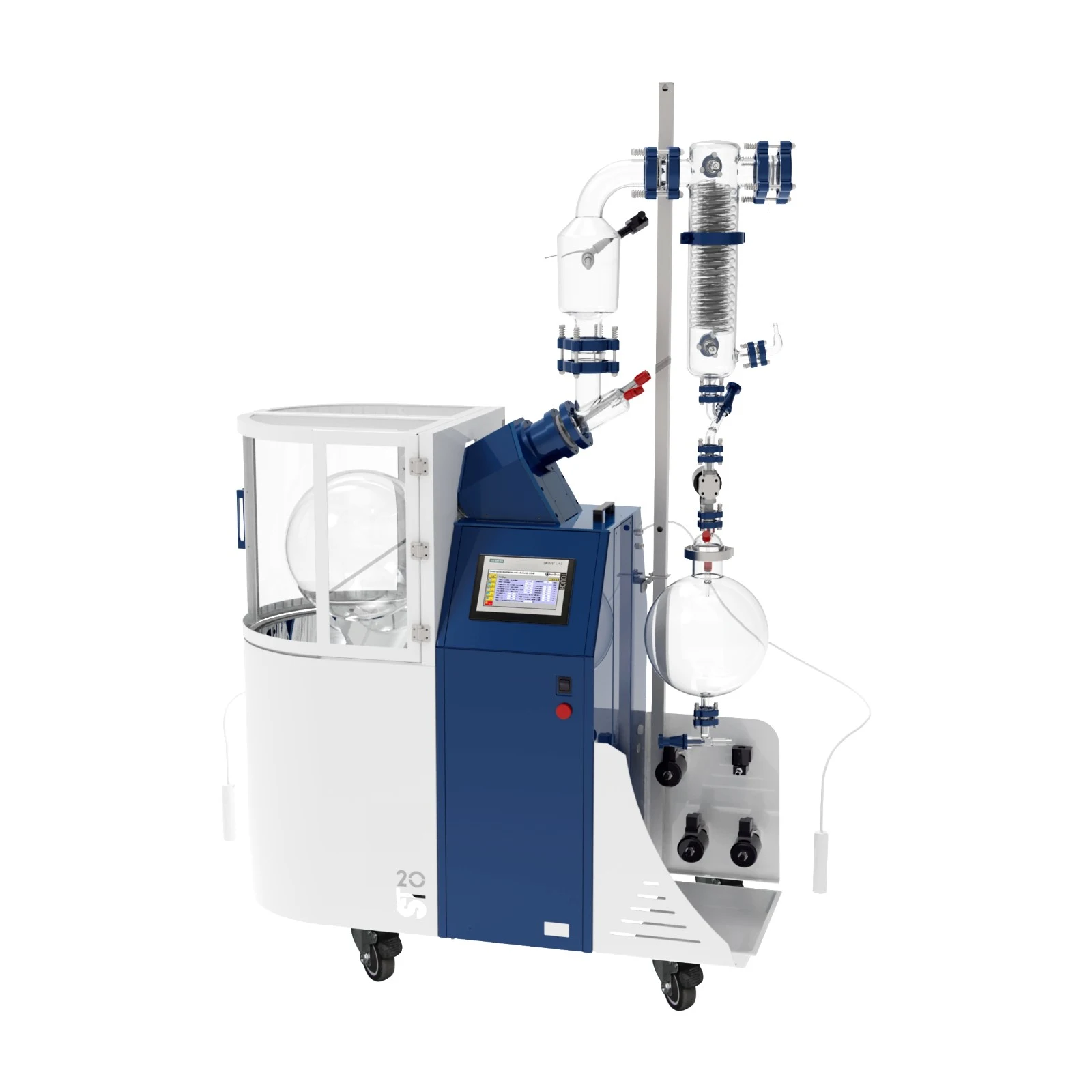

The 20LT continuous distillation rotary evaporator by Wiggens is a state-of-the-art laboratory solution tailored for scientists in South Africa. This advanced equipment not only includes all the standard functions of the ST20 but also features an automatic continuous distillation capability, enhancing your laboratory’s efficiency.
Performance Parameters
This rotary evaporator operates within a bath temperature range of RT+5 to +150℃, rotation speeds from 10 to 150 rpm, and maintains a vacuum of 8 mbar. These specifications ensure optimal performance for various distillation tasks.
User-Friendly Display
Equipped with a touch screen, the unit displays critical parameters such as bath temperature, speed, vacuum levels, and vapor temperature. The ability to switch between distillation modes with a single button enhances usability.
Versatile Process Modes
The Rotary Evaporator Continuous Distillation – 20LT supports two primary process modes:
- Batch Distillation (Conventional Mode): Ideal for standard distillation requirements.
- Continuous Distillation (Cascade Mode): Perfect for ongoing processes, maximizing productivity.
Customizable Glassware Options
This unit accommodates various glassware configurations, including:
- Vapor sinking and rising types
- Evaporating flasks available in 6L, 10L, and 20L
- Collection flasks in options of 2x6L or 1x10L
Advanced Monitoring Systems
Equipped with liquid level sensors, this evaporator monitors levels in both evaporation and collection flasks. It features alarms for low levels in evaporating solutions and high levels in distilled solvents, ensuring safety and efficiency during operations.
Comprehensive Safety Features
Safety is paramount. This rotary evaporator includes:
- Over-temperature protection
- Automatic liquid level monitoring with alarm functions
- A standard protective cover to safeguard users
Accessories
