Performance
- ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
- 0.3 μm and larger particulates are removed with 99.99% efficiency, leak-tight HEPA filter which satisfying class 10. (US Federal Standard 209E (average life span of HEPA filter: 3 years – it depends on the test room conditions) (optional)

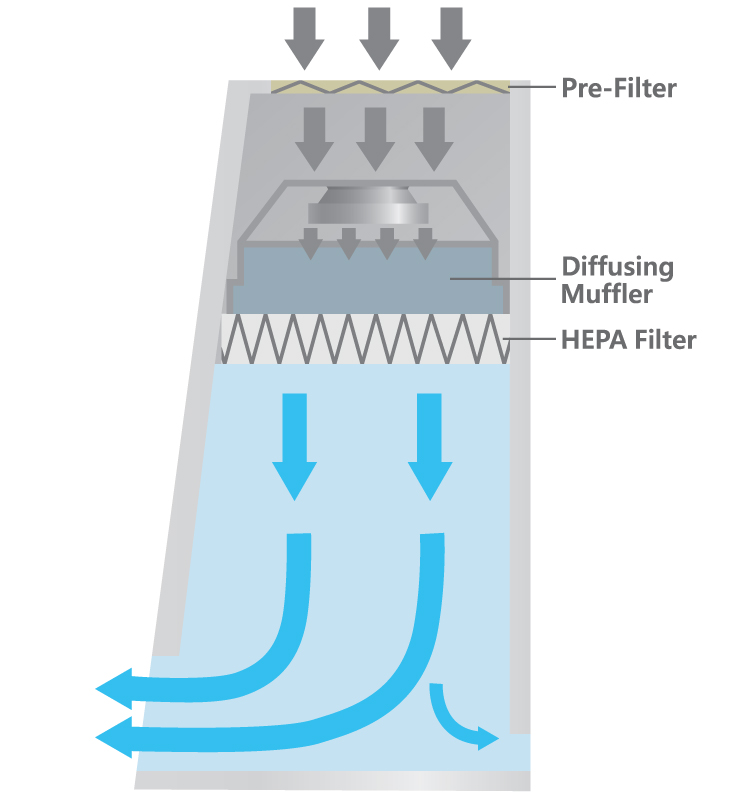

- High-quality polyester fiber pre filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
- Exclusive diffusing muffler structure forms high quality laminar flow.
- Quiet and comfortable working environment. (less than 65dB)
Convenience
- Built-in differential pressure gauge for easy checking HEPA filter condition.
- Comfortable front access to cartridge type of filters for easy replacement.
- Easy blower speed adjustment by the control panel.
- Highly durable, rust-free, and easy-to-clean grade 304 stainless steel work surface.
- The inner left side magnetic board allows some memos and small tools.
Safety
- UV-blocking and impact-resistant tempered glass door.
- If the sash is opened during UV-lamp operation, UV lamp automatically turns off to protect users.
- Lighting mode selection by 3-position toggle switch (UV / off / fluorescent) preventing harmful UV exposure.
- Smoothly sliding front door stoppable at any height for user’s safety and easy transport of equipment into the workspace.
- Protection against over-current.
Technical Specifications of The Lab Companion Basic Vertical Laminar Flow:
| Model | BC-01B | BC-11B | BC-21B | ||||
| Air flow type | Vertical laminar flow | ||||||
| Air volume (minimum / maximum) | 0 to 1020 cmh / 0 to 600 cfm | 0 to 2040 cmh / 0 to 1200 cfm | |||||
| Laminar airflow velocity (m / s / fpm) | 0.3 / 59 | 0.45 / 89 | 0.3 / 59 | ||||
| Air cleanliness within work space | ISO 14644-1 class 4, US Federal Standard 209E class 10 | ||||||
| Filters | HEPA filter | Typical efficiency of 99.99% on 0.3㎛ (US MIL- STD -282) | |||||
| ; Micro glass fiber Media, Particle board, AL separator, Neoprene gaskets | |||||||
| Pre filter | Polyester fibers with an filter efficiency of 85% (A·F·I TEST) | ||||||
| ; Aluminum frame, Polyester fiber media | |||||||
| Noise level | Typically < 65dB at blower speed | ||||||
| Materials | Main body | Steel powder coating | |||||
| Work surface | Stainless steel, grade 304, brushed finish | ||||||
| Windows (front / side) | Colorless and transparent UV absorbing 5mm tempered glass | ||||||
| Illumination | Intensity (lux) | > 650 | |||||
| Fluorescent lamp (W) | 30 x 2ea | 32 x 2ea | |||||
| Electronically ballasted Fluorescent Lamp | |||||||
| UV lamp (W) | 25 x 1ea | 30 x 1ea | 25 x 2ea | ||||
| Electronically ballasted UV Lamp | |||||||
| Electric socket outlets | 230V socket | ||||||
| Dimension(W×D×H) | Interior (mm / inch) | 945 x 585 x 670 | 1245 x 585 x 670 | 1845 x 585 x 670 | |||
| / 37.2 x 23.0 x 26.4 | / 49.0 x 23.0 x 26.4 | / 72.6 x 230 x 26.4 | |||||
| Exterior without stand (mm / inch) | 1135 x 620 x 1150 | 1435 x 620 x 1150 | 2035 x 620 x 1150 | ||||
| / 44.7 x 24.4 x 45.3 | / 56.5 x 24.4 x 45.3 | / 80.1 x 24.4 x 45.3 | |||||
| Exterior with stand (mm / inch) | 1135 x 620 x 1860 | 1435 x 620 x 1860 | 2035 x 620 x 1860 | ||||
| / 44.7 x 24.4 x 73.2 | / 56.5 x 24.4 x 73.2 | / 80.1 x 24.4 x 73.2 | |||||
| Net weight (body) (kg / lbs) | 140 / 308.6 | 185 /407.9 | 225 / 496 | ||||
| Net weight (body + stand) (kg / lbs) | 170 / 374.8 | 215 / 474 | 255 / 562.2 | ||||
| Electrical requirements (230V, 1ph) | 60Hz / 1.25 A | 50Hz / 1.38 A | 60Hz / 1.57 A | 50Hz / 1.73 A | 60Hz / 2.09 A | 50Hz / 2.30 A | |
| Cat. No. | AAHA6011K | AAHA6012K | AAHA6021K | AAHA6022K | AAHA6031K | AAHA6032K | |
| Electrical requirements (120V, 1ph) | 60Hz / 2.62 A | 60Hz / 3.27 A | 60Hz / 4.36 A | ||||
| Cat. No. | AAHA6013U | AAHA6023U | AAHA6033U | ||||
