Environmental Chamber – Benchtop, 0 – 120°C

The 0–120 °C Benchtop Environmental Chamber from Jeiotech offers reliable and reproducible performance in a compact footprint. This benchtop Environmental Chamber provides precise temperature and humidity control, essential for consistent testing conditions. Its external humidification system ensures stable humidity with easy maintenance, while exceptional thermal insulation and a double-sealed door enhance airtightness and temperature stability. Perfect for repeated testing applications, this chamber is built to deliver dependable results in every cycle.

Supplied by Apex Scientific, it’s a smart choice for labs that are focused on quality and efficiency. Explore our range or visit our Insights page to learn how the right Environmental Chamber supports scientific excellence.

The 0–120 °C Benchtop Environmental Chamber from Jeiotech offers precise and reliable temperature control for scientific and industrial testing applications. Supplied by Apex Scientific, this compact yet advanced unit is well-suited for laboratories across South Africa that require dependable performance for material stability, component testing, and environmental simulation.

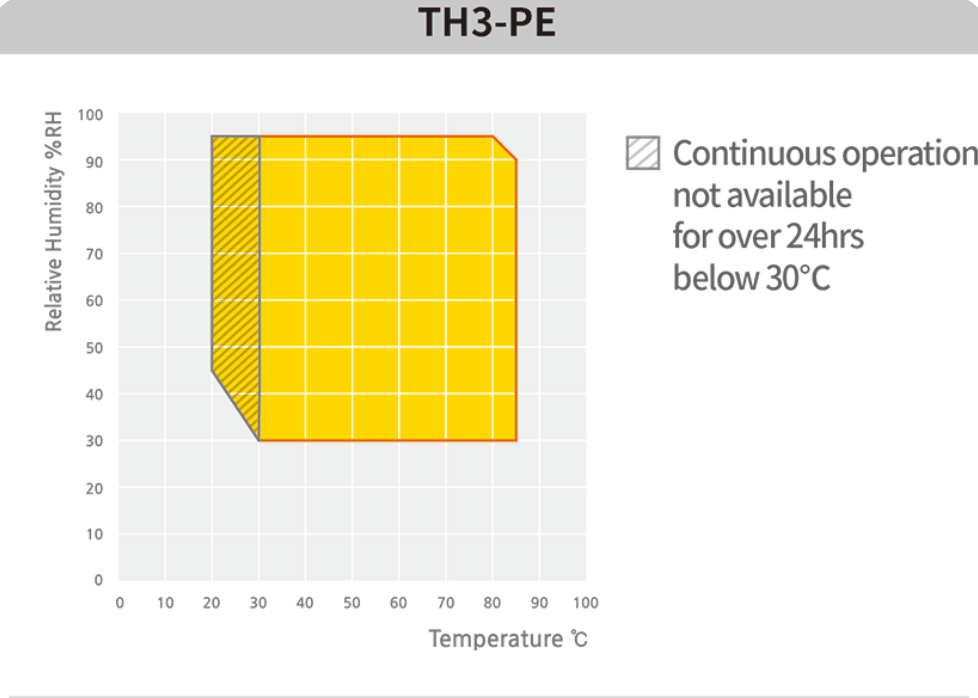

TH3-PE Series – Temperature and Humidity Operating Range

The TH3-PE Series Environmental Chamber from JeioTech provides precise temperature and humidity control for laboratory testing applications. The operating range diagram illustrates the chamber’s temperature and relative humidity capabilities, with humidity control extending from 30% to 95% RH across much of the operating range.

The shaded section indicates restricted operating conditions at lower temperatures, while the upper temperature limit for humidity-controlled operation is approximately 85°C. This allows users to identify suitable conditions for environmental testing, stability studies, and controlled laboratory applications.

Convenience Features

With a 5.6 inch color touch display controller, operation is incredibly user-friendly. You can easily monitor the operation status through graphical displays. The water level check function ensures timely replenishment, while the user-friendly water inlet with an easy cap simplifies maintenance. The efficient water supply and recirculation system minimizes the need for frequent water refilling, even during long-term high-humidity tests.

Observing samples is effortless thanks to the tempered glass door, which features built-in heating wire and an LED lamp. The LED color indicators allow you to quickly identify the chamber’s status from a distance. Additionally, the included cable port and silicone plug facilitate easy connections to external equipment. Maintenance is straightforward with a removable refrigerator condenser grill, ensuring optimal refrigeration efficiency.

Color touch display controller (5.6 inches)
Indicator LED Of Product Condition
Tempered glass window with wire heater and LED Lamp
Power Switch

Multifunction Control System

This chamber boasts a multifunction control system that allows for the storage and documentation of programs. You can save program information and back up set values effectively. The RS-232 port (default) and optional RS-485 port enable you to connect up to 32 devices to a PC simultaneously. Reliable control is ensured with temperature/humidity auto-tuning and precise temperature calibration, subdivided into nine PID zones for enhanced stability.

Digital temperature and humidity control

The environmental chamber features a digital control interface for setting and monitoring temperature and relative humidity. Users can adjust operating setpoints and manage chamber operation through an intuitive control system.

Temperature and humidity auto-tuning, together with nine PID control zones, support stable and accurate environmental conditions. The multifunction controller also supports programmable operation, data storage, and communication with external monitoring systems.

Outstanding Safety

Safety is a top priority with the Environmental Chamber. It features an electronic over-temperature shutdown system, ensuring accurate and safe operation. An independent precision temperature sensor and controller enhance the reliability of the over-temperature shutdown. The backup device for electronic system failures mechanically prevents overheating, maintaining surface temperatures below 60°C.

Additional safety features include low water level alarms, door open warnings, and overcurrent protection. Each heater has its own fuse for added safety, with an auto-stop function activated when the compressor’s operating current is overloaded.

Simplifying Humidity Testing with the Jeiotech TH3 Series

The Jeiotech TH3 Series benchtop humidity chamber offers user-friendly control with a 5.6-inch touchscreen, real-time graph monitoring, and intuitive LED indicators. Features like easy water refill, front-access controls, a heated glass door with LED lighting, and a removable condenser grill ensure convenience, efficient operation, and reliable performance—ideal for long-term, high-humidity testing in compact lab spaces.

Optimized Model Configuration

The Environmental Chamber is available in three series—KE, ME, and PE—tailored to various temperature and humidity control ranges. The TH3-KE model operates from -35 to 150°C, the TH3-ME from -20 to 150°C, and the TH3-PE from 0 to 120°C. This standard temperature and humidity chamber allows you to select the optimal model based on your testing conditions.

Accessories


For more information and expert guidance, read our article, Environmental Chambers Explained: Temperature, Humidity & Stability Testing on the Insights page at Apex Scientific. You’ll also find a variety of detailed articles to help you better understand our products and their applications in laboratory settings.

ModelTH3-PE-025TH3-PE-065TH3-PE-100
Interior dimensions
Chamber volume (L / cu ft)25 / 0.965 / 2.3100 / 3.5
Width (mm / inch)350 / 13.8400 / 15.7500 / 19.7
Depth (mm / inch)220 / 8.7330 / 13.0380 / 15.0
Height (mm / inch)350 / 13.8495 / 19.5530 / 20.9
Quantity of shelves (standard / max.)2 / 72 / 10
Distance between shelves (mm / inch)20 / 0.8
Max. load per shelf (kg / lbs)25 / 55.1
Permitted total load (kg / lbs)65 / 143.3
Cable port (Ø, mm / inch)50 / 2.0
Water tank capacity (L / cu ft)8 / 0.312 / 0.4
Weight (kg / lbs)80 / 176.4110 / 242.5130 / 286.6
Temperature data
Range without humidity (°C / °F)0 to 100 / 32 to 212
Fluctuation (±°C / °F) 1)0.3 / 0.54
Variation (±°C / °F) 1)0.5 / 0.9
Heating time (0°C to 90°C) (min)40
Cooling time (90°C to 0°C) (min)35
Humidity data (※ Ref.: Temp./ Humid. control range graph)
Range (%RH)30 to 95
Fluctuation (±%RH) 1)1
Variation (±%RH) 1)3
Electrical data & Ordering information
Electrical requirements (AC230V, 1ph, 50/60Hz)7.2A9.4A10.5A
Cat. No.AAH822132KAAH822232KAAH822332K

※ The above specifications are tested according to DIN 12880 and IEC 60068 standards.
※ Permissible environmental conditions are 18 – 30°C (recommended 20°C), 85% RH or less, under 2000m above sea level.
※ The DI water condition is pH 6.2 – 7.2 and the electrical conductivity is less than 20㎲/cm.
1) The set value is set under the conditions of 25°C, 60% RH.
2) Heating time condition value: TH3-KE (-40°C to 100°C), TH3-ME (-20°C to 100°C), TH3-PE (0°C to 100°C
3) Cooling time condition value: TH3-KE (20°C to -40°C), TH3-ME (20°C to -20°C), TH3-PE (20°C to 0°C)
※ Continuous operation below 10℃ without humidity control is available only for a limited duration.
(The allowable continuous operating time may vary depending on the operating environment.)


ModelTH3-PE-025TH3-PE-065TH3-PE-100
550 / 21.7 W (mm/inch)600 / 23.6 W (mm/inch)700 / 27.6 W (mm/inch)
880 / 34.6 D (mm/inch)1050 / 41.3 D (mm/inch)1110 / 43.7 D (mm/inch)
915 / 36.0 H (mm/inch)1060 / 41.7 H (mm/inch)1100 / 43.3 H (mm/inch)
211 / 8.3 A (mm/inch)276 / 10.9 A (mm/inch)
495 / 19.5 B (mm/inch)580 / 22.8 B (mm/inch)
170 / 6.7 E (mm/inch)
229 / 9.0 F (mm/inch)
SKUDescription
AAH822132KTH3-PE-025 Constant Temp. and Humidity Chamber (25L)
AAH822232KTH3-PE-065 Constant Temp. and Humidity Chamber (65L)
AAH822332KTH3-PE-100 Constant Temp. and Humidity Chamber (100L)



Accessories

SKUDescription
AAA8T610Cable Port (Ø 50mm) for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA8T611Cable Port (Ø 80mm) for TH3-KE-065 and TH3-KE-100
00RTD0000679Wire Shelf for TH3-KE-025
00RTD0000680Wire Shelf for TH3-KE-065
00RTD0000681Wire Shelf for TH3-KE-100
AAA80602-6Perforated Shelf for TH3-KE-025
AAA80602-7Perforated Shelf for TH3-KE-065
AAA80602-8Perforated Shelf for TH3-KE-100
AAA80550Signal Lamp for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA8T504Recorder (Paper) for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA8T506Recorder (Digital) for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA8T625Water Purifier for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA80620Direct Water System for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA80631Stand (1 Stage) for TH3-KE-025
AAA80632Stand (1 Stage) for TH3-KE-065
AAA80633Stand (1 Stage) for TH3-KE-100
AAA80634Stand (2 Stage) for TH3-KE-025
AAA80635Stand (2 Stage) for TH3-KE-065
