Temperature & Humidity Chamber, 0 – 90°C

The Temperature & Humidity Chamber (0 – 90°C) from Jeiotech offers excellent thermal insulation and sealing, ensuring stable temperature and humidity reproducibility for repeated tests. This advanced laboratory equipment from Apex Scientific features a double-sealed door structure that enhances airtightness. By circulating air at optimal speeds, it maintains consistent conditions within the chamber.

Additionally, its energy-saving system efficiently conducts temperature and humidity tests while minimizing power consumption. Explore our range and learn more about how this chamber can enhance your research capabilities in South Africa. For further information, visit our Insights page.

Developed by Jeiotech, the Temperature & Humidity Chamber (0–90 °C) delivers dependable environmental control for scientific applications. Available from Apex Scientific in South Africa, this chamber offers precise temperature and humidity regulation. It is ideal for laboratories that require consistent testing conditions.

Climatic chamber

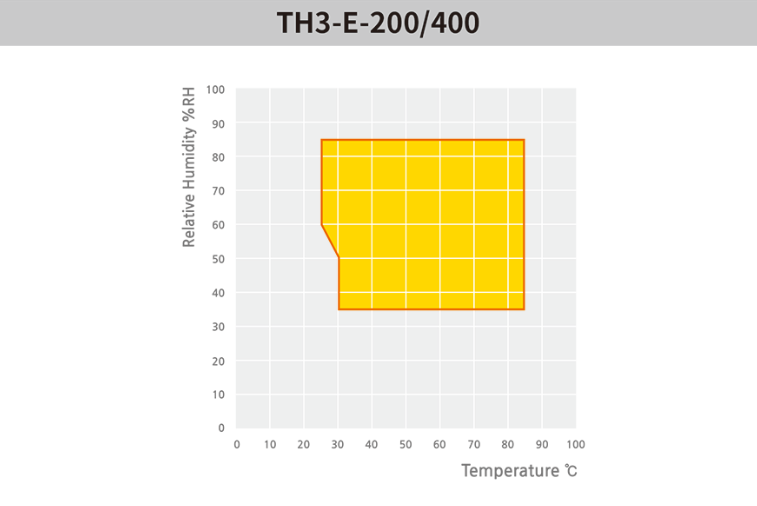

Stable Zone: The yellow shaded area indicates the chamber’s optimal control range, where both temperature and humidity can be precisely regulated

Low Temperature Limitations: Below 30 °C, humidity control is reduced, especially under 60% RH, due to physical system constraints

This control profile makes the TH3-E-200/400 well-suited for applications such as stability testing, accelerated aging, and material performance evaluation under simulated environmental conditions.

Convenient Features

This chamber includes an efficient water supply and recirculation system that reduces the need for frequent refills—even during long high-humidity tests. For added convenience, you can also install an optional direct water supply system.

The tempered glass door allows easy sample observation and includes built-in heating wires and an LED lamp for improved visibility. Furthermore, the door opens and closes effortlessly, and the removable refrigerator condenser grill makes maintenance quick and simple. These features help keep the refrigeration system running efficiently.



Multifunction Control System

You can control up to 32 devices simultaneously by connecting them to a PC via the RS-485 port. The system includes temperature and humidity auto-tuning, and calibration features for reliable operation. A PID zone divided into nine segments ensures stable and precise control.

Moreover, with the optional LC GreenBox, you can use the LC Connected mobile monitoring system to track operations remotely—anytime, anywhere.

Digital temperature and humidity control

The environmental chamber features a digital control interface for setting and monitoring temperature and relative humidity. Users can adjust operating setpoints and manage chamber operation through an intuitive control system.

Temperature and humidity auto-tuning, together with nine PID control zones, support stable and accurate environmental conditions. The multifunction controller also supports programmable operation, data storage, and communication with external monitoring systems.

Outstanding Safety Features

Safety comes first. The chamber includes an advanced electronic over-temperature shutdown system with an A-OT limiter. It also uses a dedicated precision temperature sensor and controller for accurate automatic shutdown in case of overheating.

A general-type backup over-temperature limiter (B-OT) adds a second layer of protection. In addition, the system keeps surface temperatures below 60°C. It includes alarms for low or empty water levels, warnings for open doors, and overcurrent protection.

Colour Touch Controller - 5.6 inches
Tempered Glass Window
Tempered Glass Window

Smart Control, Clear View

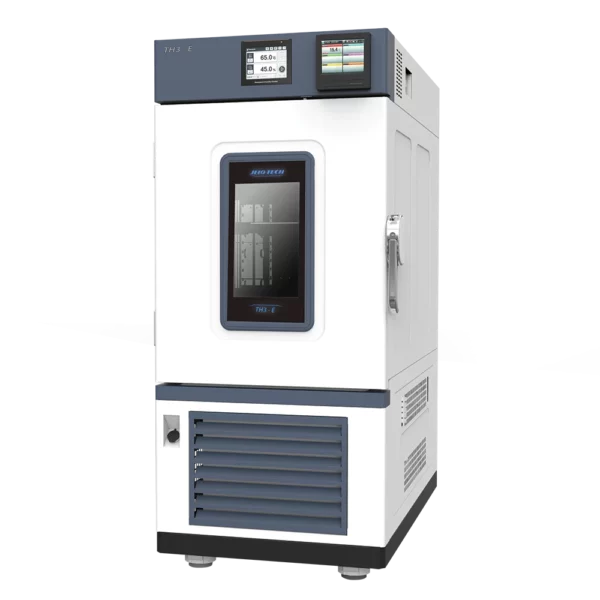

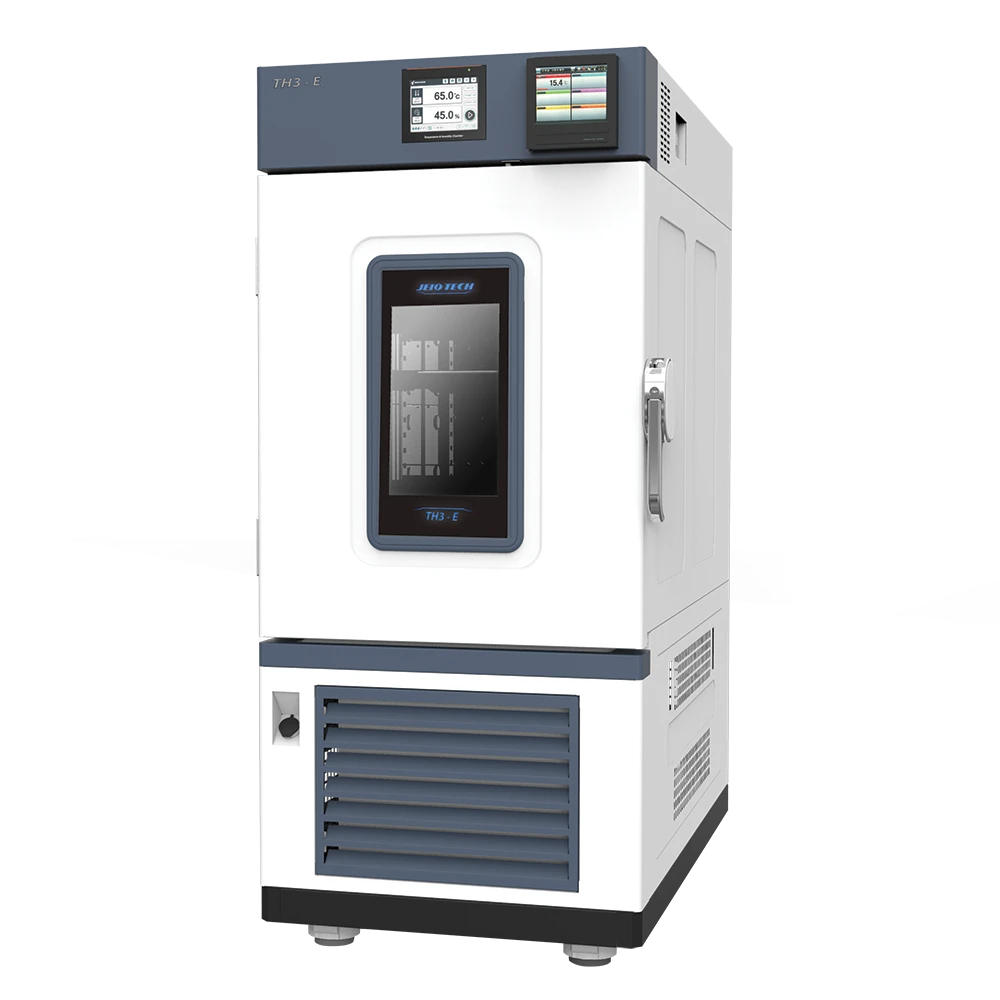

The TH3-E series humidity chamber features a double-sealed tempered glass door for improved airtightness and clear sample visibility. A 5.6-inch color touchscreen controller enables intuitive operation, while real-time graph displays allow users to easily monitor chamber performance and environmental conditions at a glance—enhancing both convenience and precision in daily use.


Each heater features its own fuse, while the system automatically shuts down during compressor overloads or abnormal refrigerant pressure. These safety features ensure reliable, long-term performance in your lab.

Accessories


For more information and guidance, read our article, Environmental Chambers Explained: Temperature, Humidity & Stability Testing on the Insights page at Apex Scientific. You’ll also find a range of detailed articles to help you better understand our products and their laboratory applications.

ModelTH3-E-200TH3-E-400
Interior dimensions
Chamber volume (L / cu ft)201 / 7.1398 / 14.1
Width (mm / inch)500 / 19.7600 / 23.6
Depth (mm / inch)670 / 26.4830 / 32.7
Height (mm / inch)600 / 23.6800 / 31.5
Quantity of shelves (standard/max.)2 / 92 / 10
Distance of between shelves (mm / inch)40 / 1.6
Max. load per shelf (kg / lbs)20 / 44.125 / 55.1
Permitted total load (kg / lbs)50 / 110.260 / 132.3
Cable port (Ø, mm / inch)50 / 2.065 / 2.6
Water tank capacity (L / cu ft)20 / 0.7
Weight (kg / lbs)200 / 440.9270 / 595.2
Temperature data
Range without humidity (℃ / ℉)0 to 90 / 32 to 194
Fluctuation (±℃ / ℉) 1)0.5 / 0.9
Variation (±℃ / ℉) 1)0.8 / 1.44
Heating time (0℃ to 90℃) (min)80
Cooling time (90℃ to 0℃) (min)90
Humidity data (※ Ref.: Temp./ Humid. control range graph)
Range (%RH)35 to 85
Fluctuation (±%RH) 1)1
Variation (±%RH) 1)3
Electrical data & Ordering information
Electrical requirements (AC230V, 1ph, 60Hz)15A16A
Cat. No.AAH841102KAAH841112K
Electrical requirements (AC230V, 1ph, 50Hz)15A16A
Cat. No.AAH841102KAAH841112K

※ The above specifications are tested according to DIN 12880 and IEC 60068 standards.
※ Permissible environmental conditions are 18 – 30°C (recommended 20°C), 85% RH or less, under 2000m above sea level.
※ The DI water condition is pH 6.2 – 7.2 and the electrical conductivity is less than 20㎲/cm.
1) The set value is set under the conditions of 40°C, 75% RH.
※ Continuous operation below 10℃ without humidity control is available only for a limited duration.
(The allowable continuous operating time may vary depending on the operating environment.)


ModelTH3-E-200TH3-E-400
655 / 25.8 W (mm / inch)755 / 29.7 W (mm / inch)
1495 / 58.9 D (mm / inch)1695 / 66.7 D (mm / inch)
1162 / 45.7 H (mm / inch)1322 / 52.0 H (mm / inch)
375 / 14.8 A (mm / inch)455 / 17.9 A (mm / inch)
985 / 38.8 B (mm / inch)1135 / 44.7 B (mm / inch)
SKUDescription
AAH841102KTH3-E-200 Temperature & Humidity Chamber (Basic, 200L)
AAH841112KTH3-E-400 Temperature & Humidity Chamber (Basic, 400L)



Accessories

SKUDescription
AAA8T610Cable Port (Ø 50mm) for TH3-E-200 and TH3-E-400
AAA8T611Cable Port (Ø 80mm) for TH3-E-200 and TH3-E-400
EDA8212Wire Shelf for TH3-E-200
EDA8214Wire Shelf for TH3-E-400
AAA80602-1Perforated Shelf for TH3-E-200
AAA80602-3Perforated Shelf for TH3-E-400
AAA80550Signal Lamp for TH3-E-200 and TH3-E-400
AAA8T500Recorder (Paper) for TH3-E-200 and TH3-E-400
AAA8T505Recorder (Digital) for TH3-E-200 and TH3-E-400
AAA8T625Water Purifier for TH3-E-200 and TH3-E-400
AAA80620Direct Water System for TH3-E-200 and TH3-E-400
AAA81552Inner Glass Door for TH3-E-200
AAA81551Inner Glass Door for TH3-E-400

Insights Article: Environmental Chambers Explained: Temperature, Humidity & Stability Testing

Product Enquiry Handbook: Environmental Chambers

Operating Manual – TH3-E Series
