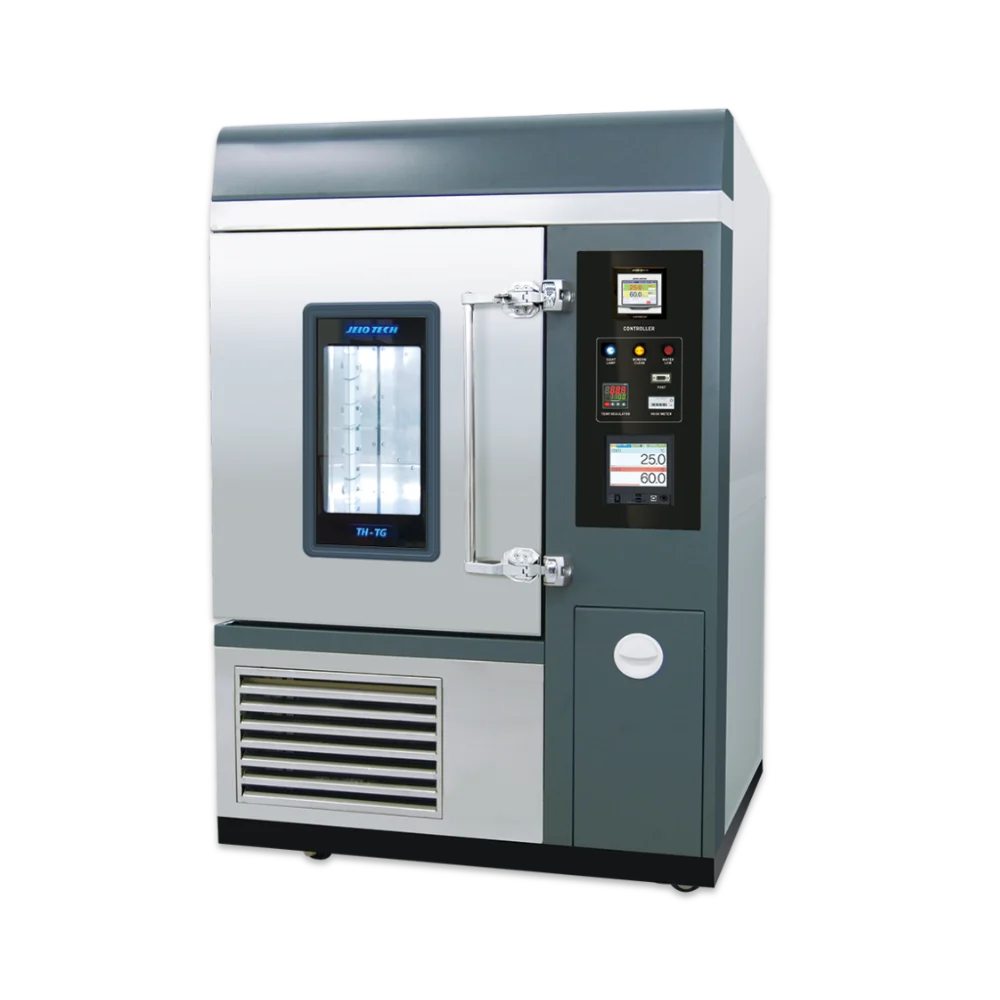

Environmental Chamber – Ultra Low Temperature

The Environmental Chamber – Ultra Low Temperature from Jeiotech is designed for reliable temperature control in demanding laboratory environments. Ideal for chemical testing, microbial research, and plant or animal growth studies, this chamber supports a wide range of applications requiring precise environmental conditions.

Available from Apex Scientific in South Africa, the unit offers a broad temperature range that reaches as low as -70 °C. Built-in safety features ensure dependable performance and user confidence throughout critical experiments. Explore our range of environmental chambers and visit our insights page to discover expert articles and resources that can support your research and selection process.

The Ultra Low Temperature – Environmental Chamber by Jeiotech is a reliable tool for precise environmental testing across a range of scientific applications. Offered by Apex Scientific in South Africa, this chamber delivers a broad temperature range from -70 °C to 150 °C and maintains humidity between 25% and 95% RH. As a result, it supports critical experiments with consistent performance.

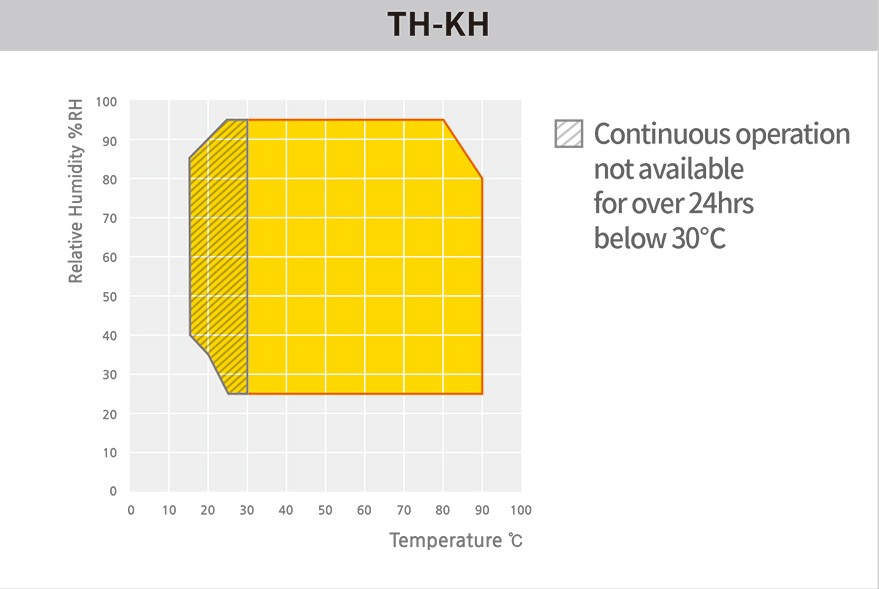

Temperature and humidity control range

The TH-KH-180/300/408 Environmental Chambers provide precise temperature and humidity control for laboratory testing and environmental simulation.

The shaded area indicates conditions where humidity control may become unstable after 24 hours of continuous operation, helping users identify suitable settings for reliable and consistent testing.




Performance

This unit features PID microprocessor control, enabling accurate temperature calibration and automatic tuning. Moreover, its built-in humidification tank is optimally placed to support stable conditions during extended tests. A water recycling and filtering system helps reduce overall water use, promoting efficiency over time.

The air-tight door closure includes heat-resistant silicone packing to prevent thermal leakage. Additionally, a two-point latch reinforces the seal for improved energy efficiency. Even when operating at maximum temperature, the outer surface stays safely below 60 °C.


Safety Features

Safety has been prioritized throughout the design. For instance, a key-lockable door prevents unauthorized access. The system also shuts down automatically if temperatures exceed limits and includes alerts for low or empty water levels. Furthermore, overcurrent protection, leakage breakers, and an open-door alarm ensure safer operation.


Convenience and Usability

Available in three size options, this chamber accommodates diverse laboratory workflows. It includes a corrosion-resistant stainless steel interior and an electric-polished humidification tank for long-term durability. In addition, the front water tank and portable refill container simplify regular maintenance. If needed, an optional direct water system supports continuous operation.

Color LCD Controller
Computer Interface
Door Handle
Portable Water Container

Monitoring your samples is straightforward thanks to a tempered glass door with built-in heating wire and LED lighting. An internal glass door is also included to enhance visibility. The standard 50 mm cable port supports external sensors, and larger ports are available upon request.

For easier mobility, the unit comes with casters for transport and setup. The integrated 5.7-inch LCD touchscreen controller displays current and target values in real-time. You can also visualize data through graphs, log results using the SD card slot, and operate in your preferred language with trilingual support (English, Chinese, Korean).

Accessories


To explore more options and helpful resources, read our article, Environmental Chambers Explained: Temperature, Humidity & Stability Testing on the insights page at Apex Scientific. You’ll also find expert guidance on a wide range of products and their laboratory applications.

ModelTH-KH-180TH-KH-300TH-KH-408
Chamber volume (L / cu ft)189 / 7.4302 / 11.9408 / 14.4
ControllerProgrammable, Touch screen type controller (5.7” color monitor)
Temperature data
Range (℃ / ℉)-70 to 100 / -94 to 212 without humidity, 15 to 90 / 59 to 194 with humidity. Best programmable control range: -60 to 140 / -76 to 284
Fluctuation 1) (±℃ / ℉) at 40℃ / 75%RH0.3 / 0.54
Variation 1) (±℃ / ℉) at 40℃ / 75%RH0.5 / 0.90
Heating – without humidity (min.)70 from -70℃ to 100℃ (-96℉ to 212℉)
Cooling – without humidity (min.)80 from 20℃ to -70℃ (68℉ to -96℉)
Humidity data
Range (%RH)25 to 95 ※ See Feature page for more detailed humidity range check.
Fluctuation 1) (±%RH) at 75%RH / 40℃0.4
Variation 1) (±%RH) at 75%RH / 40℃3
Refrigeration data
Refrigeration systemMechanical dual stage refrigerator system (air-cooled condenser)
RefrigerantR-507, R-23
Water supply capacity15L (0.53cu ft) – Cartridge type
Water qualitypH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below
Interior dimensions and loading capacity
No. of wire shelves (standard / max.)2 / 92 / 10
Distance of between shelves (mm / inch)60 / 2.4
Max. load per shelf (kg / lbs)20 / 44.125 / 55.1
Permitted total load (kg / lbs)50 / 110.265 / 143.3
Interior dimensions (W×D×H, mm / inch)500×630×600 / 19.7×24.8×23.6600×630×800 / 23.6×24.8×31.5600×850×800 / 23.6×33.5×31.5
Exterior dimensions (W×D×H, mm / inch)1050x1615x1560 / 41.3×63.6×61.41150x1615x1760 / 45.3×63.6×69.31150x1835x1760 / 45.3×72.2×69.3
Viewing windows (mm / inch)200×330 / 7.9×13
Net weight (kg / lbs)320 / 705.5385 / 848.8410 / 903.9
Cable portBasically one hole provided / Ø50mm (2”) – Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)
Interface portBasically RS-232C [RS-485-optional]
Electrical data & Ordering information
Electrical requirements (380V, 3P, 50/60Hz)10.1A10.2A—
Cat. No.AAHC3014KAAHC3114KAAHC3214K

1) The set value is set under the conditions of 25℃, 60%RH.
※ The above specifications are tested according to IEC 60068 standard.
※ Permissible environmental conditions are temperature (18 to 30℃, recommended 20℃) and relative humidity (85%RH or less), under 2000m above sea level.
※ The DI water condition is pH 6.2 – 7.2 and the electrical conductivity is less than 20㎲/cm.
※ Continuous operation below 10℃ without humidity control is available only for a limited duration.
(The allowable continuous operating time may vary depending on the operating environment.)

SKUDescription
AAHC3014KTH-KH-180 Constant Temp. and Humidity Chamber 180LT, 380V, 50/60Hz, 3ph
AAHC3114KTH-KH-300 Constant Temp. and Humidity Chamber 300LT, 380V, 50/60Hz, 3ph
AAHC3214KTH-KH-408 Constant Temp. and Humidity Chamber 408LT, 380V, 50/60Hz, 3ph



Accessories

SKUDescription
AAA8T500Recorder (6 points) – All models
AAA8T505Recorder (digital, 6 channels) – All models
AAA8T540Interface converter RS-485C to RS-232C, including cable (5m / 16.4ft) – All models
AAA8T542Interface cable (5m / 16.4ft) – All models
AAA80550Warning signal lamp – All models
AAA81552Inner glass door for TH-KH-180
AAA81551Inner glass door for TH-KH-300 and TH-KH-408
AAA8T610Cable port (Ø 50mm / 2″) – All models
AAA8T611Cable port (Ø 80mm / 3.2″) – All models
00CFA0001185Temperature sensor (RTD type) – All models
00CFA0007113Humidity sensor – All models
AAA80622Water cartridge tank – All models
AAA8T625Water purifier – All models
AAA80620Direct water system – All models
00EDA0008212Wire shelf for TH-KH-180
00EDA0008213Wire shelf for TH-KH-300
00EDA0008214Wire shelf for TH-KH-408
AAA80602-1Perforated shelf for TH-KH-180
AAA80602-2Perforated shelf for TH-KH-300
AAA80602-3Perforated shelf for TH-KH-408
AAA80602-4Perforated Shelf for TH-G-800
AAA80602-5Perforated Shelf for TH-G-1000
AAA8T610Cable Port (Ø 50mm)
AAA8T611Cable Port (Ø 80mm) for TH-G
AAA8T6111Cable Port (Ø 80mm) for TH-KH
AAA8T625Water Purifier
AAA8T626Water Purifier
AAA80622Water Cartridge Tank
AAA80620Direct Water System
00CFA0007113Humidity Sensor
00CFA0001185Temperature Sensor (RTD Type)
00RTD0000794Humidity Sensor for TH-G
00CFA0001923Temperature Sensor (RTD Type) for TH-G
00EDA0008212Wire Shelf for TH3/TC3-G/TG-180
00EDA0008214Wire Shelf for TH3/TC3-G/TG-408
00RTE0001631Wire Shelf for TH3/TC3-G/TG-800
00RTE0001620Wire Shelf for TH3/TC3-G/TG-1000
00RTE0001663Wire Shelf for TH3/TC3-G/TG-1500
AAA80602-10Perforated Shelf for TH3/TC3-G/TG-180
AAA80602-12Perforated Shelf for TH3/TC3-G/TG-408
AAA80602-13Perforated Shelf for TH3/TC3-G/TG-800
AAA80602-14Perforated Shelf for TH3/TC3-G/TG-1000
AAA80602-15Perforated Shelf for TH3/TC3-G/TG-1500
