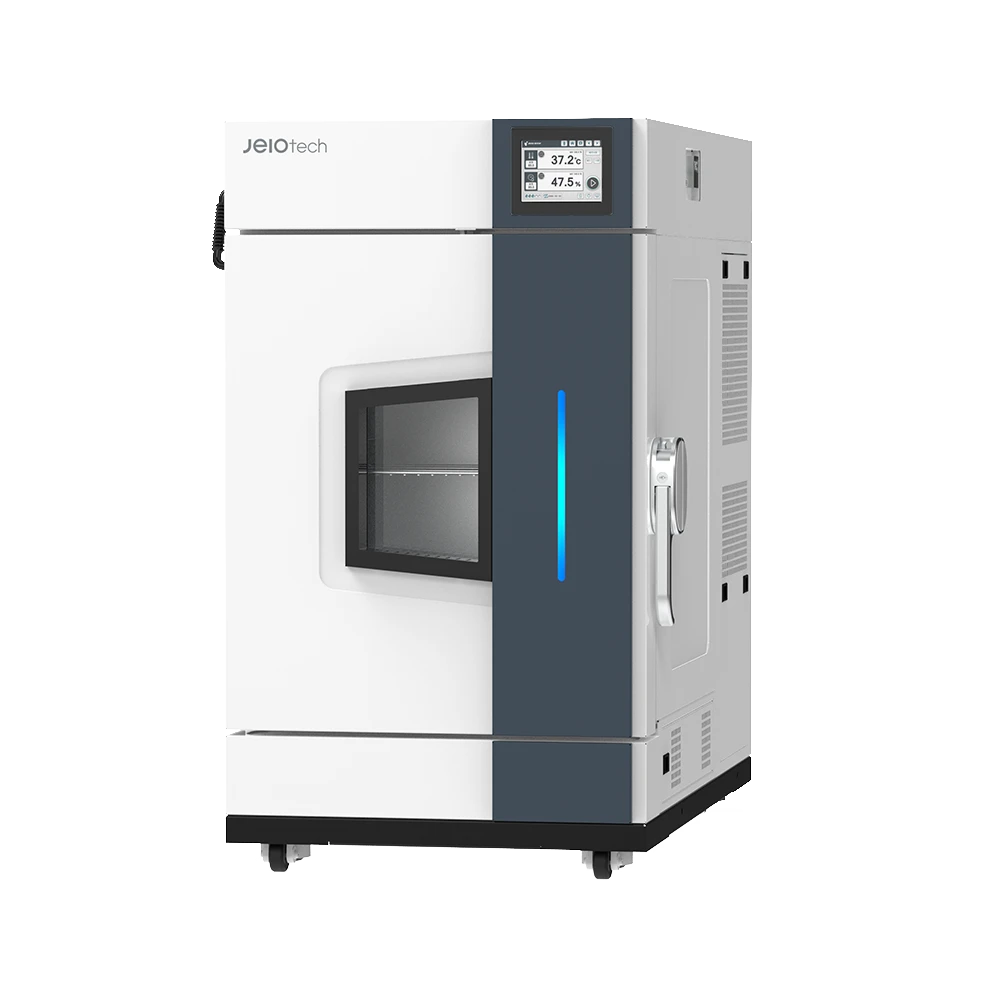

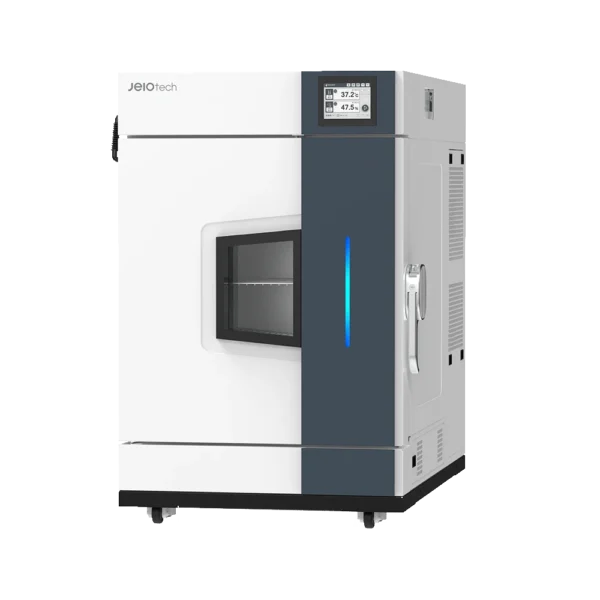

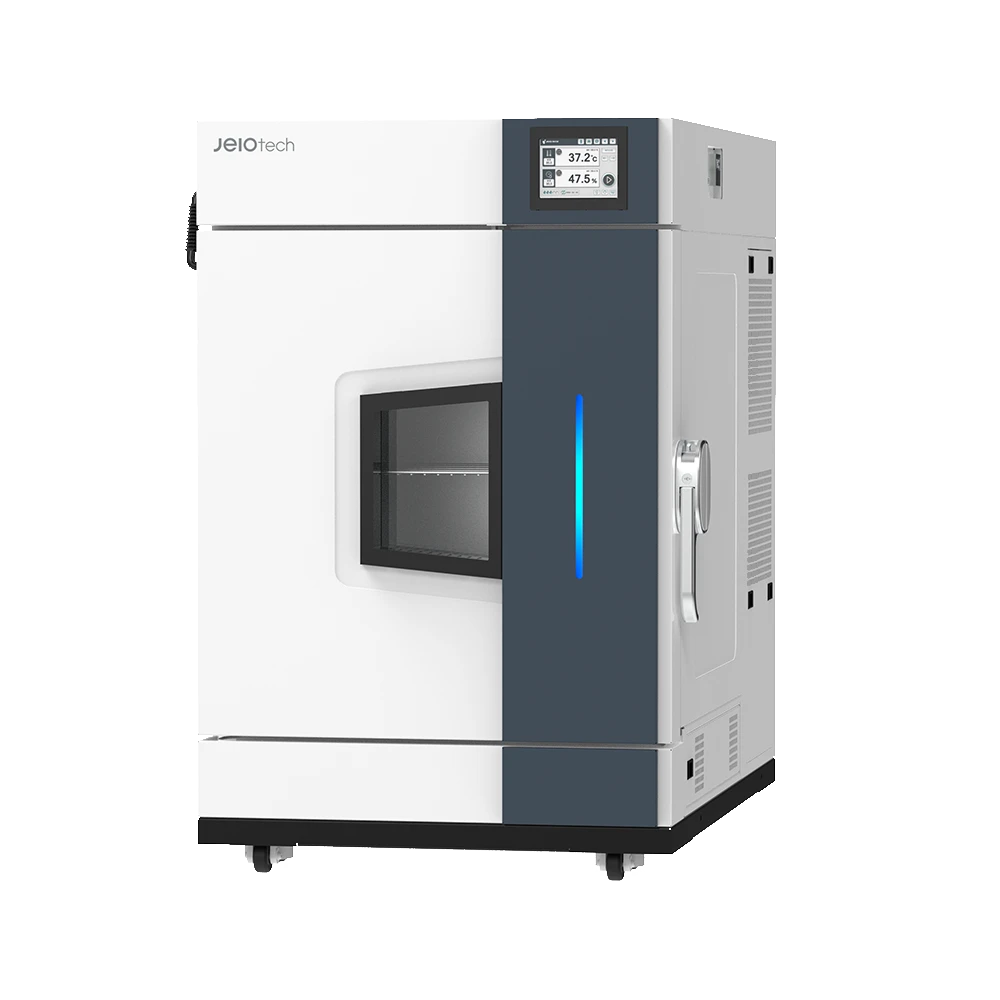

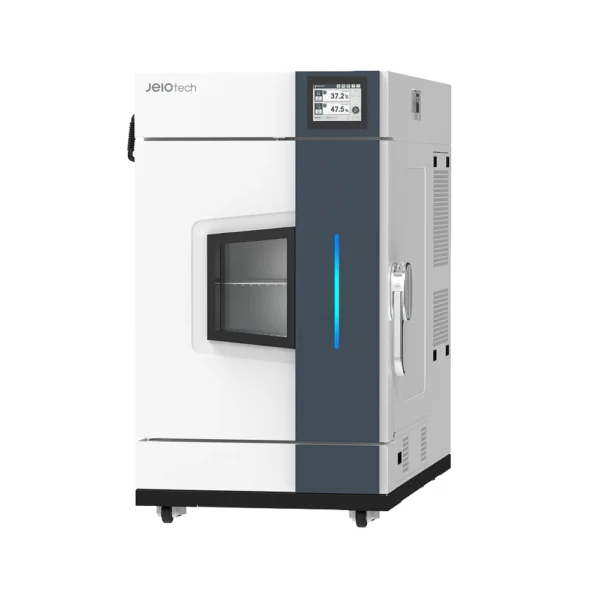

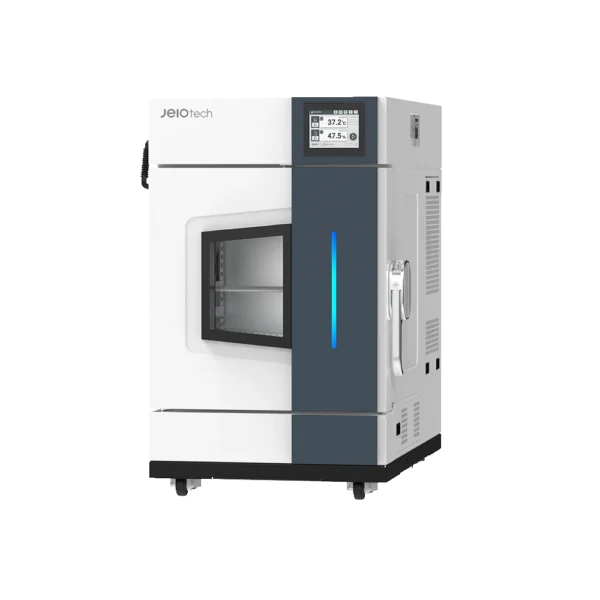

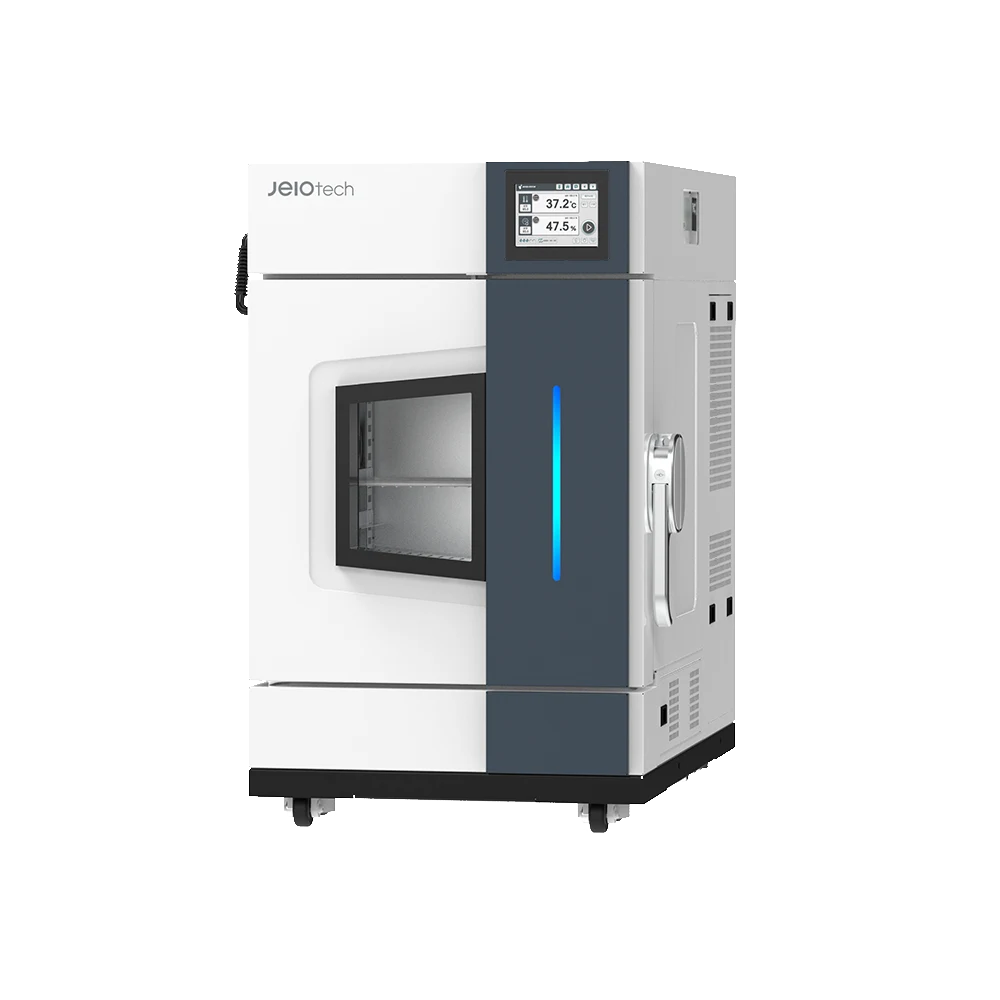

Environmental Chamber – Benchtop, -20 – 150°C

The -20 to 150 °C Benchtop Environmental Chamber from Jeiotech offers dependable, repeatable performance, making it a trusted solution for temperature-controlled testing in laboratories across South Africa. Its compact design saves valuable bench space while offering stable humidity control through a unique external humidification system that simplifies both maintenance and cleaning. Built with advanced thermal insulation and sealing, this chamber ensures consistent temperature and humidity—even during repeated testing cycles. The double-sealed door enhances airtightness, improving overall performance and making it a dependable solution for scientific applications.

Explore our range and discover how Apex Scientific can help you create a more efficient and controlled testing environment.

The -20 to 150 °C Benchtop Environmental Chamber from Jeiotech is built to meet the rigorous standards of laboratories in South Africa. Its reliable performance and user-focused features make it an ideal solution for scientists conducting precise environmental testing.


Temperature and humidity operating range – TH3-ME/KE series

The JeioTech TH3-ME/KE series benchtop environmental chambers provide controlled temperature and humidity conditions for laboratory testing.

The operating range chart illustrates the achievable relative humidity levels across different temperatures, with humidity control available from approximately 20% to 95% RH, depending on the selected temperature. These chambers are suitable for environmental simulation, material testing, and stability studies where precise temperature and humidity control is required.




Convenience Features

A 5.6-inch color touch display controller makes operation intuitive, allowing users to track chamber status through graphical data. The water level check alerts you when it’s time to refill, while the easy-cap water inlet simplifies regular maintenance. A built-in water supply and recirculation system reduces the need for frequent refilling, even during extended high-humidity testing.

Front-facing controls make status monitoring effortless. The chamber’s tempered glass door includes a heating wire and LED lamp for clear sample viewing. Bright LED indicators show the operating status, even from a distance. A cable port and silicone plug provide simple connectivity to external devices, while the removable condenser grill makes cleaning fast and hassle-free.


Multifunction Control System

The system allows you to save, document, and back up test programs with ease. Using the RS-232 port or optional RS-485, you can link up to 32 chambers to a PC for full system control and data logging. Auto-tuning and calibration features ensure consistent temperature and humidity stability. The PID control system uses nine zones for refined precision and control.

Digital temperature and humidity control

The environmental chamber features a digital control interface for setting and monitoring temperature and relative humidity. Users can adjust operating setpoints and manage chamber operation through an intuitive control system.

Temperature and humidity auto-tuning, together with nine PID control zones, support stable and accurate environmental conditions. The multifunction controller also supports programmable operation, data storage, and communication with external monitoring systems.

Optimized Model Configuration

The Environmental Chamber is available in three model types, each designed for different test ranges:

  • TH3-KE: -35 to 150 °C
  • TH3-ME: -20 to 150 °C
  • TH3-PE: 0 to 120 °C

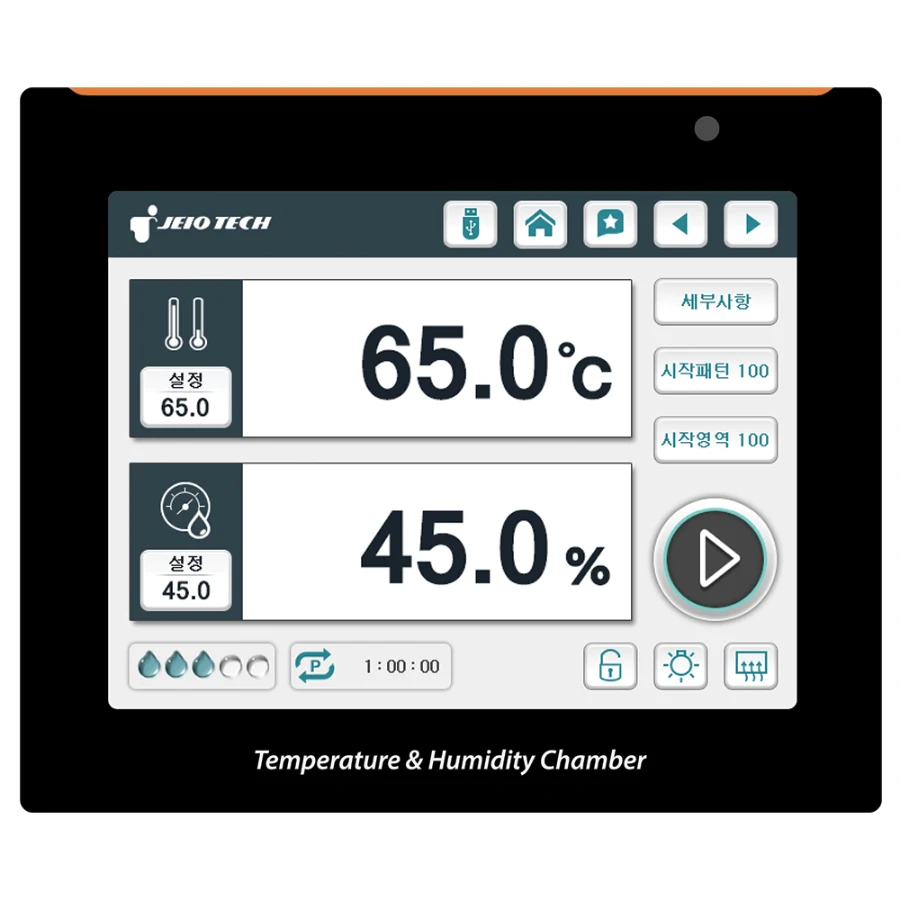

Color touch display controller (5.6 inches)

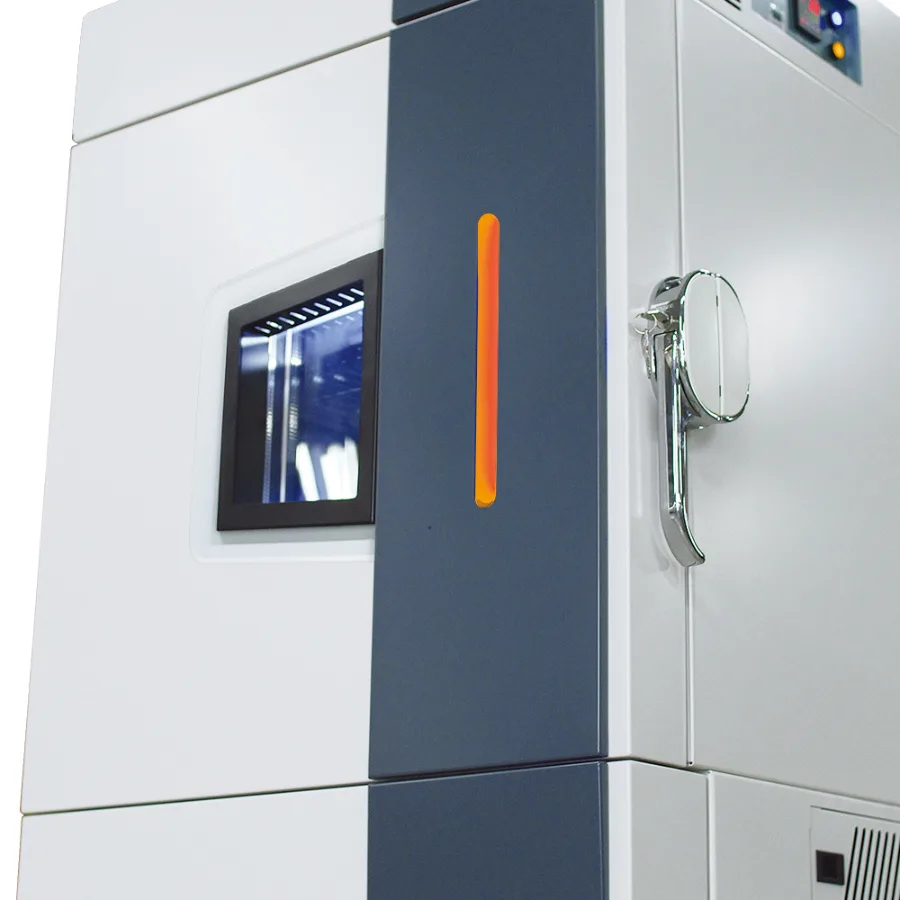

Indicator LED Of Product Condition

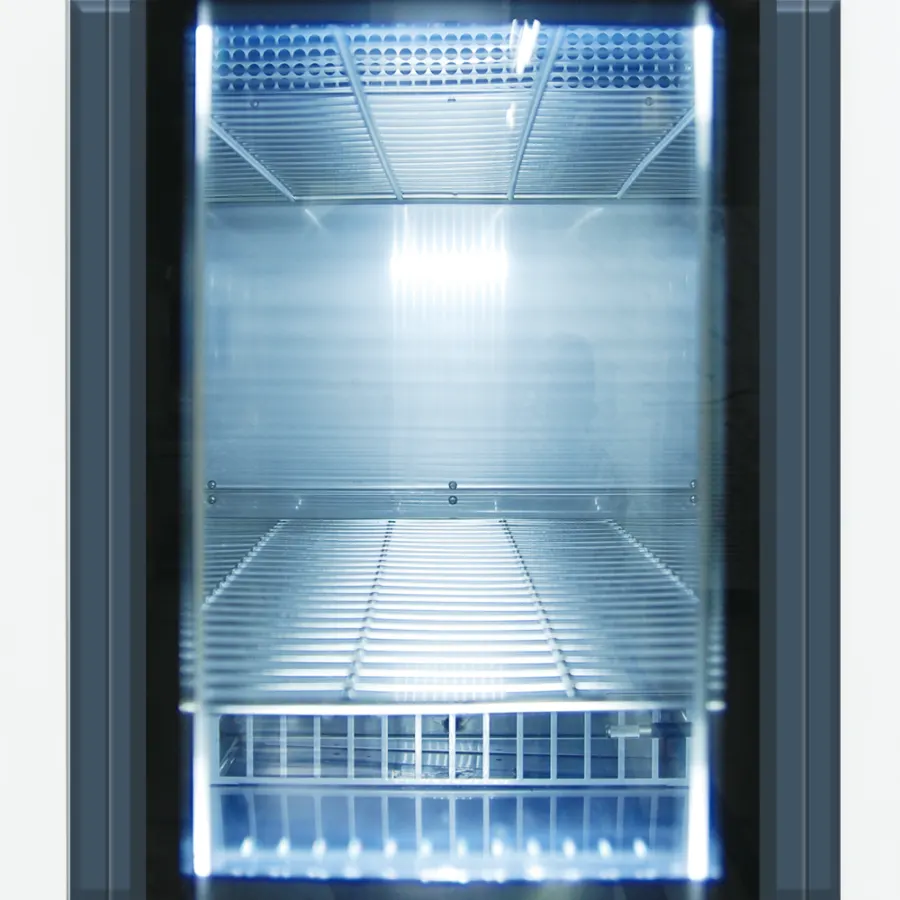

Tempered glass window with wire heater and LED Lamp
Power Switch

Choose the model that best suits your specific application. Optional accessories include a mobile stand for easier placement and a recorder for maintaining test records.

Simplifying Humidity Testing with the Jeiotech TH3 Series

The Jeiotech TH3 Series benchtop humidity chamber offers user-friendly control with a 5.6-inch touchscreen, real-time graph monitoring, and intuitive LED indicators. Features like easy water refill, front-access controls, a heated glass door with LED lighting, and a removable condenser grill ensure convenience, efficient operation, and reliable performance—ideal for long-term, high-humidity testing in compact lab spaces.

Outstanding Safety

This chamber prioritizes safety with an electronic over-temperature shutdown and an advanced limiter to prevent overheating. An independent precision temperature sensor provides accurate system shutdown when needed. For added protection, a mechanical backup limiter maintains surface temperatures below 60 °C, even during electrical faults. Additional alarms notify you of low or empty water levels, door openings, and overcurrent conditions. Each heater includes a dedicated fuse, and the system automatically halts operation if the compressor draws excessive current.

Accessories


To explore more, read our article, Environmental Chambers Explained: Temperature, Humidity & Stability Testing on the insights page at Apex Scientific. You’ll also find detailed articles covering a wide range of products and laboratory applications.

ModelTH3-KE-025TH3-KE-065TH3-KE-100
Interior dimensions
Chamber volume (L / cu ft)25 / 0.965 / 2.3100 / 3.5
Width (mm / inch)350 / 13.8400 / 15.7500 / 19.7
Depth (mm / inch)220 / 8.7330 / 13.0380 / 15.0
Height (mm / inch)350 / 13.8495 / 19.5530 / 20.9
Quantity of shelves (standard / max.)2 / 72 / 10
Distance between shelves (mm / inch)20 / 0.8
Max. load per shelf (kg / lbs)25 / 55.1
Permitted total load (kg / lbs)65 / 143.3
Cable port (Ø, mm / inch)50 / 2.0
Water tank capacity (L / cu ft)8 / 0.312 / 0.4
Weight (kg / lbs)110 / 242.5140 / 308.6150 / 330.7
Temperature data
Range without humidity (°C / °F) at 50Hz-35 to 100 / -31 to 212 (50Hz)
Range without humidity (°C / °F) at 60Hz-40 to 100 / -40 to 212 (60Hz)
Fluctuation (±°C / °F) 1)0.3 / 0.54
Variation (±°C / °F) 1)0.5 / 0.9
Heating time (0°C to 90°C) (min)60
Cooling time (90°C to 0°C) (min)70
Humidity data (※ Ref.: Temp./ Humid. control range graph)
Range (%RH)20 to 95
Fluctuation (±%RH) 1)1
Variation (±%RH) 1)3
Electrical data & Ordering information
Electrical requirements (AC230V, 1P, 50Hz, A)12.013.915.8
Cat. No.AAH824132KAAH824232KAAH824332K
Electrical requirements (AC230V, 1P, 60Hz, A)12.013.915.8
Cat. No.AAH824131KAAH824231KAAH824331K

※ The above specifications are tested according to DIN 12880 and IEC 60068 standards.
※ Permissible environmental conditions are 18 – 30°C (recommended 20°C), 85% RH or less, under 2000m above sea level.
※ The DI water condition is pH 6.2 – 7.2 and the electrical conductivity is less than 20㎲/cm.
1) The set value is set under the conditions of 25°C, 60% RH.
2) Heating time condition value: TH3-KE (-40°C to 100°C), TH3-ME (-20°C to 100°C), TH3-PE (0°C to 100°C
3) Cooling time condition value: TH3-KE (20°C to -40°C), TH3-ME (20°C to -20°C), TH3-PE (20°C to 0°C)
※ Continuous operation below 10℃ without humidity control is available only for a limited duration.
(The allowable continuous operating time may vary depending on the operating environment.)


ModelTH3-KE-025TH3-KE-065TH3-KE-100
550 / 21.7 W (mm/inch)600 / 23.6 W (mm/inch)700 / 27.6 W (mm/inch)
880 / 34.6 D (mm/inch)1050 / 41.3 D (mm/inch)1110 / 43.7 D (mm/inch)
915 / 36.0 H (mm/inch)1060 / 41.7 H (mm/inch)1100 / 43.3 H (mm/inch)
211 / 8.3 A (mm/inch)276 / 10.9 A (mm/inch)
495 / 19.5 B (mm/inch)580 / 22.8 B (mm/inch)
170 / 6.7 E (mm/inch)
229 / 9.1 F (mm/inch)229 / 9.0 F (mm/inch)
SKUDescription
AAH824132KTH3-KE-025 Constant Temp. and Humidity Chamber (25L)
AAH824232KTH3-KE-065 Constant Temp. and Humidity Chamber (65L)
AAH824332KTH3-KE-100 Constant Temp. and Humidity Chamber (100L)



SKUDescription
AAA8T610Cable Port (Ø 50mm) for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA8T611Cable Port (Ø 80mm) for TH3-KE-065 and TH3-KE-100
00RTD0000679Wire Shelf for TH3-KE-025
00RTD0000680Wire Shelf for TH3-KE-065
00RTD0000681Wire Shelf for TH3-KE-100
AAA80602-6Perforated Shelf for TH3-KE-025
AAA80602-7Perforated Shelf for TH3-KE-065
AAA80602-8Perforated Shelf for TH3-KE-100
AAA80550Signal Lamp for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA8T504Recorder (Paper) for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA8T506Recorder (Digital) for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA8T625Water Purifier for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA80620Direct Water System for TH3-KE-025, TH3-KE-065 and TH3-KE-100
AAA80631Stand (1 Stage) for TH3-KE-025
AAA80632Stand (1 Stage) for TH3-KE-065
AAA80633Stand (1 Stage) for TH3-KE-100
AAA80634Stand (2 Stage) for TH3-KE-025
AAA80635Stand (2 Stage) for TH3-KE-065
