Environmental Chamber – Dual Series

Environmental Chamber – Dual Series by Jeiotech offers precise temperature and humidity control in dual independent chambers. Ideal for diverse laboratory testing, this chamber ensures long-term stability and energy efficiency with minimal refrigeration. Built for repeat use, it features superior thermal insulation and a double-sealed door for airtight operation. Designed to meet ICH Guideline Q1A (R2), it’s a reliable choice for stability testing.

Available through Apex Scientific in South Africa, this laboratory equipment supports consistent results. Learn more or explore our range by visiting our Insights page and reading our article, Find the Perfect Environmental Chambers for Your Laboratory in South Africa: A Buyer’s Guide .

The Dual Series Environmental Chambers from Jeiotech, available through Apex Scientific in South Africa, deliver reliable temperature and humidity control through two independently operated chambers. Designed for scientific precision, these chambers support ICH Guideline Q1A (R2) compliance, making them ideal for demanding laboratory stability testing. With three capacity models, researchers gain exceptional flexibility in managing diverse testing conditions.

Environmental Chamber

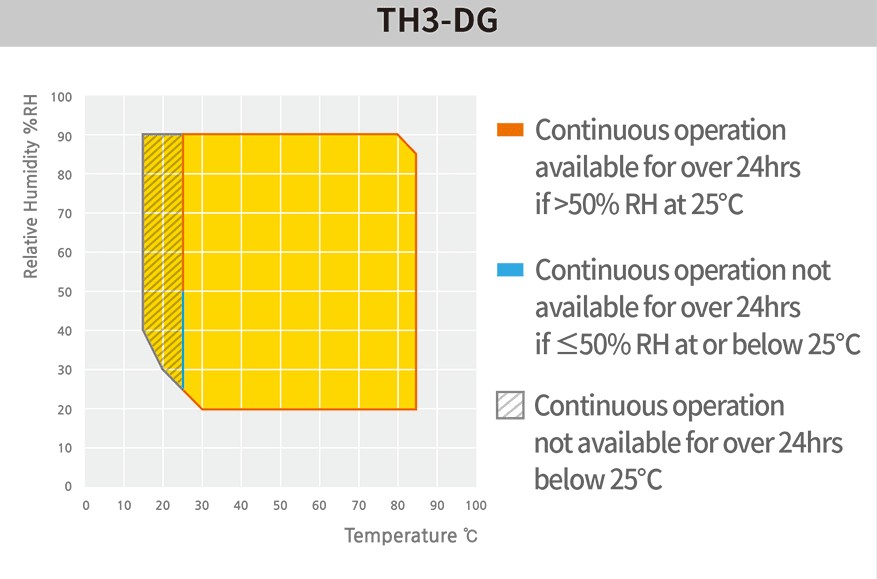

The graphs above illustrate the stable Temperature and Humidity Control Range for the TH-DG Series chambers. The yellow areas represent the optimal operating zones where both temperature and humidity can be maintained. However, continuous operation below 30 °C for more than 24 hours is not recommended, as indicated by the hatched areas.

Efficient Dual-Chamber Design

Each chamber operates independently, allowing users to run different temperature and humidity conditions at the same time. This capability proves especially beneficial when laboratories must follow multiple testing protocols. Additionally, optimized defrosting technology maintains precise control during long-duration tests without interruptions.



Superior Structural Integrity and Energy Efficiency

Jeiotech engineers these environmental chambers for energy efficiency and long-term reliability. The chambers require minimal refrigeration power to maintain optimal conditions. Moreover, high-performance insulation and double-sealed doors enhance airtightness and prevent temperature drift. Each model features a structure tailored to its volume, ensuring consistent and reproducible results.

Secure Door Handle and Locking Mechanism

The JeioTech Environmental Chamber – Dual Series features a robust door handle and locking mechanism designed for secure closure and reliable operation.

The double-sealed door construction helps minimise air leakage and heat loss, supporting stable temperature and humidity conditions during laboratory testing.

User-Friendly Interface and Monitoring

Operators can easily manage chamber settings via the intuitive 5.6-inch color touchscreen controller. This interface displays real-time graphs, water level indicators, and LED status lighting. Furthermore, a tempered glass window with built-in heating and internal LED illumination allows for quick visual checks. Users can also opt for the LC GreenBox, which enables remote control and monitoring via mobile app for added convenience.

Advanced Touchscreen Controller for Precise Monitoring

The JeioTech Environmental Chamber – Dual Series features a user-friendly colour touchscreen controller for precise temperature and humidity monitoring.

The intuitive interface provides real-time readings and allows users to adjust operating parameters. This simplifies chamber operation while supporting accurate and consistent environmental conditions.

Advanced Control and Connectivity

With the optional 21 CFR Part 11-compliant LC DataKeeper, laboratories can ensure GMP audit readiness and secure data tracking. Users can back up data, store programs, and utilize RS-232 (standard) or RS-485 (optional) connections. Moreover, it’s possible to link up to 32 chambers to a single PC for centralized control. Zone-based PID tuning further ensures accurate and responsive thermal regulation.

Accessories

Reliable Safety Features

Jeiotech builds safety into every layer of chamber design. Each unit includes dual over-temperature shutoff systems (A-OT and B-OT), surface temperature regulation below 60 °C, and automatic water level monitoring with real-time alerts. Mechanical protections on the compressor also help extend equipment lifespan and prevent malfunctions. As a result, these chambers offer stable performance even under critical operating conditions.

To learn more about choosing the right chamber for your laboratory, explore our Buyer’s Guide to Environmental Chambers in South Africa or browse our full product range for more cutting-edge solutions from Apex Scientific.

ModelTH3-DG-150TH3-DG-300TH3-DG-400
Interior dimensions
Chamber volume (L / cu ft)150 x 2 / 5.3 x 2288 x 2 / 10.2 x 2384 x 2 / 13.6 x 2
Width (mm / inch) 2)600 / 23.6800 / 31.5
Depth (mm / inch) 2)500 / 19.7600 / 23.6800 / 31.5
Height (mm / inch) 2)500 / 19.7600 / 23.6
Quantity of shelves (standard / max.) 2)2 / 72 / 8
Distance between shelves (mm / inch)60 / 2.4
Max. load per shelf (kg / lbs)25 / 55.1
Permitted total load (kg / lbs) 2)75 / 165.3
Cable port (Ø, mm / inch) 2)50 / 2.0 *2ea
Water tank capacity (L / cu ft)20 / 0.7
Weight (kg / lbs)420 / 926516 / 1137.6560 / 1234.6
Temperature data
Range without humidity (°C / °F)-5 to 100 / 23 to 212
Fluctuation (±°C / °F) 1)0.5 / 0.9
Gradient (°C / °F) 1)< 2.0 / 3.6
Heating time (-5°C to 95°C) (min)130120130
Cooling time (95°C to -5°C) (min)140130140
Humidity data (※ Ref.: Temp./ Humid. control range graph)
Range (%RH)20 to 90
Fluctuation (±%RH) 1)1.5 (2.0 at the point of 24hr)
Variation (±%RH) 1)3
Electrical data & Ordering information
Plug type 3)Industrial type plug (3-pin), 1 pc
Electrical requirements (230V, 1P, 50/60Hz, A)26 (13.0 x 2)33.6 (16.8 x 2)
Cat. No.AAHC6302KAAHC6312KAAHC6322K

※ The above specifications are tested according to IEC 60068 standard.
※ Permissible environmental conditions are 18 – 25°C (recommended 20°C), 85%RH or less, under 2000m above sea level.
※ The DI water condition is pH 6.2 – 7.2 and the electrical conductivity is less than 20µS/cm.
※ Continuous operation below 10°C without humidity control is available only for a limited duration. (The allowable continuous operating time may vary depending on the operating environment.)
1) The set value is set under the conditions of 40°C, 75%RH.
2) Each chamber.
3) Be sure to check the plug type and the electrical capacity of the installation location.

SKUDescription
AAHC6302KTH3-DG-150 Temperature & Humidity Chamber (Dual, 150L, 230V)
AAHC6312KTH3-DG-300 Temperature & Humidity Chamber (Dual, 288L, 230V)
AAHC6322KTH3-DG-400 Temperature & Humidity Chamber (Dual, 384L, 230V)



Accessories

SKUDescription
AAA8T610Cable Port (Ø 50mm) for TH3-DG-150, TH3-DG-300 and TH3-DG-400
AAA8T611Cable Port (Ø 80mm) for TH3-DG-150, TH3-DG-300 and TH3-DG-400
00EDA0008251Wire Shelf for TH3-DG-150
00RTD0001280Wire Shelf for TH3-DG-300
00EDA0008250Wire Shelf for TH3-DG-400
AAAC6501Perforated Shelf for TH3-DG-150
AAAC6502Perforated Shelf for TH3-DG-300
AAAC6503Perforated Shelf for TH3-DG-400
AAA80550Signal Lamp for TH3-DG-150, TH3-DG-300 and TH3-DG-400
AAA8T500Recorder (Paper) for TH3-DG-150, TH3-DG-300 and TH3-DG-400
AAA8T505Recorder (Digital) for TH3-DG-150, TH3-DG-300 and TH3-DG-400
AAA8T625Water Purifier for TH3-DG-150, TH3-DG-300 and TH3-DG-400
AAA80620Direct Water System for TH3-DG-150, TH3-DG-300 and TH3-DG-400
AAAC6511Inner Glass Door for TH3-DG-150
AAAC6512Inner Glass Door for TH3-DG-300
AAAC6513Inner Glass Door for TH3-DG-400

Operating Manual – TH3-DG
