Environmental Chamber

Environmental Chamber by Jeiotech offers a spacious volume with a maximum capacity of 1500L, making it ideal for various laboratory needs at Apex Scientific in South Africa. This chamber features a corrosion-resistant stainless-steel construction and an electric polished humidification tank for enhanced durability.

Maintenance is easy with a front water tank and a portable water container for convenient refilling. Designed for long-term testing, it provides a reliable water supply during operation. Sample observation is facilitated by a tempered glass door with built-in heating wire and energy-efficient LED lighting. Explore our range and learn more about optimizing your research capabilities. For additional information, visit our Insights page.

The Environmental Chamber from Jeiotech offers precise and reliable control of temperature and humidity, tailored for advanced laboratory applications. Available through Apex Scientific in South Africa, this chamber uses microprocessor PID control for accurate calibration and automatic tuning. Because of its durable design and high-precision functionality, it’s an excellent choice for both high- and low-temperature testing. In addition, the specialized humidification tank supports consistent long-term operation.

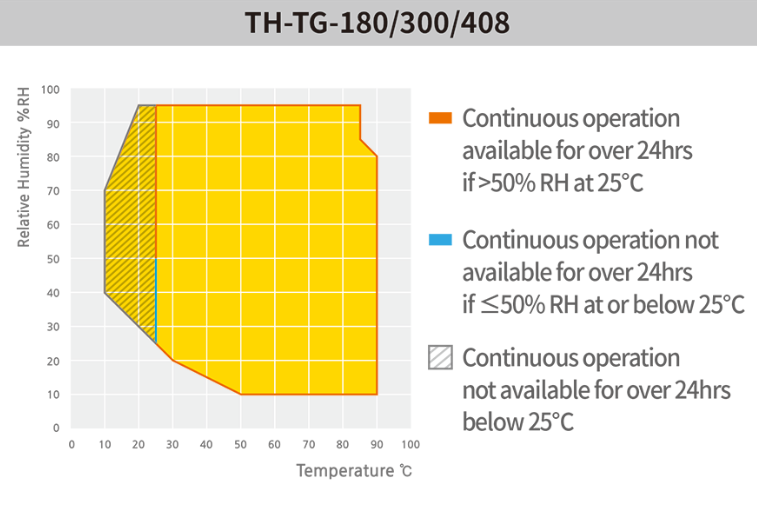

Temperature and humidity operating ranges

The TH3-TG Environmental Chamber series provides controlled temperature and humidity conditions for laboratory testing and environmental simulation.

They also identify operating conditions where continuous operation beyond 24 hours is restricted.

Efficiency and Sustainability

To reduce water usage, the system incorporates a water recycling feature that promotes longer, uninterrupted operation. Moreover, the chamber’s air-tight door features heat-resistant silicone packing that effectively minimizes heat loss. A two-point latch improves sealing performance, while advanced insulation keeps exterior surfaces below 60 °C, even at peak settings. These features not only enhance energy efficiency but also extend the lifespan of the unit.



Safety Features

Several built-in safety systems protect both the equipment and your experiments. For example, a secure locking door, an overheat auto shut-off, and alarms for low or empty water levels are included as standard. Furthermore, the chamber provides protection against power leakage, overcurrent issues, and improper access with its open-door alarm, ensuring a safe working environment at all times.



User-Friendly Design

For added convenience, the chamber includes a standard 50 mm cable port for connecting external sensors. Additional 50 mm or 80 mm ports can be added on request. Casters make it easy to move the unit during installation or repositioning. The colorful 5.7-inch LCD touch controller simplifies setup, displaying both target and current conditions. You can also monitor test progress in graph view, making data interpretation easier and more intuitive.

Level-Checker™ function for monitoring water level
Door handle with a built-in key lock
Heated viewing window and LED interior lighting
Possible to check the operation status with graphs



Advanced Connectivity

To support more demanding lab setups, the chamber includes an RS-232 communication port, with an optional RS-485 upgrade for connecting up to 32 devices simultaneously. Additionally, users can define and control program patterns through included software. Real-time monitoring is effortless, while all test data can be saved in Excel or text format to support record-keeping and analysis.

Accessories


For more information and expert guidance, read our article, Environmental Chambers Explained: Temperature, Humidity & Stability Testing on our insights page. You’ll also find helpful content on various products designed to support your laboratory workflows.



ModelTH3-TG-180TH3-TG-408TH3-TG-800TH3-TG-1000TH3-TG-1500
Interior dimensions
Chamber volume (L / cu ft)180 / 6.4408 / 14.4800 / 28.31000 / 35.31450 / 51.2
Width (mm / inch)500 / 19.7600 / 23.6800 / 31.51000 / 39.4
Depth (mm / inch)630 / 24.8850 / 33.5750 / 29.5950 / 37.41000 / 39.4
Height (mm / inch)600 / 23.6800 / 31.51350 / 53.11450 / 57.1
Quantity of shelves (standard / max.)2 / 82 / 102 / 172 / 19
Distance between shelves (mm / inch)60 / 2.4
Max. load per shelf (kg / lbs)20 / 44.1
Permitted total load (kg / lbs)100 / 220.5
Cable port (Ø, mm / inch)50 / 2.0
Water tank capacity (L / cu ft)13 / 0.515 / 0.5
Weight (kg / lbs)170 / 374.8240 / 529.1360 / 793.7410 / 903.9480 / 1058.2
Temperature data
Range without humidity (℃ / ℉)-5 to 100 / 23.0 to 212.0
Fluctuation (±℃ / ℉)0.5 / 0.9
Gradient (℃ / ℉)< 2.0 / < 3.6
Heat up rate (-5℃ to 95℃) (℃/min / ℉/min) 1)0.5 / 0.9
Cool down rate (95℃ to -5℃) (℃/min / ℉/min) 1)0.5 / 0.9
Humidity data (※ Ref.: Temp./ Humid. control range graph)
Range (%RH)20 to 95
Fluctuation (±%RH)2.51.5
Electrical data & Ordering information
Electrical requirement (230V, 1P, 50/60Hz, A)161924.5–
Cat. No.AAHC20302KAAHC20322KAAHC20332KAAHC20342K–
Electrical requirement (230V, 1P, 50Hz, A)–29
Cat. No.–AAHC20352K
Electrical requirement (230V, 1P, 60Hz, A)–29
Cat. No.–AAHC20351

※ The above specifications comply with DIN 12880 and IEC 60068 standards.
※ Permissible environmental conditions are 18 – 30°C (recommended 20°C), 85%RH or less, under 2000m above sea level.
※ The DI water condition is pH 6.2 – 7.2 and the electrical conductivity is less than 20㎲/cm.
※ Verify the plug type and the electrical capacity at the installation site before installation.
※ For set temperatures at or below 5 °C, continuous operation is limited and defrost cycles may be required.
※ Specifications may be changed without prior notice to improve performance and quality.
1) Temperature performance follows IEC 60068-3-5, and humidity performance follows IEC 60068-3-6.
※ Continuous operation below 10℃ without humidity control is available only for a limited duration.
(The allowable continuous operating time may vary depending on the operating environment.)

SKUDescription
AAHC20302KTH3-TG-180 Constant Temp. & Humidity Chamber 180LT
AAHC20322KTH3-TG-408 Constant Temp. & Humidity Chamber 408LT
AAHC20332KTH3-TG-800 Constant Temp. & Humidity Chamber 800LT
AAHC20342KTH3-TG-1000 Constant Temp. & Humidity Chamber 1000LT
AAHC20352KTH3-TG-1500 Constant Temp. & Humidity Chamber 1500LT (230V, 1P, 50Hz)
AAHC20351TH3-TG-1500 Constant Temp. & Humidity Chamber 1500LT (230V, 1P, 60Hz)



Accessories

SKUDescription
AAA8T610Cable Port (Ø 50mm) for TH3-TG-180, TH3-TG-408, TH3-TG-800, TH3-TG-1000 and TH3-TG-1500
AAA8T611Cable Port (Ø 80mm) for TH3-TG-180, TH3-TG-408, TH3-TG-800 and TH3-TG-1000
RTE1663Cable Port (Ø 80mm) for TH3-TG-1500
00EDA0008212Wire Shelf for TH3-TG-180
00EDA0008214Wire Shelf for TH3-TG-408
00RTE0001631Wire Shelf for TH3-TG-800
00RTD0001620Wire Shelf for TH3-TG-1000
00RTD0001305Wire Shelf for TH3-TG-1500
AAA80602-10Perforated Shelf for TH3-TG-180
AAA80602-12Perforated Shelf for TH3-TG-408
AAA80602-13Perforated Shelf for TH3-TG-800
AAA80602-14Perforated Shelf for TH3-TG-1000
AAA80602-15Perforated Shelf for TH3-TG-1500
AAA80550Signal Lamp for TH3-TG-180, TH3-TG-408, TH3-TG-800, TH3-TG-1000 and TH3-TG-1500
AAA8T500Recorder (Paper) for TH3-TG-180, TH3-TG-408, TH3-TG-800, TH3-TG-1000 and TH3-TG-1500
AAA8T505Recorder (Digital) for TH3-TG-180, TH3-TG-408, TH3-TG-800, TH3-TG-1000 and TH3-TG-1500
AAA8T625Water Purifier for TH3-TG-180, TH3-TG-408, TH3-TG-800, TH3-TG-1000 and TH3-TG-1500
AAA80620Direct Water System for TH3-TG-180, TH3-TG-408, TH3-TG-800, TH3-TG-1000 and TH3-TG-1500
AAA81552Inner Glass Door for TH3-TG-180
AAA81551Inner Glass Door for TH3-TG-408
