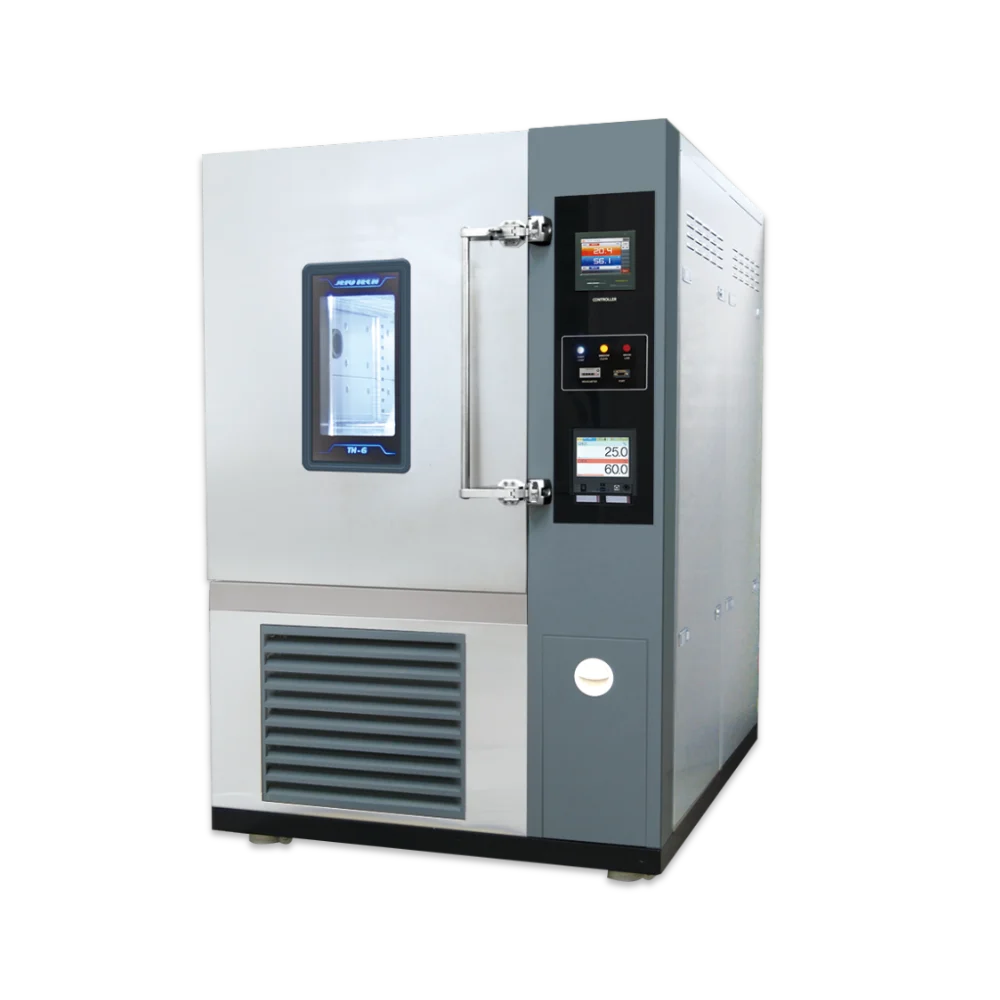

Environmental Chamber – Low Temperature

The Low Temperature Environmental Chamber from Jeiotech is ideal for chemical testing, biological studies, and controlled plant or animal growth experiments. Built with insulated construction, this Environmental Chamber provides consistent heating and cooling while minimizing energy loss and temperature fluctuation. Its stable performance and efficient design make it a valuable tool for research labs in South Africa.

Available through Apex Scientific, it offers reliable environmental control for long-term studies and sensitive testing conditions. Explore our full range of Environmental Chamber models and learn how to choose the best fit for your lab by visiting our Insights page.

The Environmental Chamber – Low Temperature by Jeiotech is designed to excel in all your laboratory needs, whether for chemical experiments or plant and animal growth tests. At Apex Scientific, we proudly offer this cutting-edge equipment in South Africa, ensuring your research meets the highest standards.

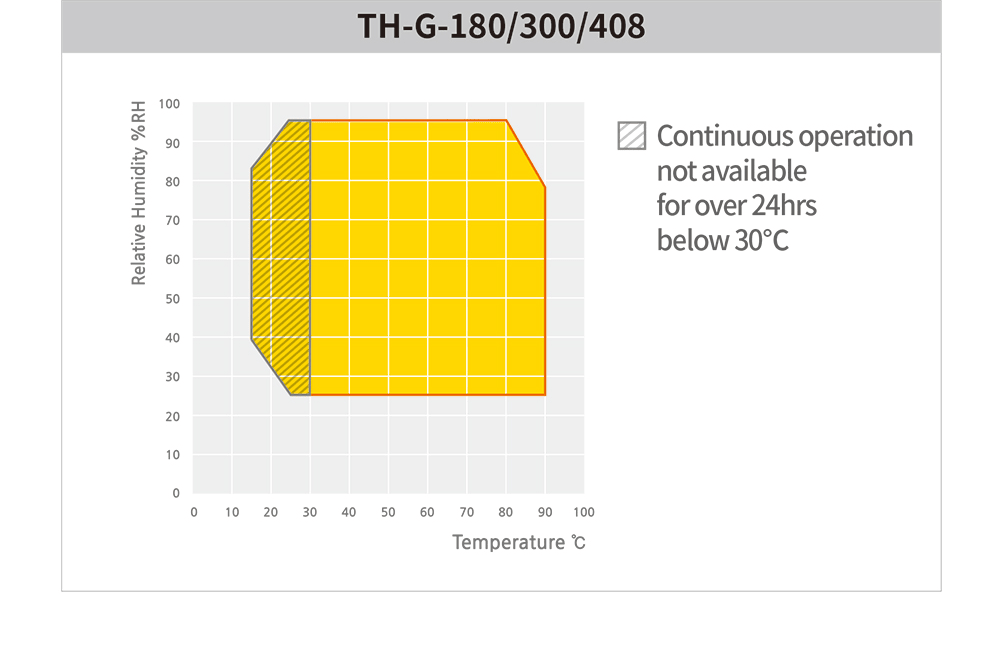

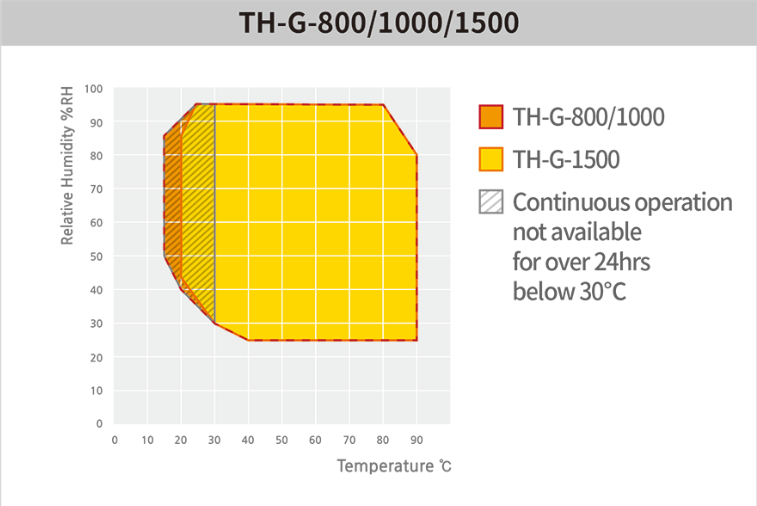

Temperature and Humidity Operating Ranges

The JeioTech TH-G and TH3-G Environmental Chambers provide controlled temperature and humidity conditions for laboratory testing and stability studies.

They also highlight operating limitations and conditions affecting continuous operation beyond 24 hours.

Performance

This chamber features microprocessor PID control for precise temperature calibration and automatic tuning. Its advanced capabilities in low and high-temperature management, coupled with effective humidity control, make it ideal for long-term testing. The humidification tank is strategically placed to enhance performance while reducing water consumption through an efficient recycling and filtering system.

An air-tight door closure ensures that heat loss is minimized, thanks to heat-resistant silicone packing that effectively blocks high temperatures. A two-point door latch further enhances the tightness of the closure, contributing to energy efficiency through optimized insulation. Even at maximum temperature settings, the unit remains safe to touch, with surface temperatures not exceeding 60℃.


Safety Features

Safety is paramount in laboratory settings. This chamber includes:

  • A built-in door lock with a key for security.
  • Automatic shut-off activated by an overheat alarm.
  • Low and empty water level alarms for operational integrity.
  • A power supply leakage breaker and overcurrent protection.
  • An open-door alarm to prevent unintended exposure.



Convenience Features

With a spacious chamber volume of up to 1500L, it caters to various user needs. The corrosion-resistant stainless-steel construction and electric polished humidification tank ensure durability. Maintenance is straightforward, facilitated by a front water tank and a portable water container for easy refilling. Optional direct water systems enhance convenience for long-term tests.

Level-Checker™ function for monitoring water level
Door handle with a built-in key lock
Heated viewing window and LED interior lighting
Possible to check the operation status with graphs

The tempered glass door with built-in heating wire allows for clear observation of your samples. Energy-efficient LED lighting boosts visibility, while optional inner glass doors provide a wider view. A 50mm diameter cable port is standard for connecting external probes, with customizable options available.

Mobility is also a focus, with casters for easy relocation. Our user-friendly LCD controller features a 5.7-inch interactive touch display, allowing you to monitor set and present values simultaneously. Operating progress is easily interpretable through graphical modes, and built-in SD card support allows for data recording.

Accessories


To learn more about selecting the right chamber for your needs, read our article, Environmental Chambers Explained: Temperature, Humidity & Stability Testing on the insights page at Apex Scientific. There, you’ll find in-depth articles that explore our full range of products and their applications across different research and testing environments.

ModelTH-G-800TH-G-1000TH-G-1500TH3-G-180TH3-G-408
Chamber volume (L / cu ft)800 / 28.31000 / 35.31450 / 57.1180 / 6.4408 / 14.4
ControllerProgrammable, Touch screen type controller (5.7” color monitor)–
Temperature
Range (°C / °F) at 60Hz-40 to 100 / -40 to 212
Range (°C / °F) at 50Hz-35 to 100 / -31 to 212–
Fluctuation 1) (±°C / °F) at 40°C / 75%RH0.3 / 0.540.5 / 0.9
Variation 1) (±°C / °F) at 40°C / 75%RH0.5 / 0.9–
Heating time (-40°C to 100°C) (min.)70901.0 / 1.8
Cooling time (20°C to -40°C) (min.)75901.0 / 1.8
Humidity
Range (%RH)25 to 95
Fluctuation 1) (±%RH) at 75%RH / 40°C1–22.5
Variation 1) (±%RH) at 75%RH / 40°C3–
Refrigeration
SystemMechanical dual stage refrigerator system (air-cooled condenser)–
Refrigerant-R 507.00–
Water supply
Capacity (L / cu ft)15 / 0.53 – Cartridge type13 / 0.5
Water qualitypH 6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below–
No. of wire shelves (standard / max.)2 / 143 / 18–
Distance between shelves (mm / inch)40 / 1.660 / 2.4
Max. load per shelf (kg / lbs)40 / 88.220 / 44.1
Permitted total load (kg / lbs)100 / 220.5
Width (mm / inch)–500 / 19.7600 / 23.6
Depth (mm / inch)–630 / 24.8850 / 33.5
Height (mm / inch)–600 / 23.6800 / 31.5
Dimension (W×D×H)
Interior (mm / inch)1000×800×1000 / 39.4×31.5×39.41000×1000×1000 / 39.4×39.4×39.41000×1000×1450 / 39.4×39.4×57.1–
Exterior (mm / inch)1503×1319×1968 / 59.2×51.9×77.51503×1519×1968 / 59.2×59.8×77.51503×2065×2007 / 59.2×81.3×79–
Viewing windows (mm / inch)270×330 / 10.6×13–
Net weight (kg / lbs)620 / 1366.9680 / 1499.1860 / 1895.9–
Cable portBasically one hole provided / Ø50mm (2”) – Optionally max. two holes available / Ø50 or 80mm (2 or 3.2”)50 / 2.0 (mm/inch)
Interface portBasically RS-232C [RS-485-optional]–
Electrical data & Ordering information
Electrical requirements (230V, 1P, 50Hz, A)–30
Cat. No. (230V, 1P, 50Hz)–AAH800313KAAH800333K
Cat. No. (additional entry)–
Electrical requirements (380V, 3P, 50/60Hz, A)12.215.511
Cat. No. (380V, 3P, 50/60Hz)AAH80048KAAH80058KAAH80078KAAH800318KAAH800338K

1) Technical data according to DIN 12880, IEC 60068.
※ Permissible environmental conditions: temperature (18 to 30℃) and relative humidity (up to 85%).
※ All specifications are under ambient temperature 20℃ (68℉), No load
※ The above specifications comply with DIN 12880 and IEC 60068 standards.
※ Data were obtained under no-load chamber conditions at 25 °C ambient temperature with a 380 V / 60 Hz / 3P power supply.
※ Permissible environmental conditions are 18 – 30°C (recommended 20°C), 85%RH or less, under 2000m above sea level.
※ The DI water condition is pH 6.2 – 7.2 and the electrical conductivity is less than 20㎲/cm.
※ Verify the plug type and the electrical capacity at the installation site before installation.
※ For set temperatures at or below 5 °C, continuous operation is limited and defrost cycles may be required.
※ Specifications may be changed without prior notice to improve performance and quality.
1) Temperature performance follows IEC 60068-3-5, and humidity performance follows IEC 60068-3-6.
※ Continuous operation below 10℃ without humidity control is available only for a limited duration.
(The allowable continuous operating time may vary depending on the operating environment.)

SKUDescription

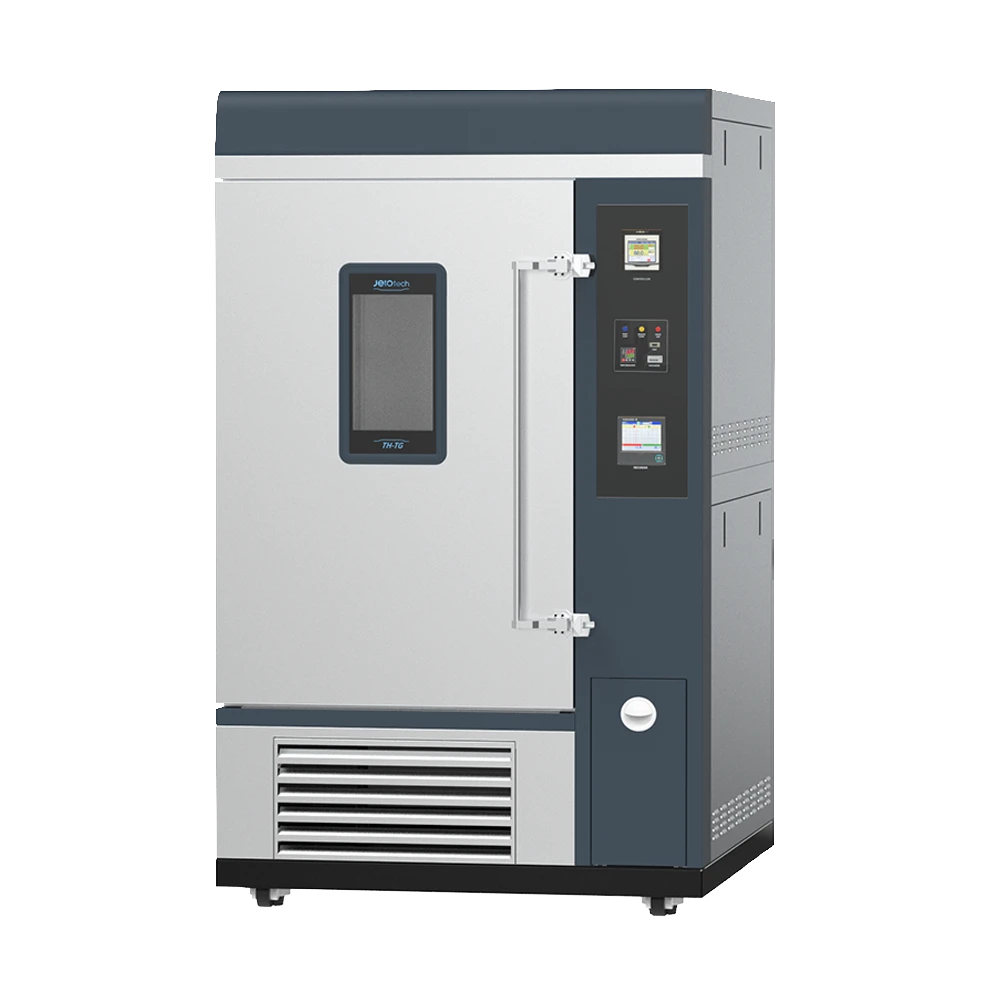

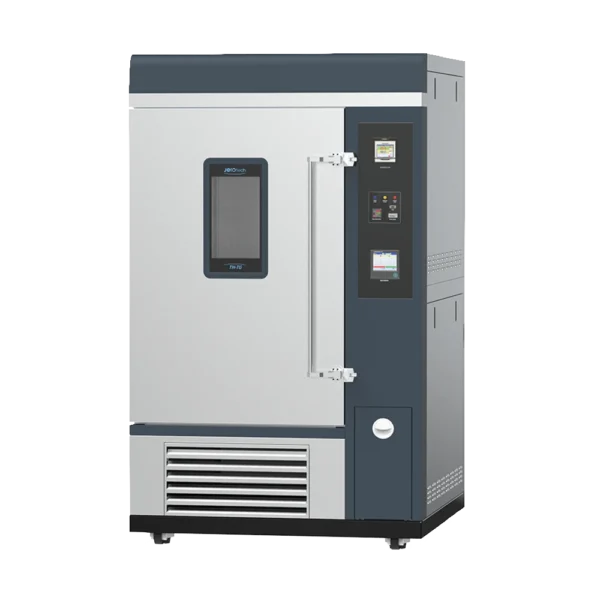

AAH80048KTH-G-800 Constant Temp. and Humidity Chamber 800LT, 380V, 50/60Hz, 3ph
AAH80058KTH-G-1000 Constant Temp. and Humidity Chamber 1000LT, 380V, 50/60Hz, 3ph

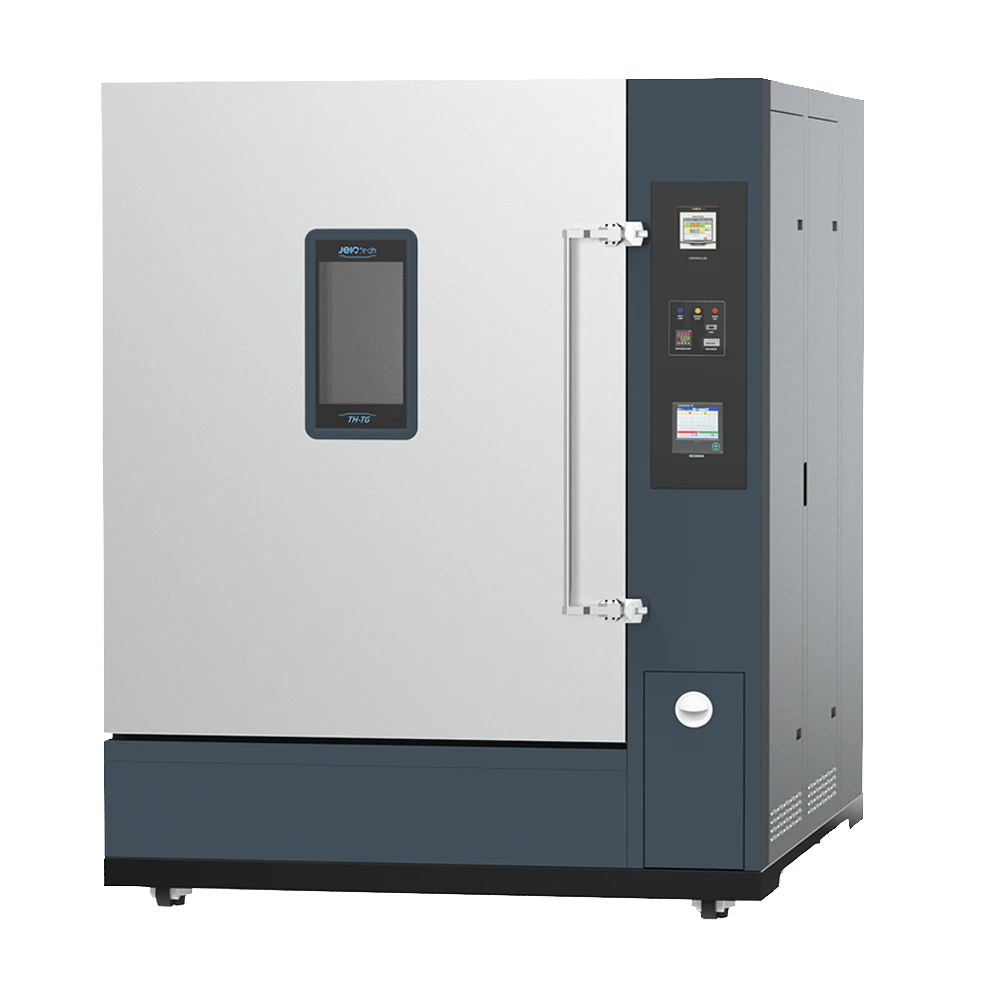

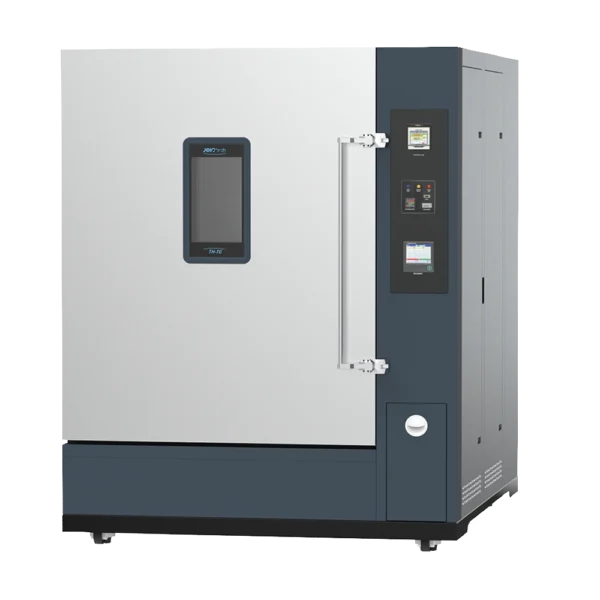

AAH80078KTH-G-1500 Constant Temp. and Humidity Chamber 1500LT, 380V, 50/60Hz, 3ph

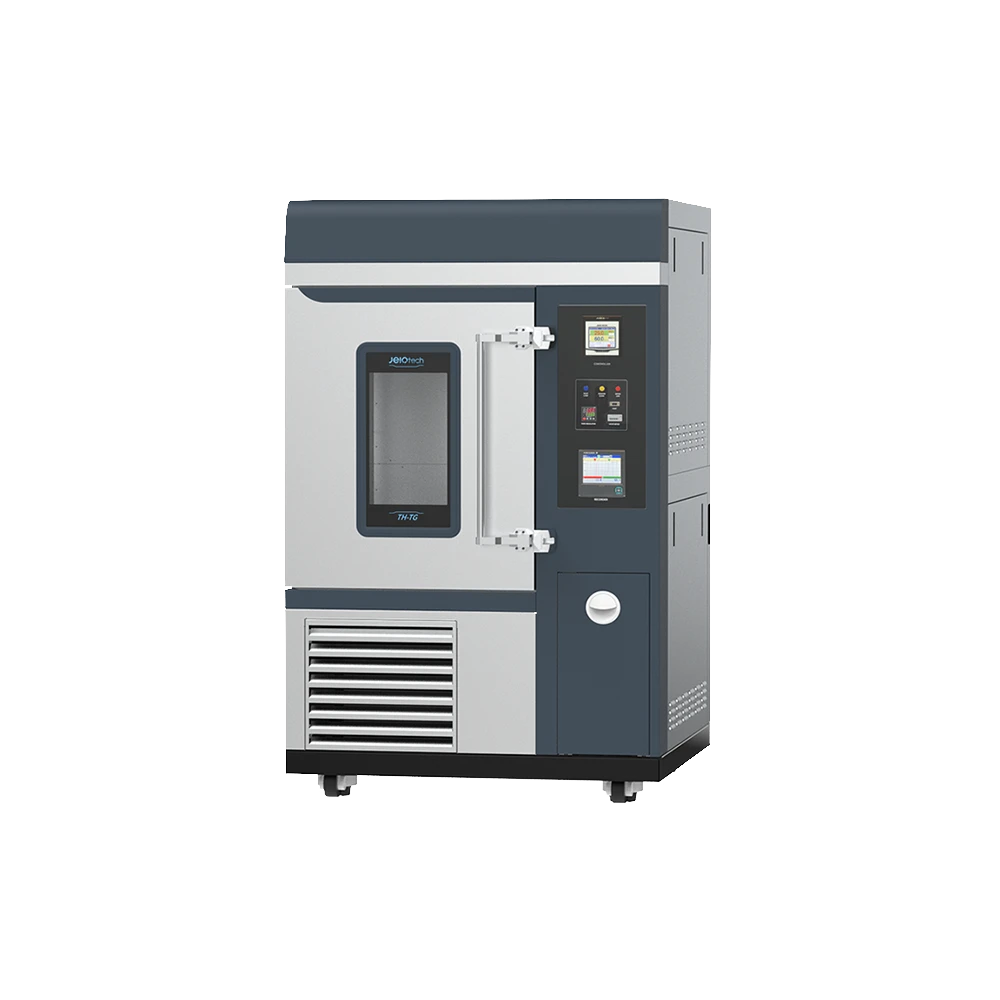

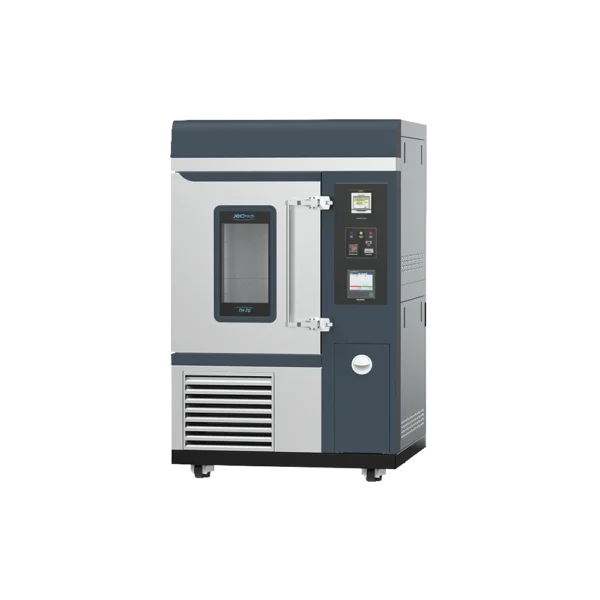

AAH800313KTH3-G-180 Constant Temp. and Humidity Chamber 180LT, 230V, 50Hz, 1ph
AAH800311TH3-G-180 Constant Temp. and Humidity Chamber 180LT, 230V, 60Hz, 1ph
AAH800318KTH3-G-180 Constant Temp. and Humidity Chamber 180LT, 380V, 50/60Hz, 3ph

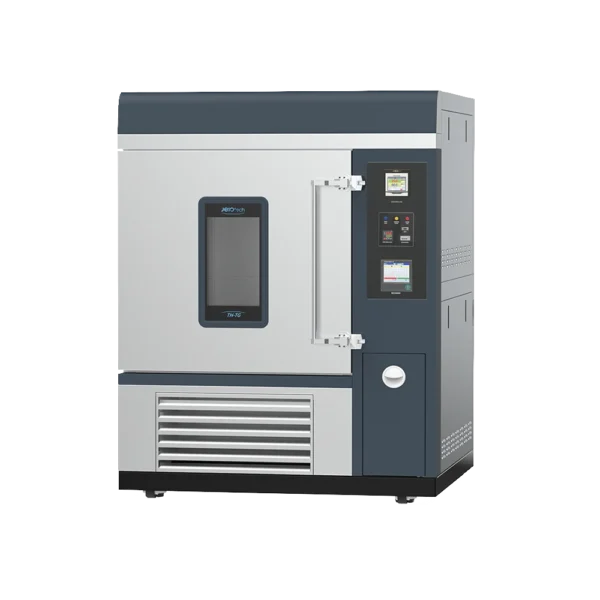

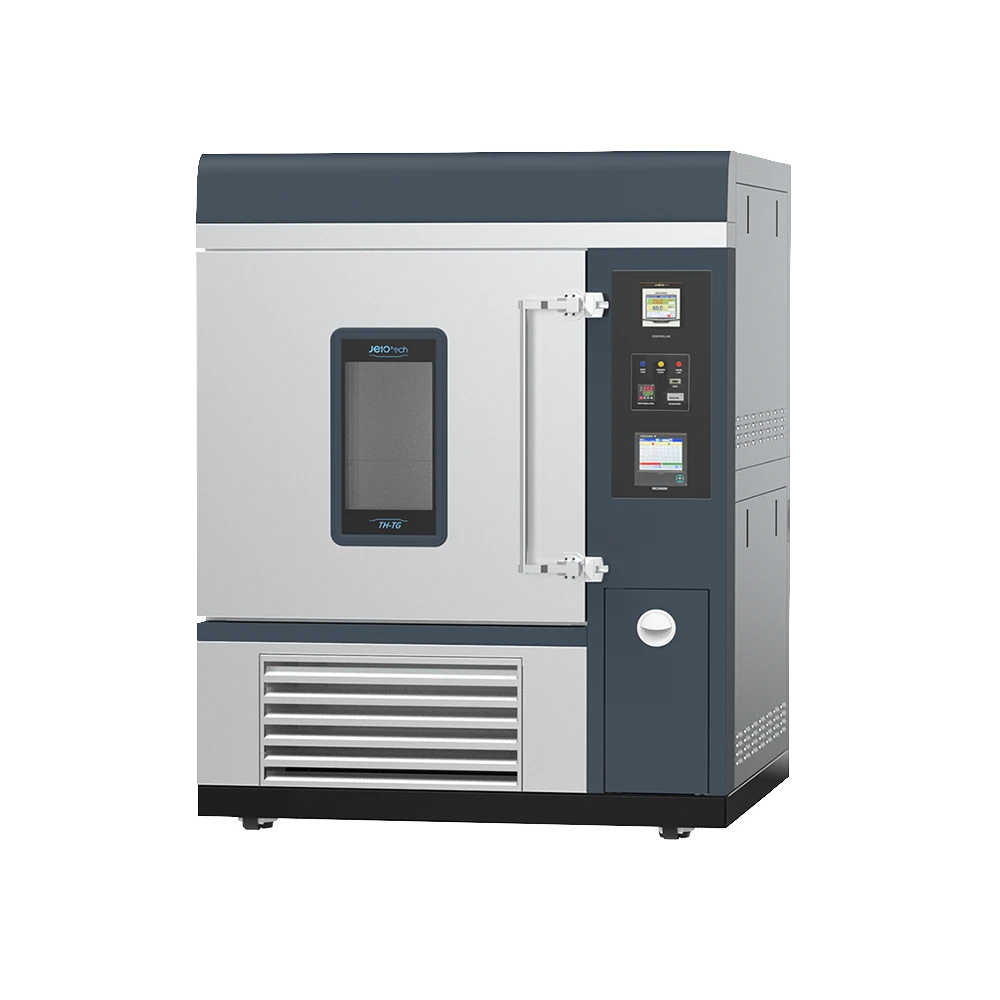

AAH800333KTH3-G-408 Constant Temp. and Humidity Chamber 408LT, 230V, 50Hz, 1ph
AAH800331TH3-G-408 Constant Temp. and Humidity Chamber 408LT, 230V, 60Hz, 1ph
AAH800338KTH3-G-408 Constant Temp. and Humidity Chamber 408LT, 380V, 50/60Hz, 3ph



Accessories

SKUDescription
AAA8T500Recorder (6 points) for TH-G-800, TH-G-1000, TH-G-1500, TH3-G-180 and TH3-G-408
AAA8T505Recorder (digital, 6 channels) for TH-G-800, TH-G-1000, TH-G-1500, TH3-G-180 and TH3-G-408
AAA8T540Interface converter RS-485C to 232C, including cable (5m / 16.4ft) for TH-G-800, TH-G-1000 and TH-G-1500
AAA8T542Interface cable (5m / 16.4ft) for TH-G-800, TH-G-1000 and TH-G-1500
AAA80550Warning signal lamp for TH-G-800, TH-G-1000, TH-G-1500, TH3-G-180 and TH3-G-408
AAA81550Inner glass door for TH-G-800 and TH-G-1000
AAA8T610Cable port (Ø 50mm / 2″) for TH-G-800, TH-G-1000, TH-G-1500, TH3-G-180 and TH3-G-408
AAA8T611Cable port (Ø 80mm / 3.2″) for TH-G-800, TH-G-1000, TH-G-1500, TH3-G-180 and TH3-G-408
00CFA0001185Temperature sensor (RTD type) for TH-G-800, TH-G-1000 and TH-G-1500
00CFA0007113Humidity sensor for TH-G-800, TH-G-1000 and TH-G-1500
AAA80622Water cartridge tank for TH-G-800, TH-G-1000 and TH-G-1500
AAA8T625Water purifier for TH-G-800, TH-G-1000, TH-G-1500, TH3-G-180 and TH3-G-408
AAA80620Direct water system for TH-G-800, TH-G-1000, TH-G-1500, TH3-G-180 and TH3-G-408
00EDA0008215Wire shelf for TH-G-800
00EDA0008216Wire shelf for TH-G-1000
00RTD0001305Wire shelf for TH-G-1500
AAA80602-4Perforated shelf for TH-G-800
AAA80602-5Perforated shelf for TH-G-1000
AAA80604-16Perforated shelf for TH-G-1500
00EDA0008212Wire shelf for TH3-G-180
00EDA0008214Wire shelf for TH3-G-408
AAA80602-10Perforated shelf for TH3-G-180
AAA80602-12Perforated shelf for TH3-G-408
AAA81552Inner glass door for TH3-G-180
AAA81551Inner glass door for TH3-G-408
