Performance
- Temperature range from ambient +5℃ to 70℃.
- Independent temperature and timer control of each chamber using microprocessor PID.
- Temperature calibration.
- Automatic tuning.
- Forced air convection generated by a noiseless and powerful sirocco fan ensuring optimal air circulation, temperature uniformity.
Convenience
- Two or four independently controlled 60L chambers merged into a single unit for space saving.
- Intuitive control panel with bright LED display. (0.1℃resolution)
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Three most commonly used temperature settings programmable.
- Corrosion-resistant incoloy sheath heating element and stainless steel interior.
- Rounded inner chamber corners for easy cleaning and optimal airflow.
- Built-in cable port to use other instruments inside the chamber.
- Built-in casters for easy transport and installation.
Safety
- Automatic run after power interruption.
- Keypad lock function prevents accidental changes during operation.
- Over-temperature and over-current protection.
- Audible and visible open door alarms.
Specifications
Model | IB-02G-2C | IB-02G-4C | |
---|---|---|---|
Chamber volume (L / cu ft) | 60 / 2.1 x 2 chambers | 60 / 2.1 x 4 chambers | |
Temperature | Range (℃ / ℉) | Amb. +5 to 70 / Amb. +9 to 158 | |
Fluctuation 1) at 37℃ (±℃ / ℉) | 0.1 / 0.18 | ||
Variation 1) at 37℃ (±℃ / ℉) | 0.6 / 1.08 | ||
Dimension(W×D×H) | Interior (mm / inch) | 400×360×420 / 15.7×14.2×16.5
x 2 chambers |
400×360×420 / 15.7×14.2×16.5
x 4 chambers |
Exterior (mm / inch) | 570×640×1360 / 22.4×25.2×53.5 | 1170×640×1360 / 46.1×25.2×53.5 | |
No. of wire shelf (standard/ max.) |
2 / 7 per chamber |
2 / 7 per chamber |
|
Net weight (Kg / lbs) | 110 / 242.5 | 168 / 370.4 | |
Electrical requirements (230V, 50 / 60Hz) | 4.1A | 4.1A x 2EA | |
Cat. No. | AAH2A115K | AAH2A015K | |
Electrical requirements (120V, 50 / 60Hz) | 7.5A | 7.5A x 2EA | |
Cat. No. | AAH2A116U | AAH2A016U |
1) Technical data according to DIN 12880.
Wire shelves |
Perforated shelves |

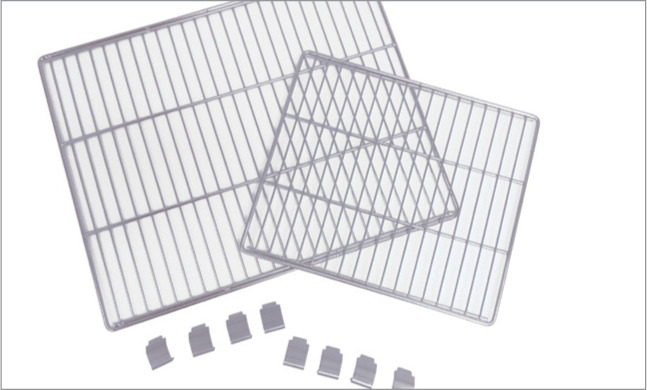

Wire shelves – Stainless steel and electro-polished shelves are readily removed without using tools for easy cleaning.
Cat. No. | Description | Suitable for | ||
---|---|---|---|---|
Included | Maximum | W×L (mm / inch) | ||
EDA8136 | 4 | 14 | 366×316 / 14.4×12.4 | IB-02G-2C |
8 | 28 | IB-02G-4C |

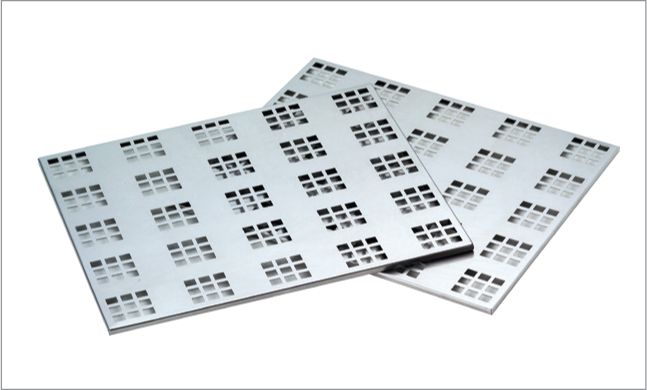

Perforated shelves – Stainless steel shelves are readily removed without using tools for easy cleaning.
Cat. No. | Description | Suitable for | |
---|---|---|---|
Maximum | W×L (mm / inch) | ||
AAA12531 | 14 | 366×316 / 14.4×12.4 | IB-02G-2C |
28 | IB-02G-4C |
